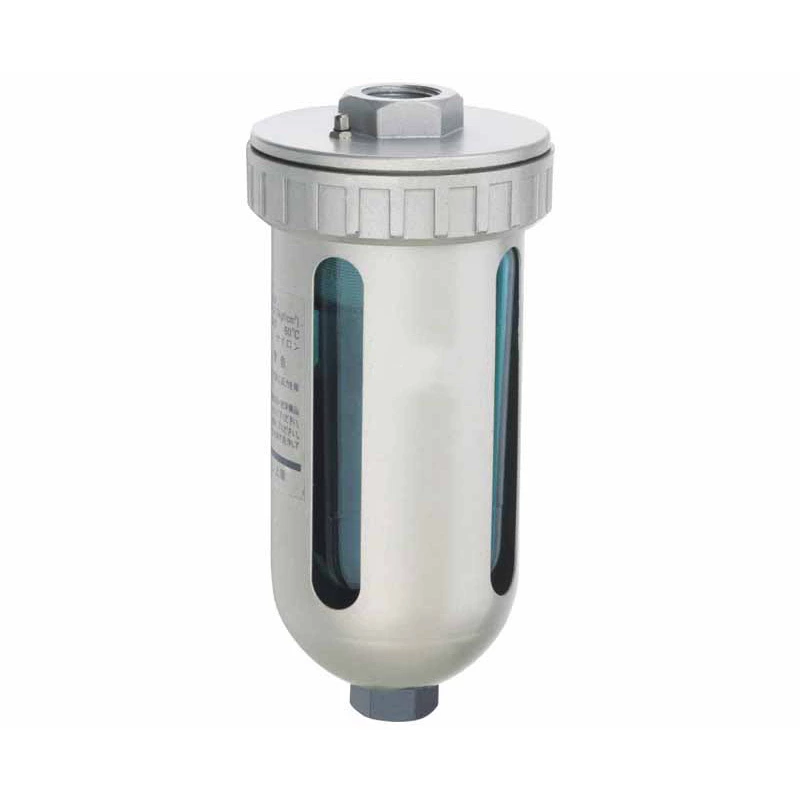

HAD402
This product often applies to auto remove the see per at thelower places of piping,frozen type air drying machine.Oil separator, air storage tanks and the bottom of various air filters.
Specification
| Model | HAD402-02 | HAD402-03 | HAD402-04 |
| Ensured Pressure Resistance | 1.5MPa | ||
| Operating Pressure | 0.15MPa-1.00MPa | ||
| Ambient and Fluid Temperature | 5-60°C | ||
| Port Size | G1/4" | G3/8” | G1/2" |
| Drain Bore | G1/8" | ||
| Drain Status | Normal Open type | ||
| Working Medium | Compressed Air | ||

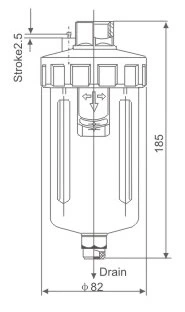

Overall Dimensions
Other info
Range of Application:
This product often applies to auto remove the see per at thelower places of piping,frozen type air drying machine.Oil separator, air storage tanks and the bottom of various air filters. It can be installed in the places inconvenient for manual discharge of sewage,such as higher,lower and narrow places,especially there slarge consumption of air or frequent water drains.It can prevent the compressed air being re-polluted by con-dense water resulting from neglect of manual drain.
Feature：
Auto Drain/Air Shutoff Drain/Manual Drain
The water cup is provided with metal protective cover
Points For Attention:
When using,the draine r should be installed ve rt ically the drain
port facing down
