For high pressure use; corrosion and chemical resistance.
-
Good performance in chemically working environments and outdoor facility.
-
Suitable for semi-conductor industry.
-
Effectively removes water and particle.
-
Strict quality control.
-
Light weight; compact size for space saving.
-
High pressure resistant.low temperature resistance,corrosion resistance.
Specifications
| Model |
F-200 / 400 / 600
|
|
Port size
|
1/4 3/8 1/2 3/4 1"
|
|
Fluid
|
Compressed air |
|
Body material
|
Stainless steel SUS316 |
|
Bowl material
|
Stainless steel SUS316 |
|
Filter element material
|
Stainless steel SUS316 |
|
Filtration accuracy
|
5μm（Standard）40μm（Option）
|
|
Operating pressure range
|
Atmospheric Pressure 0.5~16kgf/cm² / High Pressure 5~30kg/cm²
|
|
Proof pressure
|
40kgf/cm²
|
|
Ambient temperature
|
Normal Temperature -5°C~100°C / High Temperature -40℃ ~50℃ /High Temperature -60℃ ~100℃
|
|
Standard drain
|
Semi-auto drain (Drains below 0.5kgf/cm²)
|
|
Accessories(Option)
|
Mounting bracket,Screw x 2
|

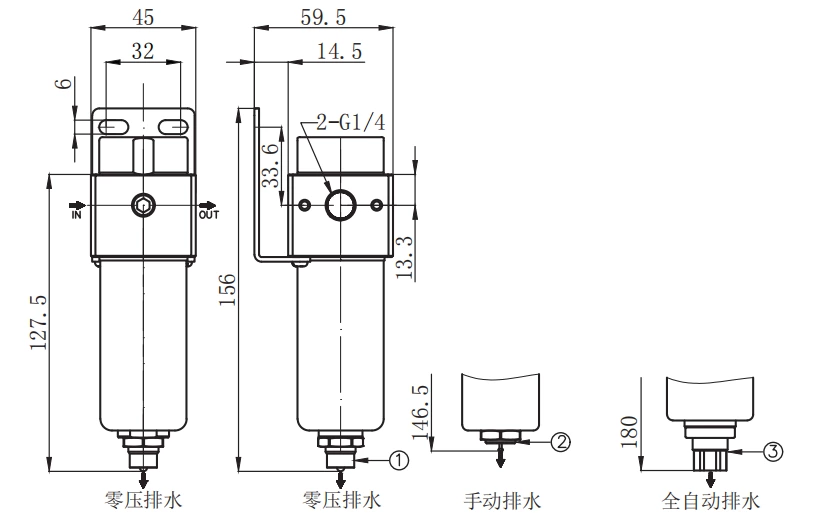

F-200
1: Drain port internal thread G1/8, with manual drain device
2: Barb connector for connecting plastic pipe
3: Drain port internal thread G1/8
| Model | Model | Max.flow rae | Standard drain | Filter bowl capacity |
| F-200-02 | 1/4 | 1900 l/min | 1240g | 105cc |

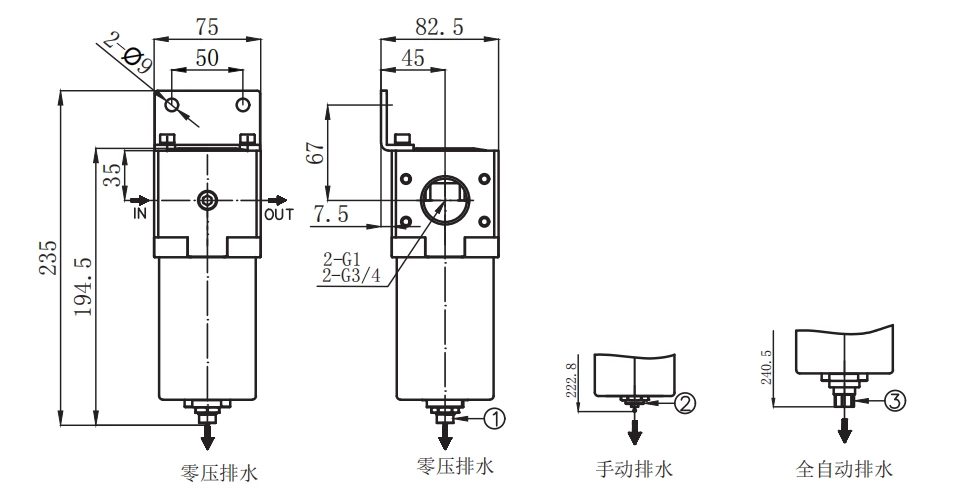

F-400
1: Drain port internal thread G1/8, with manual drain device
2: Barb connector for connecting plastic pipe
3: Drain port internal thread G1/8
| Model | Model | Max.flow rae | Standard drain | Filter bowl capacity |
| F-400-03 | 3/8 | 2450 l/min | 1630g | 110cc |
| F-400-04 | 1/2 | 3030 l/min | 1600g |

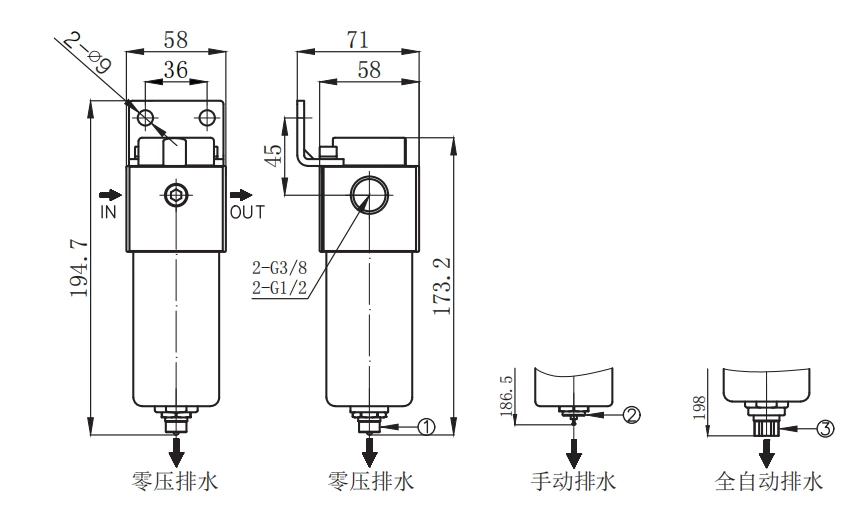

F-600
1: Drain port internal thread G1/8, with manual drain device
2: Barb connector for connecting plastic pipe
3: Drain port internal thread G1/8
| Model | Model | Max.flow rae | Standard drain | Filter bowl capacity |
| F-600-06 | 3/8 | 9600 l/min | 3900g | 110cc |
| F-600-10 | 1" | 9600 l/min | 3800g |
