Stainless Steel Filter Regulator

  • For high pressure use; corrosion and chemical resistance.

  • Good performance in chemically working environments and outdoor facility.

  • Suitable for semi-conductor industry.

  • Large flow rate and effectively removes water and particle.

  • Accurate and sensitive pressure setting.

  • Light weight; compact size for space saving.

  • High pressure resistant.low temperature resistance,corrosion resistance.

Specifications

Model
FR-200 / 400 / 600
Port size
1/4 3/8 1/2 3/4 1"
Fluid
Compressed air
Regulator construction
Piston
Body material
Stainless steel SUS316
Bowl material
Stainless steel SUS316
Pressure gauge material
Case:Stainless steel SUS304,/Thread:Stainless steel SUS316
Filter element material
Stainless steel SUS316
Filtration accuracy
5μm(Standard)40μm(Option)
Operating pressure range
Atmospheric Pressure 0.5~16kgf/cm² / High Pressure 5~30kg/cm²
Proof pressure
40kgf/cm²
Ambient temperature
Normal Temperature -5°C~100°C / High Temperature -40℃ ~50℃ /High Temperature -60℃ ~100℃
Lubricator bowl capacity
Semi-auto drain (Drains below 0.5kgf/cm²)
Net weight
Pressure gauge,Mounting bracket,Plug, Screw x 2
Accessories
Pressure gauge
(0~16kg / 0~60kg)

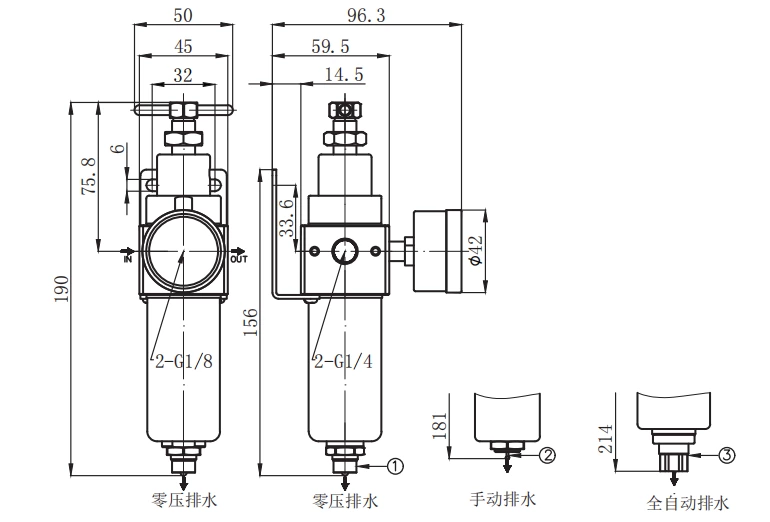

FR-200

Stainless Steel Filter Regulator

1: Drain port internal thread G1/8, with manual drain device
2: Barb connector for connecting plastic pipe
3: Drain port internal thread G1/8

Model Model Max.flow rae Standard drain Lubricator bowl capacity
FR-200-02 1/4 1850 l/min 1340g 105cc

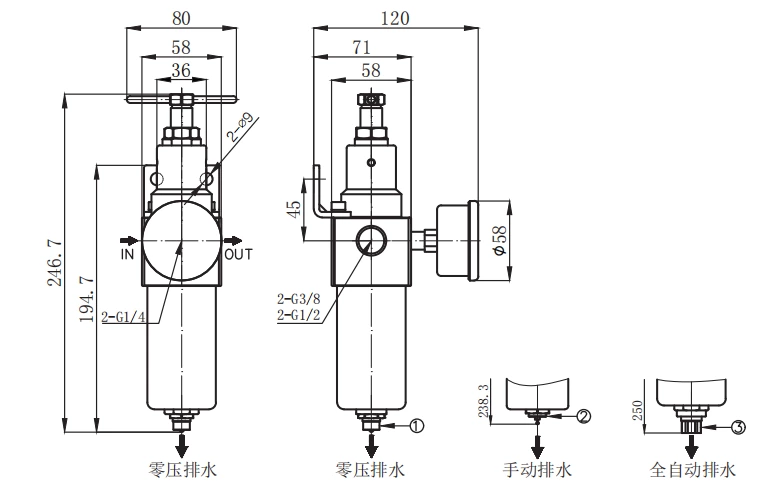

FR-400

Stainless Steel Filter Regulator

1: Drain port internal thread G1/8, with manual drain device
2: Barb connector for connecting plastic pipe
3: Drain port internal thread G1/8

Model Port size Max.flow rae Standard drain Lubricator bowl capacity
FR- -400-03 3/8 2200 l/min 1960g 110cc
FR- -400-04 1/2 2500 l/min 1940g

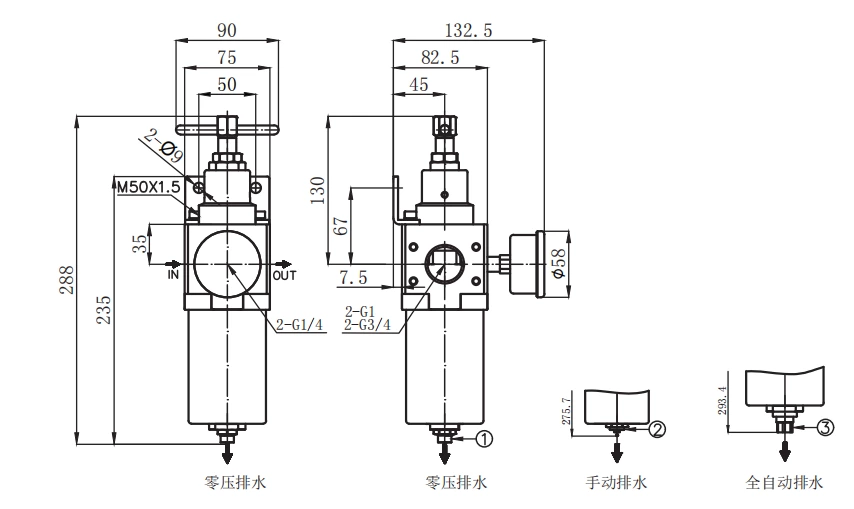

FR-600

Stainless Steel Filter Regulator

1: Drain port internal thread G1/8, with manual drain device
2: Barb connector for connecting plastic pipe
3: Drain port internal thread G1/8

Model Port size Max.flow rae Standard drain Lubricator bowl capacity
FR- -600-06 3/8 7600 l/min 4520g 200cc
FR- -600-10 1" 8000 l/min 4500g
