For high pressure use and chemical resistance.
-
Good performance in chemically working environments and outdoor facility.
-
Suitable for semi-conductor industry.
-
Lubricator oil can be replenished without stopping air supply.
-
Oil spray in mist ensures good lubrication for machines.
-
Light weight; compact size for space saving.
-
corrosion resistance.
Specifications
|
Model
|
L-200 / 400 / 600
|
|
Port size
|
1/4 3/8 1/2 3/4 1"
|
|
Fluid
|
Compressed air
|
|
Body material
|
Stainless steel SUS316
|
|
Bowl material
|
Stainless steel SUS316
|
|
Operating pressure range
|
Atmospheric Pressure 0.5~16kgf/cm² / High Pressure 5~30kg/cm²
|
|
Proof pressure
|
40kgf/cm²
|
|
Max.flow rate/1/min(ANR)
|
2500 L/min
|
|
Ambient temperature
|
Normal Temperature -5°C~100°C / High Temperature -40℃ ~50℃ /High Temperature -60℃ ~100℃
|
|
Accessories(Option)
|
Mounting bracket,Screw x 2
|

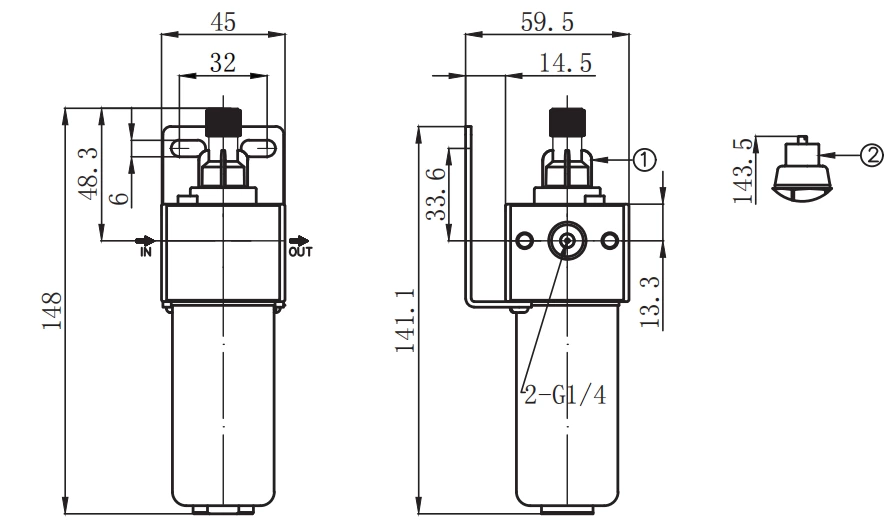

L-200
1: Low pressure visible oil window
2: High pressure invisible oil window
| Model | Port size | Max.f1ow rae | Standard drain | Filter bowl capacity |
| L-200-02 | 1/4 | 2500 I/min | 1150g | 125cc |

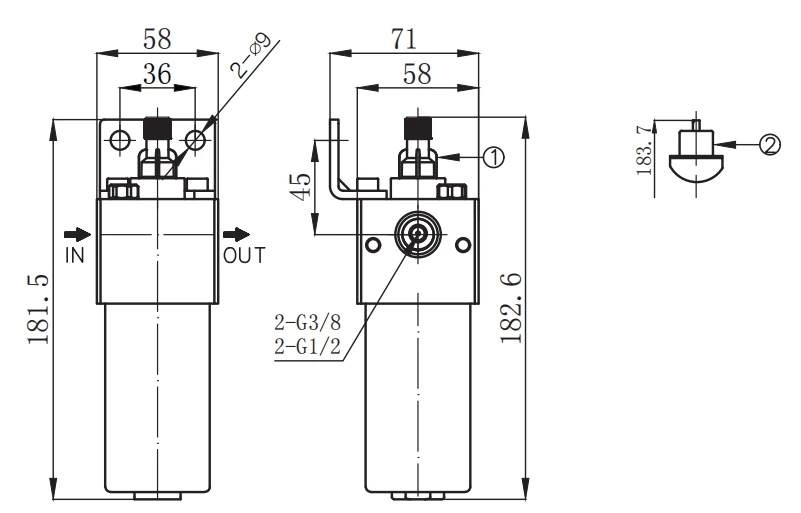

L-400
1: Low pressure visible oil window
2: High pressure invisible oil window
| Model | Port size | Max.f1ow rae | Standard drain | Filter bowl capacity |
| L-400-03 | 3/8 | 2525 I/min | 1700g | 130cc |
| L-400-04 | 1/2 | 4100 I/min | 1680g |

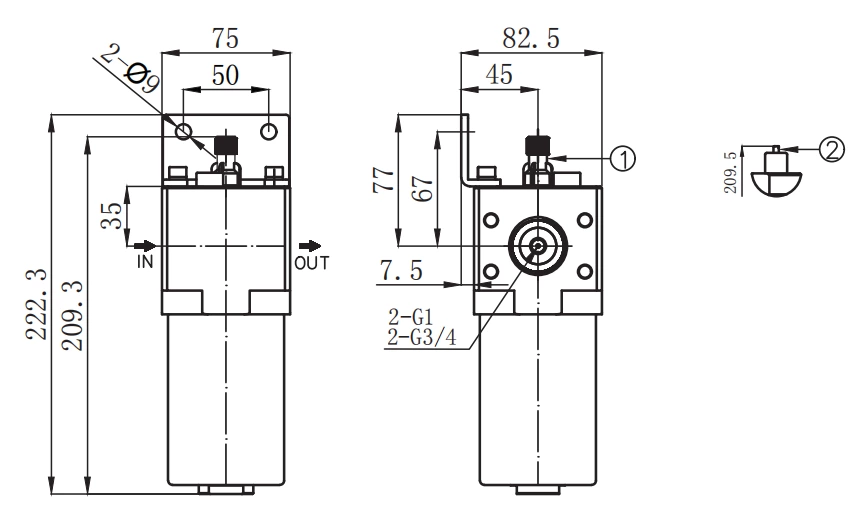

L-600
1: Low pressure visible oil window
2: High pressure invisible oil window
| Model | Port size | Max.f1ow rae | Standard drain | Filter bowl capacity |
| L-600-06 | 3/8 | 13200 I/min | 3300g | 200cc |
| L-600-10 | 1" | 13200 I/min | 3270g |
