For high pressure use; corrosion and chemical resistance.
-
Good performance for outdoor facility.
-
Suitable for semi-conductor industry.
-
The product effectively removes water and particle.
-
Accurate and sensitive pressure setting.
-
Lubricator oil can be replenished without stopping air supply.
-
Oil spray in mist ensures good lubrication for machines.
-
Light weight, compact size for space saving.
-
High pressure resistant.low temperature resistance,corrosion resistance.
Specifications
|
Model
|
FRL-200 / 400 / 600
|
|
Port size
|
1/4 3/8 1/2 3/4 1"
|
|
Fluid
|
Compressed air
|
|
Regulator construction
|
Piston
|
|
Body material
|
Stainless steel SUS316
|
|
Bowl material
|
Stainless steel SUS316
|
|
Pressure gauge material
|
Case:Stainless steel SUS304,/Thread:Stainless steel SUS316
|
|
Filter element material
|
SUS316/Stainless steel SUS316
|
|
Filtration accuracy
|
5μm（Standard）40μm（Option）
|
|
Operating pressure range
|
Atmospheric Pressure 0.5~16kgf/cm² / High Pressure 5~30kg/cm²
|
|
Proof pressure
|
40kgf/cm²
|
|
Ambient temperature
|
Normal Temperature -5°C~100°C / High Temperature -40℃ ~50℃ /High Temperature -60℃ ~100℃
|
|
Lubricator bowl capacity
|
Semi-auto drain (Drains below 0.5kgf/cm²)
|
|
Net weight
|
Pressure gauge,Mounting bracket,Plug, Screw x 2
|
|
Accessories
|
Pressure gauge
（0~16kg / 0~60kg）
|

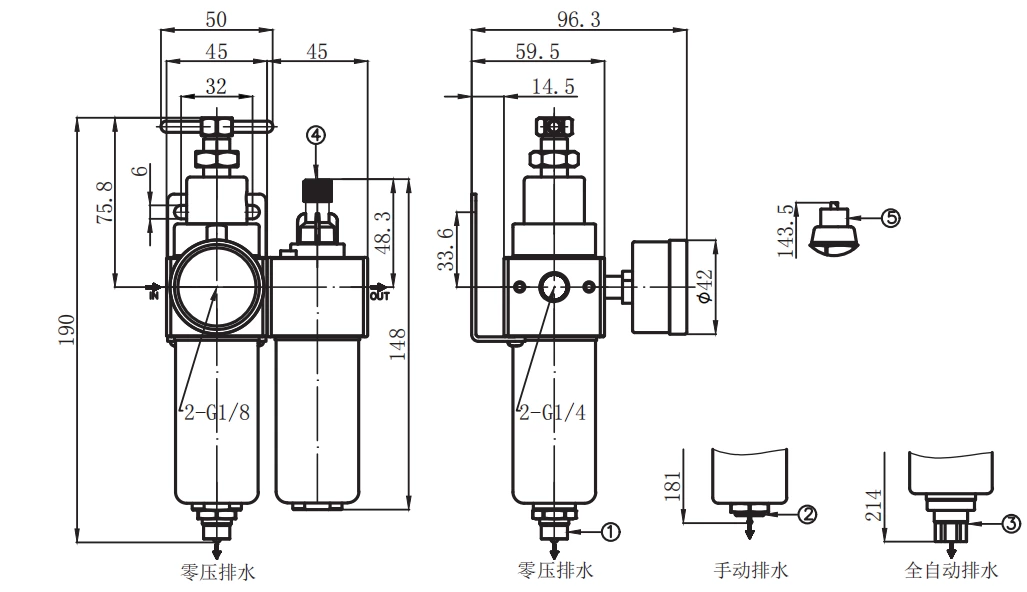

FRL-200
1: Drain port internal thread G1/8, with manual drain device
2: Barbed connector for connecting plastic pipe
3: Drain port internal thread G1/8
4: Low pressure visible oil window
5: High pressure invisible oil window
| Model | Port size | Max.flow rae | Standard drain | Lubricator bowl capacity | Filter bowl capacity |
| FRL-200-02 | 1/4 | 1850 I/min | 2640g | 105cc | 125cc |

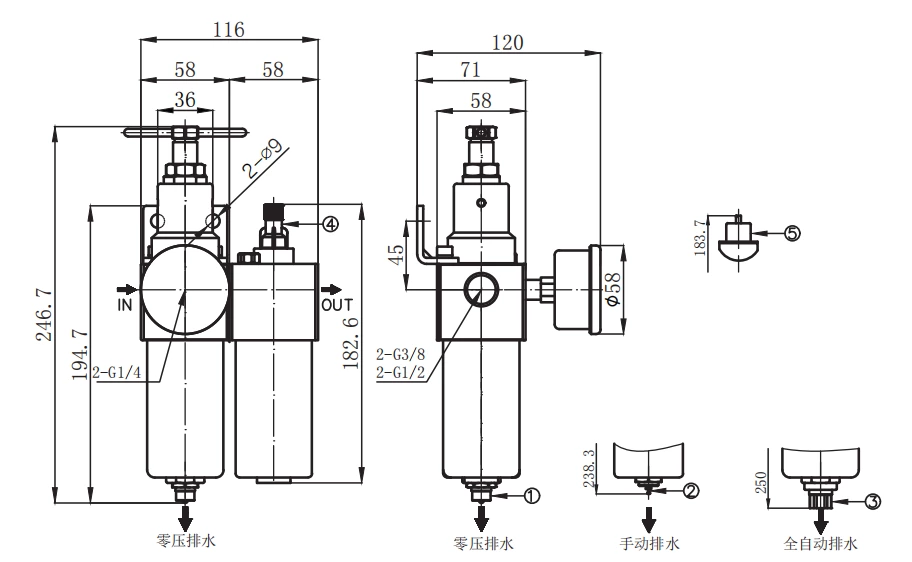

FRL-400
1: Drain port internal thread G1/8, with manual drain device
2: Barbed connector for connecting plastic pipe
3: Drain port internal thread G1/8
4: Low pressure visible oil window
5: High pressure invisible oil window
| Model | Port size | Max.flow rae | Standard drain | Lubricator bowl capacity | Fiter bowl capacity |
| FRL-400-03 | 3/8 | 2200 l/min | 3840g | 110cc | 130cc |
| FRL-400-04 | 1/2 | 2500 l/min | 3830g |

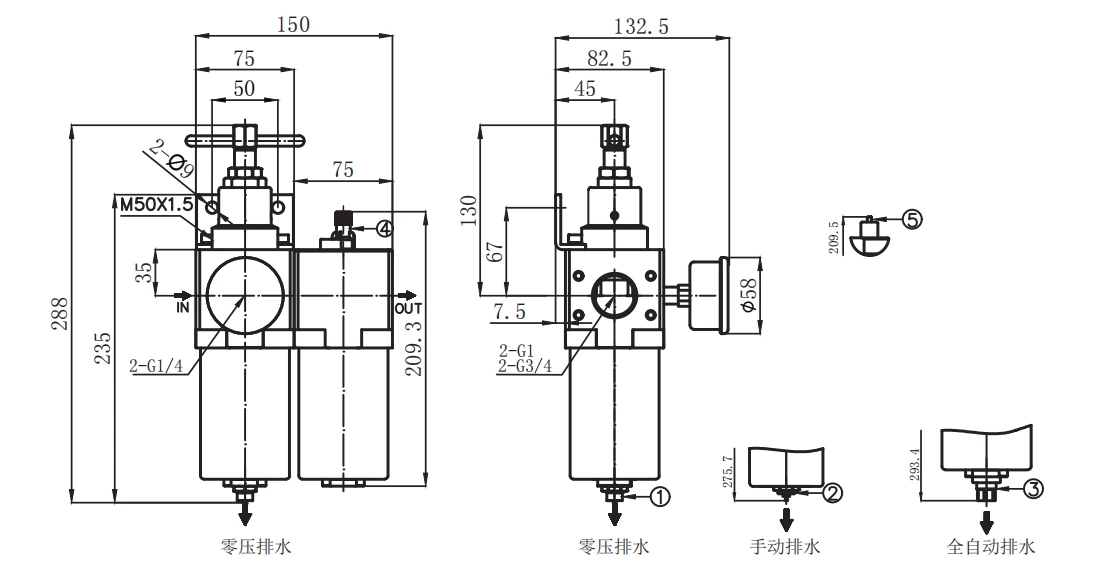

FRL-600
1: Drain port internal thread G1/8, with manual drain device
2: Barbed connector for connecting plastic pipe
3: Drain port internal thread G1/8
4: Low pressure visible oil window
5: High pressure invisible oil window
| Model | Port size | Max.flow rae | Standard drain | Lubricator bowl capacity | Fiter bowl capacity |
| FRL -600-06 | 3/4 | 7600 l/min | 7840g | 200cc | 220cc |
| FRL -600-10 | 1" | 8000 l/min | 7800g |
