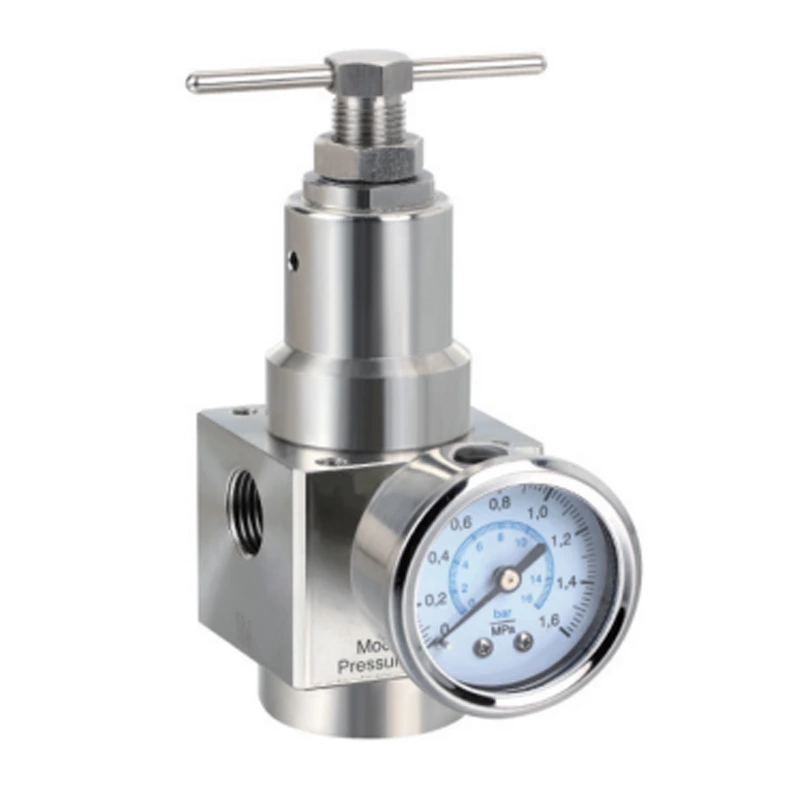

For high pressure use; corrosion and chemical resistance.
-
Good performance for outdoor facility.
-
Suitable for semi-conductor industry.
-
Large flow rate and effectively removes water and particle.
-
Accurate and sensitive pressure setting.
-
Light weight; compact size for space saving.
-
High pressure resistant.low temperature resistance,corrosion resistance.
Specifications
|
Model
|
R-200 / 400 / 600
|
|
Port size
|
1/4 3/8 1/2 3/4 1"
|
|
Fluid
|
Compressed air
|
|
Regulator construction
|
Piston
|
|
Body material
|
Stainless Steel SUS316
|
|
Pressure gauge material
|
Case:Stainless steelSUS304,Thread:Stainless steel SUS316
|
|
Operating pressure range
|
Atmospheric Pressure 0.5~16kgf/cm² / High Pressure 5~30kg/cm²
|
|
Proof pressure
|
40kgf/cm²
|
|
Ambient temperature
|
Normal Temperature -5°C~100°C / High Temperature -40℃ ~50℃ /High Temperature -60℃ ~100℃
|
|
Accessories(Option)
|
Pressure gauge,Mounting bracket,Plug, Screw x 2
|
|
Match
|
Pressure gauge（0~16kg / 0~40kg）
|

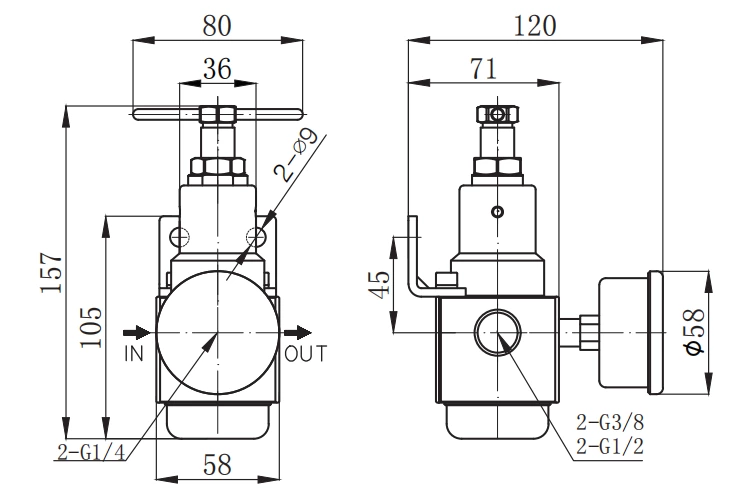

R-200
| Model | Port size | Max.flow rae | Standard drain |
| R-200-02 | 1/4 | 1850 I/min | 1150g |

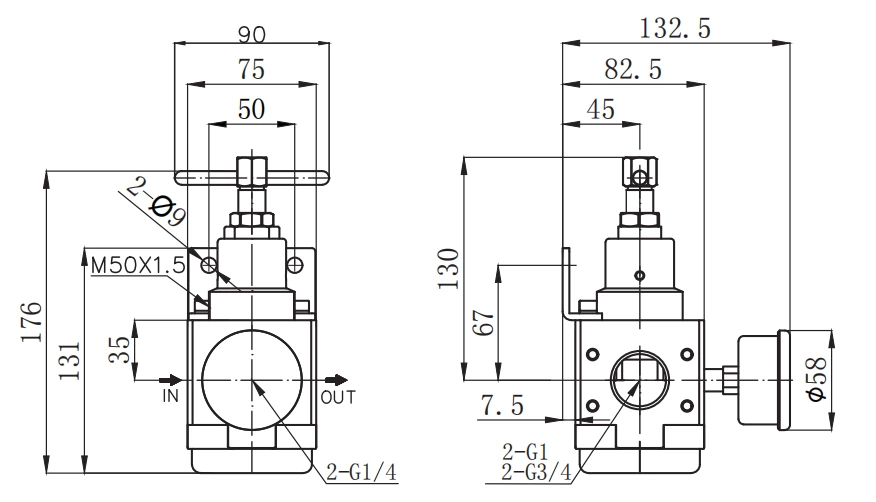

R-400
| Model | Port size | Max.flow rae | Standard drain |
| R-400-03 | 3/8 | 2250 I/min | 1350g |
| R-400-04 | 1/2 | 2520 I/min | 1300g |
R-600
| Model | Port size | Max.flow rae | Standard drain |
| R-600-06 | 3/4 | 9000 I/min | 3300g |
| R-600-10 | 1" | 9400 I/min | 3200g |
