Overall Dimensions
 |
 |

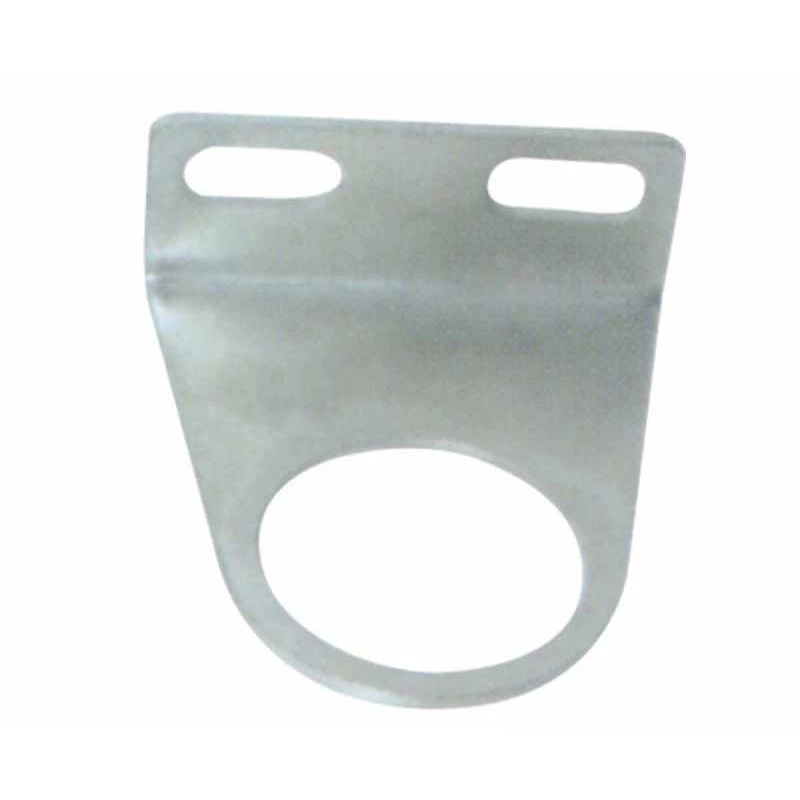

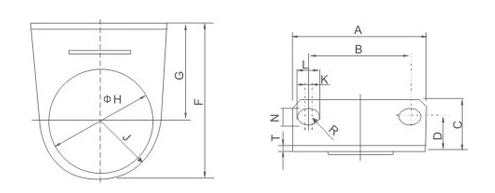

| Bracket for AR/AW |
Dimension Sheet
| Model | A | B | C | D | F | G | ФH | J | K | L | N | R | T | Applicable Model |
| B120 | 40 | 28 | 17 | 11 | 37.8 | 25 | 20.5 | 12.3 | 2 | 6.5 | 4.5 | 2.25 | 2 | AR/AW1000 |
| B220 | 55 | 34 | 25 | 19 | 50 | 30 | 33.5 | 20 | 10 | 15.4 | 5.4 | 2.7 | 2.3 | AR/AW2000/AR2500 |
| B320 | 53 | 40 | 21.5 | 14 | 64 | 39 | 42.5 | 25 | 1.5 | 8 | 6.5 | 3.25 | 2.3 | AR/AW3000 |
| B420 | 70 | 54 | 27 | 18 | 79.2 | 49.2 | 52.5 | 30 | 2 | 10.5 | 8.5 | 4.26 | 2.3 | AR/AW4000-5000 |
 |
 |

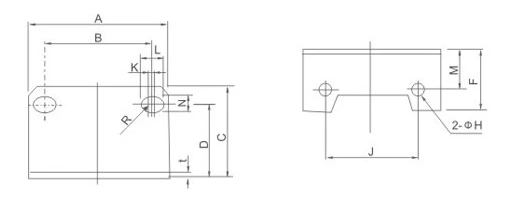

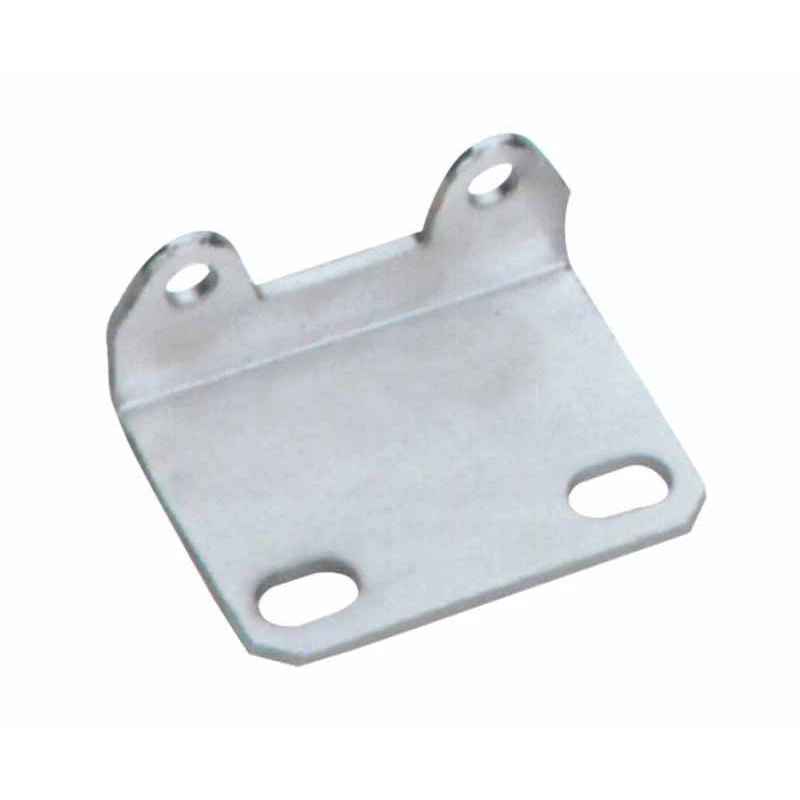

| Bracket for AL/AF |
Dimension Sheet
| Model | A | B | C | D | F | G | ФH | J | K | L | N | R | T | Assembly Screw | Applicable Model |
| B240 | 40 | 27 | 33 | 27 | 18 | 4.5 | 26 | 3 | 8.4 | 14 | 5.4 | 2.7 | 2.3 | M4×8 | AF/AL2000 |
| B340 | 53 | 40 | 39 | 32 | 22.5 | 4.5 | 35 | 1.5 | 8 | 19 | 6.5 | 3.25 | 2.3 | M4×8 | AF/AL3000 |
| B440 | 70 | 54 | 47 | 38 | 31.5 | 5.5 | 47 | 2 | 10.5 | 20 | 8.5 | 4.25 | 2.3 | M5×10 | AF/AL4000 |
| B540 | 70 | 54 | 47 | 38 | 27.5 | 5.5 | 47 | 2 | 10.5 | 20 | 8.5 | 4.25 | 2.3 | M5×10 | AF/AL4000-06 |
| B640 | 90 | 66 | 64 | 52 | 43 | 6.5 | 60 | 2 | 13 | 29 | 11 | 5.5 | 3.2 | M6×10 | AF/AL5000 |
 |
 |

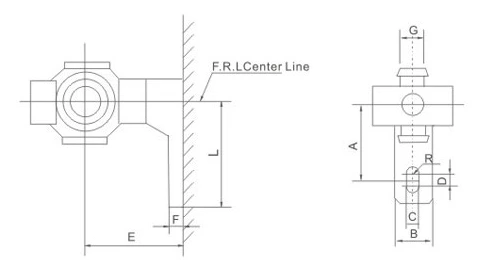

| Spacer With L-Type Bracket |
Dimension Sheet
| Model | A | B | C | D | E | F | G | R | L | Applicable Model |
| B110L | 20 | 12 | 4.5 | 3 | 25 | 5 | 8 | 2.25 | 27 | AC1000 |
| B210L | 24 | 15 | 5.5 | 3 | 30 | 5 | 10 | 2.75 | 33 | AC2000 |
| B310L | 35 | 16 | 7 | 4 | 41 | 7 | 11 | 3.5 | 45 | AC2500~3000 |
| B410L | 40 | 22 | 9 | 4 | 50 | 7 | 14 | 4.5 | 50 | AC4000 |
| B510L | 40 | 22 | 9 | 4 | 50 | 7 | 14 | 4.5 | 50 | AC4000-06 |
| B610L | 50 | 23 | 12 | 4 | 69.8 | 10.5 | 15 | 6 | 63 | AC5000 |
 |
 |

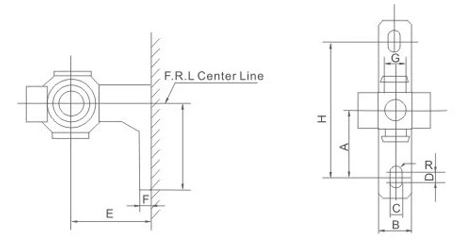

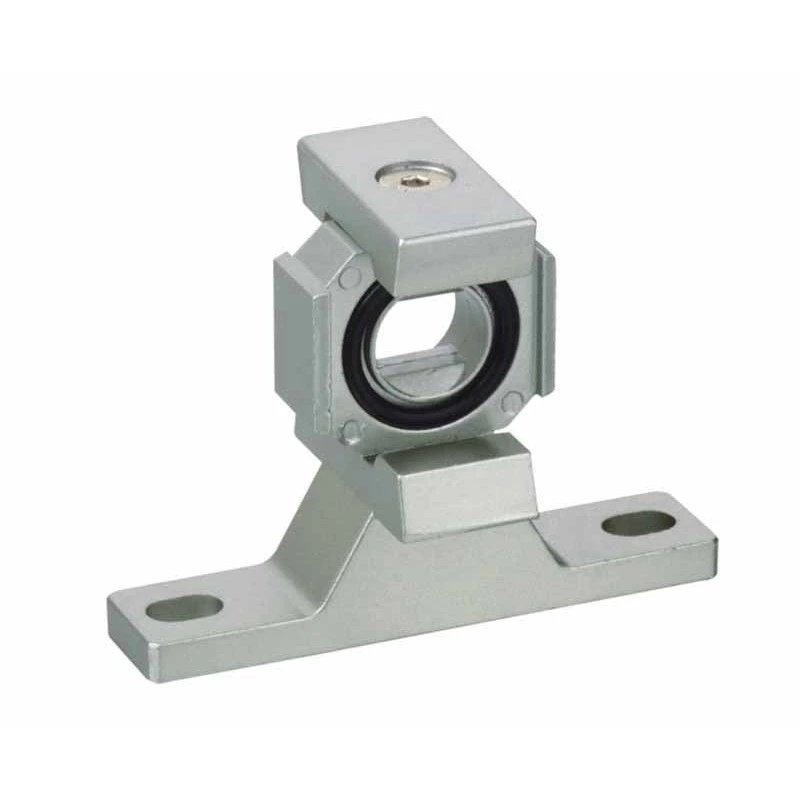

| Spacer With T-Type Bracket |
Dimension Sheet
| Model | A | B | C | D | E | F | G | H | R | L | Applicable Model |
| B110T | 20 | 12 | 4.5 | 3 | 25 | 5 | 8 | 40 | 2.25 | 27 | AC1010 |
| B210T | 24 | 15 | 5.5 | 3 | 30 | 5 | 10 | 48 | 2.75 | 33 | AC2010 |
| B310T | 35 | 16 | 7 | 4 | 40 | 7 | 11 | 70 | 3.5 | 45 | AC3010 |
| B410T | 40 | 22 | 9 | 4 | 50 | 7 | 14 | 80 | 4.5 | 50 | AC4000 |
| B510T | 40 | 22 | 9 | 4 | 50 | 7 | 14 | 80 | 4.5 | 50 | AC4010-06 |
| B610T | 50 | 23 | 12 | 4 | 69 | 10.5 | 15 | 100 | 6 | 63 | AC5010 |
