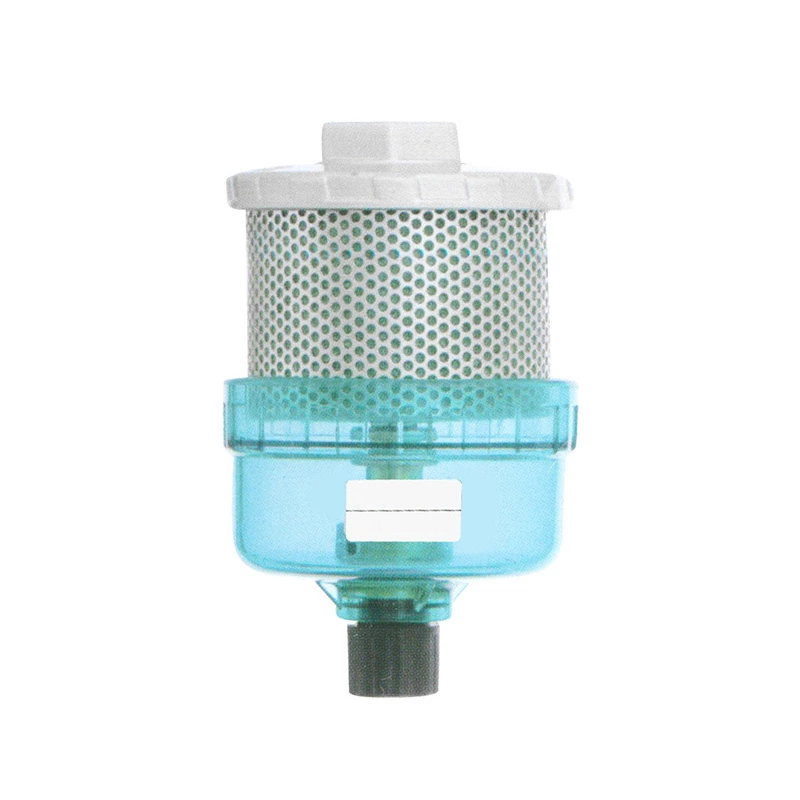

TAMC Series Exhaust Cleaner
1. TAMC exhaust cleaning machine is the new generation of energy conservation and environmental protection products.
2. Used to absorb exhaust noise,recover the waste oil and water, to keep clean.
3. Mainly used to collect the noise and oil mist from the whole system.
Specification
| Model | TAMC200-02 | HAMC320-02 | HAMC320-03 | HAMC520-04 | HAMC520-06 |
| Port Size | G1/4 | G1/4 | G3/8 | G1/2 | G3/4 |
| Effective sectional area(mm²) | 12 | 16 | 16 | 55 | 55 |
| Maximum flow processing(L/min) | 200 | 300 | 300 | 1000 | 1000 |
| Model | TAMC200-02 | HAMC320-02 | HAMC320-03 | HAMC520-04 | HAMC520-06 |
| Ambientand Fluid Temperature | 5~60℃ | ||||
| Mufling Effect | More than 35 decibel | ||||
| Oil mist recovery effect | More Than 99.9% | ||||
| Recycling of oil mist walk way | Female thread hole | ||||
| Element one time test pressure | < 0.1MPa | ||||
Other info
| Instructions | Features |
| 1. Must be installed in a vertical position. 2. The filter element should be changed,When the Inlet pressure is 0.1 MPa or used more than 1 year. 3. No exposure to organic solvents. | 1. TAMC exhaust cleaning machine is the new generation of energy conservation and environmental protection products. 2. Used to absorb exhaust noise,recover the waste oil and water, to keep clean. 3. Mainly used to collect the noise and oil mist from the whole system. |
