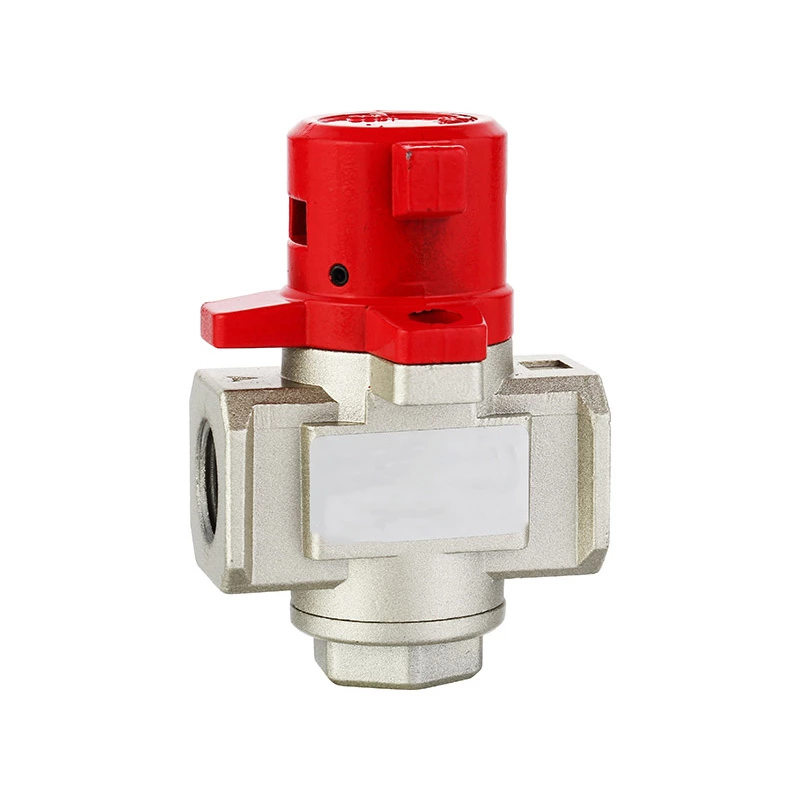

TVHS Series Venting Safety Lock-out Valve
It is easy to be maintained because it can realse the pressure of the hypo-pressure side when it is working.It can ensure the safty of the maintenance man bceasue of the lockup functinon.

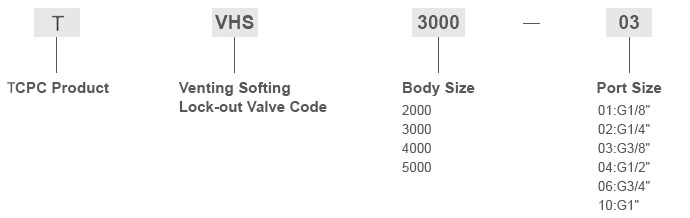

Ordering Code

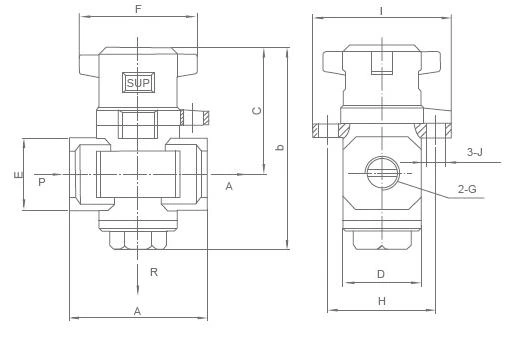

Overall Dimensions
| Model | G | Vent size | A | B | C | D | E | F | H | I | J |
| TVHS2000-01 | G1/8 | G1/8 | 40 | 59 | 39 | 28 | 22 | 40 | 32 | 41 | Ф6 |
| TVHS2000-02 | G14 | G1/8 | 40 | 59 | 39 | 28 | 22 | 40 | 32 | 41 | Ф6 |
| TVHS3000-02 | G14 | G14 | 53 | 78 | 49 | 30 | 28 | 45 | 41.5 | 53 | Ф7.5 |
| TVHS3000-03 | G3/8 | G14 | 53 | 78 | 49 | 30 | 28 | 45 | 41.5 | 53 | Ф7.5 |
| TVHS4000-03 | G3/8 | G3/8 | 70 | 84 | 52 | 36 | 36 | 45 | 41.5 | 53 | Ф7.5 |
| TVHS4000-04 | G1/2 | G3/8 | 70 | 84 | 52 | 36 | 36 | 45 | 41.5 | 53 | Ф7.5 |
| TVHS5000-06 | G3/4 | G1/2 | 90 | 136 | 72 | 54 | 48 | 68 | 77 | 90 | Ф8.5 |
| TVHS5000-10 | G1 | G1/2 | 90 | 136 | 72 | 54 | 48 | 68 | 77 | 90 | Ф8.5 |
