Operation noise 65dB (A)

15dB(A) lower than existing products (VBA series)

● Exhaust noise: Achieve silence by exhausting and reusing low-pressure air

● Metal noise: Achieve silence by adopting a structure that does not touch metal in the internal switching part

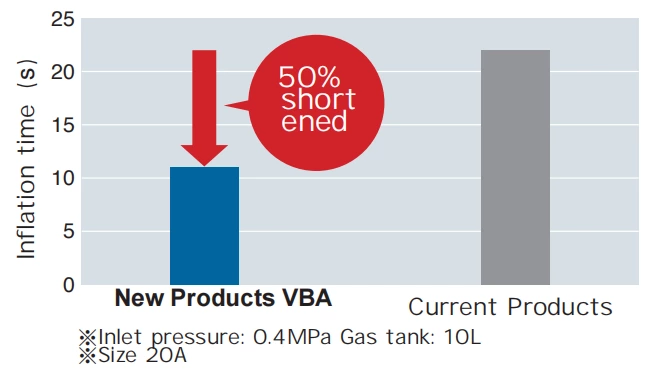

Up to 50% shorter inflation time

More than 50 million times

Extend product life and reduce maintenance frequency

Simple and compact shape

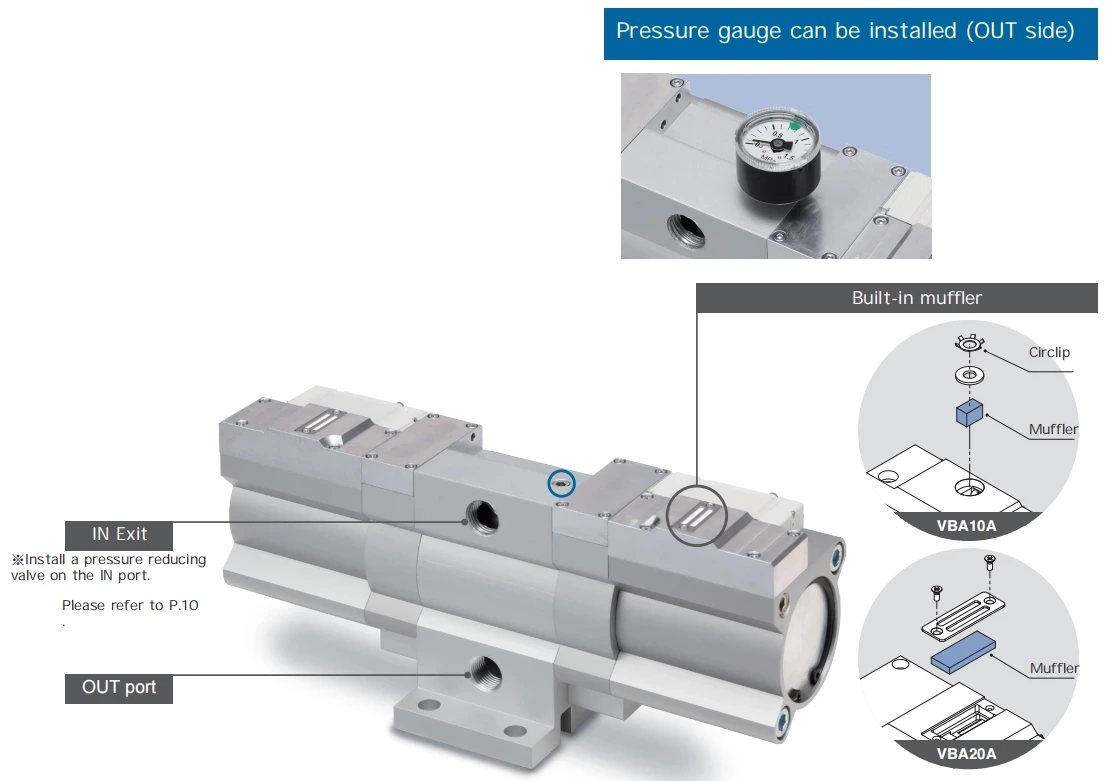

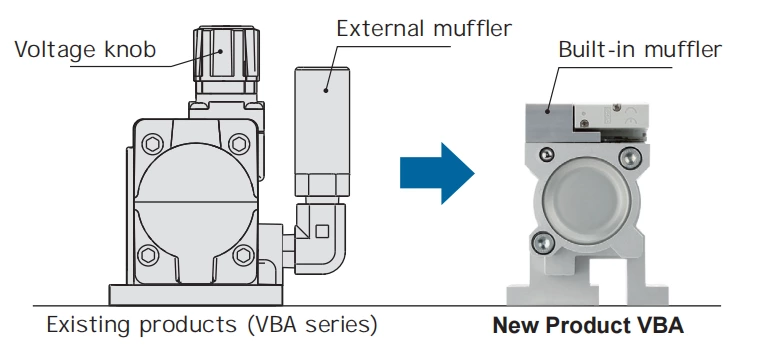

● Built-in muffler
● Adopts fixed boost ratio and eliminates the pressure adjustment knob

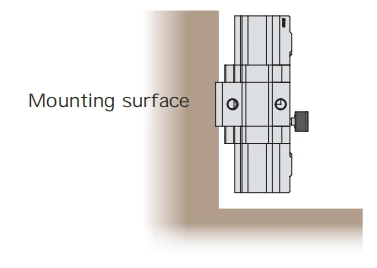

Can be installed vertically or horizontally

• Improved installation freedom

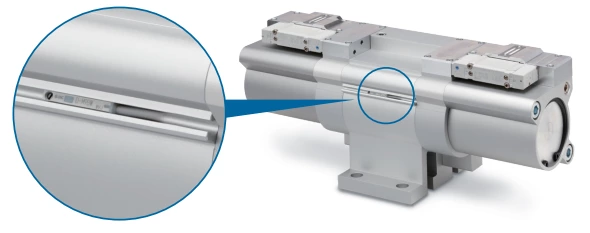

Magnetic switch can be installed on the back

• The number of actions can be counted through the magnetic switch

Interchangeable with existing products (VBA series)

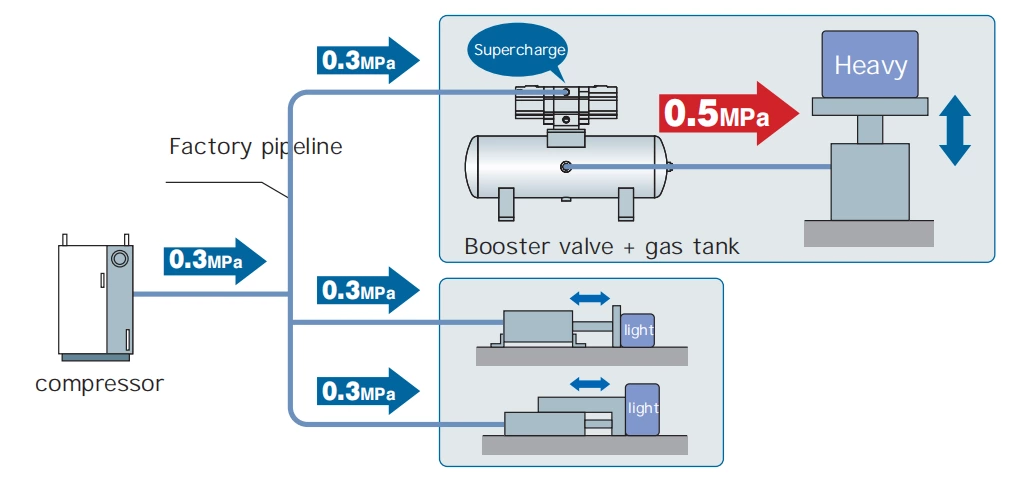

Increase the factory air pressure by 1.7 times!
Fully pneumatic, no power required, easy to install

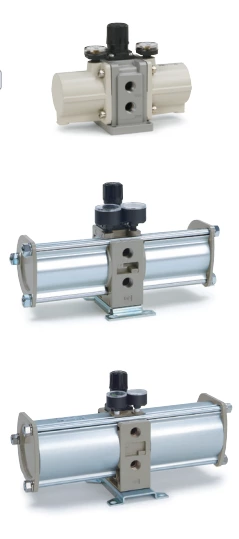

Series extensions

Standard Specifications

Note 1) Flow rate when IN = OUT = 0.5 MPa. The pressure varies depending on the usage conditions. Please refer to the flow characteristics (P.4).

Note 2) The tank connection port can be used only for connection to VBAT.

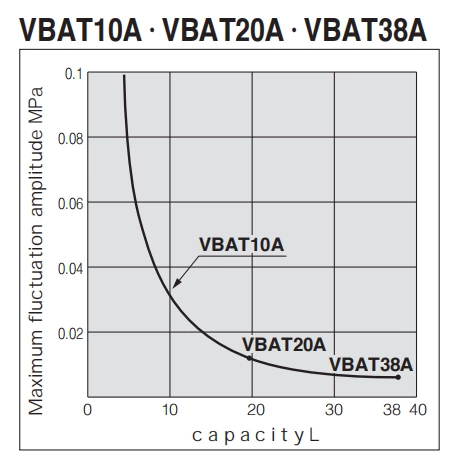

Matching gas tank table

※Please pay attention to the operating pressure range of the gas tank.

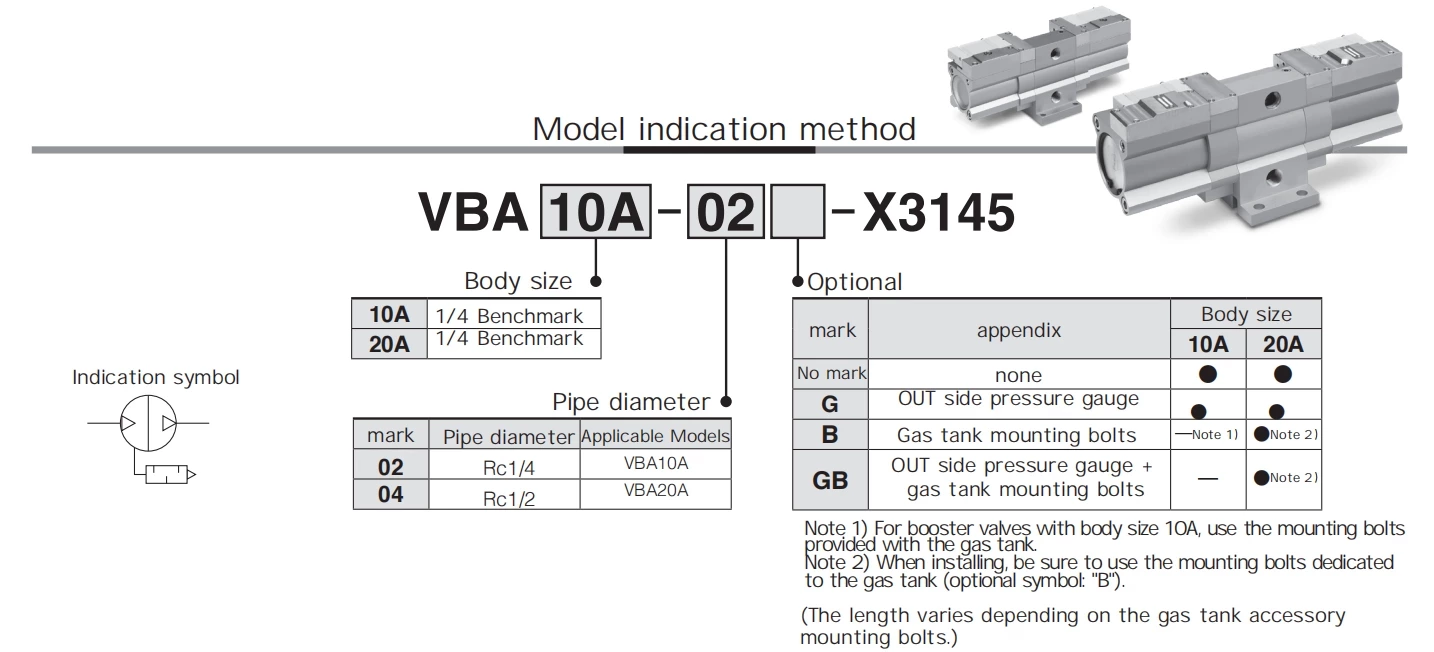

Options and Parts Models

Pressure gauge

Non-contact magnetic switch

※Wire length symbol 0.5m………………No symbol  (Example) D-M9N
                                   1m………………           M          (Example) D-M9NM
                                   3m………………           L           (Example) D-M9NL
                                   5m………………           Z           (Example) D-M9NZ

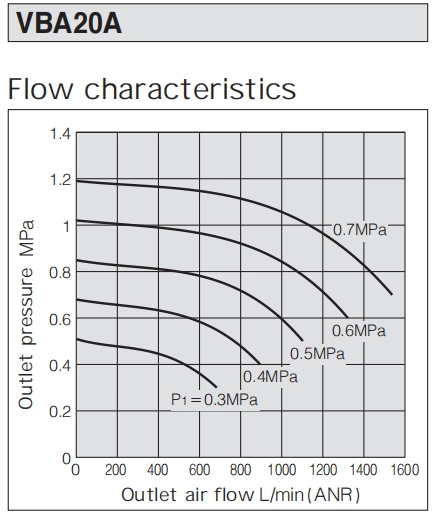

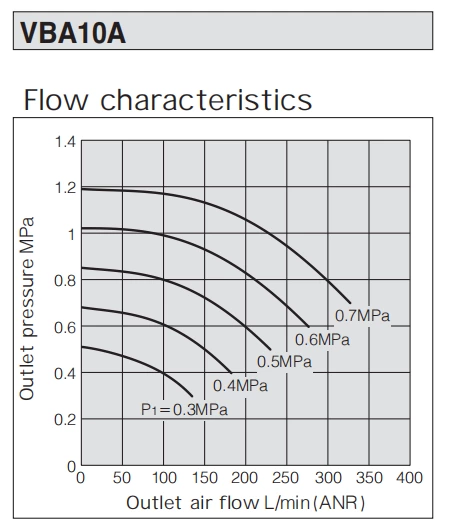

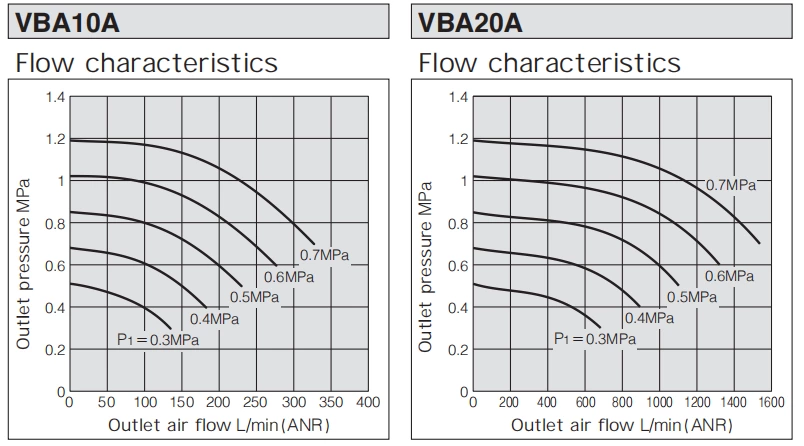

Solid line: Usage range

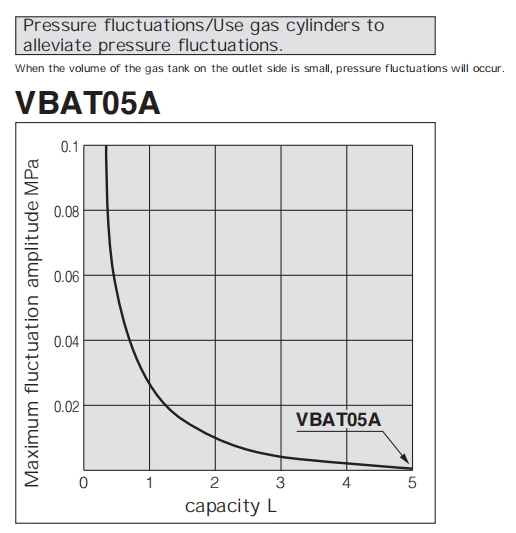

Even when air is consumed on the outlet side, please use it according to the solid line.
Example) In the case of VBA10A, if it is used under the conditions of inlet pressure 0.5MPa and set pressure 0.8MPa,
the flow rate on the outlet side is about 100L/min (ANR) or less.

P1: Inlet pressure

P2: Outlet pressure

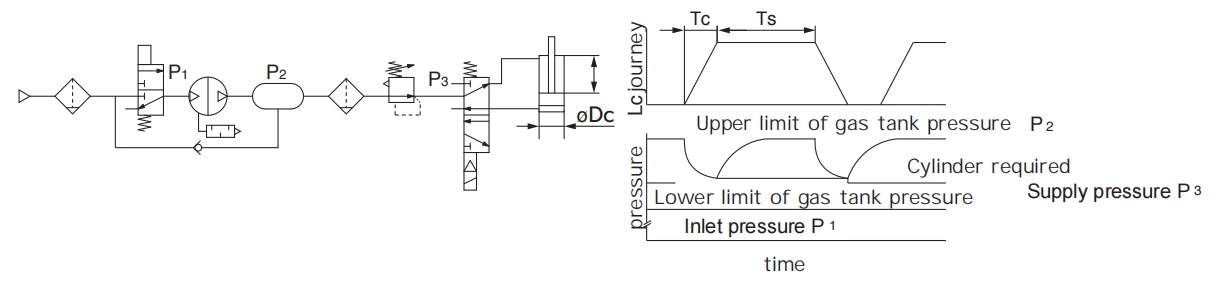

Size selection

Give the selection
required conditions

Necessary conditions

Dc［mm］：Cylinder diameter
Lc［mm］：Cylinder stroke
N ［book］：Number of cylinders
Tc［s］：Cylinder actuation time
Dt［mm］：Pipe inner diameter (valve-cylinder)
Lt［mm］：Pipe length (valve-cylinder)
C ［cpm］：Actuation frequency
P1［MPa］：Booster valve inlet pressure
P3［MPa］：Required cylinder supply pressure
P2［MPa］：Required cylinder supply pressure (set pressure)

Note 1) P3 is the required supply pressure of the cylinder. Use a pressure reducing valve to set the pressure to the lower limit pressure in the gas tank or lower. When adjusting, please consider the maximum operating pressure of the components used, etc.

Note 2) P2 is the upper limit pressure of the gas tank and is also the output pressure of the booster valve.

Other conditions

Q AVE［L/min］：average air flow rate
Q MAX［L/min］：instantaneous maximum air flow rate
K：double-acting cylinder takes 2, single-acting cylinder takes 1
T2［s］：inflation time (inflation time to P3)
T2［s］：inflation time (inflation time to P2)
T  ［s］：inflation time (inflation time from P3 to P2)

Find the volume (V)

To find the air flow rate at the outlet of the boost valve, find the volume of the pipe from the valve to the drive element and the volume of the actuator.

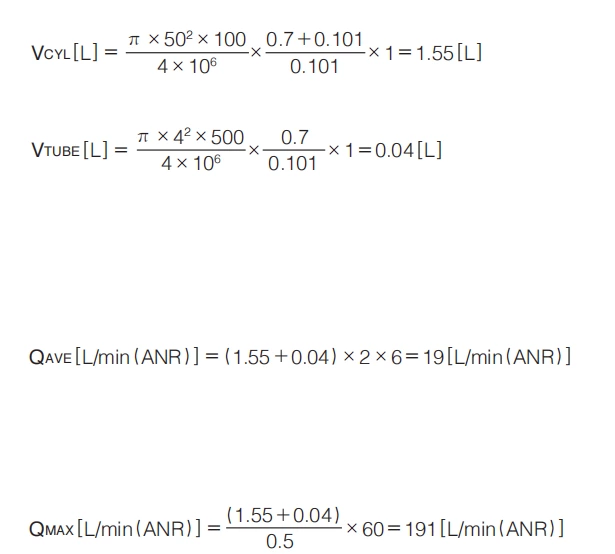

Cylinder capacity

Piping volume

Find the air flow rate(Q)

To determine the size of the boost valve, find the average air flow rate Q AVE.

Average air flow

In order to confirm the necessity of the gas tank, find the instantaneous maximum air flow rate Q MAX.

Instantaneous maximum air flow

Necessity of confirming the gas tank when selecting the booster valve

The boost valve is selected based on the average air flow rate Q AVE.
The necessity of the air tank is confirmed based on the instantaneous maximum air flow rate Q MAX.

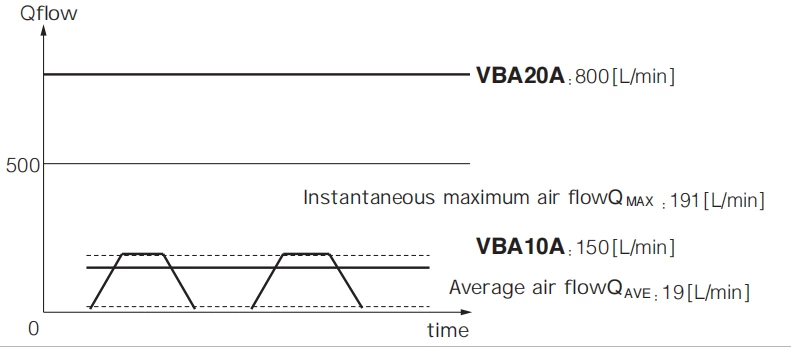

Check the outlet air flow rate at the intersection of the booster valve inlet pressure (P1) and the cylinder required supply pressure (P3) in the sample flow characteristic table (P.4). If it is greater than or equal to the average air flow rate Q AVE, it can be used.
If the outlet air flow rate is less than the instantaneous maximum air flow rate Q MAX, an air tank is required.
If the outlet air flow rate is greater than or equal to the instantaneous maximum air flow rate Q MAX, an air tank is not required.

Notice

• The booster valve is an air-powered compressor, so it consumes air.The air consumption is about 0.72 times the amount used on the outlet side. Therefore, the required inlet supply is about 1.72 times the amount used on the outlet side.

Selected Examples

Results

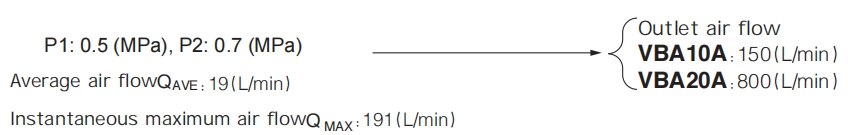

The outlet air flow rate of VBA10A is greater than or equal to the average air flow rate Q AVE, but less than the instantaneous maximum air flow rate Q MAX, so it can be used, but a gas tank is required.
The outlet air flow rate of VBA20A is greater than or equal to the average air flow rate Q AVE and the instantaneous air flow rate Q MAX, so it can be used without a gas tank.

Booster valve selection and gas tank necessity confirmation results

Find the volume of the gas tank

Gas tank capacity

Usage Examples

Required volume of gas tank for VBA10A

※A gas tank with a capacity of 2.1L or more is required.

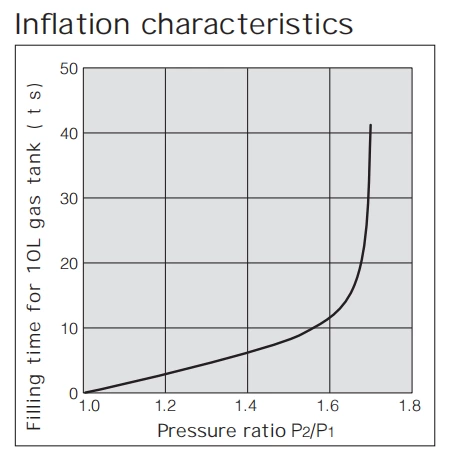

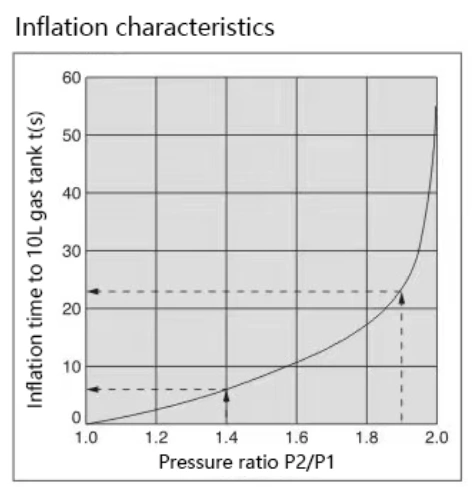

Confirm the filling characteristics of the gas tank

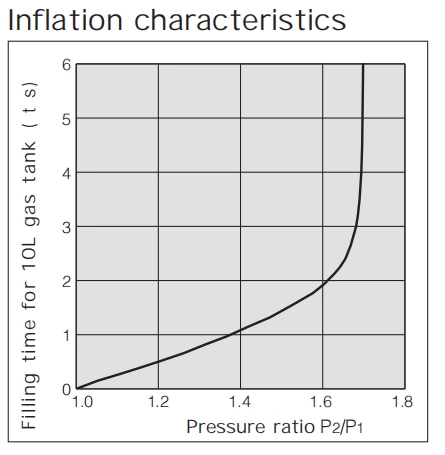

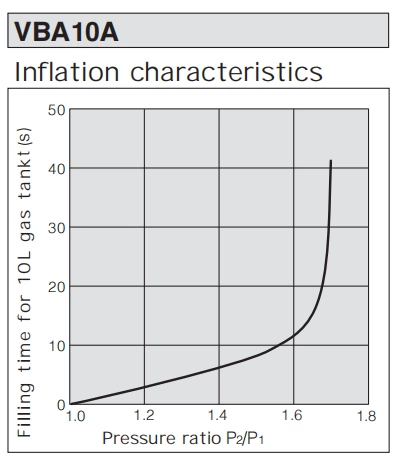

According to the sample inflation characteristics table (P.4), calculate the time T and confirm whether it meets the action frequency

Usage Examples

Since this sizing calculation is a safety calculation that does not take into account the air that flows out of the boost valve at every minute time, in reality, it may be necessary to use a smaller tank than the calculated result to meet the requirements.

END

When operating continuously, please confirm the product life in advance. If the life is shorter, please select a larger booster valve.

Working principle

Current Products

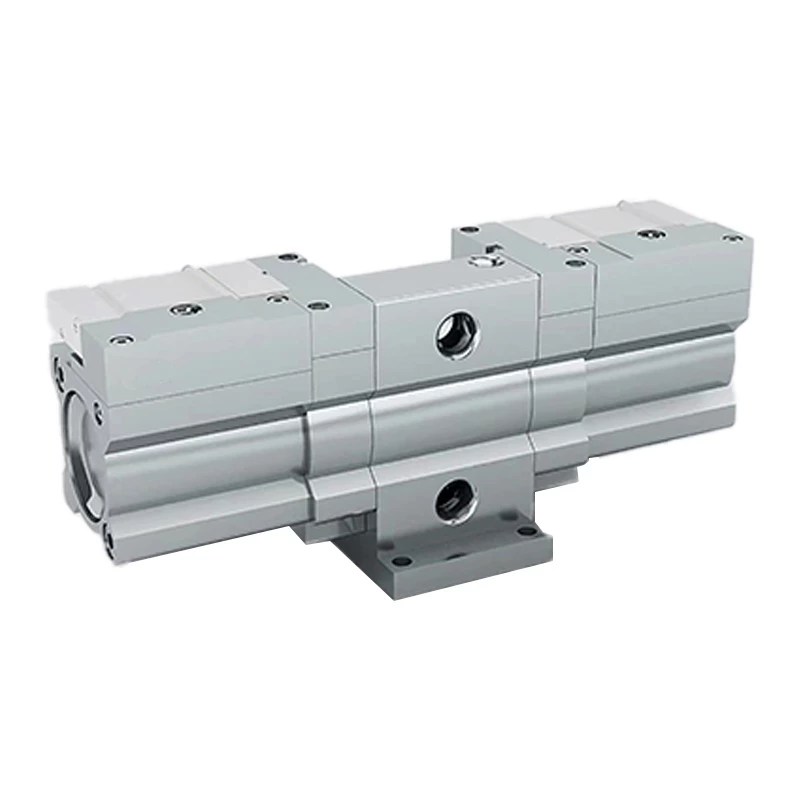

Gas-saving booster valve

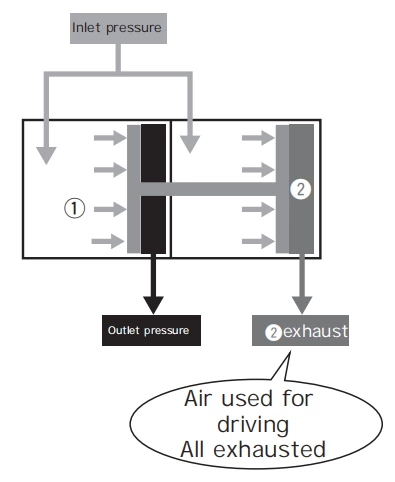

The existing product has 2 pistons and 4 chambers.
The inlet pressure enters the 2 chambers, pushing the piston in the direction of the ① arrow, and the outlet outputs high-pressure air.
At the same time, the air pushing the piston in the ② part is completely exhausted.

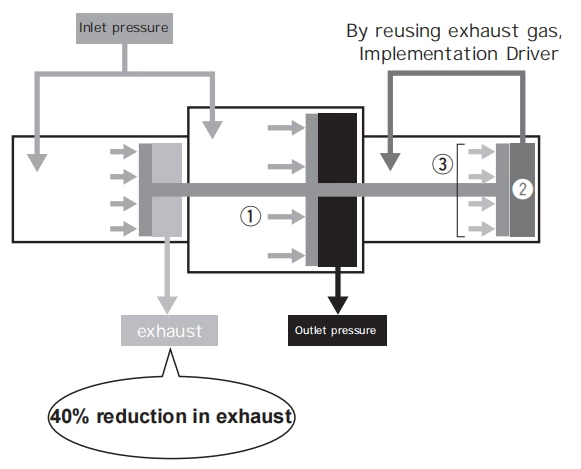

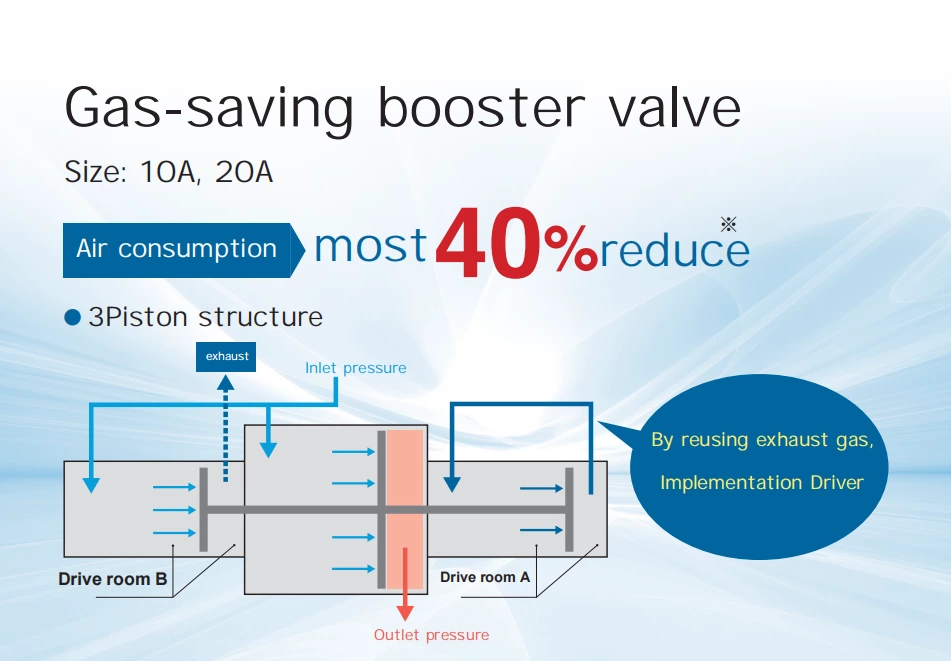

The number of pistons in the air-saving booster valve has increased to 3, and the number of chambers has increased to 6.
The inlet pressure enters the 2 chambers, pushing the piston in the direction of the ① arrow, and at the same time, the air pushing the piston in the ② part in the previous process is introduced into the next chamber through the exhaust return air path, pushing the piston in the direction of the ③ arrow.
The reused air is exhausted in the next process.
Therefore, compared with the previous product in which all the air is exhausted after the piston is pushed, the air-saving booster valve reuses the air after the piston is pushed to drive the piston, achieving a 40% reduction in exhaust volume.

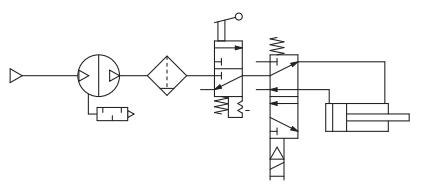

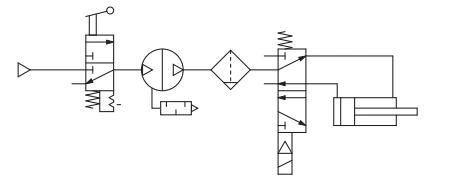

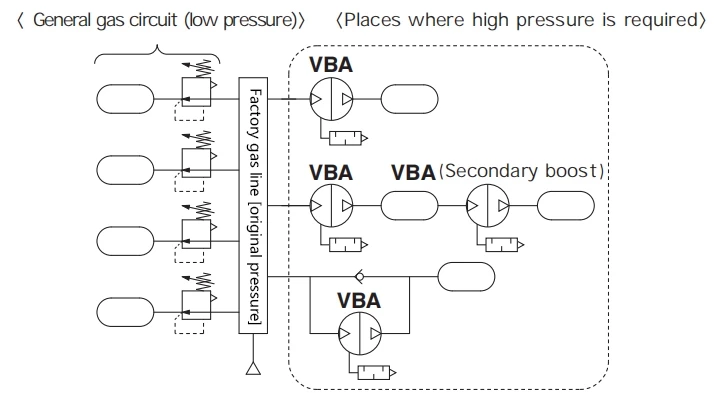

Example of using the circuit

• In the case where only part of the factory equipment requires high pressure, by installing a booster valve in the corresponding local gas circuit, it is possible to use high-pressure equipment locally while keeping the overall gas circuit at low pressure.

※When using two booster valves for two-stage boosting, please supply sufficient flow to each booster valve to ensure the stability of the booster valve inlet pressure.

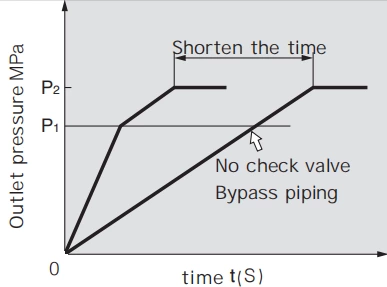

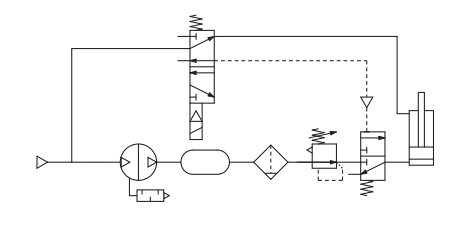

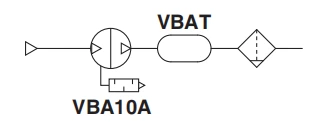

• During the process of filling the gas tank, a circuit with a booster valve and a check valve in parallel is used. When the pressure of the gas tank is lower than the gas source pressure at the inlet, the gas tank is filled with gas through the check valve, thereby shortening the filling time.

The inlet pressure (P1) first inflates P2 through the one-way valve until P1 = P2.

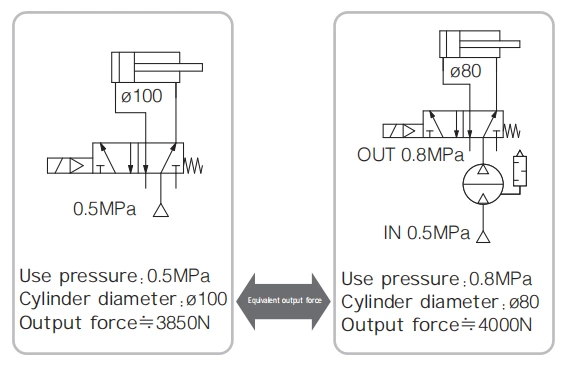

• The output force of the actuator is insufficient, and a cylinder with a larger cylinder diameter cannot be used due to space limitations. In this case, a booster valve can be used to increase the output force without replacing the actuator.

• The drive components need to be miniaturized, requiring the cylinder to be small in size, but the predetermined output force is required to be large. In this case, a booster valve can be used.

• When the cylinder is in one-way motion, a boost valve is installed in the corresponding intake circuit to reduce the consumption of compressed air.

Structural drawings and replaceable parts

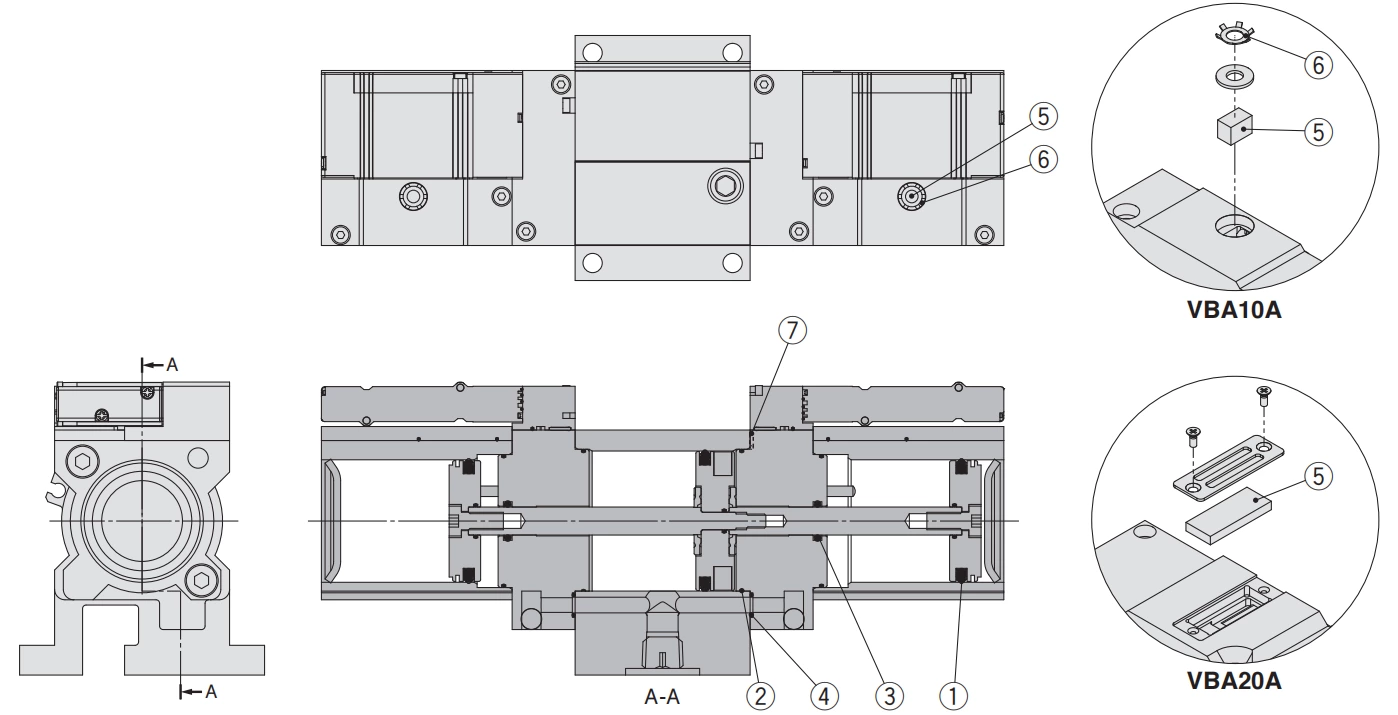

VBA10A, VBA20A

The assembly is a set of the following parts and a grease pack

※Grease pack is 10g.

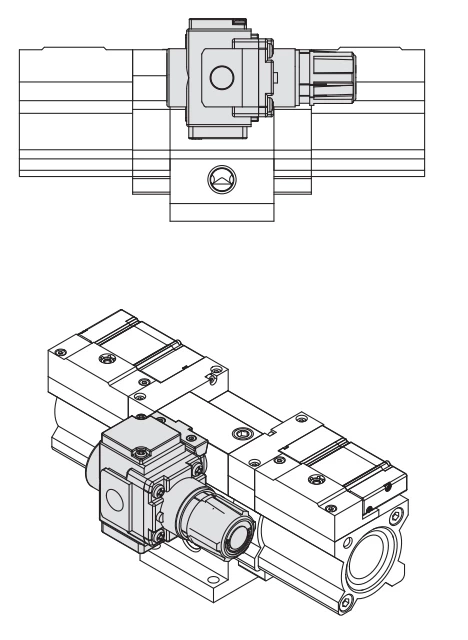

Dimensions

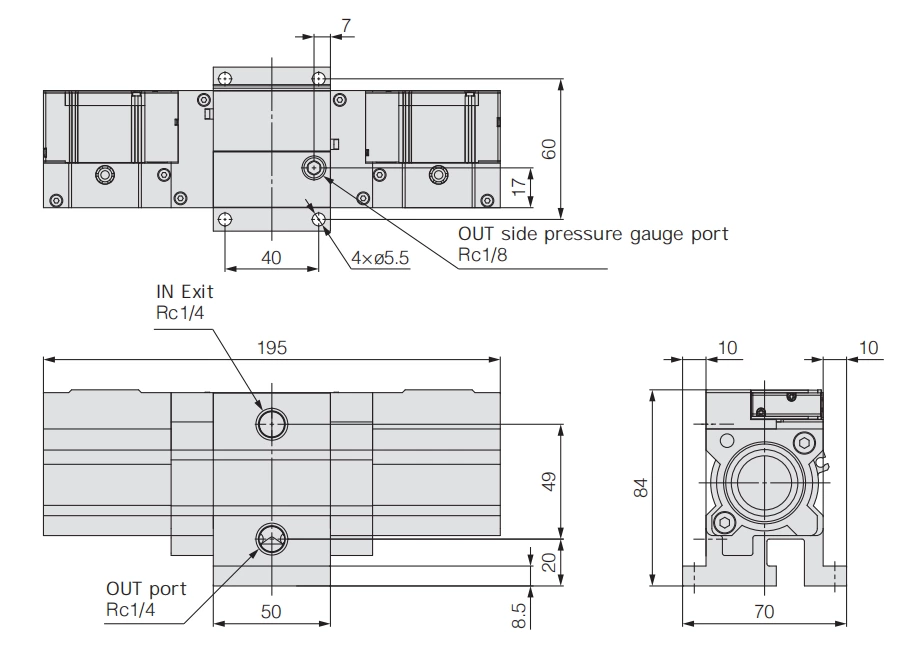

VBA10A

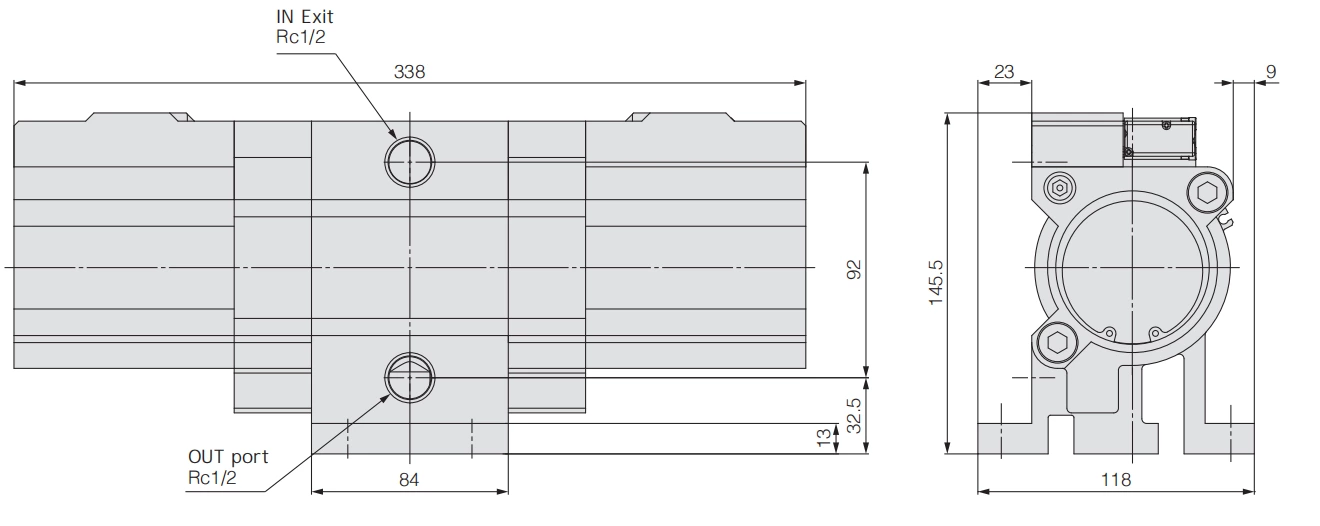

VBA20A

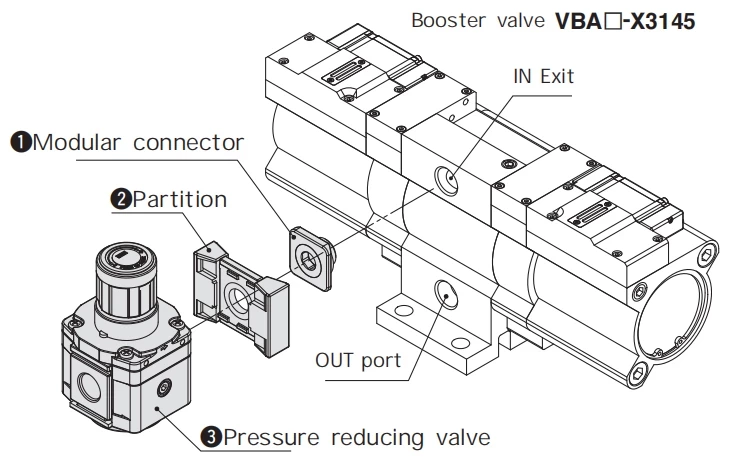

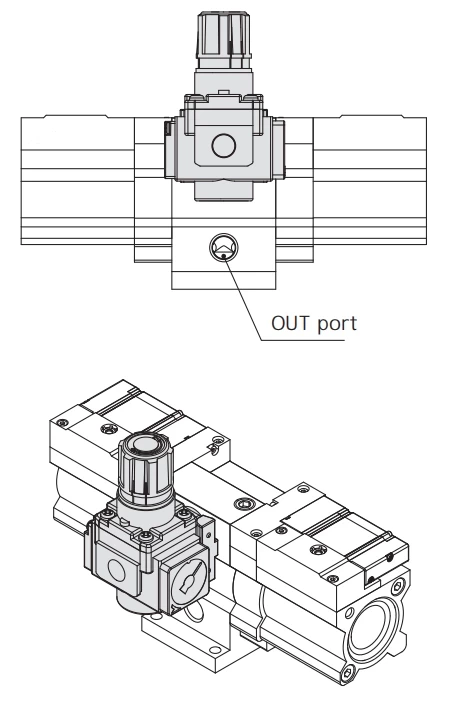

Install a pressure reducing valve on the booster valve IN port

Suitable for accessory models

Installation Examples

The direction of the pressure reducing valve handle can be freely changed with the help of modular connectors.

Design Considerations

warn

①Abnormal outlet pressure warning

• If the outlet pressure drops due to unexpected circumstances such as mechanical failure, and a major accident is predicted, please take safety measures on the system side.
• If the inlet pressure fluctuates greatly, the outlet pressure may exceed the set range and cause an accident, so be sure to take safety measures to deal with pressure abnormalities.
• Please use within the outlet pressure range.

②Residual pressure treatment

• When the residual pressure on the outlet side needs to be quickly released due to maintenance, etc., please connect a 3-way valve to the OUT side of the booster valve (see the figure below). If you only connect to the IN side to release the residual pressure, the outlet pressure will not be eliminated due to the action of the check valve in the booster valve, so please be careful.

• After work is completed, cut off the supply pressure on the inlet side. Stop the booster valve to prevent unnecessary air consumption.

• Please ensure that the air supply capacity is not less than the minimum operating pressure (0.2MPa). If the internal operating pressure is below the minimum operating pressure, the switching valve may not operate.
• There are sliding parts inside the booster valve, which will generate dust. If necessary, install a cleaning device such as an air filter or oil mist separator on the outlet side.
• Please connect the oil mist collector to the outlet side. If oil is retained in the booster valve, it may cause malfunction.
• Please pay attention to the operating pressure range and pressure resistance of peripheral components

②Ensure maintenance space

• Please ensure the space required for maintenance.

③Counting the number of moves

• When using a magnetic switch to count the number of operations, use a component with a counting speed of at least 1kHz.

Select

Notice

①Specification confirmation

• Please consider the usage conditions and use within the specifications of this article.

②Select

• When selecting the size of the booster valve, please confirm it based on the conditions required on the outlet side of the booster valve (pressure, flow rate, production cycle, etc.), and follow the selection order and selection procedure shown in this article.
• The booster valve is an air-powered compressor, so it consumes air. The air consumption is about 0.72 times the amount used on the outlet side. Therefore, the required supply on the inlet side is about 1.72 times the amount used on the outlet side.
• When operating continuously for a long time, please be careful to confirm the life of the booster valve.
• The life of the booster valve is not determined by the usage time, but by the number of operations (piston sliding distance). The number of operations (piston sliding distance) is determined by the air flow rate on the outlet side of the booster valve. The larger the air flow rate on the outlet side of the booster valve, the shorter the life. By increasing the size of the booster valve, the frequency of operation is reduced, so the usage time can be extended.
• When using two boosters for two-stage boosting, please install a pressure vessel such as an air tank between the boosters to ensure stable pressure supply to the downstream booster valve.

Install

Notice

①Handling

• When carrying, hold both ends of the length with both hands.

②Install

• When installing, please note that the vibration of the piston will be transmitted, so please tighten the mounting bolts according to the table below.

• If you want to reduce the degree of vibration transmission, please use anti-vibration rubber pads.
• When installing the pressure gauge, please tighten it according to the tightening torque of 7 to 9 N·m.

Piping

Notice

①rinse

• Please flush the pipes thoroughly before piping to remove cutting chips, cutting oil, dust, etc. If these impurities enter the booster valve, it will cause unexpected malfunction and reduce durability.

②Pipe size

• In order to perform the intended function of the booster valve, please select piping that matches the port size.

Gas source

Notice

①Quality of air source

• Please install an air filter on the upstream side of the booster valve. Please select a product with a filtration accuracy of 5μm or more.
• If dry air (atmospheric pressure dew point - below 23°C) is used, the volatilization of the internal grease may be accelerated, shortening the service life.

②Pressure fluctuations

• Please keep the inlet pressure stable.

③Please take measures such as installing an aftercooler, air dryer, condensate collector, etc.

• Compressed air containing a large amount of condensed water may cause malfunction of pneumatic components. Please take measures such as installing an aftercooler, air dryer, condensed water collector, etc.

Usage Environment

Notice

①Installation location

• Do not install in places exposed to rain or direct sunlight.
• Do not install this product in places with vibration. If you need to install this product in a place with vibration, please contact our company in advance.

use

Notice

①Condensate drainage

• If the machine is used with a large amount of condensed water remaining in the filter or tank, the condensed water will flow out and cause malfunction, so the condensed water must be drained once a day. Even if it is equipped with an automatic drain, it must be checked to ensure that it is drained once a day.

②maintain

About Booster Valve

• The service life will vary depending on the quality of the air used and the conditions of use. As a sign that the service life is about to end, the following phenomena will occur. Even if the air is not consumed on the outlet side, the exhaust sound of the booster valve can be heard every 10 to 20 seconds. If the above phenomenon occurs, please perform maintenance as soon as possible.
• Please have personnel with rich knowledge and experience in pneumatic components perform maintenance in accordance with the maintenance instructions.

About Muffler

• Discoloration and deterioration may occur due to turbine oil, grease, condensed water contained in the exhaust gas, the usage environment, etc. This is not abnormal if regular maintenance is performed, so please be sure to perform regular maintenance.

③Usage Environment

• Depending on the operating environment, the muffler may emit white mist and condensation may form around the switch valve and muffler. However, product performance will not be affected because the condensation occurs on the outside of the boost valve.

Gas-saving booster valve VBA10A/20A-X3145 replacement parts

• Replacement parts ordering model

Due to the change of the replacement parts assembly, the current model is not interchangeable with the previous model.
New replacement parts suitable for the current model.
Make sure the replacement part model ordered is compatible with the booster valve used.
The difference before and after the change is the presence or absence of the magnetic switch mounting groove.
(KT-VBA10A-X3145-1 cannot be used with the booster valve of the current model)

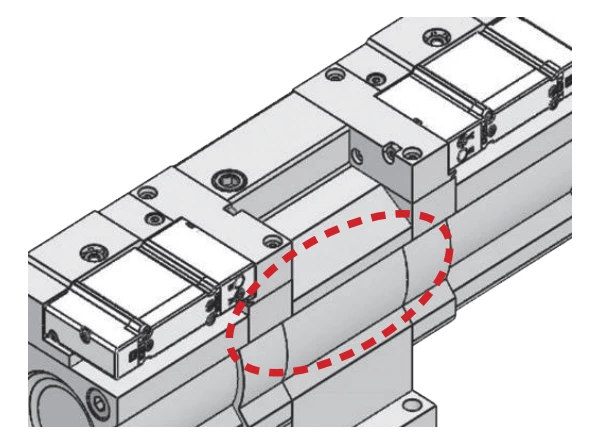

Identification method

There are no changes to the product's specifications, performance, overall length and appearance dimensions.

Safety precautions

The precautions referred to here describe how to use the product safely and correctly to prevent harm or injury to yourself and others. In order to clearly indicate the degree and urgency of the hazards and damages of these matters, they are divided into three categories: "Caution", "Warning" and "Danger". These important safety matters, as well as international standards (ISO/IEC), Japanese Industrial Standards (JIS) ※1) and other safety regulations ※2) must be observed.

Notice：Incorrect operation may cause personal injury or damage to the equipment.

warn :Misoperation may result in death or serious injury.

Danger:In an imminently dangerous situation, failure to avoid it could result in death or serious injury.

※1) ISO 4414: Pneumatic fluid power – General rules relating to systems.

ISO 4413: Hydraulic fluid power – General rules relating to systems.

IEC 60204-1: Safety of machinery – Electrical equipment of machines.(Part 1: General requirements)

ISO 10218-1992: Manipulating industrial robots - Safety.

JIS B 8370: General rules for pneumatic systems

JIS B 8361: General rules for hydraulic systems

JIS B 9960-1: Safety of machinery – Electromechanical equipment (Part 1: General requirements)

JIS B 8433-1993: Industrial manipulators – Safety, etc.

※2) Labor Safety and Health Law, etc.

warn

①Please let the system designer or the person who determines the specifications judge the suitability of our products.

The products listed here are used in a variety of conditions. The system designer or the person who determines the specifications should decide whether they are suitable for the system. If necessary, appropriate analysis and testing should be done. It is the responsibility of the person who determines the suitability of the system to meet the expected performance of the system and ensure safety. Generally, the system should be constructed based on the latest product samples and information, checking all the contents of the specifications, and considering the possible failure of the components.

②Please use our products only if you have sufficient knowledge and experience.

The products listed here may endanger safety if used incorrectly.
Assembly, operation, and maintenance of mechanical devices should be performed by personnel with sufficient knowledge and experience.

③Never operate mechanical devices or remove components until it is proven safe.

1. Before inspecting and maintaining the mechanical device, it is necessary to confirm that the driven object has been protected from falling and running away.

2. When removing the component, after confirming the above safety measures, the energy source and the power supply of the device should be cut off to ensure the safety of the system. Refer to the individual precautions of the product using the component and proceed after understanding.

3. When restarting the mechanical device, ensure the handling method for unexpected action and malfunction.

④For safety reasons, please contact us before using the product under the following conditions and environments.

1. Used in conditions and environments other than those clearly stated in the specifications, and used outdoors or in direct sunlight.

2. Used in atomic energy, railways, aviation, space machinery, ships, vehicles, medical machinery, machinery in contact with beverages and food, combustion devices, entertainment equipment, emergency shut-off circuits, clutch and brake circuits for stamping, safety machinery, etc., and in applications that do not conform to the standard specifications of the sample.

3. Uses that are expected to have a significant impact on people and property, especially those that require safety.

4. When used in an interlocking circuit, please adopt a double interlocking method such as a mechanical protection function designed for failures. In addition, please check regularly to confirm whether the equipment is working properly.

Notice

Our products are provided for the manufacturing industry.

The products of our company listed here are mainly for the manufacturing industry for peaceful use.

For use outside the manufacturing industry, please consult with our company, confirm the corresponding specifications as needed, and sign a contract, etc.

Warranties and Disclaimers Conditions of Fitness for Purpose

When using the product, the following "Guarantee and Disclaimer" and "Suitability Conditions" apply. Please confirm the following and use this product on the basis of your consent.

Warranty and Disclaimer

①The warranty period for our products is within 1 year from the start of use, or within 1.5 years from the purchase, whichever comes first. ※3)

②During the warranty period, if the failure or damage is clearly caused by our company, we will provide replacements or necessary replacement parts.

In addition, the warranty here is for our products alone, and damage caused by failure of our products is not within the scope of warranty.

③Please also refer to the separate warranty and disclaimer of other products and use after understanding.

Notice

Our products cannot be used as legal measurement products.

The products manufactured and sold by our company have not been subjected to relevant formal certification tests and verifications in accordance with the metrology laws of various countries, and do not belong to such measurement instruments.

Therefore, our products cannot be used for transactions or certifications stipulated by the metrology laws of various countries.
