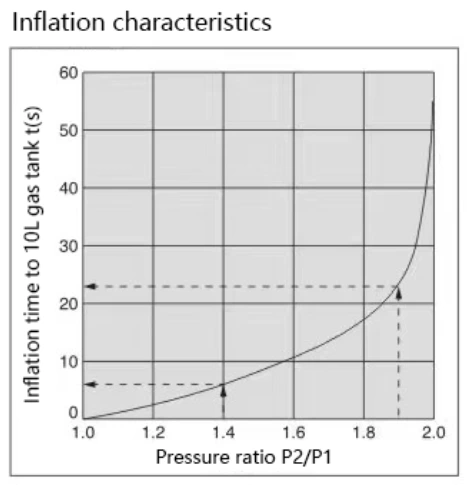

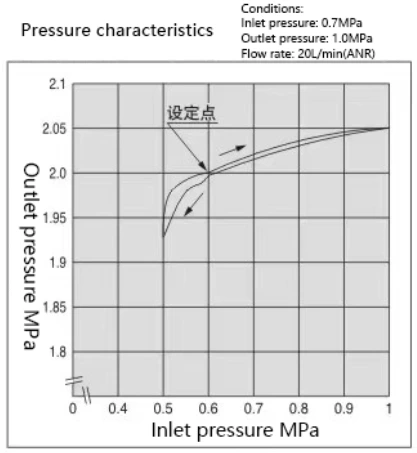

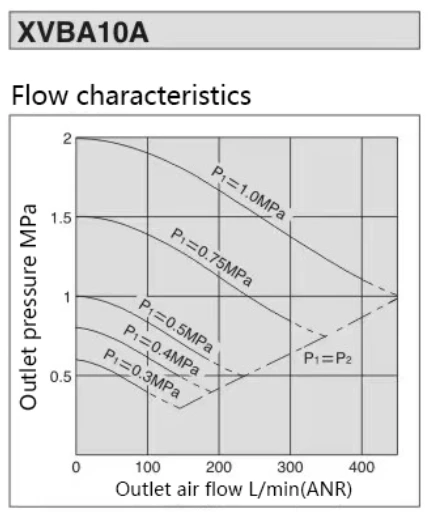

XVBA10A ●The calculation method of the time required to increase the gas tank pressure from 0.7MPa to 0.95MPa when the gas source pressure is 0.5MPa  The time required to increase the pressure ratio from 1.4 to 1.9 is 23-6 = 17 (s). For a 10L gas tank, the time required is  |

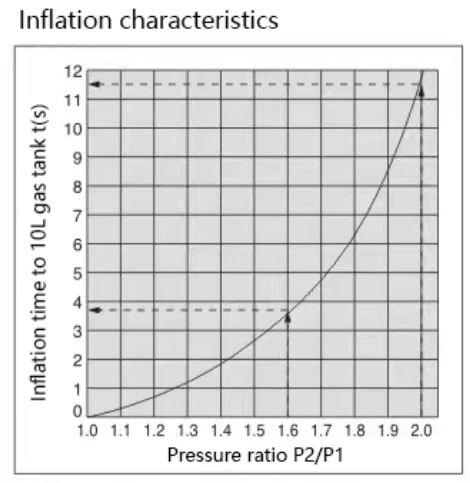

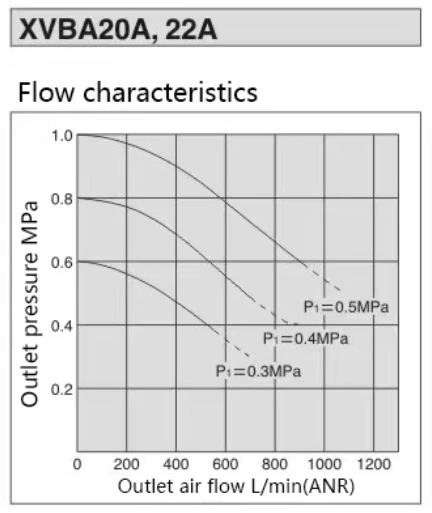

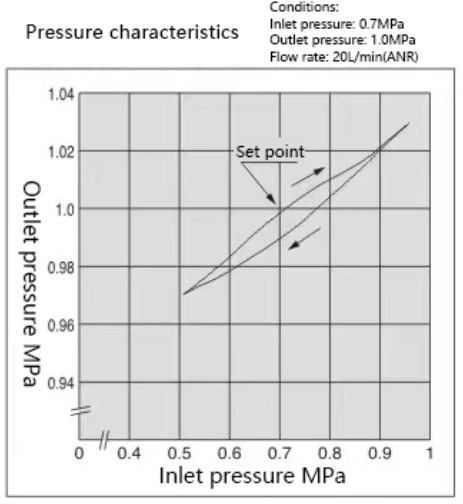

XVBA20A,22A ●The calculation method of the time required to increase the gas tank pressure from 0.8MPa to 1.0MPa when the gas source pressure is 0.5MPa  The time required to increase the pressure ratio from 1.6 to 2.0 is 11.5-3.8 = 7.7 (s). For a 100L gas tank, the time required is  |

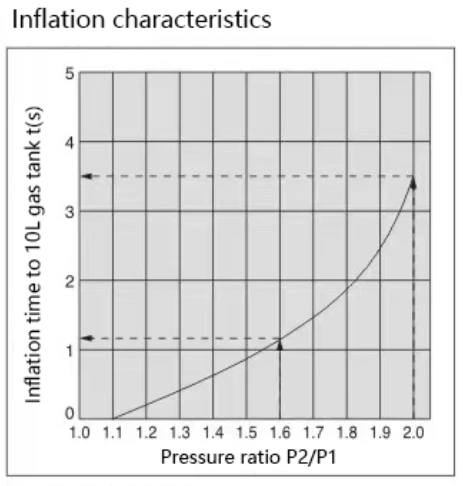

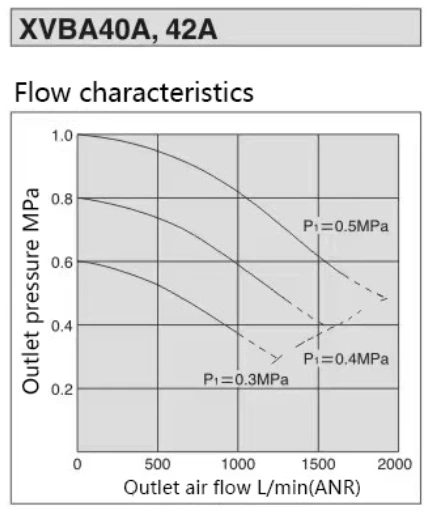

XVBA40A,42A ●The calculation method of the time required to increase the gas tank pressure from 0.8MPa to 1.0MPa when the gas source pressure is 0.5MPa The time required to increase the pressure ratio from 1.6 to 2.0 is 3.5-1.1 = 2.4 (s). For a 100L gas tank, the time required is  |
 |
 |

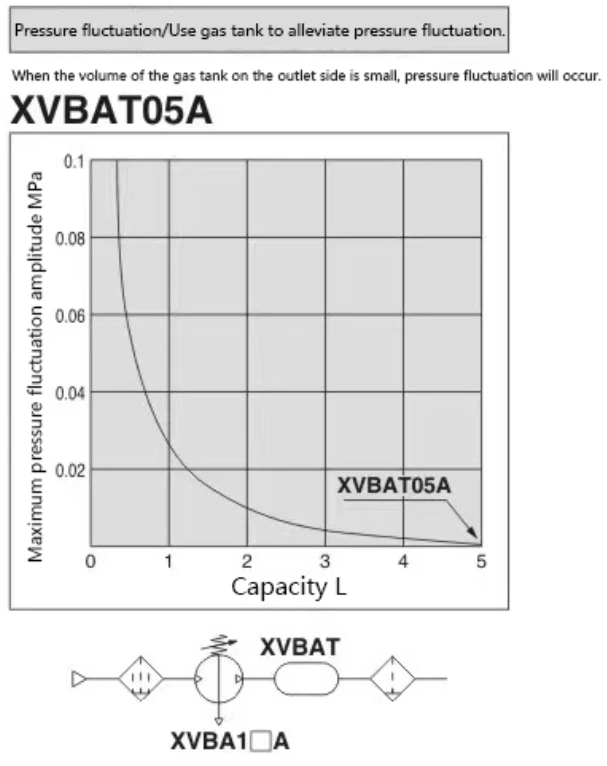

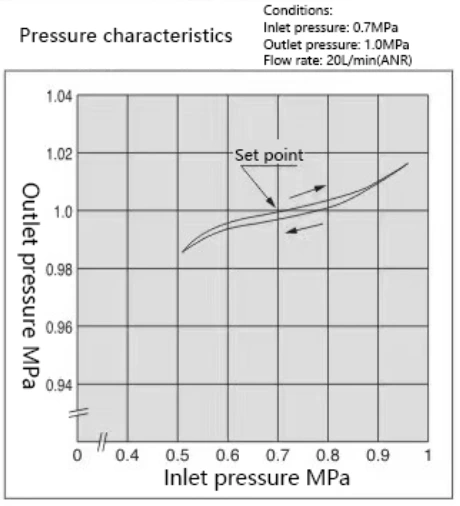

  Conditions: Inlet pressure: 0.5MPaOutlet set pressure: 1MPa Flow rate: 0~maximum flow rate ●Function of the gas tank
|
 |
 |
|
 |
 |
|

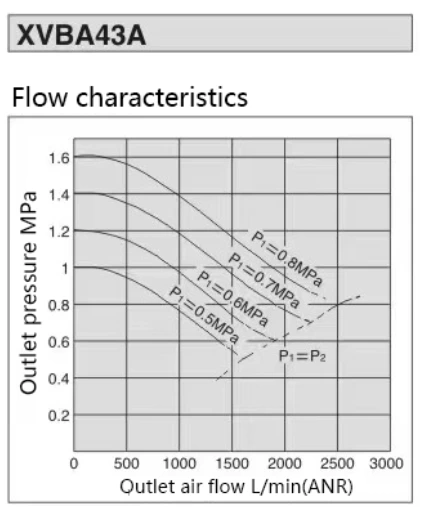

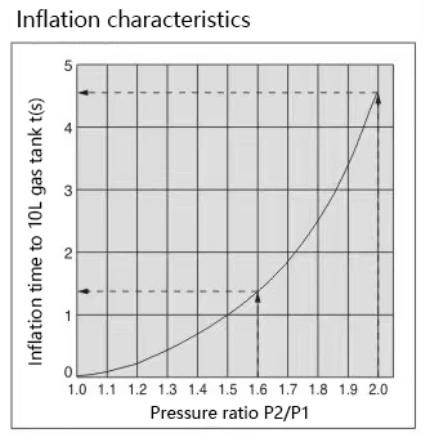

XVBA43A ●The calculation method of the time required to increase the gas tank pressure from 0.8MPa to 1.0MPa when the gas source pressure is 0.5MPa The time required to increase the pressure ratio from 1.6 to 2.0 is 4.5-1.3 = 3.2 (s). For a 100L gas tank, the time required is  |

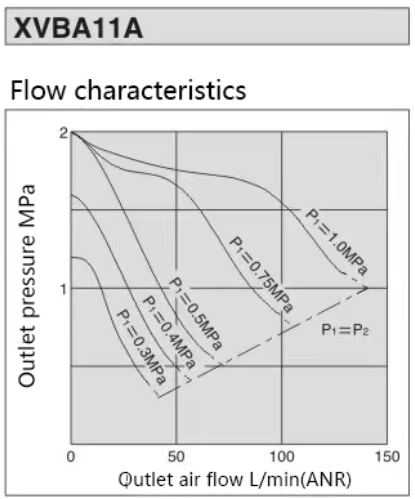

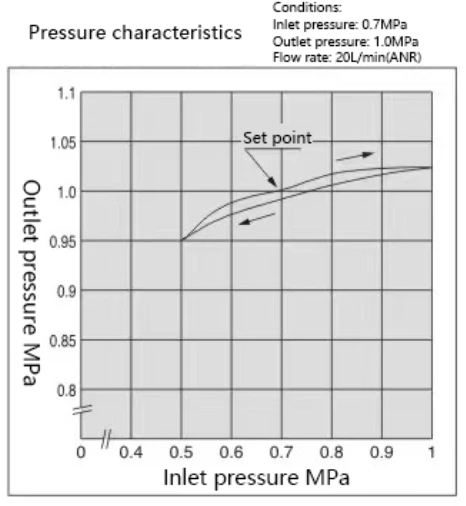

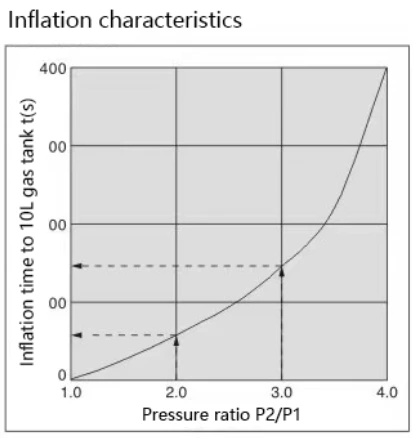

XVBA11A ●The calculation method of the time required to increase the gas tank pressure from 1.0MPa to 1.5MPa when the gas source pressure is 0.5MPa  The time required to increase the pressure ratio from 2 to 3 is 147-58 = 89 (s). For a 10L gas tank, the time required is  |

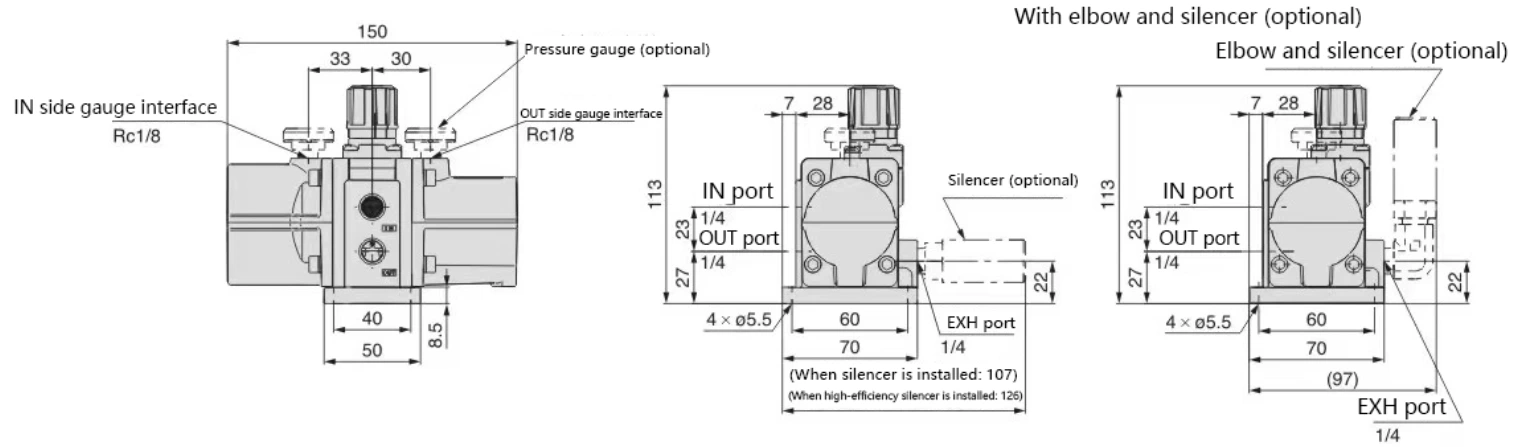

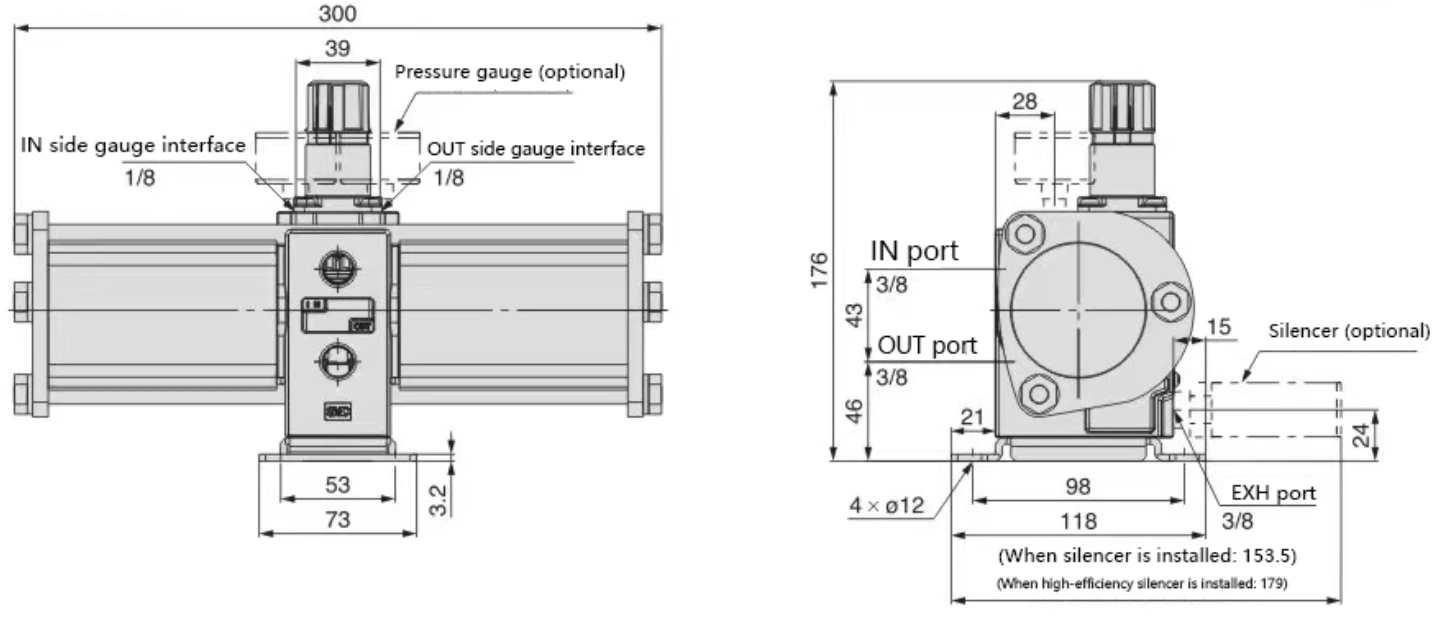

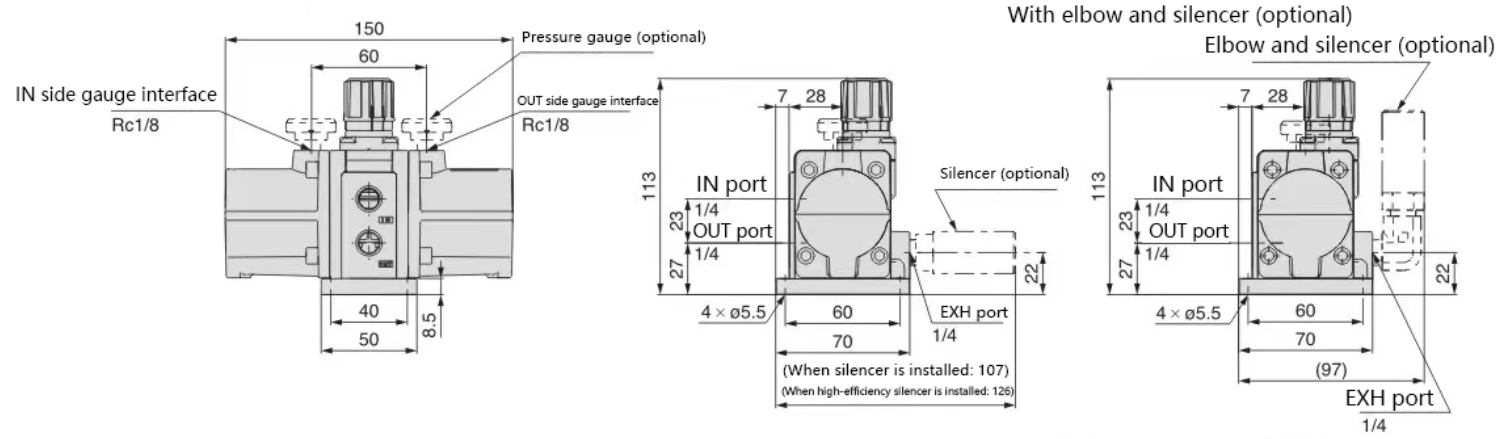

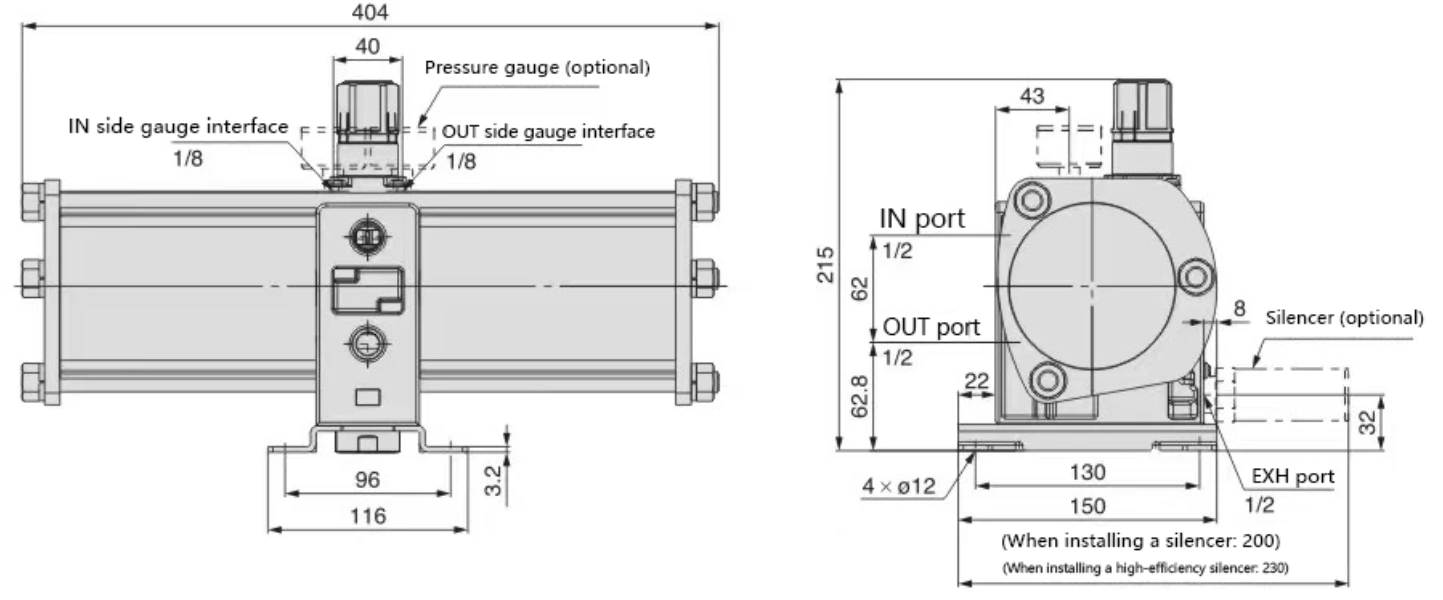

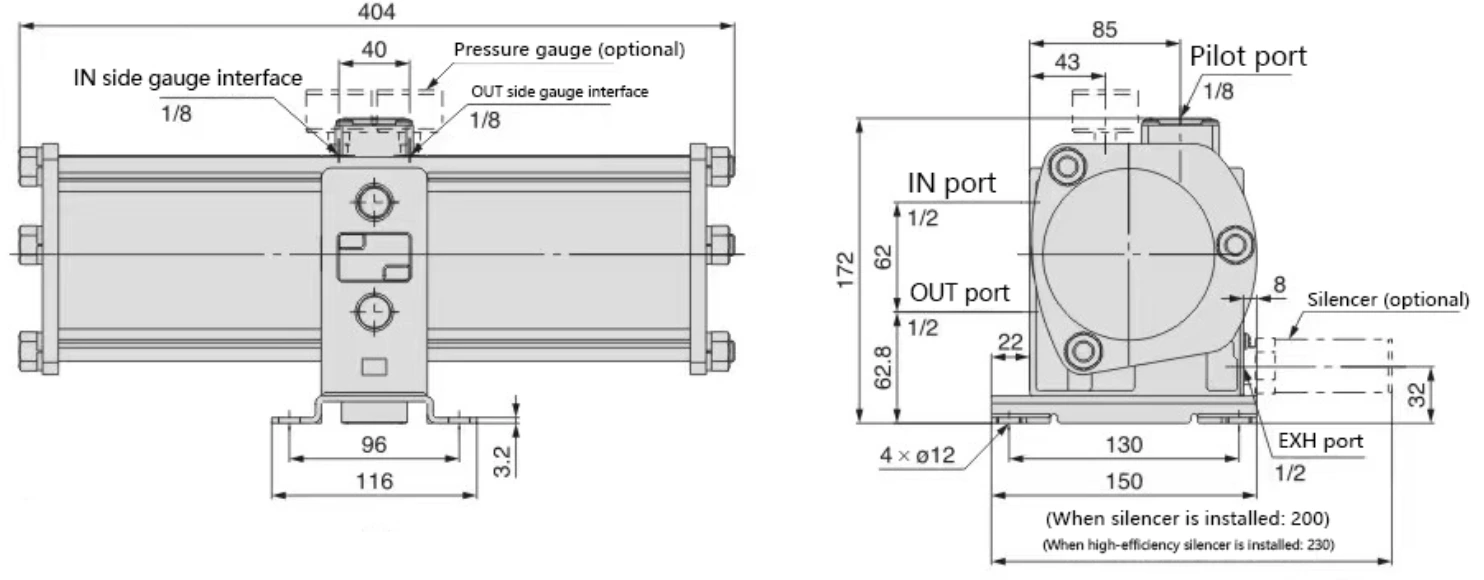

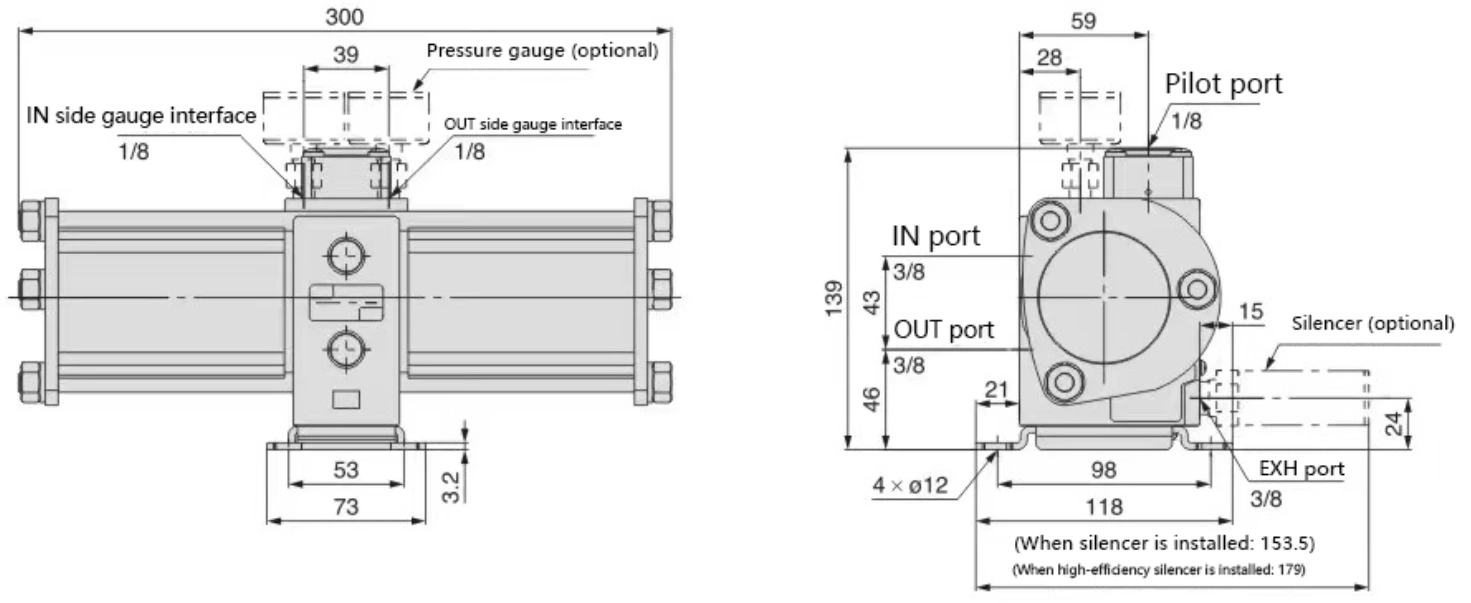

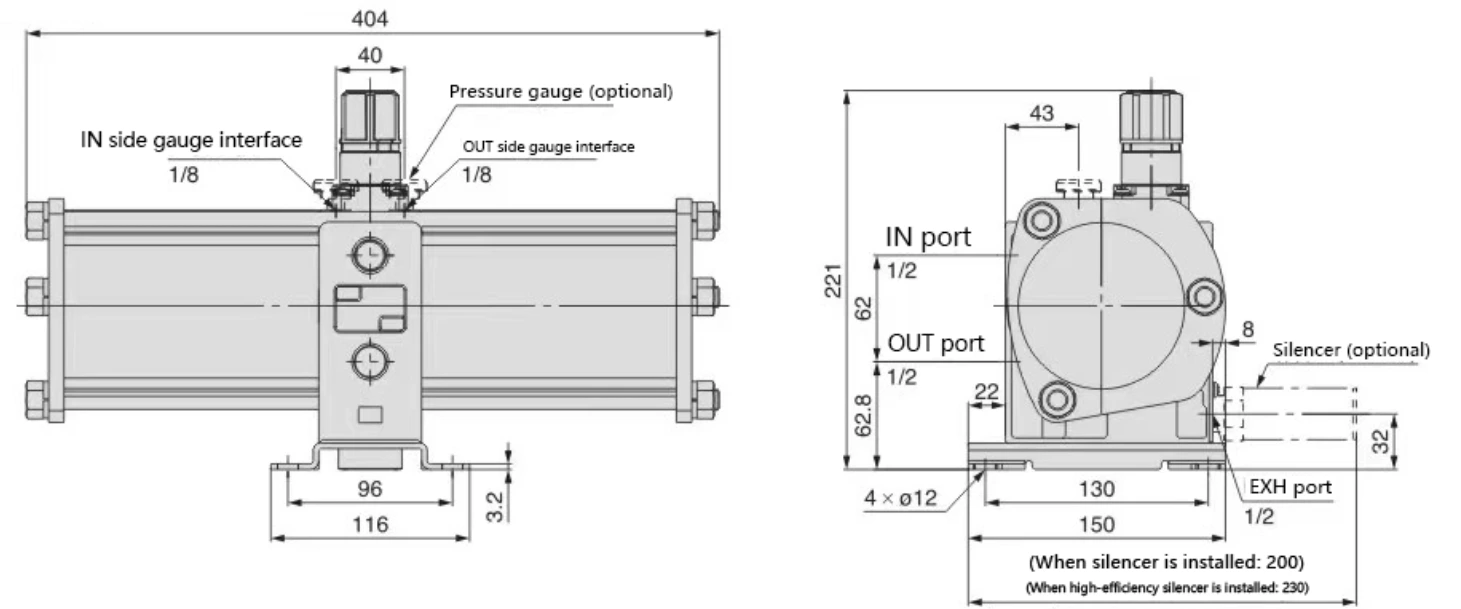

Dimensions
XVBA10A-02
XVBA11A-02
XVBA20A-03
XVBA40A-04
XVBA22A-03
XVBA42A-04
XVBA43A-04

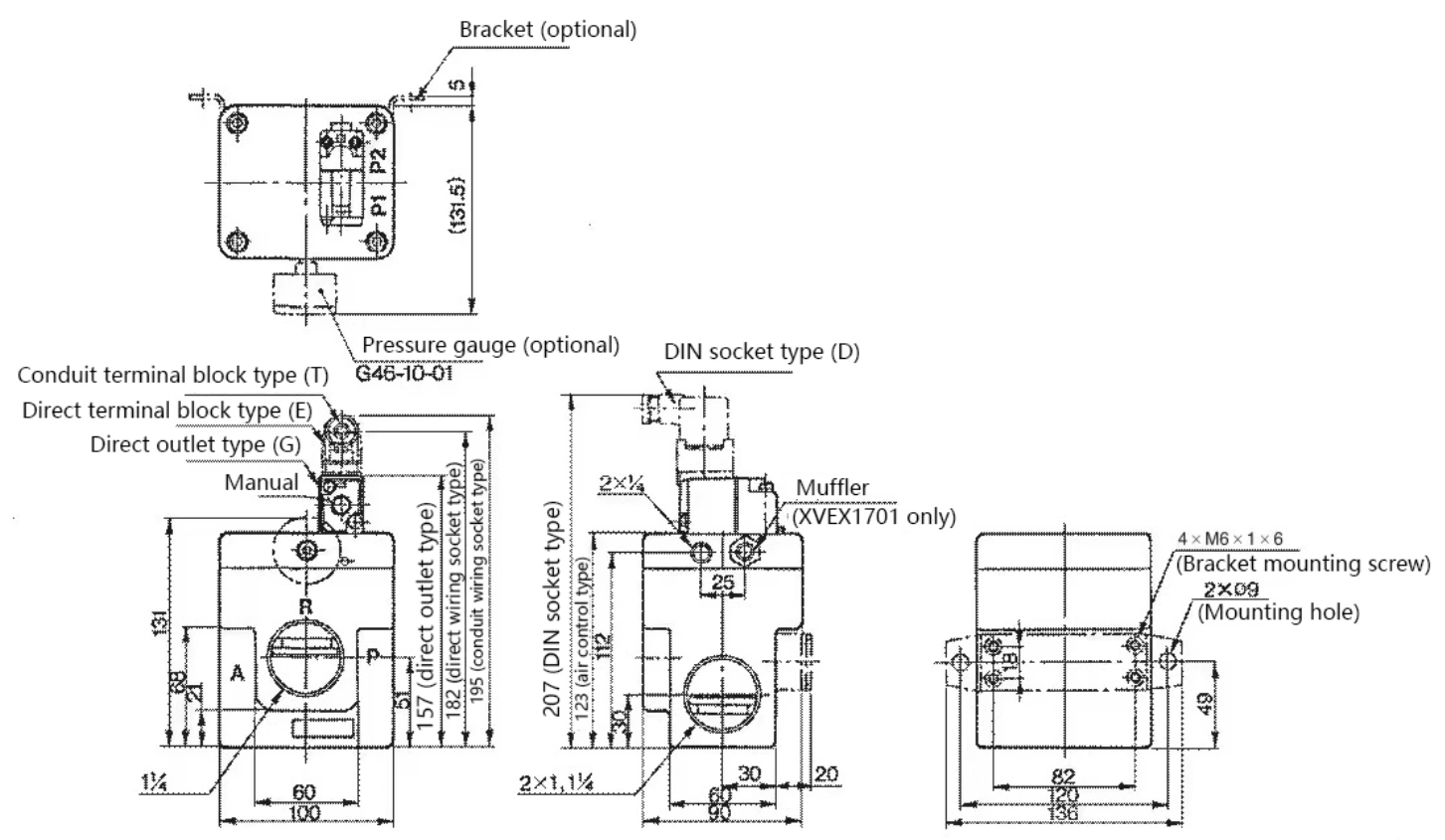

Air-operated type: XVEX1700
External pilot solenoid type: XVEX1701
Air-operated type: XVEX1900
External pilot solenoid type: XVEX1901

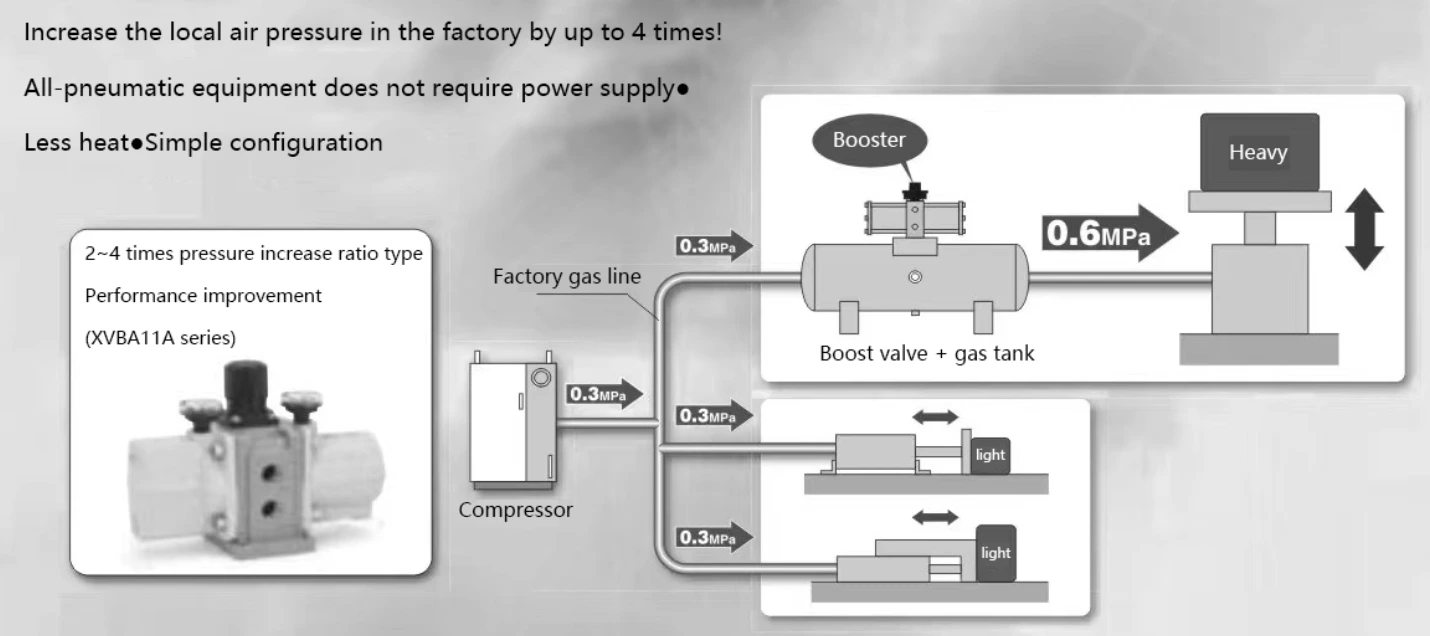

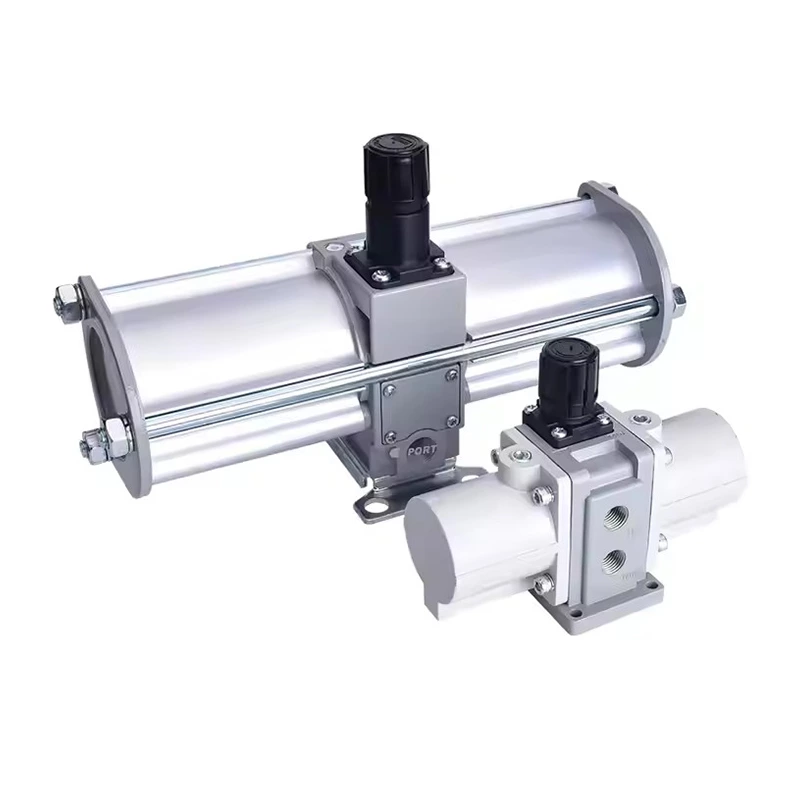

No power supply or electrical wiring required
No cumbersome electrical wiring required.
Simple configuration
Just connect to the gas line. Compared with adding a compressor, it takes up less space.
Low heat generation
Since no electrical facilities are used, the heat generation is low and has no effect on the cylinder and solenoid valve.
Fully pneumatic
It is very safe because no electrical equipment is used.

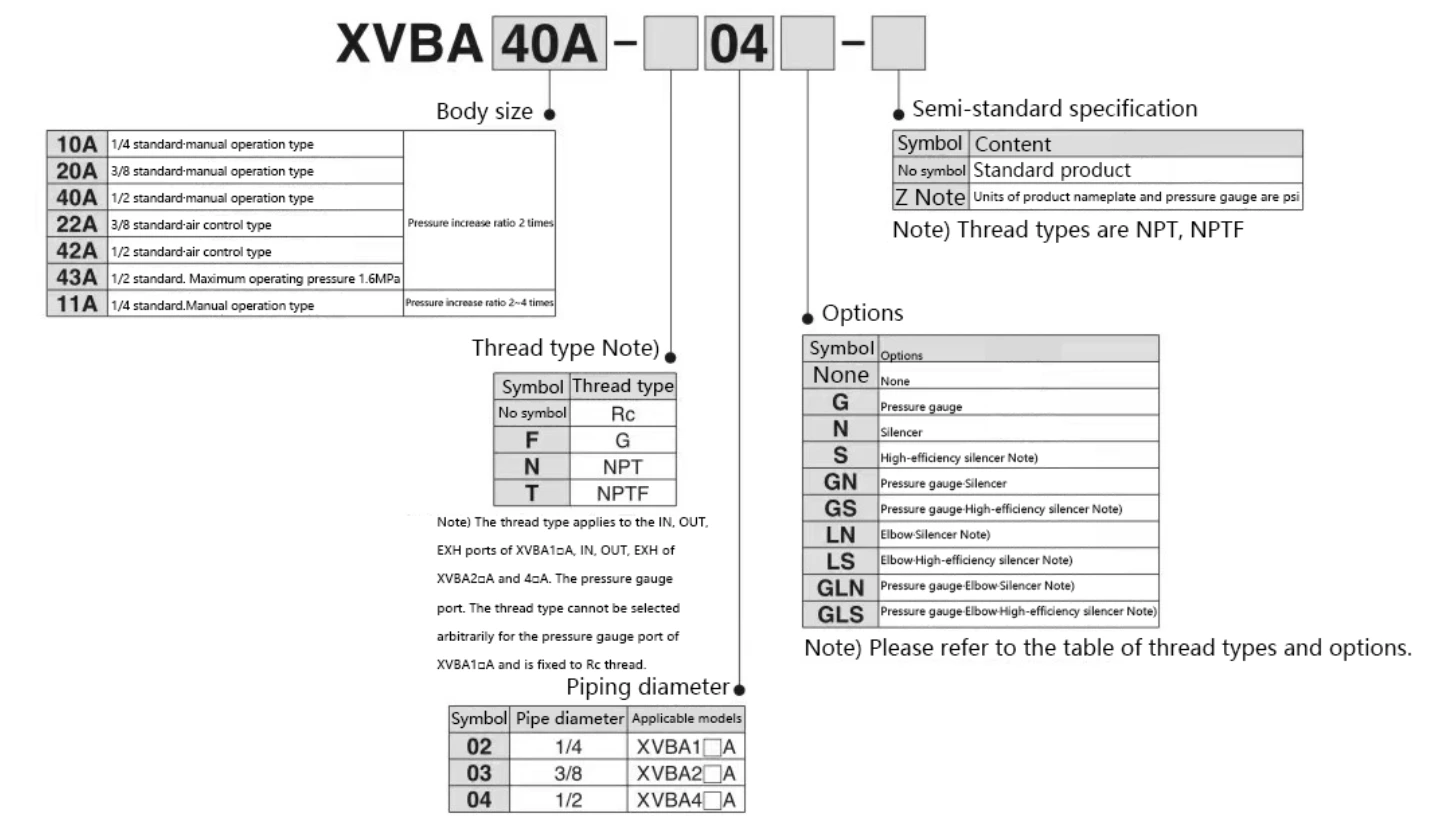

Model indication method
Thread Type ●Option Combination Table
| Body size | Thread type | Options | Semi-standard specifications | ||||||||||
| No symbol | G | N | S | GN | GS | LN | LS | GLN | GLS | No symbol | -Z | ||
| 10A 11A | No symbol | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | - |
| F | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | - | |
| N | ● | ● | ● | - | ● | - | ● | - | ● | - | ● | ● | |
| T | ● | ● | ● | - | ● | - | ● | - | ● | - | ● | ● | |
| 20A 22A | No symbol | ● | ● | ● | ● | ● | ● | ● | - | ||||
| F | ● | ● | ● | ● | ● | ● | ● | - | |||||
| N | ● | ● | ● | ● | ● | ● | ● | ● | |||||
| T | ● | ● | ● | ● | ● | ● | ● | ● | |||||
| 40A 42A 43A | No symbol | ● | ● | ● | ● | ● | ● | ● | - | ||||
| F | ● | ● | ● | ● | ● | ● | ● | - | |||||
| N | ● | ● | ● | ● | ● | ● | ● | ● | |||||
| T | ● | ● | ● | ● | ● | ● | ● | ● | |||||
Matching gas tank table
| Gas tank/Booster valve | XVBA1□A | XVBA2□A | XVBA4□A |
| XVBAT05A | ● | - | - |
| XVBAT05S | |||
| XVBAT10A | ● | ● | - |
| XVBAT10S | |||
| XVBAT20A | - | ● | ● |
| XVBAT20S | |||
| XVBAT38A | - | ● | ● |
| XVBAT38S |
Standard specifications
| model | XVBA10A-02 | XVBA20A-03 | XVBA40A-04 | XVBA22A-03 | XVBA42A-04 | XVBA43A-04 | XVBA11A-02 |
| Use fluid | Compressed air | ||||||
| Pressure ratio | 2 times | 2 times~4 times | |||||
| Pressure adjustment mechanism | Manually operated type with relief function Note 1) | Air-controlled type | Manually operated type with relief function Note 1) | ||||
| Maximum flow rate Note 2) L/min(ANR) | 230 | 1000 | 1900 | 1000 | 1900 | 1600 | 70 |
| Set pressure range MPa | 0.2~2.0 | 0.2~1.0 | 0.2~1.0 | 0.2~1.6 | 0.2~2.0 | ||
| Supply pressure range MPa | 0.1~1.0 | ||||||
| Guaranteed pressure resistance MPa | 3 | 1.5 | 2.4 | 3 | |||
| Connection port (IN, OUT, EXH 3 places) Rc | 1/4 | 3/8 | 1/2 | 3/8 | 1/2 | 1/4 | |
| Pressure gauge connection port (IN, OUT 2 places) Rc | 1/8 | ||||||
| Ambient temperature and fluid temperature ℃ | 2~50(no freezing) | ||||||
| Installation | level | ||||||
| lubricating | Grease (no oil) | ||||||
| quality kg | 0.84 | 3.9 | 8.6 | 3.9 | 8.6 | 8.6 | 0.89 |
Note 1) When the pressure at the OUT port is higher than the handle setting pressure, the remaining pressure is discharged from the back of the handle.
Note 2) Flow rate when IN=OUT=0.5MPa. The use conditions will affect the pressure change.
Options Parts Model

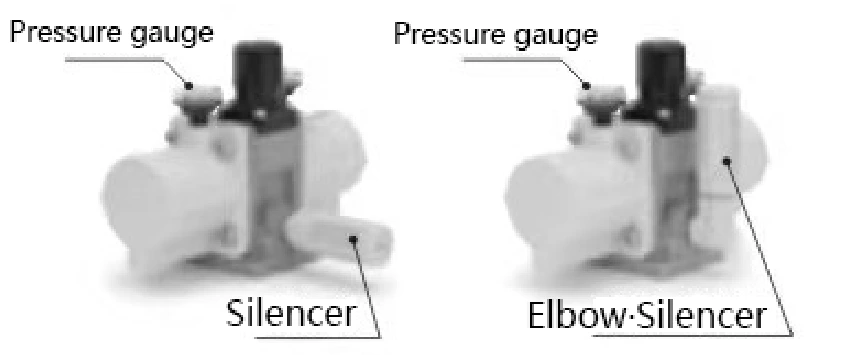

Pressure gauge, silencer (when the thread type is Rc, G)
| name/model | XVBA10A-02 XVBA10A-F02 | XVBA20A-03 XVBA20A-F03 | XVBA40A-04 XVBA40A-F04 | XVBA22A-03 XVBA22A-F03 | XVBA42A-04 XVBA42A-F04 | XVBA43A-04 XVBA43A-F04 | XVBA11A-02 XVBA11A-F02 | |
| Pressure gauge | G | G27-20-01 | G36-10-01 | KT-VBA22A-7 | G36-10-01 | G27-20-01 | G27-20-01 | |
| Muffler | N | AN20-02 | AN30-03 | AN40-04 | AN30-03 | AN40-04 | AN40-04 | AN20-02 |
| High efficiency silencer | S | ANA1-02 | ANA1-03 | ANA1-04 | ANA1-03 | ANA1-04 | ANA1-04 | ANA1-02 |
| Elbow(for muffler) | L | KT-VBA10A-18 | - | - | - | - | - | KT-VBA10A-18 |
Note 1) When the option is GN, two pressure gauges and one silencer are packaged as accessories.
Note 2) KT-VBA22A-7 is a pressure gauge with a connector. (Please order two when using both IN and OUT.)
Pressure gauge, silencer (when the thread type is NPT, NPTF)
| name/model | XVBA10A-N02※ XVBA10A-T02※ ※Department-Z | XVBA20A-N03※ XVBA20A-T03※ ※Department-Z | XVBA40A-N04※ XVBA40A-T04※ ※Department-Z | XVBA22A-N03※ XVBA22A-T03※ ※Department-Z | XVBA42A-N04※ XVBA42A-T04※ ※Department-Z | XVBA43A-N04※ XVBA43A-T04※ ※Department-Z | XVBA11A-N02※ XVBA11A-T02※ ※Department-Z | |
| Pressure gauge ※No symbol | G | G27-20-01 | G36-10-N01 | KT-VBA22A-7N | G36-10-N01 | G27-20-N01 | G27-20-01 | |
| In case of pressure gauge ※ part -Z Note 4) | G27-P20-01 | G36-P10-N01 | KT-VBA22A-8N | G36-P10-N01 | G27-P20-N01 | G27-P20-01 | ||
| Muffler | N | AN20-N02 | AN30-N03 | AN40-N04 | AN30-N03 | AN40-N04 | AN40-N04 | AN20-N02 |
| High efficiency silencer | S | - | ANA1-N03 | ANA1-N04 | ANA1-N03 | ANA1-N04 | ANA1-N04 | - |
| Elbow(for muffler) | L | KT-VBA10A-18N | - | - | - | - | - | KT-VBA10A-18N |
Note 1) When the option is GN, two pressure gauges and one silencer are packaged as accessories.
Note 2) The pressure gauge uses psi as the pressure unit.
Related products●Parts model
Oil mist separator, exhaust cleaner
| name/model | For XVBA10A-02 For XVBA11A-02 | For XVBA20A-03 For XVBA22A-03 | For XVBA40A-04 For XVBA42A-04 For XVBA43A-04 |
| Oil mist separator | XAM250C-02 | XAM450C-04,06 | XAM550C-06,10 |
| Exhaust cleaner | XAMC310C-03 | XAMC510-06 | XAMC610-10 |
Design considerations
Notice
①System Configuration
- Although a metal mesh is installed at the IN port (inlet port) of the booster valve to prevent impurities from entering, it cannot completely remove impurities and condensed water. Please be sure to install an oil mist separator (AM series) at the inlet of the booster valve.
- There are movable parts inside the boost valve, which may cause wear and dust. Therefore, the exhaust port must also be equipped with air purification components such as filters and oil mist separators of corresponding types according to the specific situation.
- Please install the oil mist collector at the exhaust port. Otherwise, the lubricating oil accumulated in the booster valve may cause malfunction.
②Exhaust treatment
- The exhaust pipe of the boost valve must be configured separately. If the exhaust pipes of the boost valve are connected together, malfunction may occur due to the influence of back pressure.
- If necessary, a muffler and exhaust cleaner can be installed at the exhaust port of the boost valve to reduce exhaust noise.
③Reserve space for maintenance
- Please ensure that there is enough space for maintenance work.
