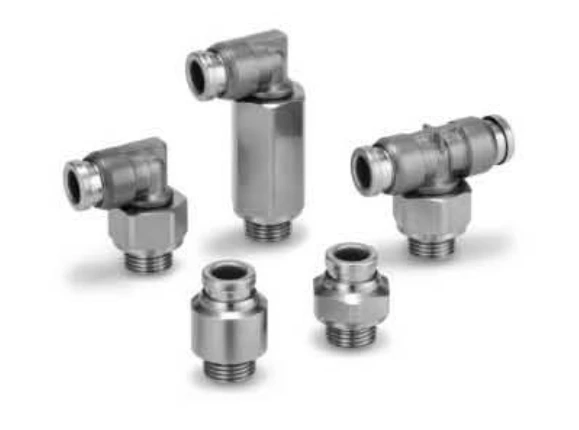

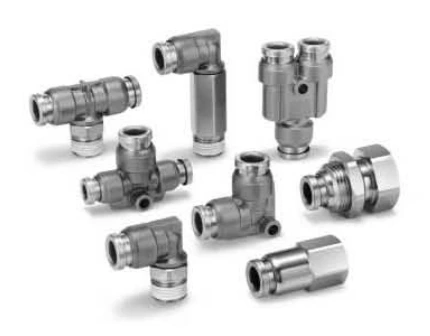

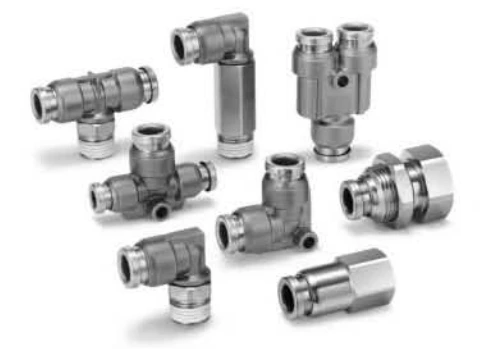

Applicable piping: Metric size
Connection thread: M, R, Rc
Suitable for pipes
| Pipe material | FEP, PFA, nylon, soft nylon Note 1), polyurethane, polyolefin |
| Pipe outer diameter | Ф3.2,Ф4,Ф6,Ф8,Ф10,Ф12,Ф16 |
Specification
| Used fluid | Air, Water |
| Used pressure range Note 2) | -100kPa~1MPa Note 3) |
| Test pressure | 3.0MPa |
| Ambient temperature and used fluid temperature Note 4) | -5~150℃(Not frozen) Note 3) |
| Used grease | Grease-free specifications |
| Screw seal | With sealant |
Note 1) Water cannot be used for soft nylon tubes.
Note 2) Leakage is not 0, so avoid using vacuum in leak tests.
Note 3) Please confirm the operating pressure range and operating temperature range of the piping.
Note 4) The inner bushing should be installed under the following conditions. (Except Ф3.2)
When used in fluids and environments with rapid temperature changes.
When used at high temperatures.
※ Lining set assembly temperature conditions
| Used pipes | Temperature |
| FEP pipe/TH series | Above 80℃ |
| PFA pipe/TL series | Above 120℃ |
spare parts
| Name | Pipe outer diameter | model | Material |
| Gasket | - | M-5G3 | SUS316 Special FKM |
| Panel nut | Ф3.2 Ф4 | KQB223-P01 | C3804 (electroless nickel plating) |
| Ф6 | KQB206-P01 | ||
| Ф8 | KQB208-P01 | ||
| Ф10 | KQB210-P01 | ||
| Ф12 | KQB212-P01 | ||
| Ф16 | KQB216-P01 |
Uchimura Set Adaptation Table
| Pipe outer diameter | Pipe material | Applicable liner | |||
| TUS (Soft polyurethane) | TH/TIH(FEP) | TL/TIL(PFA) | model | length | |
| Ф4 | - | TH0402 | - | TJ-0402 | 18 |
| TUS0425 | TH0425 | - | TJ-0425 | 18 | |
| - | - | TL0403 | TJ-0403 | 18 | |
| Ф6 | TUS0604 | TH0604 | TL0604 | TJ-0604 | 19 |
| Ф8 | TUS0805 | - | - | TJ-0805 | 20.5 |
| - | TH0806 | TL0806 | TJ-0806 | 20.5 | |
| Ф10 | TUS1065 | - | - | TJ-1065 | 23 |
| - | TH1075 | - | TJ-1075 | 23 | |
| - | TH1008 | TL1008 | TJ-1008 | 23 | |
| Ф12 | TUS1208 | - | - | TJ-1208 | 24 |
| - | TH1209 | - | TJ-1209 | 24 | |
| - | TH1210 | TL1210 | TJ-1210 | 24 | |
※ The material of TJ series is C2700+electroless nickel plating.

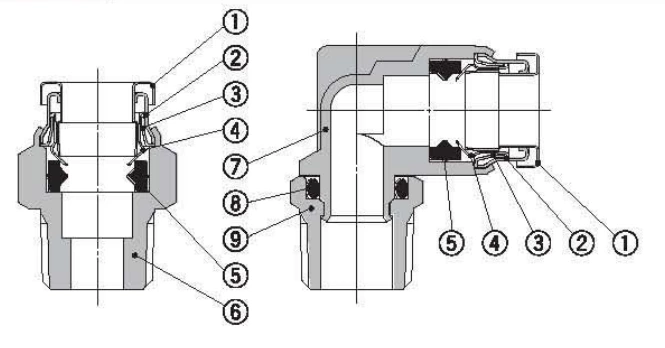

Structural diagram
 |
|
| Straight connector | elbow |

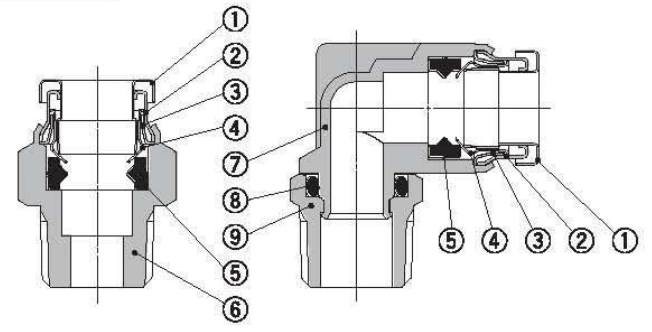

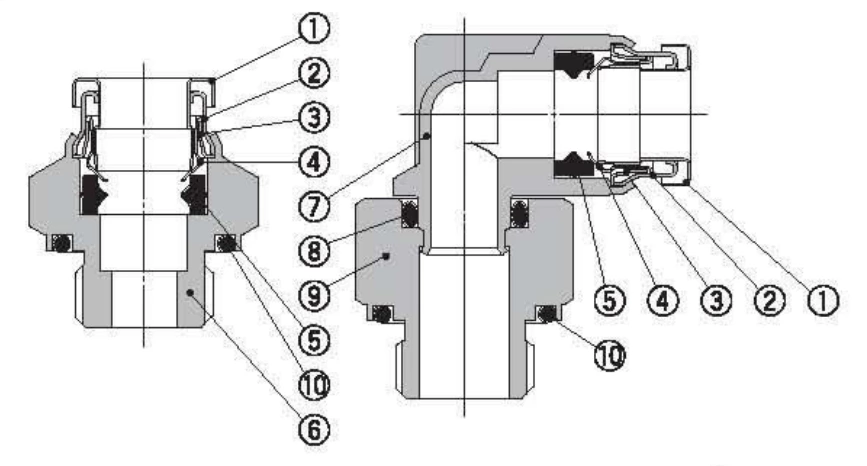

Parts List
| Serial number | name | Material |
| 1 | Release sleeve | SUS304 |
| 2 | Guide sleeve 1 | SUS304 |
| 3 | Guide sleeve 2 | SUS304 |
| 4 | Spring clip | SUS304 |
| 5 | Seal ring | Special FKM (fluorine coating) |
| 6 | Straight-through fitting body | C3604 (electroless nickel plating) |
| 7 | Elbow body | SUS316 |
| 8 | O-ring | Special FKM (fluorine coating) |
| 9 | Press-fit fitting | C3604 (electroless nickel plating) |
Dimensions

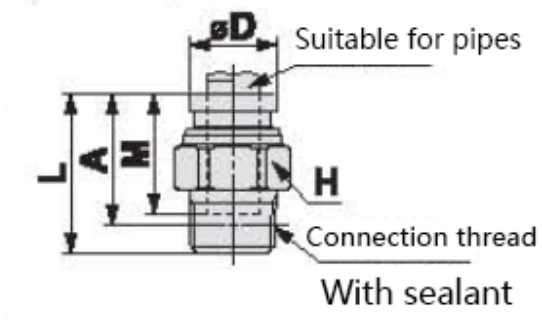

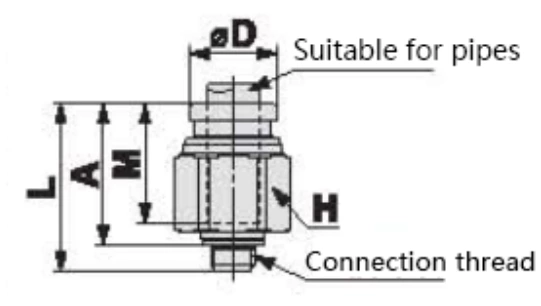

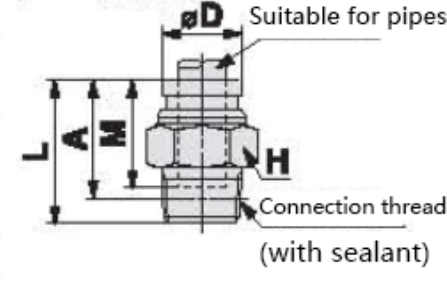

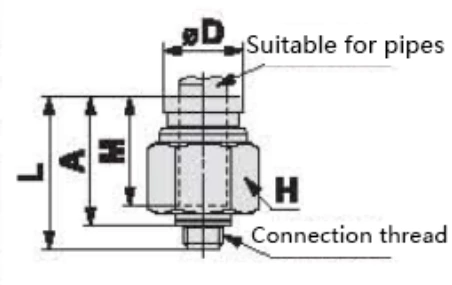

Straight connector: KQB2H
| Suitable for pipe outer diameter mm | Connection thread R, M | model | H (Hexagonal opposite sides) | ФD Note 1) | L | A※ | M | Effective cross-sectional area m㎡ Note 2) | quality g |
| Ф3.2 | M5×0.8 | KQB2H23-M5 | 8 | 8 | 16.5 | 13.5 | 12 | 3 | 3.4 |
| 1/8 | KQB2H23-01S | 10 | 15.4 | 12.3 | 3.4 | 8 | |||
| 1/4 | KQB2H23-02S | 14 | 21 | 16.3 | 17.8 | ||||
| Ф4 | M5×0.8 | KQB2H04-M5 | 10 | 8.7 | 17.1 | 14.1 | 12.6 | 4 | 5.3 |
| 1/8 | KQB2H04-01S | 15.3 | 12.2 | 5.6 | 5.6 | ||||
| 1/4 | KQB2H04-02S | 14 | 20.9 | 16.2 | 17.2 | ||||
| Ф6 | M5×0.8 | KQB2H06-M5 | 12 | 11.1 | 19.1 | 16.1 | 13.6 | 4 | 8 |
| 1/8 | KQB2H06-01S | 18.1 | 15 | 13.1 | 7.3 | ||||
| 1/4 | KQB2H06-02S | 14 | 20.8 | 16.1 | 15.2 | ||||
| 3/8 | KQB2H06-03S | 17 | 23 | 17.9 | 28.8 | ||||
| Ф8 | 1/8 | KQB2H08-01S | 14 | 13.4 | 24.5 | 21.4 | 18.1 | 26.1 | 13.5 |
| 1/4 | KQB2H08-02S | 22.3 | 17.6 | ||||||
| 3/8 | KQB2H08-03S | 17 | 23.7 | 18.6 | 26 | ||||
| Ф10 | 1/8 | KQB2H10-01S | 17 | 16.4 | 25.5 | 22.4 | 17 | 26.1 | 19.8 |
| 1/4 | KQB2H10-02S | 27.9 | 23.2 | 41.5 | 22.7 | ||||
| 3/8 | KQB2H10-03S | 23 | 17.9 | 21.6 | |||||
| 1/2 | KQB2H10-04S | 22 | 28.6 | 22.2 | 53.9 | ||||
| Ф12 | 1/4 | KQB2H12-02S | 19 | 18.5 | 30.5 | 25.8 | 18.6 | 58.3 | 28.8 |
| 3/8 | KQB2H12-03S | 24.7 | 19.6 | 21.5 | |||||
| 1/2 | KQB2H12-04S | 22 | 28.7 | 22.3 | 47 | ||||
| Ф16 | 3/8 | KQB2H16-03S | 24 | 24.6 | 33.6 | 28.5 | 20.8 | 81 | 48.3 |
| 1/2 | KQB2H16-04S | 29.5 | 23.1 | 113 | 39.2 |
※Reference dimensions after R threading.
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP tube.
Ф16 indicates the value when using nylon tube only.
| (For M5) |
 |
| (In the case of R) |
 |

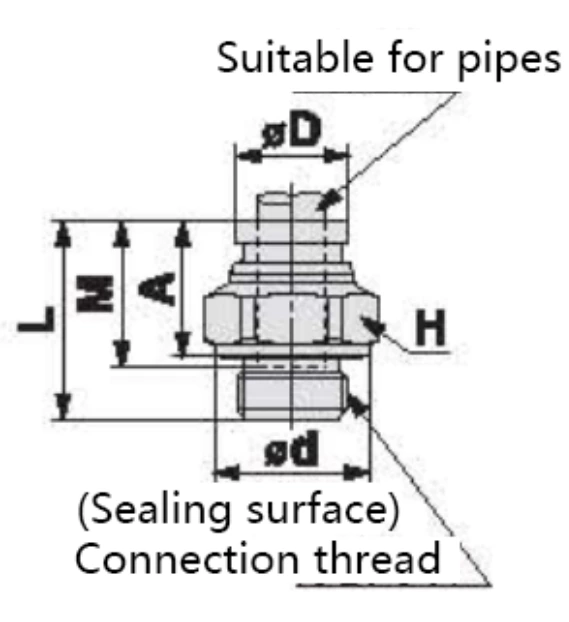

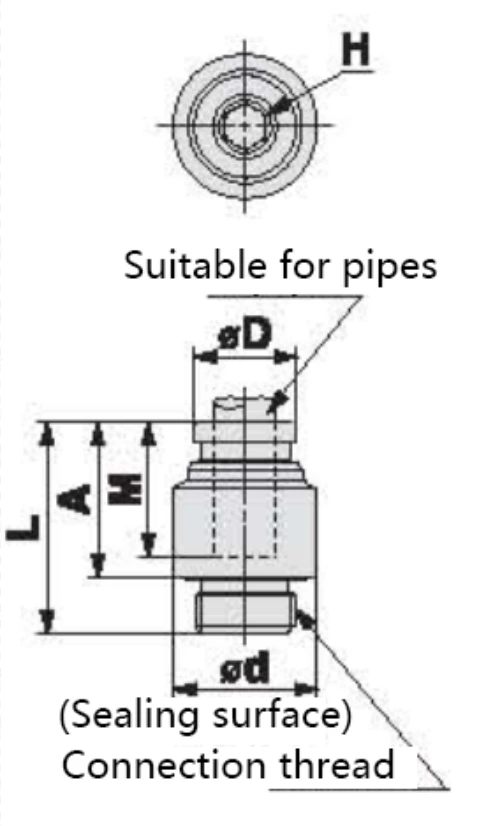

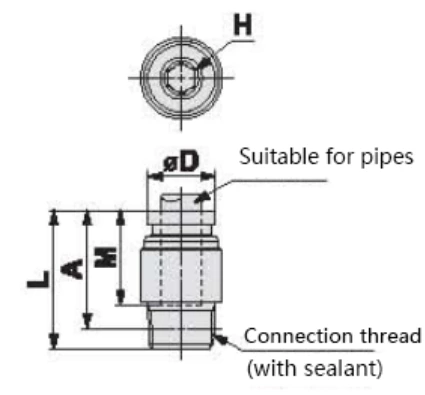

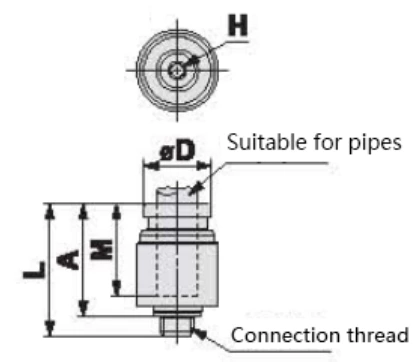

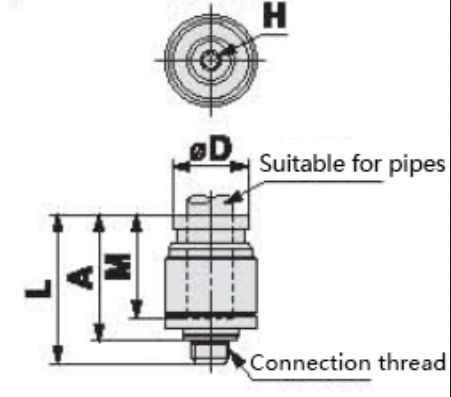

Hexagon socket straight connector: KQB2S
| Suitable for pipe outer diameter mm | Connection thread R, M | model | H (Hexagonal opposite sides) | ФD Note 1) | L | A※ | M | Effective cross-sectional area m㎡ Note 2) | quality g |
| Ф3.2 | M5×0.8 | KQB2S23-M5 | 2 | 9 | 16.5 | 13.5 | 12 | 3 | 4 |
| Ф4 | M5×0.8 | KQB2S04-M5 | 2 | 9 | 17.1 | 14.1 | 12.8 | 4 | 3.9 |
| 1/8 | KQB2S04-01S | 3 | 10 | 20.4 | 17.3 | 4.1 | 7.9 | ||
| Ф6 | M5×0.8 | KQB2S06-M5 | 2 | 12 | 19.6 | 16.6 | 13.8 | 4 | 7.8 |
| 1/8 | KQB2S06-01S | 4 | 20.6 | 17.5 | 10 | 9.1 | |||
| 1/4 | KQB2S06-02S | 14 | 15.9 | 10.7 | 14.7 | ||||
| Ф8 | 1/8 | KQB2S08-01S | 5 | 14 | 24.7 | 21.6 | 18.1 | 17.2 | 13 |
| 1/4 | KQB2S08-02S | 6 | 22.9 | 18.2 | 23.3 | 13.5 | |||
| 3/8 | KQB2S08-03S | 17 | 23.1 | 18 | 24 | ||||
| Ф10 | 1/8 | KQB2S10-01S | 5 | 17 | 25.6 | 22.5 | 17 | 17.2 | 18.6 |
| 1/4 | KQB2S10-02S | 8 | 27.5 | 22.8 | 39 | 20 | |||
| 3/8 | KQB2S10-03S | 24 | 18.9 | 22 | |||||
| 1/2 | KQB2S10-04S | 22 | 17.6 | 39.2 | |||||
| Ф12 | 1/4 | KQB2S12-02S | 8 | 19 | 30.6 | 25.9 | 16.6 | 48 | 26 |
| 3/8 | KQB2S12-03S | 10 | 24.9 | 19.8 | 60 | 20.2 | |||
| 1/2 | KQB2S12-04S | 22 | 18.5 | 35.3 | |||||
| Ф16 | 3/8 | KQB2S16-03S | 10 | 24.6 | 33.2 | 28.1 | 20.8 | 81 | 43.8 |
| 1/2 | KQB2S16-04S | 12 | 29.4 | 23 | 113 | 40.3 |
※Reference dimensions after R threading.
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP tube.
Ф16 indicates the value when using nylon tube only.
| for M5) |
 |
| (In the case of R) |
 |

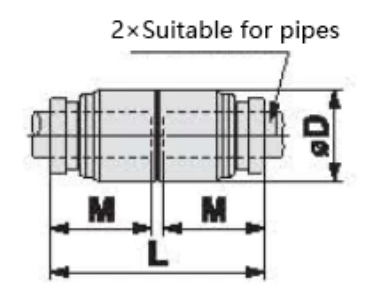

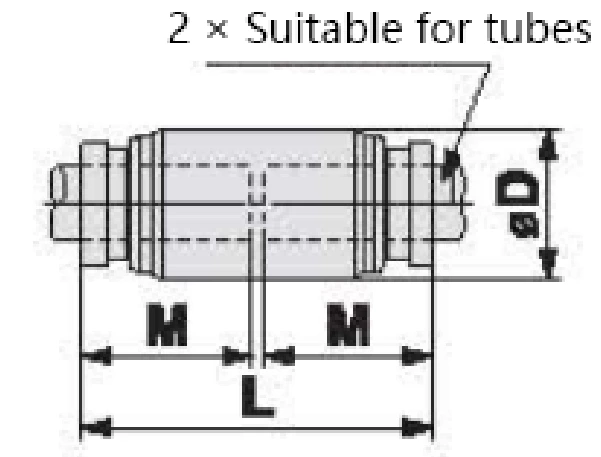

Straight connector: KQB2H
| Suitable for pipe outer diameter mm | model | ФD Note 1) | L | M | Effective cross-sectional area m㎡ Note 2) | quality g |
| Ф3.2 | KQB2H23-00 | 9 | 25 | 12 | 3.4 | 6.8 |
| Ф4 | KQB2H04-00 | 9 | 26.2 | 12.6 | 5.6 | 6.8 |
| Ф6 | KQB2H06-00 | 12 | 28.2 | 13.6 | 13.1 | 12 |
| Ф8 | KQB2H08-00 | 14 | 33.2 | 16.1 | 26.1 | 17.4 |
| Ф10 | KQB2H10-00 | 17 | 35 | 17 | 41.5 | 27.2 |
| Ф12 | KQB2H12-00 | 19 | 38.2 | 16.6 | 58.3 | 33.7 |
| Ф16 | KQB2H16-00 | 24.6 | 42.6 | 20.8 | 113 | 56.1 |
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP tube.
Ф16 indicates the value when using nylon tube only.
Dimensions

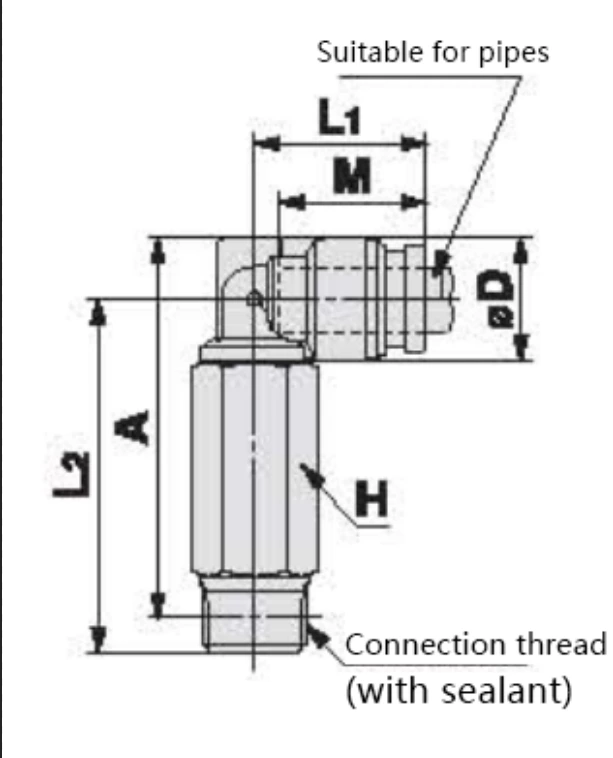

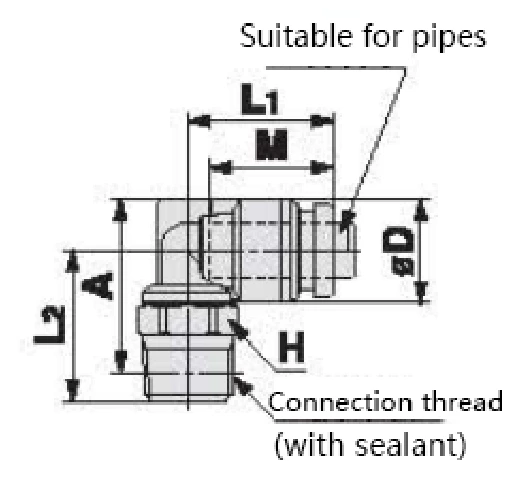

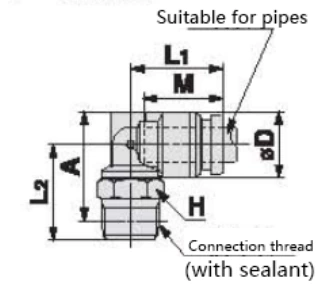

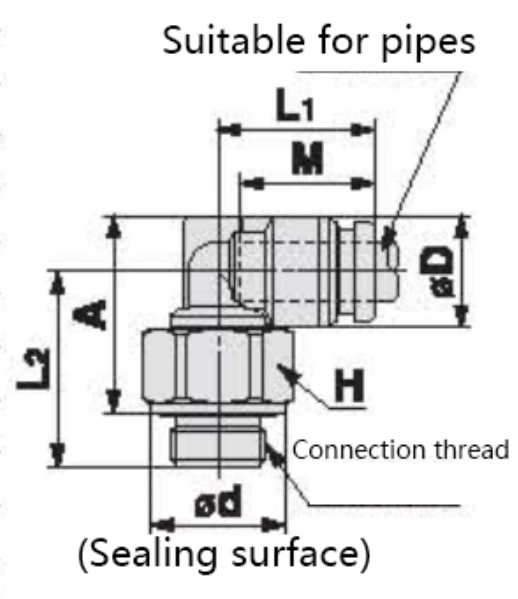

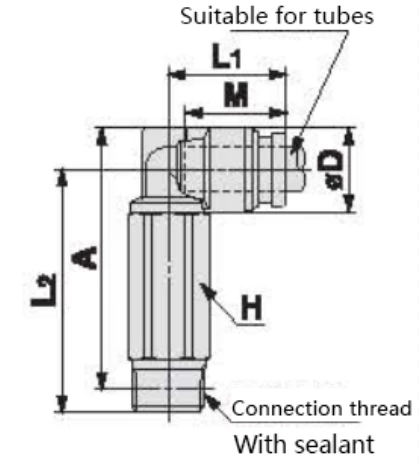

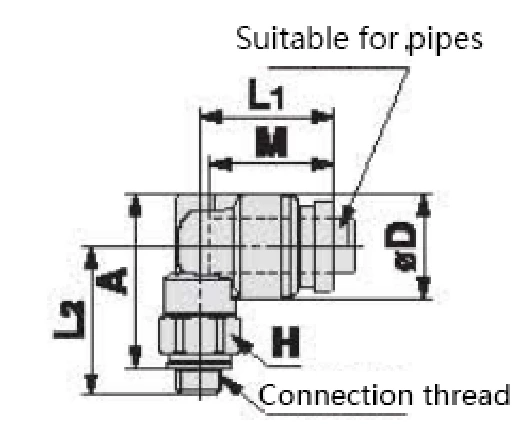

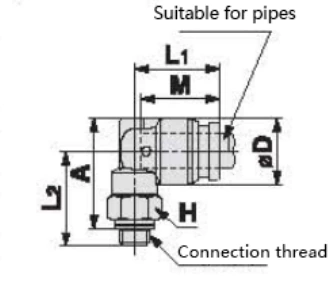

Elbow: KQB2L
| Suitable for pipe outer diameter mm | Connection thread R, M | model | H (Hexagonal opposite sides) | ФD Note 1) | L1 | L2 | A※ | M | Effective cross-sectional area m㎡ Note 2) | quality g |
| Ф3.2 | M5×0.8 | KQB2L23-M5 | 8 | 8.3 | 13.1 | 14.8 | 16 | 12 | 2.6 | 6.5 |
| 1/8 | KQB2L23-01S | 10 | 13.6 | 14.9 | 15.9 | 3 | 8 | |||
| 1/4 | KQB2L23-02S | 14 | 18.7 | 18.1 | 16.6 | |||||
| Ф4 | M5×0.8 | KQB2L04-M5 | 8 | 9.1 | 13.7 | 15.2 | 16.8 | 12.8 | 3.5 | 7 |
| 1/8 | KQB2L04-01S | 10 | 14.4 | 15.3 | 16.7 | 4.2 | 8.6 | |||
| 1/4 | KQB2L04-02S | 14 | 19.1 | 18.9 | 17.5 | |||||
| Ф6 | M5×0.8 | KQB2L06-M5 | 8 | 11.4 | 14.7 | 16.3 | 19 | 13.6 | 3.5 | 9 |
| 1/8 | KQB2L06-01S | 10 | 15.9 | 16.4 | 11.4 | 10.2 | ||||
| 1/4 | KQB2L06-02S | 14 | 20.2 | 21.2 | 19.1 | |||||
| 3/8 | KQB2L06-03S | 17 | 21.6 | 22.2 | 31.2 | |||||
| Ф8 | 1/8 | KQB2L08-01S | 12 | 13.7 | 18.6 | 18.3 | 22 | 16.1 | 21.6 | 14.8 |
| 1/4 | KQB2L08-02S | 14 | 19.1 | 21.5 | 23.6 | 20.8 | ||||
| 3/8 | KQB2L08-03S | 17 | 22.9 | 24.6 | 32.8 | |||||
| Ф10 | 1/8 | KQB2L10-01S | 12 | 16.6 | 20 | 19.7 | 24.9 | 17 | 21.6 | 20.4 |
| 1/4 | KQB2L10-02S | 14 | 21 | 22.9 | 26.5 | 35.1 | 23.7 | |||
| 3/8 | KQB2L10-03S | 17 | 24.3 | 27.5 | 34.5 | |||||
| 1/2 | KQB2L10-04S | 22 | 28.5 | 30.4 | 62.6 | |||||
| Ф12 | 1/4 | KQB2L12-02S | 14 | 18.7 | 22.6 | 24 | 28.6 | 18.6 | 50.2 | 27.4 |
| 3/8 | KQB2L12-03S | 17 | 23.6 | 25.3 | 29.5 | 34.3 | ||||
| 1/2 | KQB2L12-04S | 22 | 29.5 | 32.4 | 60.8 | |||||
| Ф16 | 3/8 | KQB2L16-03S | 19 | 24.6 | 26.3 | 28 | 34.5 | 20.8 | 71 | 47 |
| 1/2 | KQB2L16-04S | 22 | 27.3 | 31.8 | 37 | 100 | 62.6 |
※Reference dimensions after R threading.
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP tube.
Ф16 indicates the value when using nylon tube only.
| for M5) |
 |
| (In the case of R) |
 |

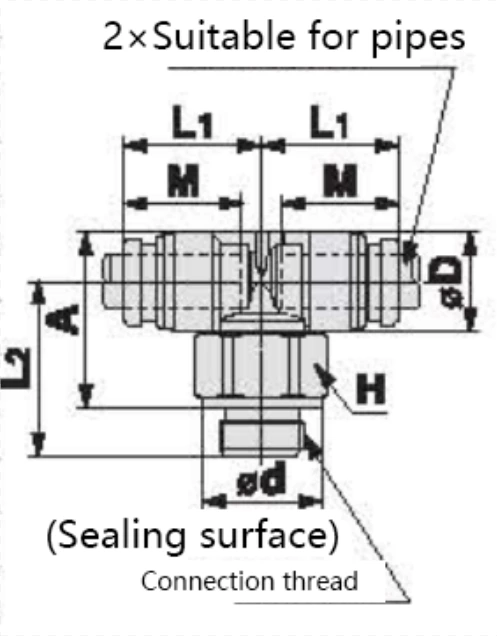

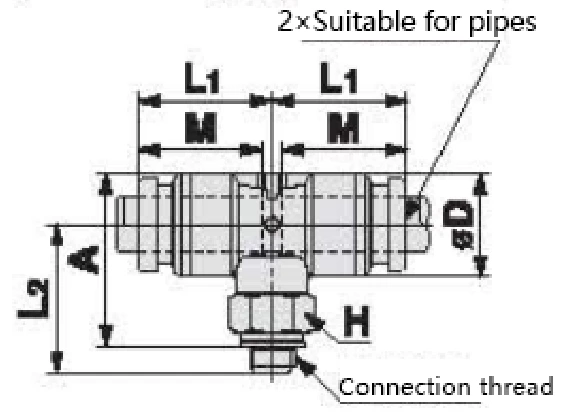

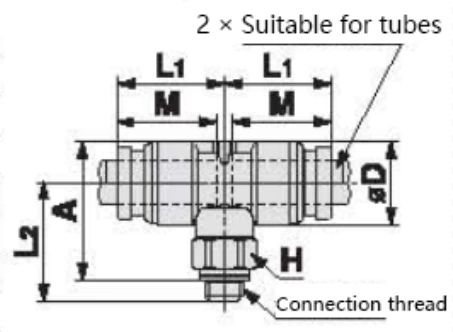

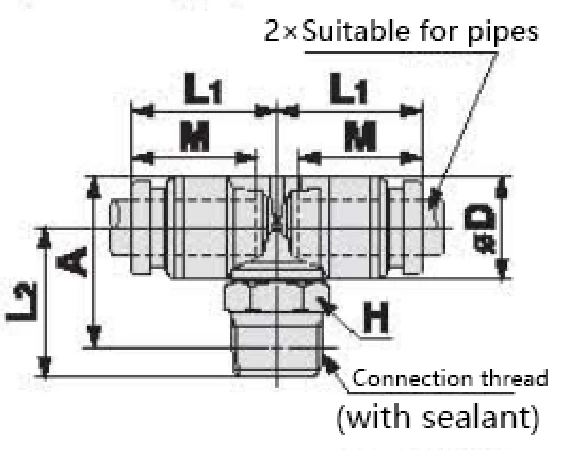

Double tube T-joint: KQB2T
| Suitable for pipe outer diameter mm | Connection thread R, M | model | H (Hexagonal opposite sides) | ФD Note 1) | L1 | L2 | A※ | M | Effective cross-sectional area m㎡ Note 2) | quality g |
| Ф3.2 | M5×0.8 | KQB2T23-M5 | 8 | 8.3 | 13.1 | 14.8 | 16 | 12 | 3.2 | 8.2 |
| 1/8 | KQB2T23-01S | 10 | 13.6 | 14.9 | 15.9 | 3.4 | 9.6 | |||
| 1/4 | KQB2T23-02S | 14 | 18.7 | 18.7 | 18.4 | |||||
| Ф4 | M5×0.8 | KQB2T04-M5 | 8 | 9.1 | 13.7 | 15.2 | 16.8 | 12.6 | 4.5 | 9.1 |
| 1/8 | KQB2T04-01S | 10 | 14.4 | 15.3 | 16.7 | 8 | 10.6 | |||
| 1/4 | KQB2T04-02S | 14 | 19.1 | 18.9 | 19.4 | |||||
| Ф6 | M5×0.8 | KQB2T06-M5 | 8 | 11.4 | 14.7 | 18.3 | 19 | 13.6 | 4.5 | 12.1 |
| 1/8 | KQB2T06-01S | 10 | 15.9 | 16.4 | 13.9 | 13.6 | ||||
| 1/4 | KQB2T06-02S | 14 | 20.2 | 21.2 | 22.5 | |||||
| 3/8 | KQB2T06-03S | 17 | 21.6 | 22.2 | 35 | |||||
| Ф8 | 1/8 | KQB2T08-01S | 12 | 13.7 | 18.6 | 18.3 | 22 | 16.1 | 26.3 | 20 |
| 1/4 | KQB2T08-02S | 14 | 19.1 | 21.5 | 23.6 | 26.1 | ||||
| 3/8 | KQB2T08-03S | 17 | 22.9 | 24.6 | 38 | |||||
| Ф10 | 1/8 | KQB2T10-01S | 12 | 16.6 | 20 | 19.7 | 24.9 | 17 | 40.8 | 28.6 |
| 1/4 | KQB2T10-02S | 14 | 21 | 22.9 | 26.5 | 31.5 | ||||
| 3/8 | KQB2T10-03S | 17 | 24.3 | 27.5 | 42.4 | |||||
| 1/2 | KQB2T10-04S | 22 | 28.5 | 30.4 | 70.4 | |||||
| Ф12 | 1/4 | KQB2T12-02S | 14 | 18.7 | 22.6 | 24 | 28.6 | 18.6 | 57.2 | 38.1 |
| 3/8 | KQB2T12-03S | 17 | 23.6 | 25.3 | 29.5 | 39.7 | ||||
| 1/2 | KQB2T12-04S | 22 | 29.5 | 32.4 | 70.8 | |||||
| Ф16 | 3/8 | KQB2T16-03S | 19 | 24.6 | 26.3 | 28 | 34.5 | 20.8 | 70 | 64.4 |
| 1/2 | KQB2T16-04S | 22 | 27.3 | 31.8 | 37 | 100 | 79 |
※Reference dimensions after R threading.
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP tube.
Ф16 indicates the value when using nylon tube only.
| for M5) |
 |
| (In the case of R) |
 |
Dimensions

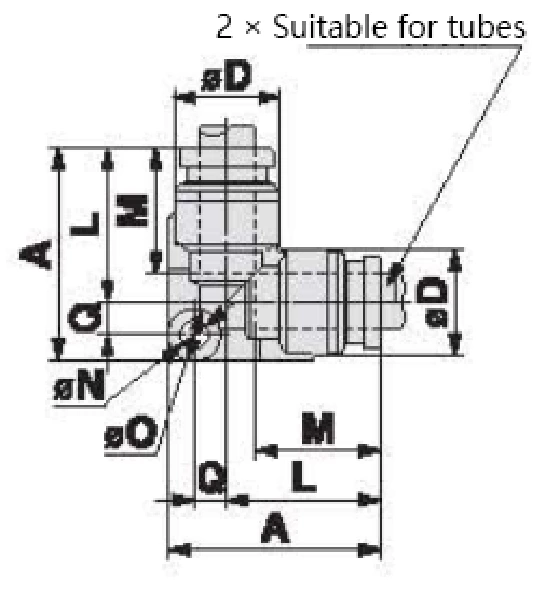

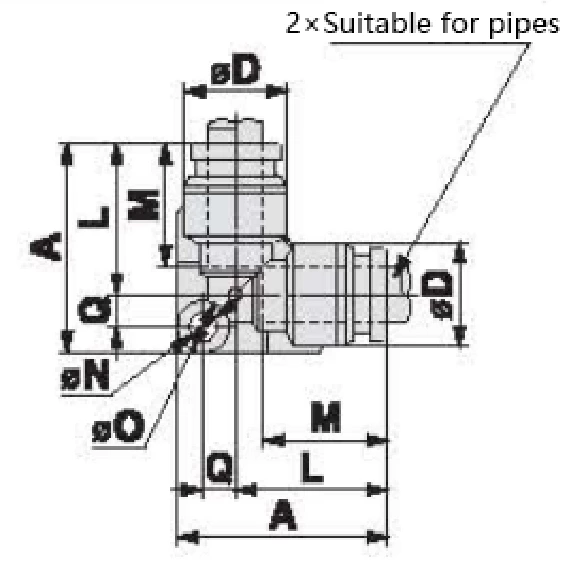

Right angle elbow: KQB2L
| Suitable for pipe outer diameter mm | model | ФD Note 1) | L | A | Q | M | ФN | ФO | Effective cross-sectional area m㎡ Note 2) | quality g |
| Ф3.2 | KQB2L23-00 | 6.3 | 13.6 | 19.3 | 2.9 | 12 | 3.2 | 5.6 | 3 | 6.3 |
| Ф4 | KQB2L04-00 | 9.1 | 14.6 | 20.5 | 3.1 | 12.6 | 3.2 | 5.6 | 4.2 | 7.4 |
| Ф6 | KQB2L06-00 | 11.4 | 16.6 | 23 | 3.6 | 13.6 | 3.2 | 5.6 | 11.4 | 11 |
| Ф8 | KQB2L08-00 | 13.7 | 20.1 | 29.1 | 5 | 16.1 | 4.2 | 8 | 21.6 | 20.2 |
| Ф10 | KQB2L10-00 | 16.6 | 22 | 31.7 | 5.7 | 17 | 4.2 | 8 | 35.2 | 29.8 |
| Ф12 | KQB2L12-00 | 18.7 | 24.6 | 35 | 6.4 | 18.6 | 4.2 | 8 | 50.2 | 37.1 |
| Ф16 | KQB2L16-00 | 24.6 | 28.8 | 40.5 | 7.7 | 20.8 | 4.2 | 8 | 100 | 59.7 |
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP tube.
Ф16 indicates the value when using nylon tube only.

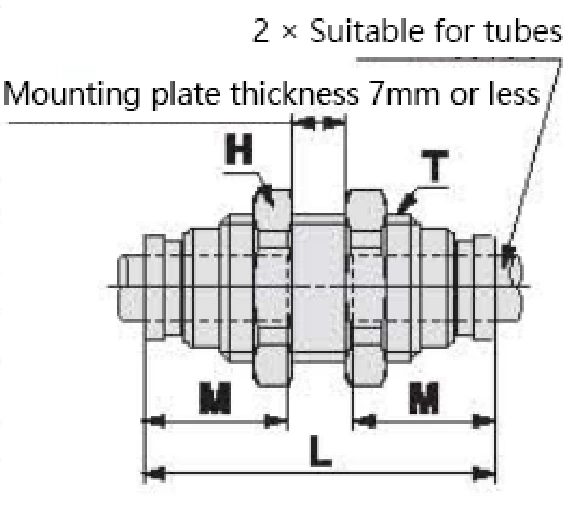

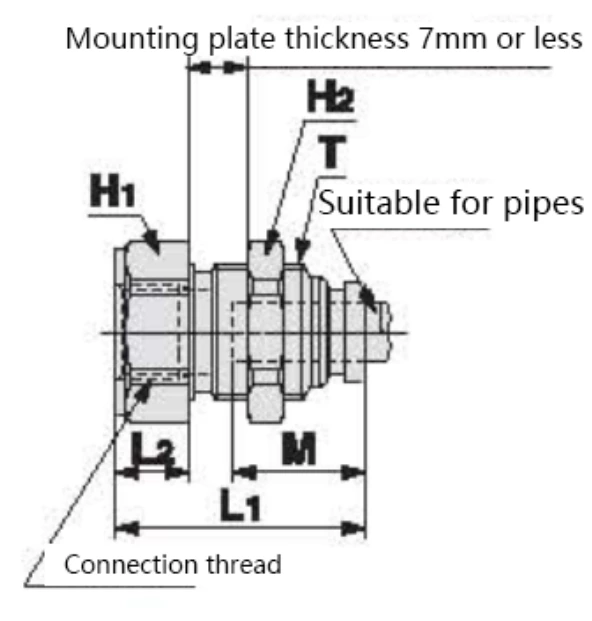

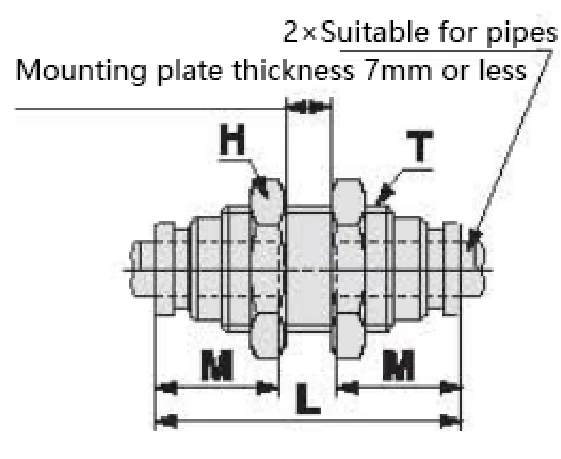

Panel installation straight pipe: KQB2E
| Suitable for pipe outer diameter mm | model | T （M） | H (Hexagonal opposite sides) | L | Mounting holes | M | Effective cross-sectional area m㎡ Note 2) | quality g |
| Ф3.2 | KQB2E23-00 | M10×1 | 12 | 32.2 | 11 | 12 | 3.4 | 14.8 |
| Ф4 | KQB2E04-00 | M10×1 | 12 | 32.4 | 11 | 12.6 | 5.6 | 14.7 |
| Ф6 | KQB2E06-00 | M14×1 | 17 | 35.4 | 15 | 13.6 | 13.1 | 29.2 |
| Ф8 | KQB2E08-00 | M15×1 | 19 | 38.8 | 16 | 16.1 | 26.1 | 34.9 |
| Ф10 | KQB2E10-00 | M18×1 | 21 | 40 | 19 | 17 | 41.5 | 47.1 |
| Ф12 | KQB2E12-00 | M20×1 | 24 | 42.4 | 21 | 18.6 | 58.3 | 58.7 |
| Ф16 | KQB2E16-00 | M27×1 | 30 | 46.8 | 28 | 20.8 | 113 | 107.2 |
Note) Indicates the value when using FEP tube.
Ф16 indicates the value when using nylon tube only.

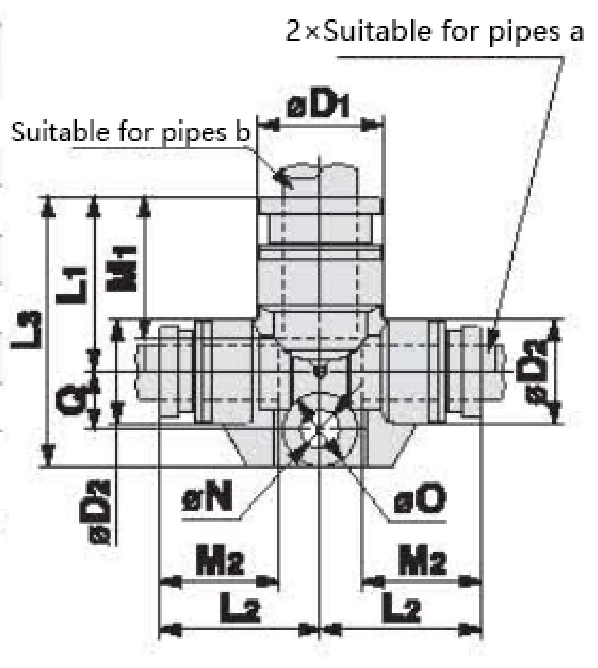

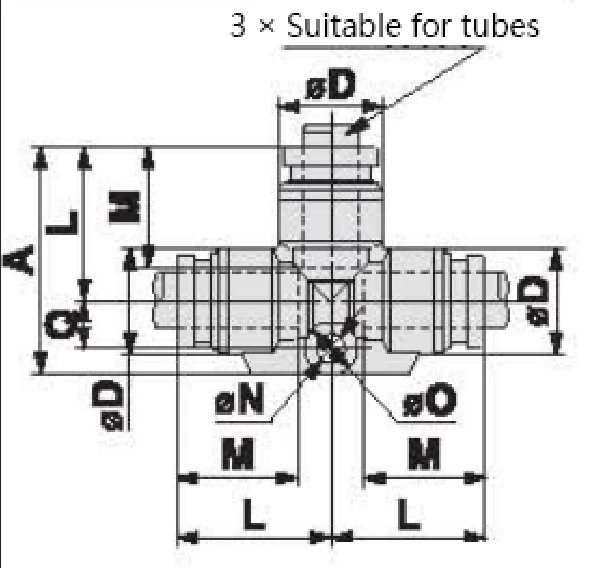

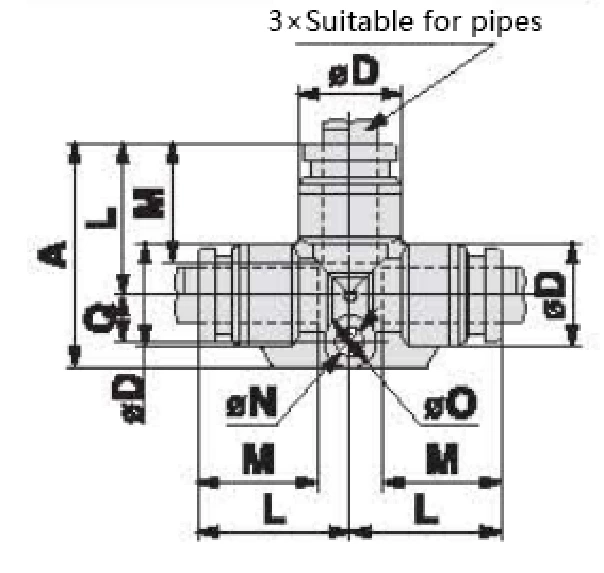

T-type pipe:KQB2T
| Suitable for pipe outer diameter mm | model | ФD Note 1) | L | A | Q | M | ФN | ФO | Effective cross-sectional area m㎡ Note 2) | quality g |
| Ф3.2 | KQB2T23-00 | 8.3 | 13.6 | 20.5 | 4.1 | 12 | 3.2 | 5.6 | 3.4 | 7.9 |
| Ф4 | KQB2T04-00 | 9.1 | 14.6 | 21.8 | 4.4 | 12.6 | 3.2 | 5.6 | 6.4 | 9.5 |
| Ф6 | KQB2T06-00 | 11.4 | 16.6 | 24.6 | 5.2 | 13.6 | 3.2 | 5.6 | 13.4 | 14.2 |
| Ф8 | KQB2T08-00 | 13.7 | 20.1 | 31.1 | 7 | 16.1 | 4.2 | 8 | 25.6 | 24.4 |
| Ф10 | KQB2T10-00 | 16.6 | 22 | 34 | 8 | 17 | 4.2 | 8 | 40 | 36.8 |
| Ф12 | KQB2T12-00 | 16.7 | 24.6 | 37.7 | 9.1 | 16.6 | 4.2 | 8 | 57.4 | 47 |
| Ф16 | KQB2T16-00 | 24.6 | 28.8 | 43.4 | 10.6 | 20.8 | 4.2 | 8 | 100 | 75.5 |
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP tube.
Ф16 indicates the value when using nylon tube only.

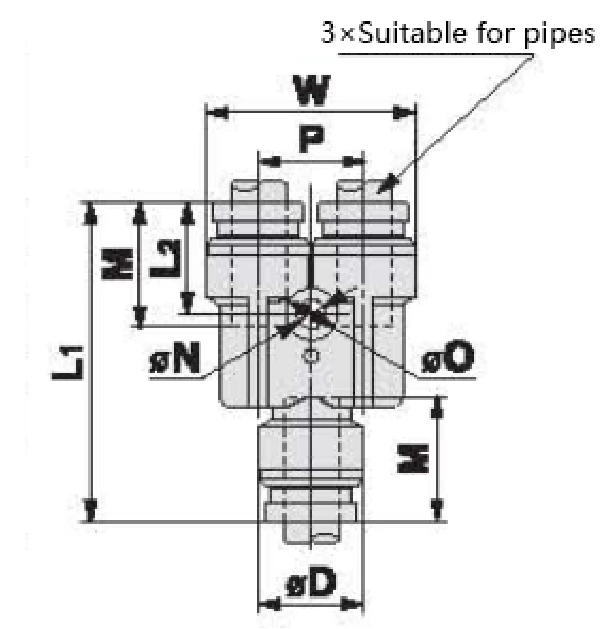

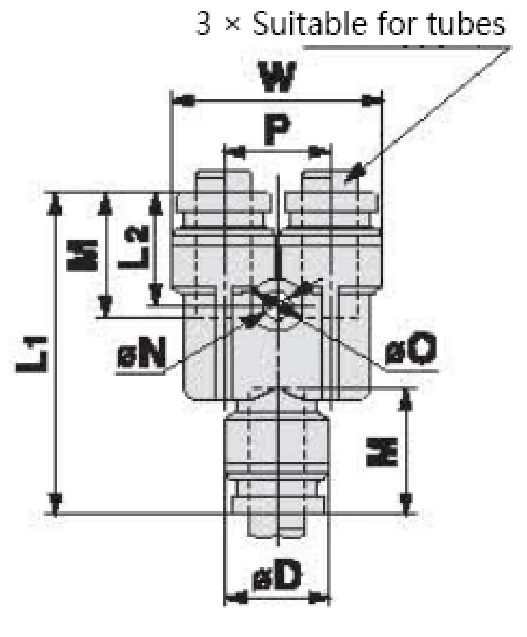

Y-type pipe:KQB2U
| Suitable for pipe outer diameter mm | model | ФD Note 1) | W | L1 | L2 | P | M | ФN | ФO | Effective cross-sectional area m㎡ Note 2) | quality g |
| Ф3.2 | KQB2U23-00 | 8.3 | 16.4 | 29 | 11 | 8.1 | 12 | 3.2 | 5.6 | 3.4 | 9.2 |
| Ф4 | KQB2U04-00 | 9.1 | 18.2 | 30.4 | 11.3 | 9.1 | 12.6 | 3.2 | 5.6 | 4.2 | 11.1 |
| Ф6 | KQB2U06-00 | 11.4 | 22.9 | 34.9 | 12.2 | 11.5 | 13.6 | 3.2 | 5.6 | 13.4 | 18.8 |
| Ф8 | KQB2U08-00 | 13.7 | 28.3 | 40.1 | 14.1 | 12.6 | 16.1 | 4.2 | 8 | 25.6 | 29.7 |
| Ф10 | KQB2U10-00 | 16.6 | 34.2 | 44 | 14.4 | 17.6 | 17 | 4.2 | 8 | 40 | 47.4 |
| Ф12 | KQB2U12-00 | 18.7 | 38.5 | 48.4 | 15.8 | 19.8 | 18.8 | 4.2 | 8 | 57.4 | 62.1 |
| Ф16 | KQB2U16-00 | 24.6 | 49.3 | 56.6 | 17.3 | 26 | 20.8 | 4.2 | 8 | 113 | 110.2 |
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP tube.
Ф16 indicates the value when using nylon tube only.
Dimensions

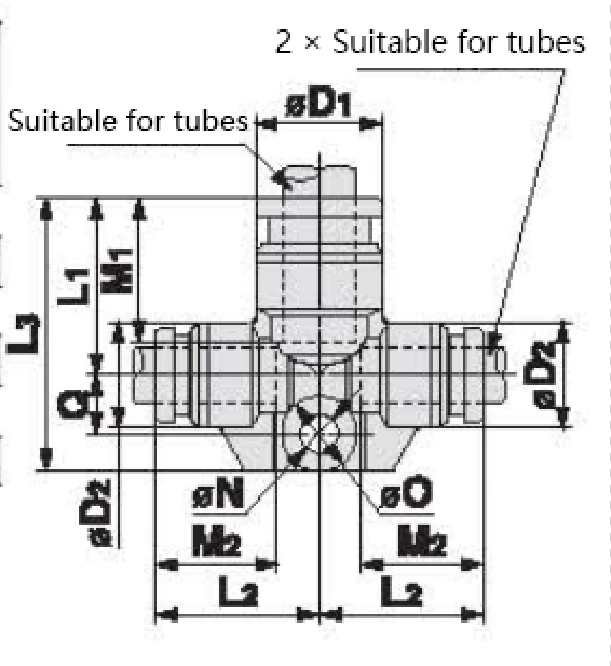

Reducing tee: KQB2T
| Suitable for pipe outer diameter mm | model | ФD1 Note 1) | ФD2 Note 1) | L1 | L2 | L3 | Q | M1 | M2 | ФN | ФO | Effective cross-sectional area m㎡ Note 2) | quality g | |
| a | b | |||||||||||||
| Ф3.2 | Ф4 | KQB2T23-04 | 9.1 | 8.3 | 14.2 | 14.1 | 21.1 | 4.1 | 12.6 | 12 | 3.2 | 5.6 | 3.8 | 8.5 |
| Ф4 | Ф6 | KQB2T04-06 | 11.4 | 9.1 | 15.6 | 15.7 | 22.8 | 4.4 | 13.6 | 12.6 | 3.2 | 5.6 | 7.1 | 11 |
| Ф6 | Ф8 | KQB2T06-08 | 13.7 | 11.4 | 19.1 | 17.7 | 29.5 | 6.4 | 16.1 | 13.6 | 4.2 | 8 | 16.4 | 20 |
| Ф8 | Ф10 | KQB2T08-10 | 16.6 | 13.7 | 21 | 21.2 | 32.1 | 7.1 | 17 | 16.1 | 4.2 | 8 | 38 | 29.8 |
| Ф10 | Ф12 | KQB2T10-12 | 18.7 | 16.6 | 23.6 | 23.1 | 35.7 | 8.1 | 18.6 | 17 | 4.2 | 8 | 56 | 41.3 |
| Ф12 | Ф16 | KQB2T12-16 | 24.6 | 18.7 | 26.8 | 26.7 | 39.9 | 9.1 | 20.8 | 18.6 | 4.2 | 8 | 108.5 | 58 |
Note 1) ФD1, ФD2 means the maximum diameter.
Note 2) indicates the value when using FEP pipe.

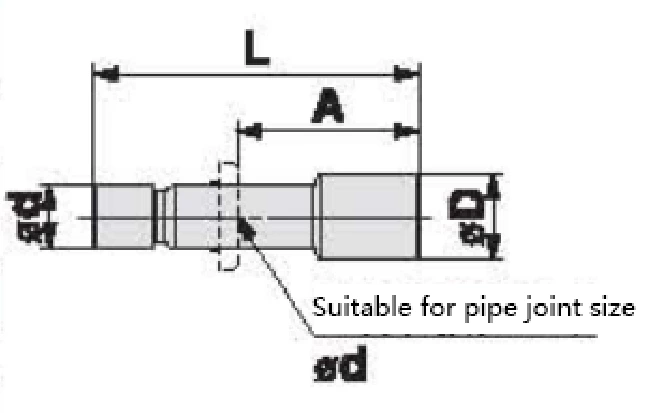

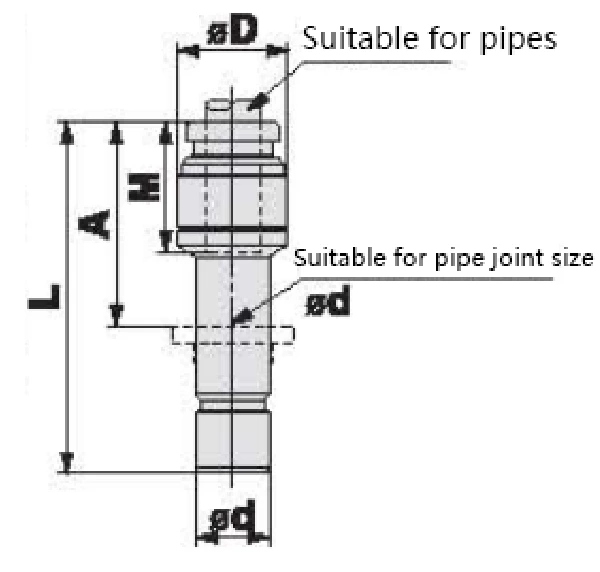

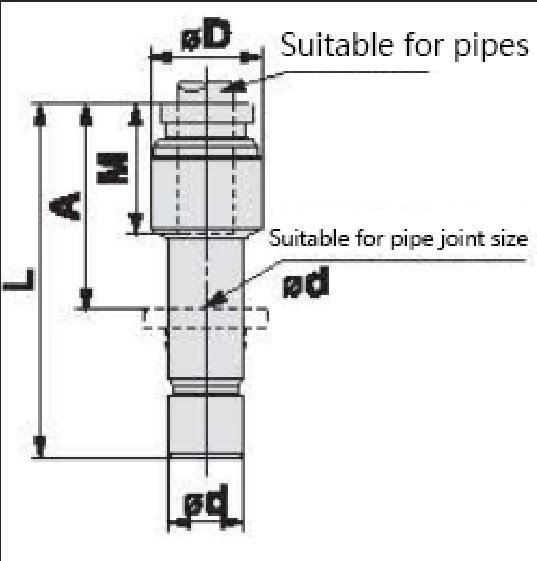

Plug:KQB2R
| Suitable for pipe outer diameter mm | Suitable for pipe joint sizeФd | model | ФD Note 1) | L | A | M | Effective cross-sectional area m㎡ Note 2) | quality g |
| Ф3.2 | Ф4 | KQB2R23-04 | 9 | 32.9 | 20.3 | 12 | 3.4 | 4.9 |
| Ф4 | Ф6 | KQB2R04-06 | 9 | 34.4 | 20.8 | 12.6 | 5.6 | 7 |
| Ф6 | Ф8 | KQB2R06-08 | 12 | 38.4 | 223 | 13.6 | 13.1 | 12.7 |
| Ф8 | Ф10 | KQB2R08-10 | 14 | 41.9 | 24.9 | 16.1 | 26.1 | 19.2 |
| Ф10 | Ф12 | KQB2R10-12 | 17 | 44.8 | 26.2 | 17 | 41.5 | 27.8 |
| Ф12 | Ф16 | KQB2R12-16 | 19 | 42.9 | 22.1 | 18.6 | 58.3 | 37.2 |
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP tube.

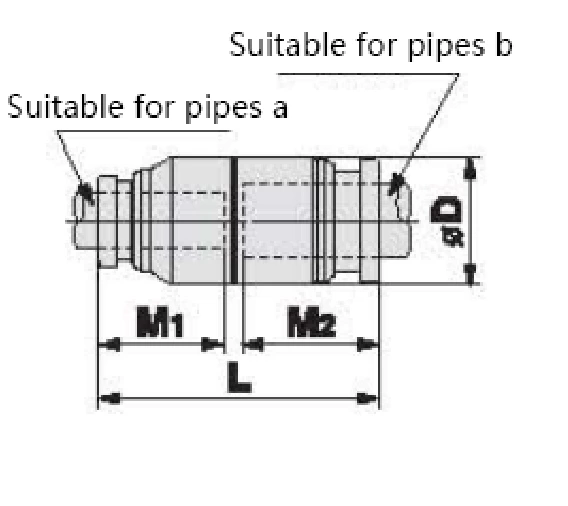

Reduced diameter straight pipe: KQB2H
| Suitable for pipe outer diameter mm | model | ФD Note 1) | L | M1 | M2 | Effective cross-sectional area m㎡ Note 2) | quality g | |
| a | b | |||||||
| Ф3.2 | Ф4 | KQB2H23-04 | 9 | 25.6 | 12 | 12.6 | 3.4 | 6.8 |
| Ф4 | Ф6 | KQB2H04-06 | 12 | 27.2 | 12.6 | 13.6 | 5.6 | 12.1 |
| Ф6 | Ф8 | KQB2H06-08 | 14 | 30.7 | 13.6 | 16.1 | 13.1 | 17.1 |
| Ф8 | Ф10 | KQB2H08-10 | 17 | 34.1 | 16.1 | 17 | 26.1 | 27.2 |
| Ф10 | Ф12 | KQB2H10-12 | 19 | 36.6 | 17 | 18.6 | 41.5 | 34.8 |
| Ф12 | Ф16 | KQB2H12-16 | 24.6 | 40.4 | 16.6 | 20.8 | 58.3 | 57.3 |
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP tube.

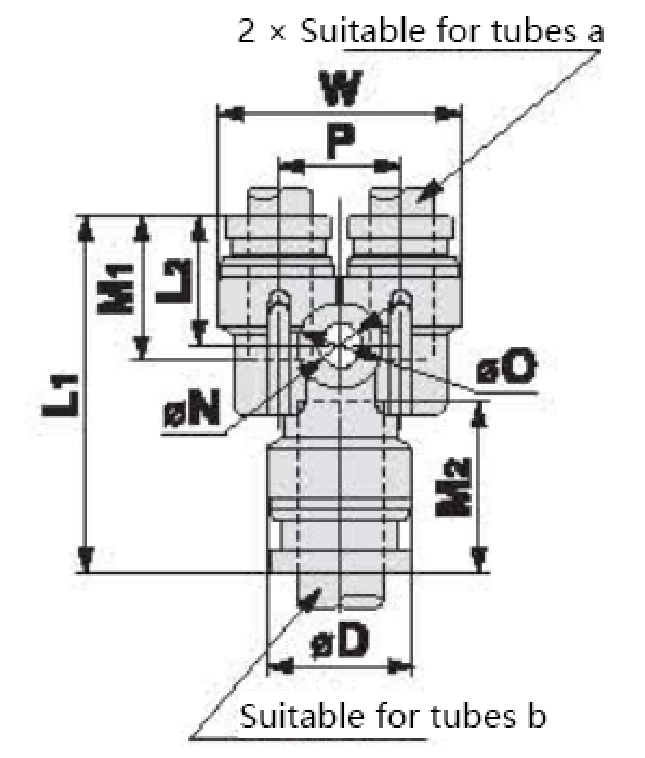

Reducer Y-type pipe: KQB2U
| Suitable for pipe outer diameter mm | model | ФD Note 1) | L1 | L2 | P | W | M1 | M2 | ФN | ФO | Effective cross-sectional area m㎡ Note 2) | quality g | |
| a | b | ||||||||||||
| Ф3.2 | Ф4 | KQB2U23-04 | 9.1 | 27 | 10.8 | 8.1 | 16.4 | 12 | 12.6 | 3.2 | 5.6 | 3.2 | 8.5 |
| Ф4 | Ф6 | KQB2U04-06 | 11.4 | 29.3 | 11.2 | 9.1 | 18.2 | 12.6 | 13.6 | 3.2 | 5.6 | 4.2 | 11.9 |
| Ф6 | Ф8 | KQB2U06-08 | 13.7 | 33.7 | 12.2 | 11.5 | 22.9 | 13.6 | 16.1 | 4.2 | 8 | 13.4 | 19.3 |
| Ф8 | Ф10 | KQB2U08-10 | 16.6 | 38.3 | 13.8 | 14.6 | 28.3 | 16.1 | 17 | 4.2 | 8 | 25.6 | 32 |
| Ф10 | Ф12 | KQB2U10-12 | 18.7 | 43 | 14 | 17.6 | 34.2 | 17 | 18.6 | 4.2 | 8 | 40 | 47.6 |
| Ф12 | Ф16 | KQB2U12-16 | 24.8 | 47.4 | 15.6 | 19.8 | 38.5 | 18.6 | 20.8 | 4.2 | 8 | 57.4 | 87.6 |
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP tube.
Dimensions

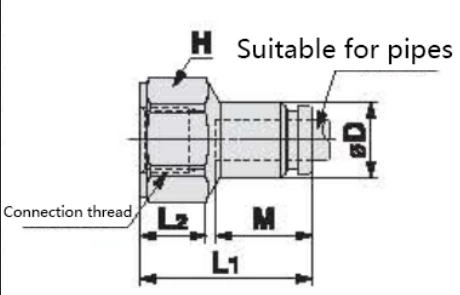

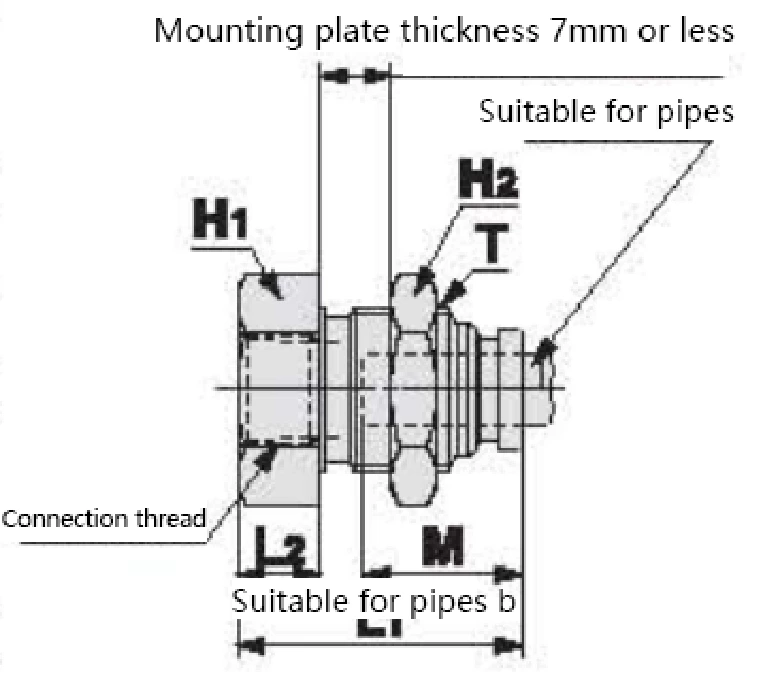

Inner thread straight pipe for panel installation: KQB2E
| Suitable for pipe outer diameter mm | Connection thread R, M | model | T (M) | Hexagonal side | L1 | L2 | Mounting holes | M | Effective cross-sectional area m㎡ Note ) | quality g | |
| H1 | H2 | ||||||||||
| Ф3.2 | 1/4 | KQB2E23-02 | M10×1 | 17 | 12 | 31 | 14.8 | 11 | 12 | 3.4 | 27.5 |
| Ф4 | 1/8 | KQB2E04-01 | M10×1 | 14 | 12 | 25.8 | 9.7 | 11 | 12.6 | 5.6 | 16.9 |
| 1/4 | KQB2E04-02 | 17 | 30.9 | 14.8 | 27.1 | ||||||
| Ф6 | 1/8 | KQB2E06-01 | M14×1 | 17 | 17 | 24.2 | 6.1 | 15 | 13.6 | 13.1 | 25 |
| 1/4 | KQB2E06-02 | 31.6 | 13.5 | 33.2 | |||||||
| 3/8 | KQB2E06-03 | 19 | 33 | 14.9 | 34.8 | ||||||
| Ф8 | 1/8 | KQB2E08-01 | M15×1 | 17 | 19 | 26.3 | 6.9 | 16 | 16.1 | 26.1 | 28.7 |
| 1/4 | KQB2E08-02 | 32.4 | 13 | 34.2 | |||||||
| 3/8 | KQB2E08-03 | 19 | 34 | 14.6 | 35.9 | ||||||
| Ф10 | 1/4 | KQB2E10-02 | M18×1 | 19 | 21 | 31.6 | 11.6 | 19 | 17 | 41.5 | 44 |
| 3/8 | KQB2E10-03 | 33.6 | 13.6 | 40.2 | |||||||
| Ф12 | 3/8 | KQB2E12-03 | M20×1 | 21 | 24 | 34 | 12.8 | 21 | 18.6 | 58.3 | 52 |
| 1/2 | KQB2E12-04 | 24 | 39.6 | 18.4 | 62.5 | ||||||
| Ф16 | 3/8 | KQB2E16-03 | M27×1 | 29 | 30 | 35.3 | 11.2 | 28 | 20.8 | 96 | 111 |
| 1/2 | KQB2E16-04 | 40.6 | 16.5 | 113 | 118.2 | ||||||
Note) Indicates the value when using FEP tube.
Ф16 indicates the value when using nylon tube only.

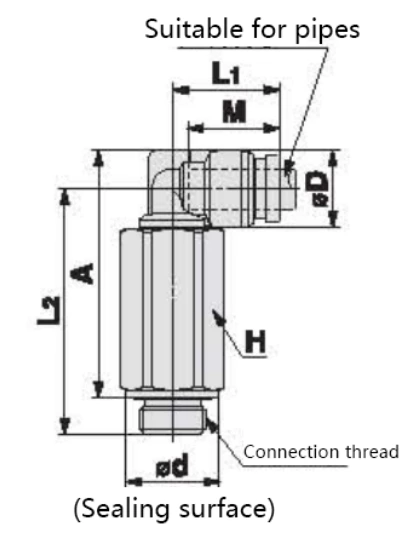

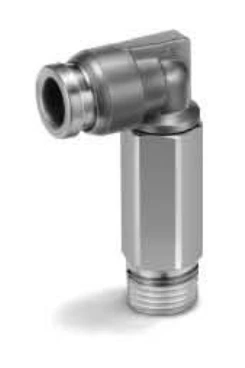

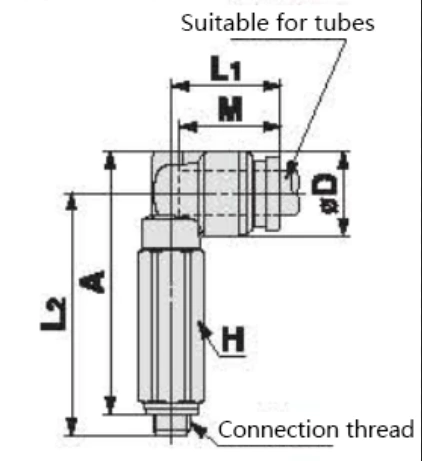

Long elbow: KQB2W
| Suitable for pipe outer diameter mm | Connection thread R, M | model | H (Hexagonal side) | ФD Note 1) | L1 | L2 | A※ | M | Effective cross-sectional area m㎡ Note ) | quality g |
| Ф3.2 | M5×0.8 | KQB2W23-M5 | 8 | 8.3 | 13.1 | 31.2 | 32.4 | 12 | 2.8 | 13.5 |
| 1/8 | KQB2W23-01S | 10 | 13.6 | 31.3 | 32.3 | 15.3 | ||||
| 1/4 | KQB2W23-02S | 14 | 35.1 | 34.5 | 34.7 | |||||
| Ф4 | M5×0.8 | KQB2W04-M5 | 8 | 9.1 | 13.7 | 31.6 | 33.2 | 12.6 | 3 | 14.1 |
| 1/8 | KQB2W04-01S | 10 | 14.4 | 31.7 | 33.1 | 4 | 16.2 | |||
| 1/4 | KQB2W04-02S | 14 | 35.5 | 35.3 | 35.6 | |||||
| Ф6 | M5×0.8 | KQB2W06-M5 | 8 | 11.4 | 14.7 | 32.7 | 35.4 | 13.6 | 3 | 16 |
| 1/8 | KQB2W06-01S | 10 | 15.9 | 32.8 | 10.9 | 17.8 | ||||
| 1/4 | KQB2W06-02S | 14 | 36.6 | 37.6 | 37.2 | |||||
| 3/8 | KQB2W06-03S | 17 | 38 | 38.6 | 60.3 | |||||
| Ф8 | 1/8 | KQB2W08-01S | 12 | 13.7 | 18.8 | 37 | 40.7 | 16.1 | 20.5 | 28.9 |
| 1/4 | KQB2W08-02S | 14 | 19.1 | 40.2 | 42.3 | 39.2 | ||||
| 3/8 | KQB2W08-03S | 17 | 41.6 | 43.3 | 63.7 | |||||
| Ф10 | 1/4 | KQB2W10-02S | 14 | 16.6 | 21 | 46.6 | 50.2 | 17 | 33.5 | 42.1 |
| 3/8 | KQB2W10-03S | 17 | 45.9 | 49.1 | 64.5 | |||||
| 1/2 | KQB2W10-04S | 22 | 50.1 | 52 | 123 | |||||
| Ф12 | 1/4 | KQB2W12-02S | 14 | 18.7 | 22.6 | 47.7 | 52.3 | 18.6 | 47.7 | 46 |
| 3/8 | KQB2W12-03S | 17 | 23.6 | 49 | 53.2 | 58.2 | ||||
| 1/2 | KQB2W12-04S | 22 | 53.2 | 56.1 | 118 | |||||
| Ф16 | 3/8 | KQB2W16-03S | 19 | 24.6 | 26.3 | 57.6 | 64.1 | 20.8 | 71 | 89.6 |
| 1/2 | KQB2W16-04S | 22 | 27.3 | 61.4 | 66.6 | 100 | 116 |
※Reference dimensions after R threading.
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP tube.
Ф16 indicates the value when using nylon tube only.
| (For M5) |
 |
| (In the case of R) |
 |
Dimensions

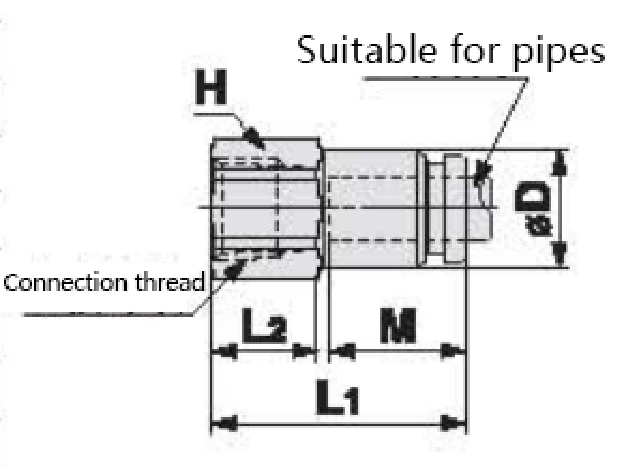

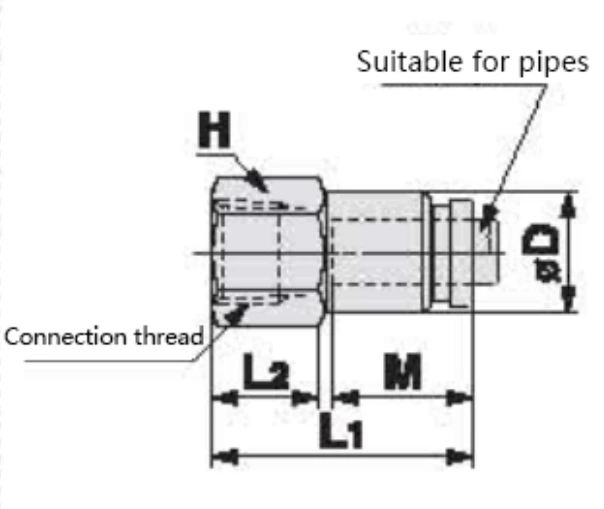

Internal thread straight through: KQB2F
| Suitable for pipe outer diameter mm | Connection thread RC | model | H (Hexagonal side) | ФD Note 1) | L1 | L2 | M | Effective cross-sectional area m㎡ Note ) | quality g |
| Ф3.2 | 1/8 | KQB2F23-01 | 12 | 8 | 23.3 | 9.8 | 12 | 3.4 | 9.3 |
| Ф4 | 1/8 | KQB2F04-01 | 12 | 8.7 | 23.7 | 9.8 | 12.6 | 5.6 | 9.7 |
| 1/4 | KQB2F04-02 | 17 | 28.7 | 13.2 | 22.7 | ||||
| Ф6 | 1/8 | KQB2F06-01 | 12 | 11.1 | 24.2 | 10 | 13.6 | 13.1 | 11.1 |
| 1/4 | KQB2F06-02 | 17 | 29.2 | 13.4 | 24.3 | ||||
| 3/8 | KQB2F06-03 | 19 | 30.6 | 14.2 | 25.8 | ||||
| Ф8 | 1/8 | KQB2F08-01 | 14 | 13.4 | 26.3 | 9.6 | 16.1 | 26.1 | 17.1 |
| 1/4 | KQB2F08-02 | 17 | 31.3 | 13.7 | 26.6 | ||||
| 3/8 | KQB2F08-03 | 19 | 32.7 | 14.4 | 28.4 | ||||
| Ф10 | 1/4 | KQB2F10-02 | 17 | 16.4 | 31.6 | 13.9 | 17 | 41.5 | 30.3 |
| 3/8 | KQB2F10-03 | 19 | 33 | 14.7 | 32 | ||||
| Ф12 | 1/4 | KQB2F12-02 | 19 | 18.5 | 32.6 | 13.3 | 18.6 | 58.3 | 39.4 |
| 3/8 | KQB2F12-03 | 34 | 14.7 | 33.9 | |||||
| 1/2 | KQB2F12-04 | 24 | 39.3 | 18.4 | 52.9 | ||||
| Ф16 | 3/8 | KQB2F16-03 | 24 | 24.6 | 35.3 | 13.5 | 20.8 | 81 | 82.8 |
| 1/2 | KQB2F16-04 | 40.6 | 18.8 | 113 | 59.9 |
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP tube.
Ф16 indicates the value when using nylon tube only.

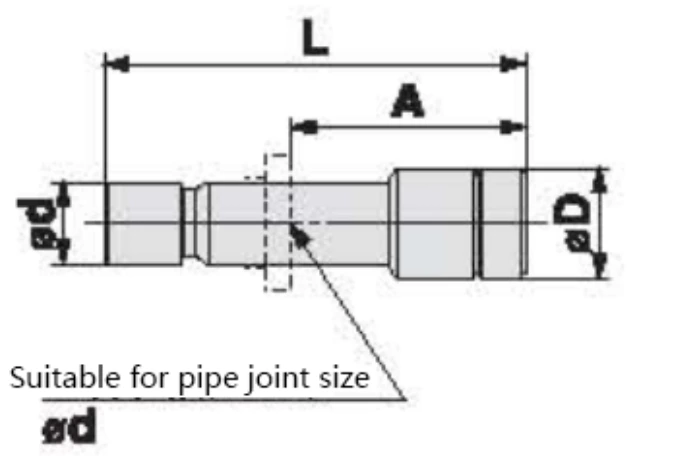

Plug:KQB2P
| Suitable for pipe fittings SizeФd |
model | ФD | L | A | quality g |
| Ф3.2 | KQB2P-23 | 5 | 28.9 | 18.9 | 2.8 |
| Ф4 | KQB2P-04 | 6 | 29.6 | 17 | 4.3 |
| Ф6 | KQB2P-06 | 8 | 30.8 | 17.2 | 9 |
| Ф8 | KQB2P-08 | 10 | 33.7 | 17.6 | 16.3 |
| Ф10 | KQB2P-10 | 12 | 34.6 | 17.6 | 25.4 |
| Ф12 | KQB2P-12 | 14 | 36.5 | 17.9 | 37.8 |
| Ф16 | KQB2P-16 | 18 | 38.6 | 17.8 | 89.2 |
Applicable pipes: Imperial sizes
Connection threads: UNF, NPT
Suitable for pipes
| Pipe material | FEP, PFA, nylon, soft nylon Note 1), polyurethane, polyolefin |
| Pipe outer diameter | Ф1/8”,Ф5/32”,Ф1/4",Ф5/16",Ф3/8",Ф1/2" |
Specification
| Used fluid | Air, water |
| Used pressure range Note 2) | -100kPa~1MPa Note 3) |
| Pressure test pressure | 3.0MPa |
| Ambient temperature and used fluid temperature Note 4) | -5~150'C (not frozen) Note 3) |
| Used grease | Grease-free specification |
| Thread tightness | With sealant |
Note 1) Water cannot be used for soft nylon tubes.
Note 2) Leakage is not 0, so avoid using vacuum in leak tests, etc.
Note 3) Please confirm the operating pressure range and operating temperature range of the piping.
Note 4) The inner bushing should be installed under the following conditions. (Except Ф1/8")
● When used in fluids and environments with rapid temperature changes.
● When used at high temperatures.
※ Lining set assembly temperature conditions
| Used pipes | temperature |
| FEP pipe/TH series | Above 80℃ |
| PFA pipe/TL series | Above 120℃ |
spare parts
| Name | Tube outer diameter | Model | Material |
| Gasket | - | M-5G3 | SUS316 Special FKM |
| Panel nut | Ф1/8" Ф5/32" | KQB201-P01 | C3804 (Electroless Nickel Plating) |
| Ф1/4" | KQB207-P01 | ||
| Ф5/16" | KQB209-P01 | ||
| Ф3/8" | KQB211-P01 | ||
| Ф1/2" | KQB213-P01 |
Bushing adaptability table
| Tube outer diameter | Tube material | Applicable inner sleeve | ||
| TH/TIH (FEP) | TL/TIL (PFA) | Model | Length | |
| Ф5/32" | TH0402 | - | TJ-0402 | 18 |
| TH0425 | - | TJ-0425 | 18 | |
| - | TL0403 | TJ-0403 | 18 | |
| Ф1/4" | TIHB07 | TIL07 | TJ-0604 | 19 |
| TIHA07 | - | TJ-0746 | 19 | |
| Ф5/16" | TH0806 | TL0806 | TJ-0806 | 20.5 |
| Ф3/8" | TIHB11 | TIL11 | TJ-1065 | 23 |
| TIHA11 | - | TJ-1107 | 23 | |
| Ф1/2" | TIH13 | TIL13 | TJ-1395 | 24 |
※The material of TJ series is C2700+electroless nickel plating.
Structural diagram
 |
|
| Straight connector | Elbow |
Parts List
| Serial number | Name | Material |
| 1 | Release sleeve | SUS304 |
| 2 | Guide sleeve 1 | SUS304 |
| 3 | Guide sleeve 2 | SUS304 |
| 4 | Spring clip | SUS304 |
| 5 | Sealing ring | Special FKM (fluorine coating) |
| 6 | Straight-through fitting body | C3604 (electroless nickel plating) |
| 7 | Elbow body | SUS316 |
| 8 | O-ring | Special FKM (fluorine coating) |
| 9 | Press-fit fitting | C3604 (electroless nickel plating) |
Dimensions
Straight connector: KQB2H
| Suitable for pipe outer diameter mm | Connection thread UNF,NPT | model | H (Hexagonal side) | ФD Note 1) | L1 | A※ | M | Effective cross-sectional area m㎡ Note ) | quality g |
| Ф1/8" | 10-32UNF | KQB2H01-32 | 8 | 8 | 16.5 | 13.5 | 12 | 3 | 3.5 |
| 1/8 | KQB2H01-N01S | 11.11 | 17.1 | 13.9 | 3.4 | 7.9 | |||
| 1/4 | KQB2H01-N02S | 14.29 | 20.9 | 18.5 | 18 | ||||
| Ф5/32" | 10-32UNF | KQB2H03-32 | 11.11 | 8.7 | 17.1 | 14.1 | 12.6 | 4 | 6.5 |
| 1/8 | KQB2H03-N01S | 17 | 13.8 | 5.6 | 7.4 | ||||
| 1/4 | KQB2H03-N02S | 14.29 | 20.9 | 16.5 | 17.5 | ||||
| Ф1/4" | 10-32UNF | KQB2H07-32 | 12.7 | 11.2 | 19 | 16 | 13.5 | 4 | 9 |
| 1/8 | KQB2H07-N01S | 20 | 16.8 | 13.1 | 9.8 | ||||
| 1/4 | KQB2H07-N02S | 14.29 | 20.6 | 16.2 | 15.1 | ||||
| 3/8 | KQB2H07-N03S | 17.46 | 23.8 | 19.1 | 31 | ||||
| Ф5/18" | 1/8 | KQB2H09-N01S | 14.29 | 13.4 | 24.2 | 21 | 16.1 | 26.1 | 13.8 |
| 1/4 | KQB2H09-N02S | 23.1 | 18.7 | 14.9 | |||||
| 3/8 | KQB2H09-N03S | 17.46 | 24.6 | 19.9 | 28.3 | ||||
| Ф3/8" | 1/8 | KQB2H11-N01S | 17.46 | 16 | 25 | 21.8 | 16.6 | 26.1 | 21.5 |
| 1/4 | KQB2H11-N02S | 26.3 | 21.9 | 41.5 | 22.3 | ||||
| 3/8 | KQB2H11-N03S | 23.6 | 16.9 | 24.4 | |||||
| 1/2 | KQB2H11-N04S | 22.23 | 28.3 | 21.9 | 55 | ||||
| Ф1/2" | 1/4 | KQB2H13-N02S | 22.23 | 19.3 | 30.5 | 28.1 | 18.5 | 58.3 | 39.4 |
| 3/8 | KQB2H13-N03S | 28.4 | 23.7 | 36.8 | |||||
| 1/2 | KQB2H13-N04S | 22 | 46.1 |
※Reference dimensions after NPT threading.
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP pipe.
| (10-32UNF) |
 |
| (NPT) |
 |
Hexagon socket straight connector: KQB2S
| Suitable for pipe outer diameter mm | Connection thread UNF,NPT | model | H (Hexagonal side) | ФD Note 1) | L1 | A※ | M | Effective cross-sectional area m㎡ Note ) | quality g |
| Ф1/8" | 10-32UNF | KQB2S01-32 | 2 | 9 | 16.5 | 13.5 | 12 | 3 | 3.9 |
| Ф5/32" | 10-32UNF | KQB2S03-32 | 2 | 9 | 17.1 | 14.1 | 12.6 | 4 | 3.9 |
| 1/8 | KQB2S03-N01S | 2.78 | 11 | 21.4 | 18.2 | 4.1 | 8.9 | ||
| Ф1/4" | 10-32UNF | KQB2S07-32 | 2 | 12 | 19.5 | 16.5 | 13.5 | 4 | 7.5 |
| 1/8 | KQB2S07-N01S | 4.76 | 20.5 | 17.3 | 10 | 8.5 | |||
| 1/4 | KQB2S07-N02S | 14 | 16.1 | 10.7 | 14.1 | ||||
| 3/8 | KQB2S07-N03S | 18 | 21.5 | 16.6 | 23.8 | ||||
| Ф5/18" | 1/8 | KQB2S09-N01S | 5.58 | 14 | 24.7 | 21.5 | 16.1 | 17.2 | 12.6 |
| 1/4 | KQB2S09-N02S | 6.35 | 23.1 | 18.7 | 23.3 | 13.4 | |||
| 3/8 | KQB2S09-N03S | 18 | 18.4 | 24.7 | |||||
| Ф3/8" | 1/8 | KQB2S11-N01S | 5.58 | 17 | 25.2 | 22 | 16.6 | 17.2 | 18.7 |
| 1/4 | KQB2S11-N02S | 6.35 | 27.1 | 22.7 | 39 | 22.2 | |||
| 3/8 | KQB2S11-N03S | 18 | 23.6 | 16.9 | 25 | ||||
| 1/2 | KQB2S11-N04S | 22 | 17.2 | 40.6 | |||||
| Ф1/2" | 1/4 | KQB2S13-N02S | 8 | 20 | 30.5 | 26.1 | 18.5 | 46 | 27.9 |
| 3/8 | KQB2S13-N03S | 9.53 | 29.4 | 24.7 | 60 | 30.4 | |||
| 1/2 | KQB2S13-N04S | 22 | 25.5 | 19.1 | 36.5 |
※Reference dimensions after NPT threading.
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP pipe.
| (10-32UNF) |
 |
| (NPT) |
 |
Straight-through pipe: KQB2H
| Suitable for pipes Outer diameter |
model | ФD Note 1) | L | M | Effective cross-sectional area m㎡ Note ) | quality g |
| Ф1/8" | KQB2H01-00 | 9 | 25 | 12 | 3.4 | 6.8 |
| Ф5/32" | KQB2H03-00 | 9 | 26.2 | 12.6 | 5.6 | 6.8 |
| Ф1/4" | KQB2H07-00 | 12 | 28 | 13.5 | 13.1 | 11.5 |
| Ф5/18" | KQB2H09-00 | 14 | 33.2 | 16.1 | 26.1 | 17.4 |
| Ф3/8" | KQB2H11-00 | 16 | 34.2 | 16.6 | 41.5 | 23.7 |
| Ф1/2" | KQB2H13-00 | 20 | 38 | 18.5 | 58.3 | 37 |
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP pipe.
Dimensions
Elbow: KQB2L
| Suitable for pipes Outer diameter inches |
Connection thread UNF,NPT | model | H (Hexagonal side) | ФD Note 1) | L1 | L2 | A※ | M | Effective cross-sectional area m㎡ Note ) | quality g |
| Ф1/8" | 10-32UNF | KQB2L01-32 | 8 | 8.3 | 13.1 | 14.8 | 16 | 12 | 2.9 | 6.5 |
| 1/8 | KQB2L01-N01S | 11.11 | 13.6 | 14.9 | 15.8 | 3 | 8.8 | |||
| 1/4 | KQB2L01-N02S | 14.29 | 18.7 | 18.4 | 17.7 | |||||
| Ф5/32" | 10-32UNF | KQB2L03-32 | 8 | 9.1 | 13.7 | 15.2 | 16.8 | 12.6 | 3.5 | 7 |
| 1/8 | KQB2L03-N01S | 11.11 | 14.4 | 15.3 | 16.6 | 4.2 | 9.7 | |||
| 1/4 | KQB2L03-N02S | 14.29 | 19.1 | 19.2 | 18.5 | |||||
| Ф1/4" | 10-32UNF | KQB2L07-32 | 8 | 11.7 | 14.7 | 16.5 | 19.3 | 13.5 | 3.5 | 9.1 |
| 1/8 | KQB2L07-N01S | 11.11 | 15.9 | 16.6 | 19.2 | 11.4 | 11.4 | |||
| 1/4 | KQB2L07-N02S | 14.29 | 20.4 | 21.8 | 20.3 | |||||
| 3/8 | KQB2L07-N03S | 17.46 | 22.2 | 23.3 | 33.7 | |||||
| Ф5/16" | 1/8 | KQB2L09-N01S | 12.7 | 13.7 | 18.6 | 18.3 | 21.9 | 16.1 | 21.6 | 15.8 |
| 1/4 | KQB2L09-N02S | 14.29 | 19.1 | 21.5 | 23.9 | 21.9 | ||||
| 3/8 | KQB2L09-N03S | 17.46 | 23.3 | 25.4 | 35 | |||||
| Ф3/8" | 1/8 | KQB2L11-N01S | 12.7 | 16 | 20 | 19.4 | 24.2 | 16.6 | 21.6 | 20.5 |
| 1/4 | KQB2L11-N02S | 14.29 | 21 | 22.6 | 26.2 | 35.2 | 23.9 | |||
| 3/8 | KQB2L11-N03S | 17.46 | 24.4 | 27.7 | 35.8 | |||||
| 1/2 | KQB2L11-N04S | 22.23 | 28.2 | 29.8 | 63.1 | |||||
| Ф1/2" | 1/4 | KQB2L13-N02S | 14.29 | 19.6 | 22.7 | 24.4 | 29.8 | 18.5 | 50.2 | 30.1 |
| 3/8 | KQB2L13-N03S | 17.46 | 23.7 | 26.1 | 31.2 | 37.9 | ||||
| 1/2 | KQB2L13-N04S | 22.23 | 29.9 | 33.3 | 63.8 |
※Reference dimensions after NPT threading.
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP pipe.
| (10-32UNF) |
 |
| (NPT) |
 |

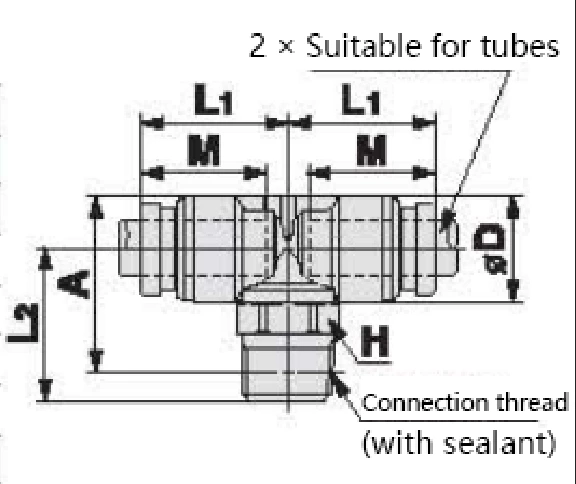

Double tube T-joint: KQB2T
| Suitable for pipes Outer diameter inches |
Connection thread UNF,NPT | model | H (Hexagonal side) | ФD Note 1) | L1 | L2 | A※ | M | Effective cross-sectional area m㎡ Note ) | quality g |
| Ф1/8" | 10-32UNF | KQB2T01-32 | 8 | 8.3 | 13.1 | 14.8 | 16 | 12 | 3.2 | 8.2 |
| 1/8 | KQB2T01-N01S | 11.11 | 13.8 | 14.9 | 15.8 | 3.4 | 10.6 | |||
| 1/4 | KQB2T01-N02S | 14.29 | 18.7 | 18.4 | 19.5 | |||||
| Ф5/32" | 10-32UNF | KQB2T03-32 | 8 | 9.1 | 13.7 | 15.2 | 16.8 | 12.6 | 4.5 | 9.1 |
| 1/8 | KQB2T03-N01S | 11.11 | 14.4 | 15.3 | 16.6 | 6 | 11.6 | |||
| 1/4 | KQB2T03-N02S | 14.29 | 19.1 | 19.2 | 20.5 | |||||
| Ф1/4" | 10-32UNF | KQB2T07-32 | 8 | 11.7 | 14.7 | 16.5 | 19.3 | 13.5 | 4.5 | 12.3 |
| 1/8 | KQB2T07-N01S | 11.11 | 15.9 | 16.6 | 19.2 | 13.9 | 14.9 | |||
| 1/4 | KQB2T07-N02S | 14.29 | 20.4 | 21.8 | 23.8 | |||||
| 3/8 | KQB2T07-N03S | 17.46 | 22.2 | 23.3 | 37.1 | |||||
| Ф5/16" | 1/8 | KQB2T09-N01S | 12.7 | 13.7 | 18.6 | 16.3 | 21.9 | 16.1 | 26.3 | 21.2 |
| 1/4 | KQB2T09-N02S | 14.29 | 19.1 | 21.5 | 23.9 | 27.1 | ||||
| 3/8 | KQB2T09-N03S | 17.46 | 23.3 | 25.4 | 40.3 | |||||
| Ф3/8" | 1/8 | KQB2T11-N01S | 12.7 | 16 | 20 | 19.4 | 24..2 | 16.6 | 40.8 | 28.1 |
| 1/4 | KQB2T11-N02S | 14.29 | 21 | 22.6 | 26.2 | 31.1 | ||||
| 3/8 | KQB2T11-N03S | 17.46 | 24.4 | 27.7 | 43.1 | |||||
| 1/2 | KQB2T11-N04S | 22.23 | 28.2 | 29.8 | 70.4 | |||||
| Ф1/2" | 1/4 | KQB2T13-N02S | 14.29 | 19.6 | 22.7 | 24.4 | 29.8 | 18.5 | 57.2 | 41.8 |
| 3/8 | KQB2T13-N03S | 17.46 | 23.7 | 26.1 | 31.2 | 49 | ||||
| 1/2 | KQB2T13-N04S | 22.23 | 29.9 | 33.3 | 74.9 |
※Reference dimensions after NPT threading.
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP pipe.
| (10-32UNF) |
 |
| (NPT) |
 |
Right angle elbow:KQB2L
| Suitable for pipes Outer diameter |
model | ФD Note 1) | L | A | Q | M | ФN | ФO | Effective cross-sectional area m㎡ Note ) | quality g |
| Ф1/8" | KQB2L01-00 | 8.3 | 13.6 | 19.3 | 2.9 | 12 | 3.2 | 5.6 | 3 | 6.3 |
| Ф5/32" | KQB2L03-00 | 9.1 | 14.6 | 20.5 | 3.1 | 12.6 | 3.2 | 5.6 | 4.2 | 7.4 |
| Ф1/4" | KQB2L07-00 | 11.7 | 16.7 | 23.2 | 3.7 | 13.5 | 3.2 | 5.6 | 11.4 | 11.5 |
| Ф5/16" | KQB2L09-00 | 13..7 | 20.1 | 29.1 | 5 | 16.1 | 4.2 | 8 | 21.6 | 20.2 |
| Ф3/8" | KQB2L11-00 | 16 | 21.4 | 31.1 | 5.7 | 16.6 | 4.2 | 8 | 35.2 | 28.2 |
| Ф1/2" | KQB2L13-00 | 19.6 | 24.9 | 35.3 | 6.4 | 18.5 | 4.2 | 8 | 50.2 | 41.7 |
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP pipe.
Dimensions
Panel mounting straight-through pipe: KQB2E
| Suitable for pipes Outer diameter |
model | T (UNF) | H (Hexagonal opposite sides) | L | Mounting holes | M | Effective cross-sectional area m㎡ Note ) | quality g |
| Ф1/8" | KQB2E01-00 | 7/16-20UNF | 14.29 | 34.2 | 12.5 | 12 | 3.4 | 21.8 |
| Ф5/32" | KQB2E03-00 | 7/16-20UNF | 14.29 | 34.4 | 12.5 | 12.6 | 5.6 | 21.6 |
| Ф1/4" | KQB2E07-00 | 1/2-20UNF | 17.46 | 36.2 | 14 | 13.5 | 13.1 | 30.2 |
| Ф5/16" | KQB2E09-00 | 5/8-18UNF | 22.23 | 41.2 | 17 | 16.1 | 26.1 | 43.9 |
| Ф3/8" | KQB2E11-00 | 3/4-16UNF | 22.23 | 42.4 | 20.5 | 16.6 | 41.5 | 64.2 |
| Ф1/2" | KQB2E13-00 | 7/8-14UNF | 25.4 | 47 | 23.5 | 18.5 | 58.3 | 94.2 |
Note) Indicates the value when using FEP pipe.
T-type pipe:KQB2T
| Suitable for pipes Outer diameter |
model | ФD Note 1) | L | A | Q | M | ФN | ФO | Effective cross-sectional area m㎡ Note ) | quality g |
| Ф1/8" | KQB2T01-00 | 8.3 | 13.6 | 20.5 | 4.1 | 12 | 3.2 | 5.6 | 3.4 | 7.9 |
| Ф5/32" | KQB2T03-00 | 9.1 | 14.6 | 21.8 | 4.4 | 12.6 | 3.2 | 5.6 | 6.4 | 9.5 |
| Ф1/4" | KQB2T07-00 | 11.7 | 16..7 | 24.7 | 5.2 | 13.5 | 3.2 | 5.6 | 13.4 | 14.7 |
| Ф5/16" | KQB2T09-00 | 13.7 | 20.1 | 31.1 | 7 | 18.1 | 4.2 | 8 | 25.6 | 24.4 |
| Ф3/8" | KQB2T11-00 | 16 | 21.4 | 33.4 | 8 | 16.6 | 4.2 | 8 | 40 | 34.7 |
| Ф1/2" | KQB2T13-00 | 19.6 | 24.9 | 37.9 | 9 | 18.5 | 4.2 | 8 | 57.4 | 52.3 |
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP pipe.
Y-type pipe:KQB2U
| Suitable for pipes Outer diameter |
model | ФD Note 1) | W | L1 | L2 | P | M | ФN | ФO | Effective cross-sectional area m㎡ Note ) | quality g |
| Ф1/8" | KQB2U01-00 | 8.3 | 16.4 | 29 | 11 | 8.1 | 12 | 3.2 | 5.6 | 3.4 | 9.2 |
| Ф5/32" | KQB2U03-00 | 9.1 | 18.2 | 30.4 | 11.3 | 9.1 | 12.6 | 3.2 | 5.6 | 4.2 | 11.1 |
| Ф1/4" | KQB2U07-00 | 11.7 | 23.9 | 34.5 | 12.1 | 12.2 | 13.5 | 3.2 | 5.6 | 13.4 | 19.6 |
| Ф5/16" | KQB2U09-00 | 13.7 | 28.3 | 40.1 | 14.1 | 14.6 | 16.1 | 4.2 | 8 | 25.6 | 29.7 |
| Ф3/8" | KQB2U11-00 | 16 | 33.2 | 42.2 | 14 | 17.2 | 16.6 | 4.2 | 8 | 40 | 43.1 |
| Ф1/2" | KQB2U13-00 | 19.8 | 40.2 | 47.3 | 15.8 | 20.6 | 18.5 | 4.2 | 8 | 57.4 | 86.4 |
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP pipe.
Reducing Tee:KQB2T
| Suitable for pipes Outer diameter |
model | ФD Note 1) | ФD Note 2) | L1 | L2 | L3 | Q | M1 | M2 | ФN | ФO | Effective cross-sectional area m㎡ Note ) | quality g | |
| a | b | |||||||||||||
| Ф1/8" | Ф5/32" | KQB2T01-03 | 9.1 | 8.3 | 14.2 | 14.1 | 21.1 | 4.1 | 12.6 | 12 | 3.2 | 5.6 | 3.8 | 8.5 |
| Ф5/32" | Ф1/4" | KQB2T03-07 | 11.7 | 9.1 | 15.5 | 15.9 | 22.7 | 4.4 | 13.5 | 12.6 | 3.2 | 5.6 | 7.1 | 11.7 |
| Ф1/4" | Ф5/16" | KQB2T07-09 | 13.7 | 11.7 | 19.3 | 17.6 | 29.6 | 6.3 | 16.1 | 13.5 | 4.2 | 8 | 16.4 | 20.2 |
| Ф5/16" | Ф3/8" | KQB2T09-11 | 16 | 13.7 | 20.6 | 21 | 31.7 | 7.1 | 16.6 | 16.1 | 4.2 | 8 | 36 | 28.9 |
| Ф3/8" | Ф1/2" | KQB2T11-13 | 19.6 | 16 | 23.3 | 23 | 35.4 | 8.1 | 18.5 | 16.6 | 4.2 | 8 | 56 | 41.8 |
Note 1) ФD1,ФD2 means maximum diameter.
Note 2) Indicates the value when using FEP pipe.
Plug:KQB2R
| Suitable for pipes Outer diameter |
Suitable for pipe fittings SizeФd |
model | ФD Note 1) | L | A | M | Effective cross-sectional area m㎡ Note 2) | quality g |
| Ф1/8" | Ф5/32" | KQB2R01-03 | 9 | 32.9 | 20.3 | 12 | 3.4 | 4.9 |
| Ф5/32" | Ф1/4" | KQB2R03-07 | 9 | 33.7 | 20.2 | 12.6 | 5.6 | 7.4 |
| Ф1/4" | Ф5/16" | KQB2R07-09 | 12 | 38.4 | 22.3 | 13.5 | 13.1 | 12.5 |
| Ф5/16" | Ф3/8" | KQB2R09-11 | 14 | 41.6 | 25 | 16.1 | 26.1 | 17.7 |
| Ф3/8" | Ф1/2" | KQB2R11-13 | 17 | 39.8 | 21.3 | 16.6 | 41.5 | 24.7 |
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP pipe.
Dimensional drawing

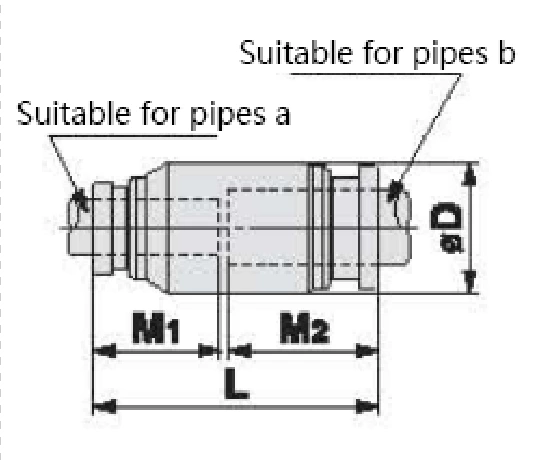

Reducing straight-through pipe: KQB2H
| Suitable for pipes Outer diameter |
model | ФD Note 1) | L | M1 | M2 | Effective cross-sectional area m㎡ Note 2) | quality g | |
| a | b | |||||||
| Ф1/8" | Ф5/32" | KQB2H01-03 | 9 | 25.6 | 12 | 12.6 | 3.4 | 6.8 |
| Ф5/32" | Ф1/4" | KQB2H03-07 | 12 | 27.1 | 12.6 | 13.5 | 5.6 | 11.9 |
| Ф1/4" | Ф5/16" | KQB2H07-09 | 14 | 30.6 | 13.5 | 16.1 | 13.1 | 16.8 |
| Ф5/16" | Ф3/8" | KQB2H09-11 | 16 | 33.7 | 16.1 | 16.6 | 26.1 | 23.9 |
| Ф3/8" | Ф1/2" | KQB2H11-13 | 20 | 36.1 | 16.6 | 18.5 | 41.5 | 38.8 |
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP pipe.

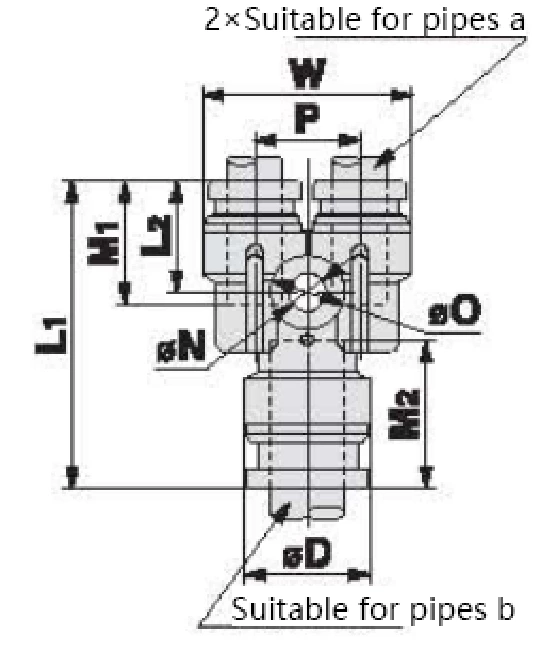

Reducer Y-type pipe: KQB2U
| Suitable for pipes Outer diameter |
model | ФD Note 1) | L1 | L2 | P | W | M1 | M2 | ФN | ФO | Effective cross-sectional area m㎡ Note 2) | quality g | |
| a | b | ||||||||||||
| Ф1/8" | Ф5/32" | KQB2U01-03 | 9.1 | 27 | 10.8 | 8.1 | 16.4 | 12 | 12.6 | 3.2 | 5.6 | 3.2 | 8.5 |
| Ф5/32" | Ф1/4" | KQB2U03-07 | 11.7 | 28.8 | 11.4 | 9.1 | 18.2 | 12.6 | 13.5 | 3.2 | 5.6 | 4.2 | 11.8 |
| Ф1/4" | Ф5/16" | KQB2U07-09 | 13.7 | 33.8 | 12 | 12.2 | 23.9 | 13.5 | 16.1 | 4.2 | 8 | 13.4 | 20 |
| Ф5/16" | Ф3/8" | KQB2U09-11 | 16 | 38.3 | 13.8 | 14.6 | 28.3 | 16.1 | 16.6 | 4.2 | 8 | 25.6 | 31 |
| Ф3/8" | Ф1/2" | KQB2U11-13 | 19.6 | 40.5 | 13.7 | 17.2 | 33.2 | 16.6 | 18.5 | 4.2 | 8 | 40 | 45 |
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP pipe.

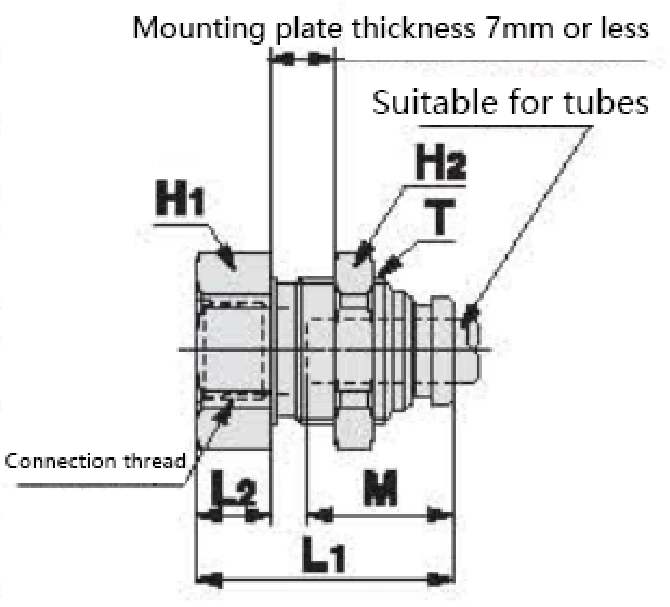

Panel mounting female thread straight pipe: KQB2E
| Suitable for pipes Outer diameter |
Connection thread NPT | model | T (UNF) | Hexagonal side | L1 | L2 | Mounting holes | M | Effective cross-sectional area m㎡ Note 2) | quality g | |
| H1 | H2 | ||||||||||
| Ф1/8" | 1/4 | KQB2E01-N02 | 7/18-20UNF | 17.46 | 14.29 | 32.8 | 15.3 | 12.5 | 12 | 3.4 | 34.1 |
| Ф5/32" | 1/4 | KQB2E03-N02 | 7/18-20UNF | 17.46 | 14.29 | 32.6 | 15.3 | 12.5 | 12.6 | 5.6 | 33.5 |
| Ф1/4" | 1/4 | KQB2E07-N02 | 1/2-20UNF | 17.46 | 17.46 | 33.1 | 14.8 | 14 | 13.5 | 13.1 | 36.5 |
| Ф5/16" | 3/8 | KQB2E09-N03 | 5/8-18UNF | 22.23 | 22.23 | 35.8 | 15.1 | 17 | 16.1 | 26.1 | 56.1 |
| Ф3/8" | 3/8 | KQB2E11-N03 | 3/4-16UNF | 22.23 | 22.23 | 35.2 | 13.7 | 20.5 | 16.6 | 41.5 | 62.9 |
| Ф1/2" | 3/8 | KQB2E13-N03 | 7/8-14UNF | 23.81 | 25.4 | 34.6 | 11 | 23.5 | 18.5 | 58.3 | 76.6 |
| 1/2 | KQB2E13-N04 | 42.2 | 18.6 | 80.2 | |||||||
Note) Indicates the value when using FEP pipe.
Long elbow: KQB2W
| Suitable for pipes Outer diameter |
Connection thread NPT | model | H (Hexagonal side) | ФD Note 1) | L1 | L2 | A※ | M | Effective cross-sectional area m㎡ Note 2) | quality g |
| Ф1/8" | 1/8 | KQB2W01-N01S | 11.11 | 8.3 | 13.6 | 31.6 | 32.5 | 12 | 2.8 | 19.5 |
| 1/4 | KQB2W01-N02S | 14.29 | 35.4 | 35.1 | 37.3 | |||||
| Ф5/32" | 1/8 | KQB2W03-N01S | 11.11 | 9.1 | 14.4 | 32 | 33.3 | 12.6 | 4 | 20.3 |
| 1/4 | KQB2W03-N02S | 14.29 | 35.8 | 35.9 | 38.2 | |||||
| Ф1/4" | 1/8 | KQB2W07-N01S | 11.11 | 11.7 | 15.9 | 33.3 | 35.9 | 13.5 | 10.9 | 22.1 |
| 1/4 | KQB2W07-N02S | 14.29 | 37.1 | 38.5 | 39.9 | |||||
| 3/8 | KQB2W07-N03S | 17.46 | 38.9 | 40 | 65.6 | |||||
| Ф5/16" | 1/8 | KQB2W09-N01S | 12.7 | 13.7 | 18.6 | 34.7 | 38.3 | 16.1 | 20.5 | 30.4 |
| 1/4 | KQB2W09-N02S | 14.29 | 19.1 | 40.2 | 42.6 | 41.6 | ||||
| 3/8 | KQB2W09-N03S | 17.46 | 42 | 44.1 | 68.5 | |||||
| Ф3/8" | 1/4 | KQB2W11-N02S | 14.29 | 16 | 21 | 47.2 | 50.8 | 16.6 | 33.5 | 44.9 |
| 3/8 | KQB2W11-N03S | 17.46 | 45.4 | 48.7 | 87.8 | |||||
| 1/2 | KQB2W11-N04S | 22.23 | 49.2 | 50.8 | 124.2 | |||||
| Ф1/2" | 1/4 | KQB2W13-N02S | 14.29 | 19.6 | 22.7 | 49 | 54.4 | 18.5 | 47.7 | 51.1 |
| 3/8 | KQB2W13-N03S | 17.46 | 23.7 | 50.7 | 55.8 | 66 | ||||
| 1/2 | KQB2W13-N04S | 22.23 | 54.5 | 57.9 | 125.9 |
※Reference dimensions after NPT threading.
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP pipe.
Dimensions
Internal thread straight through: KQB2F
| Suitable for pipes Outer diameter |
Connection thread NPT | model | H (Hexagonal side) | ФD Note 1) | L1 | L2 | M | Effective cross-sectional area m㎡ Note 2) | quality g |
| Ф1/8" | 1/8 | KQB2F01-N01 | 12.7 | 8 | 24.1 | 10.4 | 12 | 3.4 | 11.3 |
| 1/4 | KQB2F01-N02 | 17.46 | 29.1 | 13.7 | 25.4 | ||||
| Ф5/32" | 1/8 | KQB2F03-N01 | 12.7 | 8.7 | 24.6 | 10.5 | 12.6 | 5.6 | 11.8 |
| 1/4 | KQB2F03-N02 | 17.46 | 29.6 | 13.8 | 25.9 | ||||
| Ф1/4" | 1/8 | KQB2F07-N01 | 12.7 | 11.2 | 25 | 10.7 | 13.5 | 13.1 | 13 |
| 1/4 | KQB2F07-N02 | 17.48 | 30 | 14.1 | 27.5 | ||||
| 3/8 | KQB2F07-N03 | 22.23 | 31.2 | 14.6 | 41.1 | ||||
| Ф5/16" | 1/8 | KQB2F09-N01 | 14.29 | 13.4 | 27.2 | 10.3 | 16.1 | 26.1 | 18.8 |
| 1/4 | KQB2F09-N02 | 17.46 | 32.2 | 14.3 | 30.1 | ||||
| 3/8 | KQB2F09-N03 | 22.23 | 33.4 | 14.6 | 44 | ||||
| Ф3/8" | 1/4 | KQB2F11-N02 | 17.46 | 16 | 32.1 | 14.4 | 16.6 | 41.5 | 32.9 |
| 3/8 | KQB2F11-N03 | 22.23 | 33.3 | 14.9 | 47 | ||||
| 1/2 | KQB2F11-N04 | 23.81 | 38.6 | 18.6 | 50.4 | ||||
| Ф1/2" | 3/8 | KQB2F13-N03 | 22.23 | 19.3 | 34.6 | 14.7 | 18.5 | 58.3 | 51.3 |
| 1/2 | KQB2F13-N04 | 23.81 | 39.9 | 18.8 | 55.1 |
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP pipe.
Plug:KQB2P
| Suitable for pipe fittings SizeФd |
model | ФD | L | A | quality g |
| Ф1/8" | KQB2P-01 | 5 | 28.9 | 16.9 | 2.8 |
| Ф5/32" | KQB2P-03 | 6 | 29.6 | 17 | 4.3 |
| Ф1/4" | KQB2P-07 | 8 | 30.3 | 16.8 | 9.4 |
| Ф5/16" | KQB2P-09 | 10 | 33.7 | 17.6 | 16.3 |
| Ф3/8" | KQB2P-11 | 11 | 34.1 | 17.5 | 22.2 |
| Ф1/2" | KQB2P-13 | 14 | 36.4 | 17.9 | 40.7 |
Applicable piping: Metric size
Connection thread: G
Suitable for pipes
| Pipe material | FEP, PFA, nylon, soft nylon Note 1) Polyurethane, polyolefin |
| Pipe outer diameter | Ф4、Ф6、Ф8、Ф10、Ф12、Ф16 |
Specification
| Used fluid | Air, water |
| Used pressure range Note 2) | -100kPa~1MPa Note 3) |
| Test pressure | 3.0MPa |
| Ambient temperature and used fluid temperature Note 4) | -5~150℃ (not frozen) Note 3) |
| Used grease | Grease-free specification |
| Thread seal | With sealant |
Note 1) Water cannot be used in the case of soft nylon.
Note 2) Leakage is not 0, so avoid using vacuum holding such as leakage test.
Note 3) Please confirm the operating pressure range and operating temperature range of the piping.
Note 4) The inner bushing should be installed under the following conditions.
● When used in fluids and environments with rapid temperature changes.
● When used under high temperature.
※ Lining assembly temperature conditions
| Used pipes | Temperature |
| FEP pipes/TH series | Above 80℃ |
| PFA pipes/TL series | Above 120℃ |
spare parts
| Name | Tube outer diameter | Model | Material |
| Panel nut | Ф4 | KQB223-P01 | C3604 (Electroless Nickel Plating) |
| Ф6 | KQB206-P01 | ||
| Ф8 | KQB208-P01 | ||
| Ф10 | KQB210-P01 | ||
| Ф12 | KQB212-P01 | ||
| Ф16 | KQB216-P01 |
| Name | Thread size | Model | Material |
| G thread O-ring |
G1/8 | KQB2-G01 | Special FKM (Fluorine coating) |
| G1/4 | KQB2-G02 | ||
| G3/8 | KQB2-G03 | ||
| G1/2 | KQB2-G04 |
Bushing adaptability table
| Tube outer diameter | Tube material | Applicable inner sleeve | |||
| TUS (Soft polyurethane) | TH/TIH (FEP) | TL/TIL (PFA) | Model | Length | |
| Ф4 | - | TH0402 | - | TJ-0402 | 18 |
| TUS0425 | TH0425 | - | TJ-0425 | 18 | |
| - | - | TL0403 | TJ-0403 | 18 | |
| Ф6 | TUS0604 | TH0604 | TL0604 | TJ-0604 | 19 |
| Ф8 | TUS0805 | - | - | TJ-0805 | 20.5 |
| - | TH0806 | TL0806 | TJ-0808 | 20.5 | |
| Ф10 | TUS1065 | - | - | TJ-1065 | 23 |
| - | TH1075 | - | TJ-1075 | 23 | |
| - | TH1008 | TL1008 | TJ-1008 | 23 | |
| Ф12 | TUS1208 | - | - | TJ-1208 | 24 |
| - | TH1209 | - | TJ-1209 | 24 | |
| - | TH1210 | TL1210 | TJ-1210 | 24 | |
※The material of TJ series is C2700+electroless nickel plating.
Structural diagram
 |
|
| Straight connector | Elbow |
Parts List
| Serial number | Name | Material |
| 1 | Release sleeve | SUS304 |
| 2 | Guide sleeve 1 | SUS304 |
| 3 | Guide sleeve 2 | SUS304 |
| 4 | Spring clip | SUS304 |
| 5 | Seal ring | Special FKM (fluorine coating) |
| 6 | Straight fitting body | C3604 (electroless nickel plating) |
| 7 | Elbow body | SUS316 |
| 8 | O-ring | Special FKM (fluorine coating) |
| 9 | Press-fit fitting | C3604 (electroless nickel plating) |
| 10 | G thread O-ring | Special FKM (fluorine coating) |
Dimensions
Straight connector: KQB2H
| Suitable for pipes Outer diameter mm |
Connection thread G | model | H (Hexagonal opposite sides) | ФD Note 1) | Фd | L | A | M | Effective cross-sectional area m㎡ Note 2) | quality g |
| Ф4 | 1/8 | KQB2H04-G01 | 14 | 8.7 | 13.8 | 16.6 | 11.1 | 12.6 | 5.6 | 9.2 |
| 1/4 | KQB2H04-G02 | 19 | 17.8 | 20.6 | 14.1 | 23.6 | ||||
| Ф6 | 1/8 | KQB2H06-G01 | 14 | 11.1 | 13.8 | 17.6 | 12.1 | 13.6 | 13.1 | 8.9 |
| 1/4 | KQB2H06-G02 | 19 | 17.8 | 20.5 | 14 | 21.6 | ||||
| 3/8 | KQB2H06-G03 | 22 | 21.8 | 23.4 | 15.9 | 38.3 | ||||
| Ф8 | 1/8 | KQB2H08-G01 | 14 | 13.4 | 13.8 | 23.9 | 18.4 | 16.1 | 26.1 | 13.2 |
| 1/4 | KQB2H08-G02 | 19 | 17.8 | 21.2 | 14.7 | 19.1 | ||||
| 3/8 | KQB2H08-G03 | 22 | 21.8 | 24 | 16.5 | 35.2 | ||||
| Ф10 | 1/8 | KQB2H10-G01 | 17 | 16.4 | 13.8 | 25.1 | 19.6 | 17 | 26.1 | 19.9 |
| 1/4 | KQB2H10-G02 | 19 | 17.8 | 24.9 | 18.4 | 41.5 | 24.8 | |||
| 3/8 | KQB2H10-G03 | 22 | 21.8 | 23.3 | 15.8 | 30.9 | ||||
| 1/2 | KQB2H10-G04 | 27 | 26.5 | 27.7 | 18.7 | 64.4 | ||||
| Ф12 | 1/4 | KQB2H12-G02 | 19 | 18.5 | 17.8 | 27.7 | 21.2 | 18.6 | 58.3 | 26.3 |
| 3/8 | KQB2H12-G03 | 22 | 21.8 | 23.5 | 16 | 25.5 | ||||
| 1/2 | KQB2H12-G04 | 27 | 26.5 | 27.9 | 18.9 | 58 | ||||
| Ф16 | 3/8 | KQB2H16-G03 | 24 | 24.6 | 21.8 | 31.3 | 23.8 | 20.8 | 81 | 44.5 |
| 1/2 | KQB2H16-G04 | 27 | 26.5 | 27.3 | 18.3 | 113 | 43 |
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP pipe.
Ф16 refers to the value when using nylon tube only.
Hexagon socket straight connector: KQB2S
| Suitable for pipes Outer diameter mm |
Connection thread G | model | H (Hexagonal opposite sides) | ФD Note 1) | Фd | L | A | M | Effective cross-sectional area m㎡ Note 2) | quality g |
| Ф4 | 1/8 | KQB2S04-G01 | 3 | 14 | 14 | 20.4 | 14.9 | 12.6 | 4.1 | 13.5 |
| Ф6 | 1/8 | KQB2S06-G01 | 4 | 14 | 14 | 20.6 | 15.1 | 13.6 | 10 | 12.1 |
| 1/4 | KQB2S06-G02 | 18 | 18 | 14.1 | 10.7 | 19.9 | ||||
| Ф8 | 1/8 | KQB2S08-G01 | 5 | 14 | 14 | 23.9 | 18.4 | 16.1 | 17.2 | 12.5 |
| 1/4 | KQB2S08-G02 | 6 | 18 | 18 | 22.9 | 16.4 | 23.3 | 20.1 | ||
| 3/8 | KQB2S08-G03 | 22 | 22 | 23.1 | 15.6 | 31.1 | ||||
| Ф10 | 1/8 | KQB2S10-G01 | 5 | 17 | 14 | 25.1 | 19.6 | 17 | 17.2 | 18.5 |
| 1/4 | KQB2S10-G02 | 8 | 18 | 18 | 24.9 | 18.4 | 39 | 20.4 | ||
| 3/8 | KQB2S10-G03 | 22 | 22 | 24 | 16.5 | 31.2 | ||||
| 1/2 | KQB2S10-G04 | 27 | 26.5 | 15 | 45.3 | |||||
| Ф12 | 1/4 | KQB2S12-G02 | 8 | 19 | 18 | 27.7 | 21.2 | 18.6 | 46 | 23.6 |
| 3/8 | KQB2S12-G03 | 10 | 22 | 22 | 24.9 | 17.4 | 60 | 27.4 | ||
| 1/2 | KQB2S12-G04 | 27 | 26.5 | 15.9 | 42.6 | |||||
| Ф16 | 3/8 | KQB2S16-G03 | 10 | 24.6 | 22 | 31.3 | 23.8 | 20.8 | 81 | 41 |
| 1/2 | KQB2S16-G04 | 12 | 27 | 26.5 | 27.8 | 18.8 | 113 | 42.9 |
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP pipe.
Ф16 refers to the value when using nylon tube only.
Dimensions
Elbow: KQB2L
| Suitable for pipes Outer diameter mm |
Connection thread G | model | H (Hexagonal opposite sides) | ФD Note 1) | Фd | L1 | L2 | A | M | Effective cross-sectional area m㎡ Note 2) | quality g |
| Ф4 | 1/8 | KQB2L04-G01 | 14 | 9.1 | 13.8 | 14.4 | 18.9 | 17.9 | 12.6 | 4.2 | 15.6 |
| 1/4 | KQB2L04-G02 | 19 | 17.8 | 22.3 | 20.3 | 33 | |||||
| Ф6 | 1/8 | KQB2L06-G01 | 14 | 11.4 | 13.8 | 15.9 | 20 | 20.2 | 13.6 | 11.4 | 17.2 |
| 1/4 | KQB2L06-G02 | 19 | 17.8 | 23.4 | 22.6 | 34.6 | |||||
| 3/6 | KQB2L06-G03 | 22 | 21.8 | 25.9 | 24.1 | 54.5 | |||||
| Ф8 | 1/8 | KQB2L08-G01 | 14 | 13.7 | 13.8 | 18.6 | 21.3 | 22.6 | 16.1 | 21.6 | 20.2 |
| 1/4 | KQB2L08-G02 | 19 | 17.8 | 19.1 | 24.7 | 25 | 36 | ||||
| 3/6 | KQB2L08-G03 | 22 | 21.8 | 27.2 | 26.5 | 55.6 | |||||
| Ф10 | 1/8 | KQB2L10-G01 | 14 | 16.6 | 13.8 | 20 | 22.7 | 25.5 | 17 | 21.6 | 25.7 |
| 1/4 | KQB2L10-G02 | 19 | 17.8 | 21 | 26.1 | 27.9 | 35.2 | 38.2 | |||
| 3/8 | KQB2L10-G03 | 22 | 21.8 | 28.6 | 29.4 | 56.2 | |||||
| 1/2 | KQB2L10-G04 | 27 | 26.5 | 32.6 | 31.9 | 97.9 | |||||
| Ф12 | 1/4 | KQB2L12-G02 | 19 | 18.7 | 17.8 | 22.6 | 27.2 | 30 | 16.6 | 50.2 | 41.9 |
| 3/6 | KQB2L12-G03 | 22 | 21.8 | 23.6 | 29.6 | 31.4 | 54.3 | ||||
| 1/2 | KQB2L12-G04 | 27 | 26.5 | 33.6 | 33.9 | 94.6 | |||||
| Ф16 | 3/8 | KQB2L16-G03 | 22 | 24.6 | 21.8 | 26..3 | 32.4 | 36.5 | 20.8 | 71 | 64.7 |
| 1/2 | KQB2L16-G04 | 27 | 26.5 | 27.3 | 36.4 | 39 | 100 | 95.7 |
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP pipe.
Ф16 refers to the value when using nylon tube only.
Double tube T-joint: KQB2T
| Suitable for pipes Outer diameter mm |
Connection thread G | model | H (Hexagonal opposite sides) | ФD Note 1) | Фd | L1 | L2 | A | M | Effective cross-sectional area m㎡ Note 2) | quality g |
| Ф4 | 1/8 | KQB2T04-G01 | 14 | 9.1 | 13.8 | 14.4 | 18.9 | 17.9 | 12.6 | 6 | 17.5 |
| 1/4 | KQB2T04-G02 | 19 | 17.8 | 22.3 | 20.3 | 34.9 | |||||
| Ф6 | 1/8 | KQB2T6-G01 | 14 | 11.4 | 13.8 | 15.9 | 20 | 20.2 | 13.6 | 13.9 | 21 |
| 1/4 | KQB2T06-G02 | 19 | 17.8 | 23.4 | 22.6 | 38 | |||||
| 3/8 | KQB2T06-G03 | 22 | 21.8 | 25.9 | 24.1 | 57.9 | |||||
| Ф8 | 1/8 | KQB2T08-G01 | 14 | 13.7 | 13.8 | 16.6 | 21.3 | 22.6 | 16.1 | 26.3 | 25.6 |
| 1/4 | KQB2T08-G02 | 19 | 17.8 | 19.1 | 24.7 | 25 | 41.2 | ||||
| 3/8 | KQB2T08-G03 | 22 | 21.8 | 27.2 | 26.5 | 60.8 | |||||
| Ф10 | 1/8 | KQB2T10-G01 | 14 | 16.6 | 13.8 | 20 | 22.7 | 25.5 | 17 | 40.8 | 34 |
| 1/4 | KQB2T10-G02 | 19 | 17.8 | 21 | 26.1 | 27.9 | 46 | ||||
| 3/8 | KQB2T10-G03 | 22 | 21.8 | 28.6 | 29.4 | 64 | |||||
| 1/2 | KQB2T10-G04 | 27 | 26.5 | 32.6 | 31.9 | 105.8 | |||||
| Ф12 | 1/4 | KQB2T12-G02 | 19 | 18.7 | 17.8 | 22.6 | 27.2 | 30 | 18.6 | 57.2 | 53 |
| 3/6 | KQB2T12-G03 | 22 | 21.8 | 23.6 | 29.6 | 31.4 | 54.3 | ||||
| 1/2 | KQB2T12-G04 | 27 | 26.5 | 33.6 | 33.9 | 105 | |||||
| Ф16 | 3/8 | KQB2T16-G03 | 22 | 24.6 | 21.8 | 26.3 | 32.4 | 36.5 | 20.8 | 71 | 82.2 |
| 1/2 | KQB2T16-G04 | 27 | 26.5 | 27.3 | 36.4 | 39 | 100 | 112.1 |
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP pipe.
Ф16 refers to the value when using nylon tube only.
Dimensions
Inner thread straight pipe for panel installation: KQB2E
| Suitable for pipes Outer diameter mm |
Connection thread G | model | T (M) | Hexagonal opposite sides | L1 | L2 | Mounting holes | M | Effective cross-sectional area m㎡ Note) | quality g | |
| H1 | H2 | ||||||||||
| Ф4 | 1/8 | KQB2E04-G01 | M10×1 | 17 | 12 | 27.1 | 11 | 11 | 12.6 | 5.6 | 25.1 |
| 1/4 | KQB2E04-G02 | 19 | 32.7 | 16.6 | 36.9 | ||||||
| Ф6 | 1/8 | KQB2E06-G01 | M14×1 | 17 | 17 | 25.5 | 7.4 | 15 | 13.6 | 13.1 | 36.8 |
| 1/4 | KQB2E06-G02 | 19 | 33.5 | 15.4 | 42.7 | ||||||
| 3/8 | KQB2E06-G03 | 24 | 35 | 16.9 | 62 | ||||||
| Ф8 | 1/8 | KQB2E08-G01 | M15×1 | 17 | 19 | 27.6 | 8.2 | 16 | 16.1 | 26.1 | 30.4 |
| 1/4 | KQB2E08-G02 | 19 | 34.5 | 15.1 | 43.9 | ||||||
| 3/8 | KQB2E08-G03 | 24 | 36 | 16.6 | 66.2 | ||||||
| Ф10 | 1/4 | KQB2E10-G02 | M18×1 | 19 | 21 | 33.5 | 13.5 | 19 | 17 | 41.5 | 46.8 |
| 3/8 | KQB2E10-G03 | 24 | 35.6 | 15.6 | 65.4 | ||||||
| Ф12 | 3/8 | KQB2E12-G03 | M20×1 | 24 | 24 | 35.9 | 14.7 | 21 | 18.6 | 58.3 | 119.2 |
| 1/2 | KQB2E12-G04 | 27 | 42.2 | 21 | 91.9 | ||||||
| Ф16 | 3/8 | KQB2E16-G03 | M27×1 | 29 | 30 | 37.2 | 13.1 | 28 | 20.8 | 96 | 118.2 |
| 1/2 | KQB2E16-G04 | 43.1 | 19 | 113 | 128.7 | ||||||
Note) Indicates the value when using FEP pipe.
Ф16 refers to the value when using nylon tube only.
Long elbow:KQB2W
| Suitable for pipes Outer diameter mm |
Connection thread G | model | H (Hexagonal opposite sides) | ФD Note 1) | Фd | L1 | L2 | A | M | Effective cross-sectional area m㎡ Note) | quality g |
| Ф4 | 1/8 | KQB2W04-G01 | 14 | 9.1 | 13.8 | 14.4 | 4.3 | 34.3 | 12.6 | 4 | 34.5 |
| 1/4 | KQB2W04-G02 | 19 | 17.8 | 38.7 | 36.7 | 70.6 | |||||
| Ф6 | 1/8 | KQB2W06-G01 | 14 | 11.4 | 13.8 | 15.9 | 36.4 | 36.6 | 13.6 | 10.9 | 36.1 |
| 1/4 | KQB2W06-G02 | 19 | 17.8 | 39.8 | 39 | 72.2 | |||||
| 3/8 | KQB2W06-G03 | 22 | 21.8 | 42.3 | 40.5 | 106.7 | |||||
| Ф8 | 1/8 | KQB2W08-G01 | 14 | 13.7 | 13.8 | 16.6 | 40 | 41.3 | 16.1 | 20.5 | 41.3 |
| 1/4 | KQB2W08-G02 | 19 | 17.8 | 19.1 | 43.4 | 43.7 | 76.7 | ||||
| 3/8 | KQB2W08-G03 | 22 | 21.8 | 45.9 | 45.2 | 112.9 | |||||
| Ф10 | 1/4 | KQB2W10-G02 | 19 | 16.6 | 17.8 | 21 | 49.8 | 51.6 | 17 | 33.5 | 84.8 |
| 3/8 | KQB2W10-G03 | 22 | 21.8 | 50.2 | 51 | 116.6 | |||||
| 1/2 | KQB2W10-G04 | 27 | 26.5 | 54.2 | 53.5 | 196.6 | |||||
| Ф12 | 1/4 | KQB2W12-G02 | 19 | 18.7 | 17.8 | 22.6 | 50.9 | 53.7 | 18.6 | 47.7 | 88.7 |
| 3/8 | KQB2W12-G03 | 22 | 21.8 | 23.6 | 53.3 | 55.1 | 111.6 | ||||
| 1/2 | KQB2W12-G04 | 27 | 26.5 | 57.3 | 57.6 | 193.8 | |||||
| Ф16 | 3/8 | KQB2W16-G03 | 22 | 24.6 | 21.8 | 26.3 | 62 | 66.1 | 20.8 | 71 | 133.6 |
| 1/2 | KQB2W16-G04 | 27 | 26.5 | 27.3 | 66 | 68.6 | 100 | 201.6 |
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP pipe.
Ф16 refers to the value when using nylon tube only.
Internal thread straight: KQB2F
| Suitable for pipes Outer diameter mm |
Connection thread G | model | H (Hexagonal opposite sides) | ФD Note 1) | L1 | L2 | M | Effective cross-sectional area m㎡ Note) | quality g |
| Ф4 | 1/8 | KQB2F04-G01 | 17 | 8.7 | 25 | 9.5 | 12.6 | 5.6 | 21 |
| 1/4 | KQB2F04-G02 | 19 | 30.6 | 14.5 | 32 | ||||
| Ф6 | 1/8 | KQB2F06-G01 | 17 | 11.1 | 25.5 | 9.7 | 13.6 | 13.1 | 22.6 |
| 1/4 | KQB2F06-G02 | 19 | 31.1 | 14.7 | 33 | ||||
| 3/8 | KQB2F06-G03 | 24 | 32.6 | 14.6 | 51.1 | ||||
| Ф8 | 1/8 | KQB2F08-G01 | 17 | 13.4 | 27.6 | 10 | 16.1 | 26.1 | 25.1 |
| 1/4 | KQB2F08-G02 | 19 | 33.2 | 14.9 | 36.3 | ||||
| 3/8 | KQB2F08-G03 | 24 | 34.6 | 14.7 | 53.8 | ||||
| Ф10 | 1/4 | KQB2F10-G02 | 19 | 16.4 | 33.5 | 15.2 | 17 | 41.5 | 39.9 |
| 3/8 | KQB2F10-G03 | 24 | 34.9 | 15 | 57.7 | ||||
| Ф12 | 1/4 | KQB2F12-G02 | 19 | 18.5 | 34.5 | 15.2 | 16.6 | 58.3 | 41.8 |
| 3/8 | KQB2F12-G03 | 24 | 35.9 | 15 | 59.7 | ||||
| 1/2 | KQB2F12-G04 | 27 | 41.8 | 19.9 | 81.6 | ||||
| Ф16 | 3/8 | KQB2F16-G03 | 24 | 24.6 | 37.2 | 15.4 | 20.8 | 81 | 66.6 |
| 1/2 | KQB2F16-G04 | 27 | 43.1 | 20.4 | 113 | 89.1 |
Note 1) ФD means maximum diameter.
Note 2) Indicates the value when using FEP pipe.
Ф16 refers to the value when using nylon tube only.
Selection
Note
①Please control the pressure fluctuation below the maximum operating pressure. If the pressure fluctuation exceeds the maximum operating pressure, it may cause the piping to fly off, the joints and piping to rupture.
②When using fluororesin in fluids and environments with rapid temperature changes, the deformation of the pipe may cause airtight leakage and pipe pull-out, so an inner bushing should be used.
③The amount of dust generated by the KQB2 series is related to the use conditions and environment. If you are worried about the impact on the machine maple and loading, please first confirm the amount of dust generated in the actual
machine, and then determine whether it can be used.
For the KQB2 series products, the internal pressure change causes the parts to slide, which may cause dust generation. In addition, after the elbow, 3-way, and long elbow are threaded, the rotation to fix the position may also cause dust
generation.
Install
Note
① Use the mounting holes to fix the right-angle pipe, T-shaped pipe, and Y-shaped pipe.
If not fixed, the tensile force and torque generated by the weight of the product may cause leakage and damage.
② After the elbow, 3-way, and long elbow are threaded, they can be rotated to fix the position, but rotation is not allowed during use. Otherwise, metal powder will be mixed into the fluid due to friction, or the joint will be broken.
③ During use, please do not shake or twist the pipe.
Pipe loading and unloading operations
Note
① Installation of the tube
1) The KQB2 series does not use a lubricating tire. Therefore, the insertion force during tube installation becomes larger, especially when the polyurethane tube is inserted due to its softness, the tube may bend. Hold the root of the tube and
insert it securely until you feel a contact. The tube insertion length is roughly based on the M dimension in the external dimension drawing.
② Tube detachment
1) Tubes used at high temperatures and tubes used for a long time have an enlarged outer diameter and may no longer be installed on the quick-change connector. Tubes that cannot be installed should be discarded and replaced with new ones.
G threaded pipe fitting
Note
①Please tighten the threads according to the tightening torque specified in the table below.
| Connection thread specifications | Appropriate tightening torque N·m |
| G1/8 | 2.9~3.2 |
| G1/4 | 5.7~6.3 |
| G3/8 | 9.5~10.5 |
| G1/2 | 14.3~15.8 |
