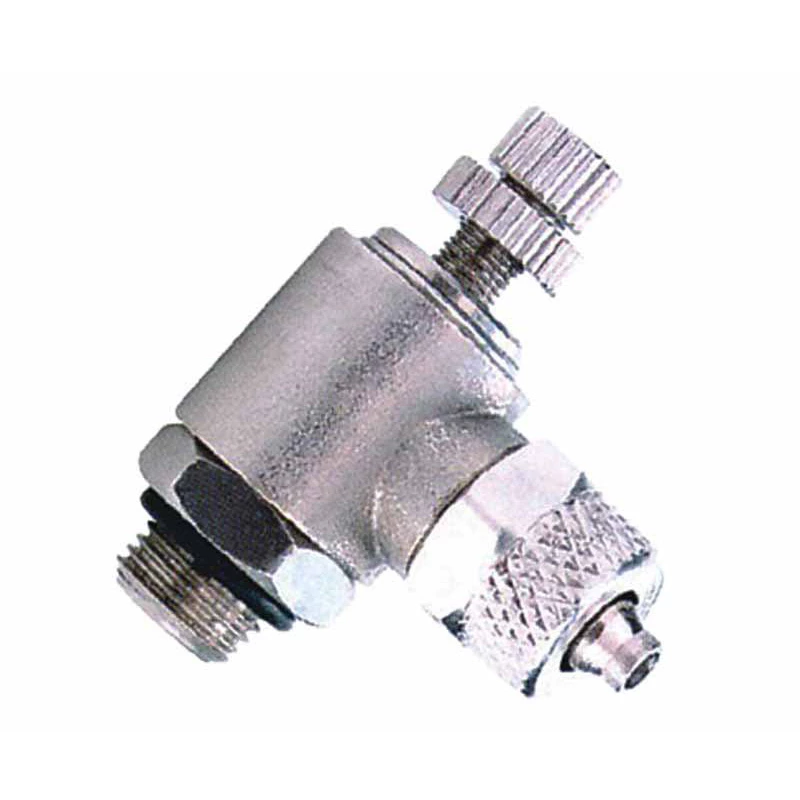

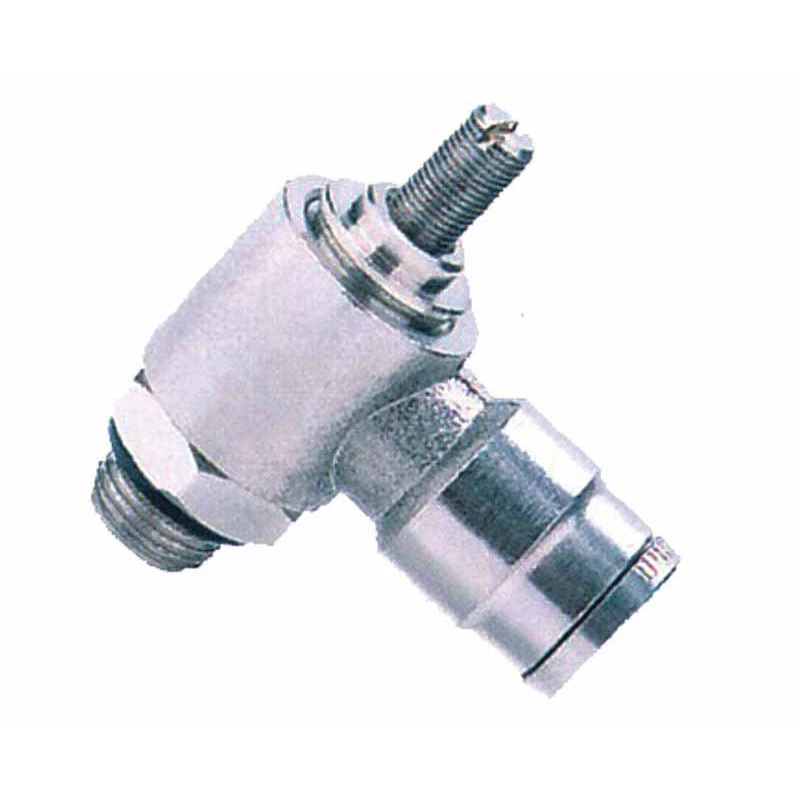

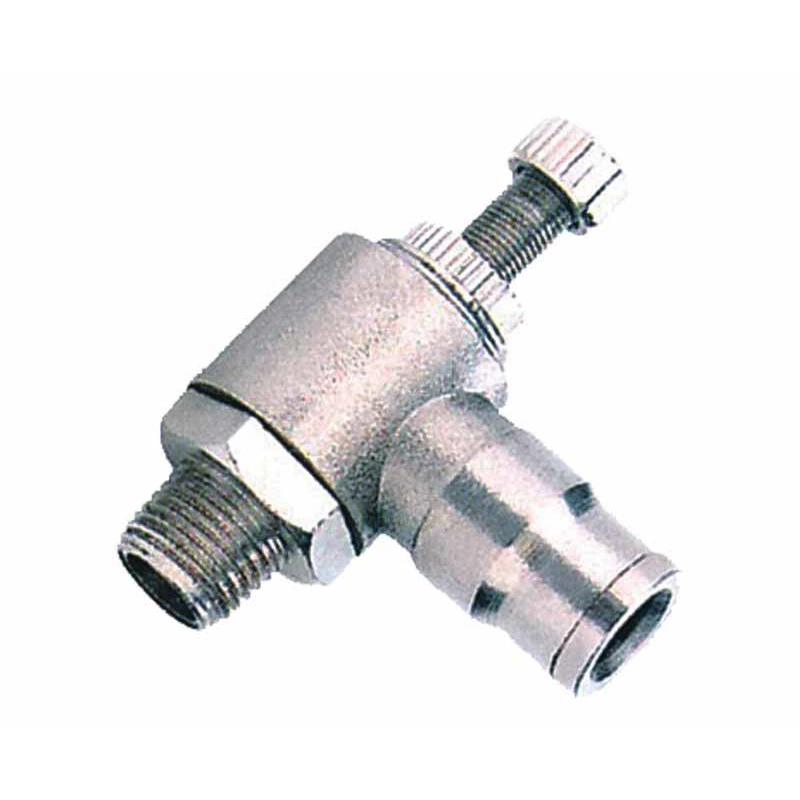

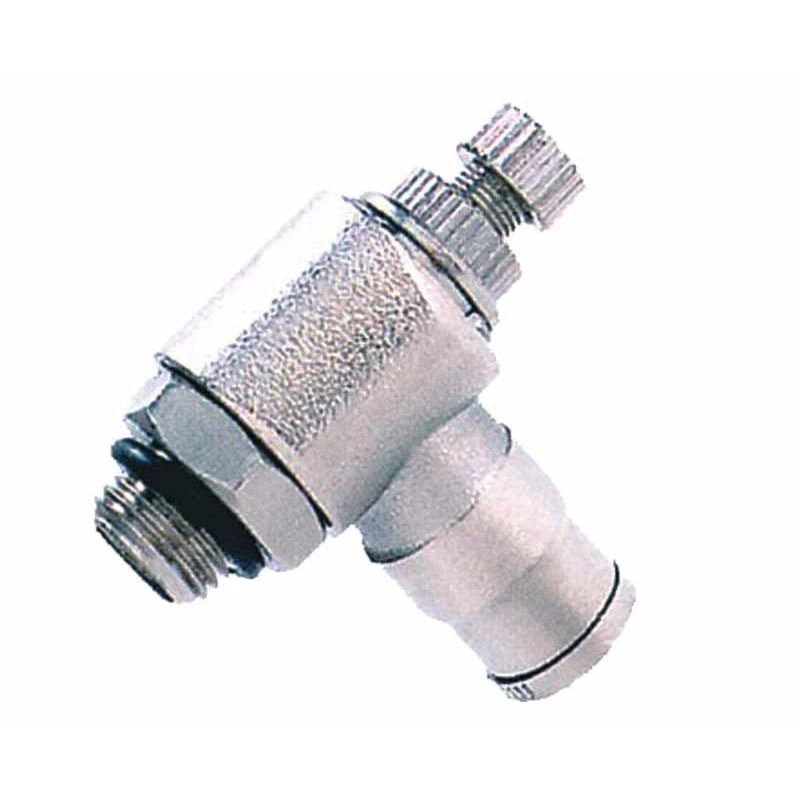

Metal Speed Controls

Acurate regulation of an optimal air flow rate for Precise motion control.

The compact design provides the comparabIerange of speed as the Iarger standard Speed continue roller do.

Enquiry

Metal Speed Controls

Metal Speed Controls

Metal Speed Controls

Metal Speed Controls

Metal Speed Controls

Metal Speed Controls

Metal Speed Controls

Metal Speed Controls

Features & Benefits

Specification

Material	Body and collet:Nickel-plated Brass 0-ring:NBR(other material is available on request)
Threads	BSPT,BSPP,NPT,Metric threads
Pressure Tube to connect	0.8-16bar(see tube)PU,PE,Nylon 6-11-12
Fiuid	Compressed air
Temperature	-10-60°C (see data of used tubing)

Other info

TMNSE

MODEL(Ф D-T )
Tube(Metric)-Thread(R)	Tube(Inch)- Thread(R)	Tube(Inch)-Thread(NPT)
TMNSE04-M5 TMNSE08-03	TMNSE1/8-01 TMNSE5/16-03	TMNSE1/8-U10 TMNSE1/4-N02
TMNSE04-M6 TMNSE08-04	TMNSE1/8-02 TMNSE5-16-04	TMNSE1/8-N01 TMNSE1/4-N03
TMNSE04-01 TMNSE10-01	TMNSE5/32-01 TMNSE3/8-01	TMNSE1/8-N02 TMNSE5/16-N01
TMNSE04-02 TMNSE10-02	TMNSE5/32-02 TMNSE3/8-02	TMNSE5/32-U10 TMNSE5/16-N02
TMNSE04-03 TMNSE10-03	TMNSE3/16-01 TMNSE3/8-03	TMNSE5/32-N01 TMNSE5/16-N03
TMNSE06-M5 TMNSE10-04	TMNSE3/16-02 TMNSE3/8-04	TMNSE5/32-N02 TMNSE3/8-N01
TMNSE06-M6 TMNSE12-01	TMNSE3/16-03 TMNSE1/2-02	TMNSE3/16-U10 TMNSE3/8-N02
TMNSE06-01 TMNSE12-02	TMNSE1/4-01 TMNSE1/2-03	TMNSE3/16-N01 TMNSE3/8-N03
TMNSE06-02 TMNSE12-03	TMNSE1/4-02 TMNSE1/2-04	TMNSE3/16-N02 TMNSE3/8-N04
TMNSE06-03 TMNSE12-04	TMNSE1/4-03	TMNSE3/16-N03 TMNSE1/2-N02
TMNSE08-01 TMNSE16-03	TMNSE5/16-01	TMNSE1/4-U10 TMNSE1/2-N03
TMNSE08-02 TMNSE16-04	TMNSE5/16-02	TMNSE1/4-N01 TMNSE1/2-N04

Metal Speed Controls

TMNSE-G

MODEL(Ф D-T )

Tube(Inch)- Thread(G)

TMNSE04-G01 TMNSE10-G02

TMNSE04-G02 TMNSE10-G03

TMNSE05-G01 TMNSE10-G04

TMNSE05-G02 TMNSE12-G01

TMNSE06-G01 TMNSE12-G02

TMNSE06-G02 TMNSE12-G03

TMNSE08-G01 TMNSE12-G04

TMNSE08-G02 TMNSE14-G03

TMNSE08-G03 TMNSE14-G04

TMNSE08-G04 TMNSE16-G03

TMNSE10-G01 TMNSE16-G04

TMNSP-G

MODEL(Ф D-T )

Tube(Inch)- Thread(R)

TMNSP04-G01 TMNSP10-G02

TMNSP04-G02 TMNSP10-G03

TMNSP05-G01 TMNSP10-G04

TMNSP05-G02 TMNSP12-G01

TMNSP06-G01 TMNSP12-G02

TMNSP06-G02 TMNSP12-G03

TMNSP08-G01 TMNSP12-G04

TMNSP08-G02 TMNSP14-G03

TMNSP08-G03 TMNSP14-G04

TMNSP08-G04 TMNSP16-G03

TMNSP10-G01 TMNSP16-G04

Metal Speed Controls

Metal Speed Controls

TMNSP

MODEL(Ф T )
Tube(Metric)-Thread(R)	Tube(Inch)- Thread(R)	Tube(Inch)-Thread(NPT)
TMNSP04-M5 TMNSP08-03	TMNSP1/8-01 TMNSP5/16-03	TMNSP1/8-U10 TMNSP1/4-N02
TMNSP04-M6 TMNSP08-04	TMNSP1/8-02 TMNSP5-16-04	TMNSP1/8-N01 TMNSP1/4-N03
TMNSP04-01 TMNSP10-01	TMNSP5/32-01 TMNSP3/8-01	TMNSP1/8-N02 TMNSP5/16-N01
TMNSP04-02 TMNSP10-02	TMNSP5/32-02 TMNSP3/8-02	TMNSP5/32-U10 TMNSP5/16-N02
TMNSP04-03 TMNSP10-03	TMNSP3/16-01 TMNSP3/8-03	TMNSP5/332-N01 TMNSP5/16-N03
TMNSP06-M5 TMNSP10-04	TMNSP3/16-02 TMNSP3/8-04	TMNSP5/32-N02 TMNSP3/8-N01
TMNSP06-M6 TMNSP12-01	TMNSP3/16-03 TMNSP1/2-02	TMNSP3/16-U10 TMNSP3/8-N02
TMNSP06-01 TMNSP12-02	TMNSP1/4-01 TMNSP1/2-03	TMNSP3/16-N01 TMNSP3/8-N03
TMNSP06-02 TMNSP12-03	TMNSP1/4-02 TMNSP1/2-04	TMNSP3/16-N02 TMNSP3/8-N04
TMNSP06-03 TMNSP12-04	TMNSP1/4-03	TMNSP3/16-N03 TMNSP1/2-N02
TMNSP08-01 TMNSP16-03	TMNSP5/16-01	TMNSP1/4-U10 TMNSP1/2-N03
TMNSP08-02 TMNSP16-04	TMNSP5/16-02	TMNSP1/4-N01 TMNSP1/2-N04

Metal Speed Controls

TMNSR

MODEL(Ф D-T )
Tube(Inch)- Thread(R)	Tube(Inch)- Thread(G)
TMNSR-5/3-M5 TMNSR-8/6-03	TMNSR-5/3-G01 TMNSR-10/8-G04
TMNSR-5/3-M6 TMNSR-10/8-01	TMNSR-6/4-G01 TMNSR-12/10-G03
TMNSR-5/3-01 TMNSR-10/8-02	TMNSR-6/4-G02 TMNSR-12/10-G04
TMNSR-6/4-M5 TMNSRTMNSR-10/8-03	TMNSR-6/4-G03
TMNSR-6/4-M6 TMNSR-10/8-04	TMNSR-8/6-G01
TMNSR-6/4-01 TMNSR-12/10-03	TMNSR-8/6-G02
TMNSR-6/4-02 TMNSR-12/10-04	TMNSR-8/6-G03
TMNSR-6/4-03	TMNSR-10/8-G01
TMNSR-8/6-01	TMNSR-10/8-G02
TMNSR-8/6-02	TMNSR-10/8-G03

TMNSF

MODEL(Ф D)
Tube(Metric)	Tube(Inch)
TMNSF04	TMNSF1/8
TMNSF06	TMNSF5/32
TMNSF08	TMNSF3/16
TMNSF10	TMNSF1/4
TMNSF12	TMNSF5/16
	TMNSF3/8
	TMNSF1/2

Metal Speed Controls

Metal Speed Controls
