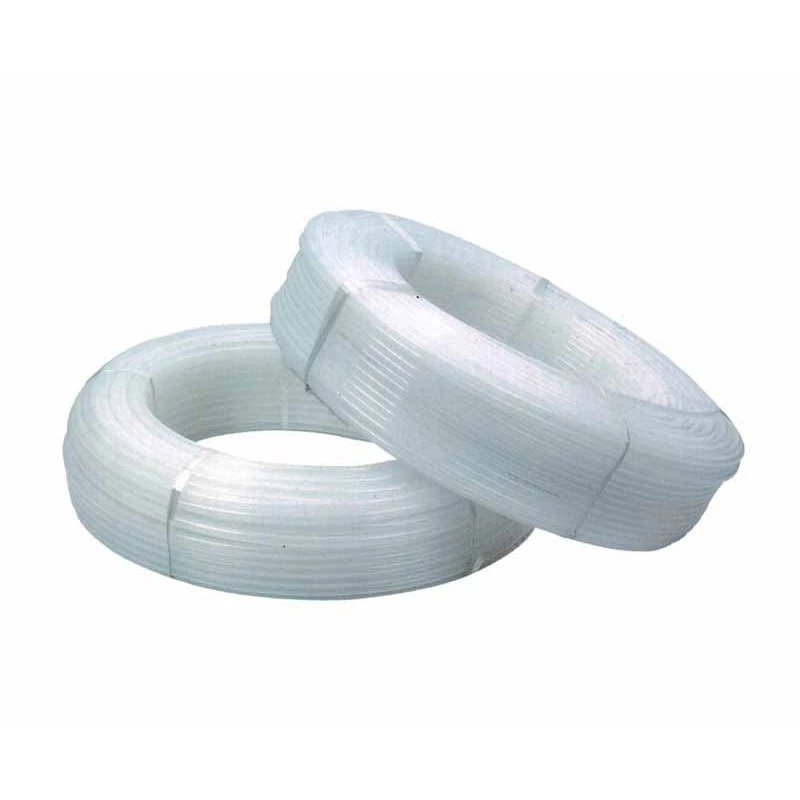

Polyethylene Tube(PE tube)
●Pneumatic system, air toolss
●Vacuum
●Automation
●Plant Imstrumentation
●Paint supply Lines
●Construction applications
●Motion control devices

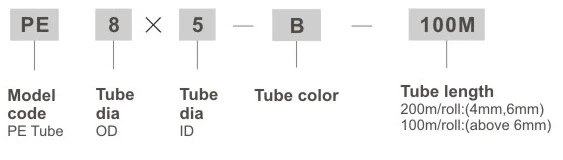

Ordering Code
Specification
| Model | NY |
| Working Medium | Compressed Air |
| Working-Pressure | 0-1.0MPa |
| Sevice Temperature range | -20-60℃ |
| Durometer | 80-92 Shore A |
Other info
| Model | O.D(mm) | I.D(mm) | Thickness(mm) | Lenth M/RolL | Min.burst pressure bar at 20℃(bar) | Max.working pressure at 20℃(bar) |
| PE 4×2.5 | 4 | 2.5 | 0.75 | 200 | 24 | 8 |
| PE 6×4 | 6 | 4 | 1.00 | 200 | 24 | 8 |
| PE 8×5 | 8 | 5 | 1.50 | 100 | 24 | 8 |
| PE 10×7.5 | 10 | 7.5 | 1.25 | 100 | 24 | 8 |
| PE 12×9 | 12 | 9 | 1.50 | 100 | 24 | 8 |
| PE 1×4 | 6.35 | 4 | 1.175 | 200 | 24 | 8 |
| PE 3×8 | 9.52 | 6.35 | 1.585 | 100 | 24 | 8 |
| PE 1×2 | 12.7 | 8.46 | 2.12 | 24 | 8 |
| Color | Tranaparent | Black | Orange | Blue | Dark blue | Sky blue | Clear blue | Gren | Red | Yellow | Grey | Milk white |
| Code | C | B | O | BU | DB | SB | CB | GN | RD | YW | GY | MW |
| Supplid | ● | ● | ● | ● | ◆ | ◆ | ◆ | ◆ | ◆ | ◆ | ◆ | ◆ |
