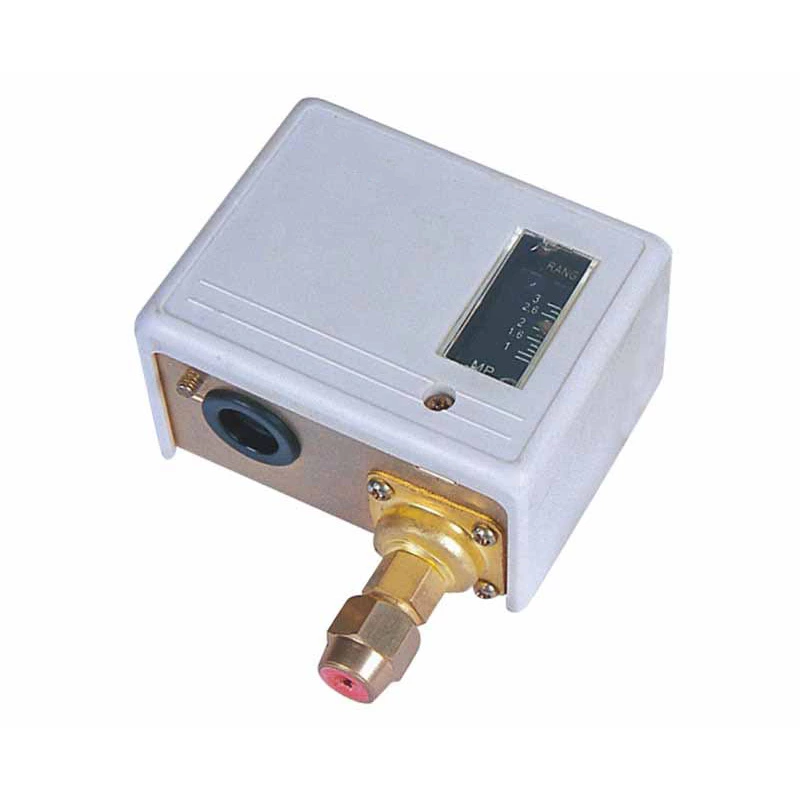

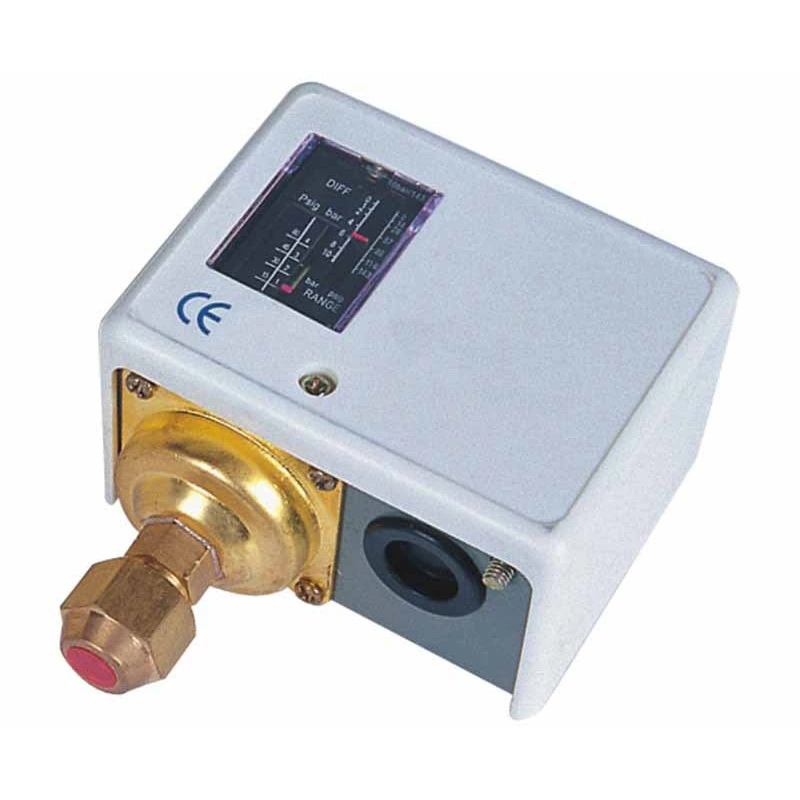

Pressure Controller
For use with fluorinated refrigerants as well as with a air and water.
(Allowable Fluid Temp.: -1.0℃~+100℃)
Various contact functions available, With SPDT contact mechanism,
Renovated micro-switch stucture ensures the relible switch function,Manual- controlled and no use of other instruments to have a function test, Flexible mounting plate suits various kinds of application.
Specification
| Model | Range(bar) | Differential(bar) | Factory Setting(bar) | Max.Bellows Press(bar) | |||
| Min. | Max. | Min. | Max. | OFF | ON | ||
| HLP503 | -0.7 | 3 | 0.2 | 1.5 | 2 | 1 | 16.5 |
| HLP506 | -0.7 | 6 | 0.6 | 4 | 3 | 2 | 16.5 |
| HLP506M | -0.7 | 6 | Duplicate voltage disparrity≤1 | 3 | Manual Reset | 16.5 | |
| HLP110 | 1 | 10 | 1 | 3 | 6 | 5 | 16.5 |
| HLP516 | 5 | 16 | 1 | 4 | 10 | 8 | 35 |
| HLP520 | 5 | 24 | 2 | 5 | 16 | 13 | 35 |
| HLP530D | 5 | 30 | 5 | 10 | 20 | 15 | 35 |
| HLP530 | 8 | 30 | Fixed3-5 | 20 | 15-17 | 35 | |
| HLP530M | 8 | 30 | Duplicate voltage disparrity≤4 | 20 | Manual Reset | 35 | |

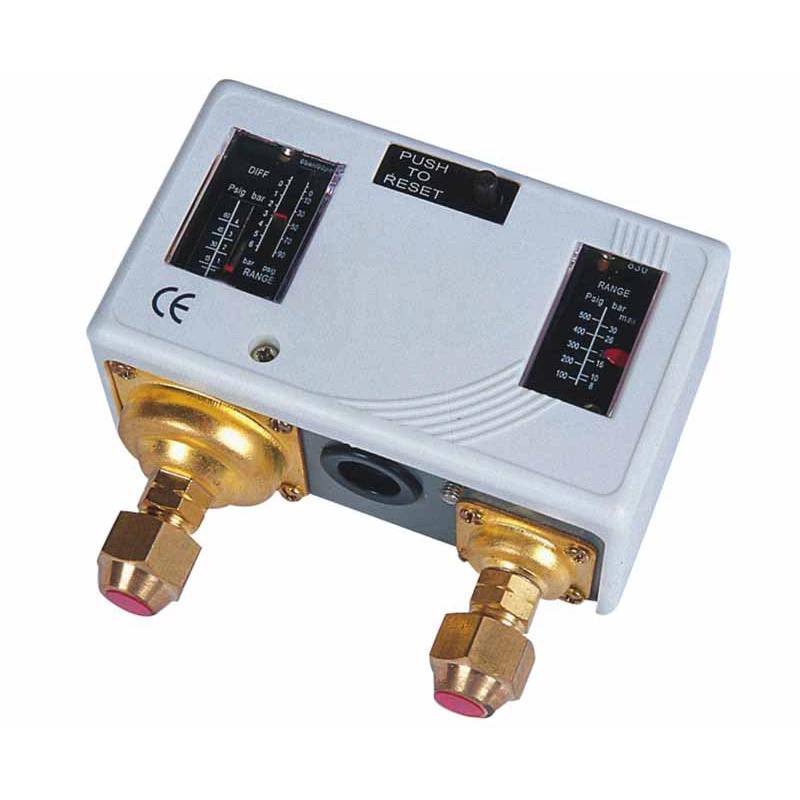

| Model | Press Side | Range(bar) | Differential(bar) | Factory Setting(bar) | Max. Bllows Press(bar) | |||
| Min. | Max. | Min. | Max. | OFF | ON | |||
| HLP830 | Low Side | -0.7 | 6 | 0.6 | 4 | 3 | 2 | 16.5 |
| High Side | 8 | 30 | Fixed3-5 | 2 | 15 | 35 | ||
| HLP830HM | Low Side | -0.7 | 6 | 0.6 | 4 | 3 | 2 | 16.5 |
| High Side | 8 | 30 | Duplicate voltage disparrity≤4 | 20 | Manual Reset | 35 | ||
| HLP830HLM | Low Side | -0.7 | 6 | 3 | Manual Reset | 16.5 | ||
| High Side | 8 | 30 | Duplicate voltage disparrity≤4 | 20 | Manual Reset | 35 | ||

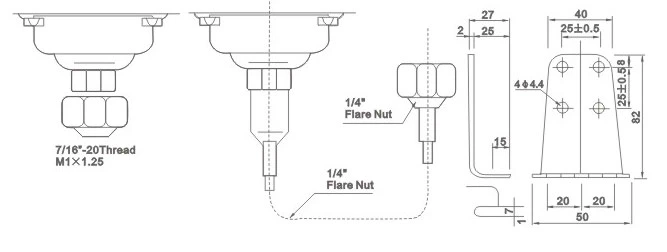

Overall Dimensions
| Specified Voltage(V) | A.C. 125 | A.C. 125 |
| Specifed Electric Current(A) | ||
| Non-Inductuv Current | 48 | 12 |
| Maximum Load | 48 | 12 |
| Twinking Electric Current | 228 | 72 |
