Ordering Code
Specification
| Fliud Type |
Air,Vacuum |
| Operating Pressure |
0-10.2Kgf/cm²(0-1.0Mpa) |
| Negative Pressure |
-750mm Hg(10Torr) |
| Operating Temperature Range |
0-60℃ |
| Tube Material |
Nylon and Polyurethane |
(1)Model Type
(2)Tube Outer Diameter(ΦD)
| Metric Size |
| Code |
04 |
06 |
08 |
10 |
12 |
14 |
16 |
| ΦD |
4mm |
6mm |
8mm |
10mm |
12mm |
14mm |
16mm |
(3)Thread Type & Size
| Metric Size |
Tube(lnch)-Thread(R) |
| Code |
M5 |
M6 |
01 |
02 |
03 |
04 |
| ΦD |
M5×0.8 |
M6×1 |
R1/8" |
R1/4" |
R3/8" |
R1/2" |
| G(PF)Thread |
| Code |
G01 |
G02 |
G03 |
G04 |
| Size |
G1/8" |
G1/4" |
G3/8" |
G1/2" |
Other info

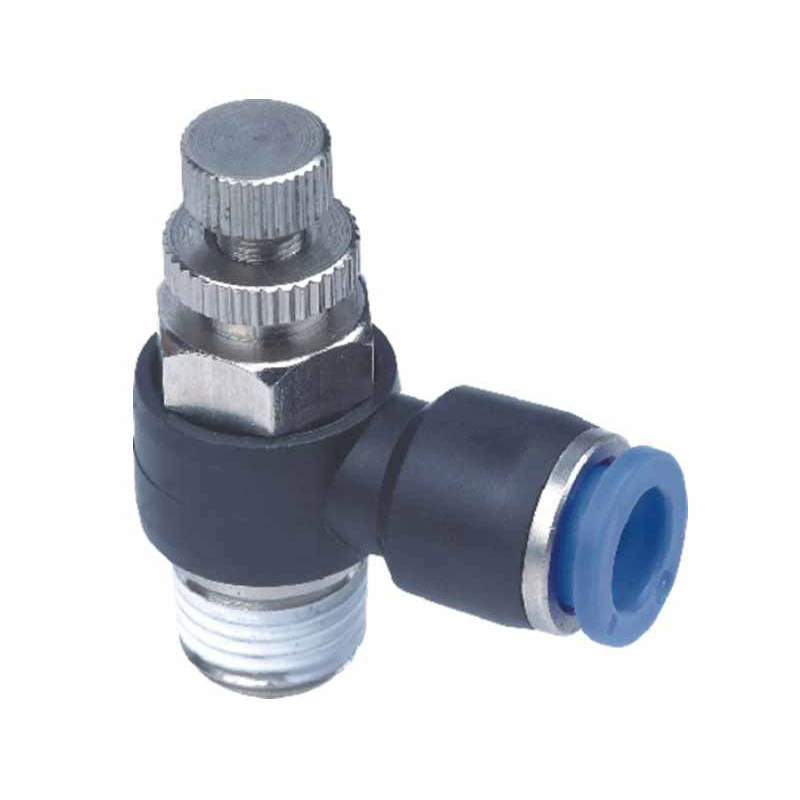

| TJSC |
| MODEL(Ф D-T) |
| Tube(Metric)-Thread(R) |
Tube(Inch)-Thread(R) |
Tube(Inch)- Thread(NPT) |
| TJSC04-M5 TJSC06-04 TJSC10-03 |
TJSC1/4-M5 TJSC5/16-02 |
TJSC5/32-U TJSC1/4-N1 TJSC3/8-N2 |
| TJSC04-01 TJSC08-01 TJSC10-04 |
TJSC1/4-01 TJSC5/16-03 |
TJSC5/32-N1 TJSC1/4-N2 TJSC3/8-N3 |
| TJSC04-02 TJSC08-02 TJSC12-02 |
TJSC1/4-02 TJSC3/8-02 |
TJSC3/16-U TJSC1/4-N3 TJSC3/8-N4 |
| TJSC06-M5 TJSC08-03 TJSC12-03 |
TJSC5/16-01 TJSC3/8-03 |
TJSC3/16-N1 TJSC5/16-N1 TJSC1/2-N3 |
| TJSC06-01 TJSC08-04 TJSC12-04 |
|
TJSC3/16-N2 TJSC5/16-N2 TJSC1/2-N4 |
| TJSC06-02 TJSC10-01 |
|
TJSC3/16-N3 TJSC5/16-N3 |
| TJSC06-03 TJSC10-2 |
|
TJSC1/4-U TJSC5/16-N4 |
|
 |

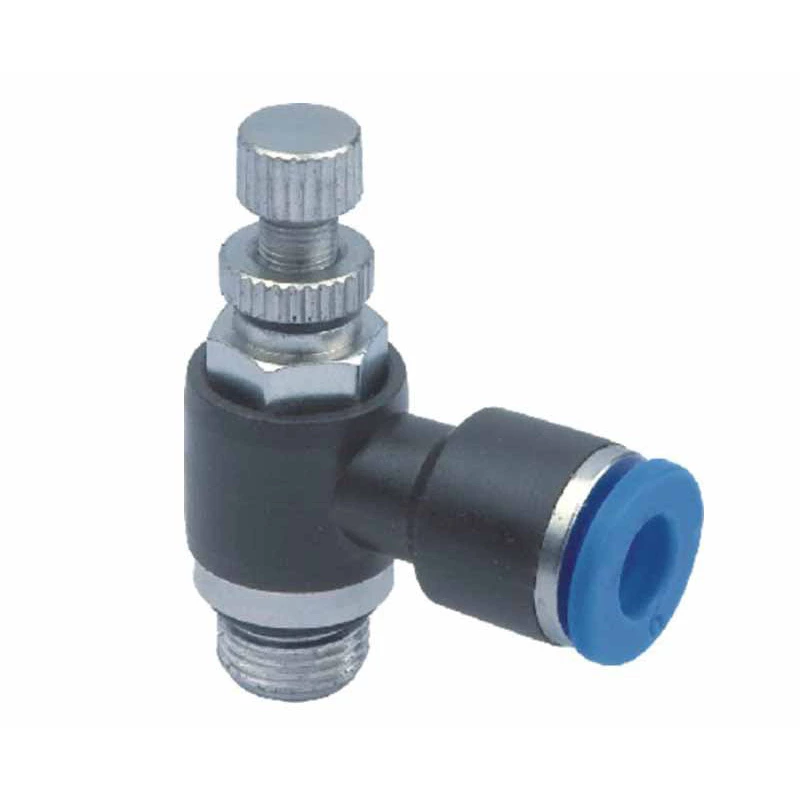

| TJSC-G |
| MODEL(Ф D-T) |
| Tube(Metric) |
| TJSC04-G01 TJSC08-G02 TJSC12-G02 |
| TJSC04-G02 TJSC08-G03 TJSC12-G03 |
| TJSC06-G01 TJSC08-G04 TJSC12-G04 |
| TJSC06-G02 TJSC10-G01 |
| TJSC06-G03 TJSC10-G02 |
| TJSC06-G04 TJSC10-G03 |
| TJSC08-G01 TJSC10-G04 |
|

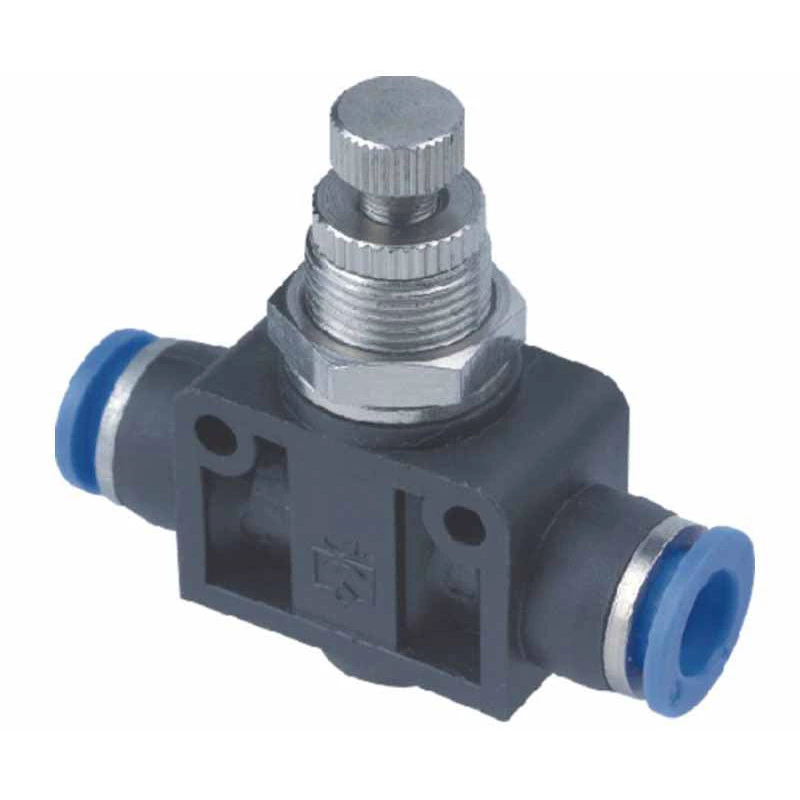

TPA |
| MODEL(Ф D) |
| Tube(Metric) |
Tube(Inch) |
| TPA04 |
TPA5/32 |
| TPA06 |
TPA3/16 |
| TPA08 |
TPA1/4 |
| TPA10 |
TPA5/16 |
| TPA12 |
TPA3/8 |
| |
TPA1/2 |
| |
|
|
 |
 |

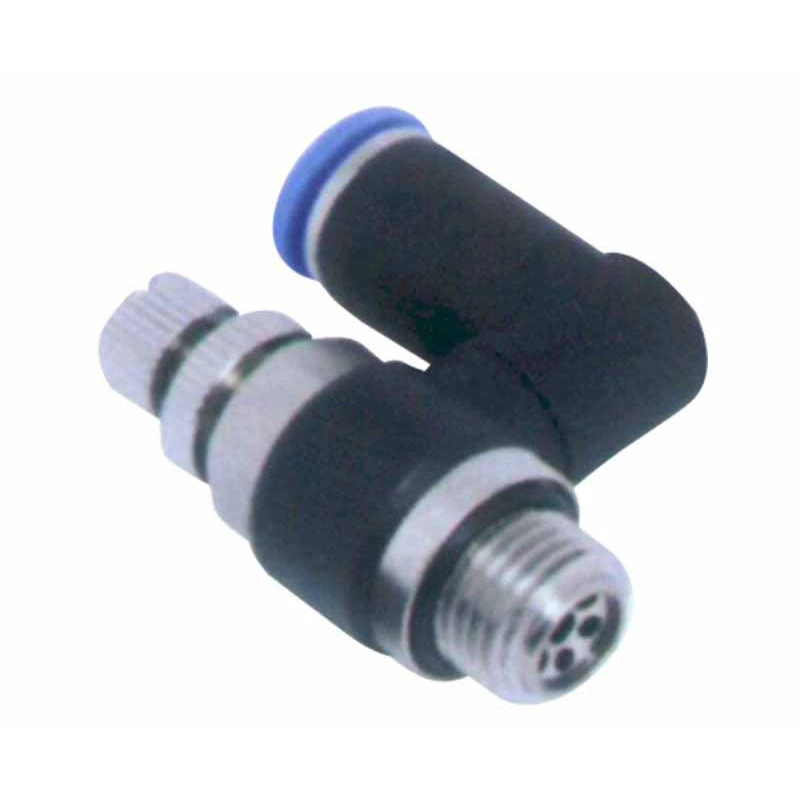

| TSS |
| MODEL(Ф D-T) |
| Tube(Metric) |
Tube(Inch) |
| TSS04-01 |
TSS1/4-N01 |
| TSS04-02 |
TSS1/4-N02 |
| TSS06-01 |
TSS5/16-N01 |
| TSS06-02 |
TSS5/16-N02 |
| TSS08-01 |
TSS3/8-N02 |
| TSS08-02 |
TSS3/8-N03 |
| TSS10-02 |
TSS1/2-N02 |
| TSS10-03 |
TSS1/2-N03 |
| TSS12-03 |
|
| |
|
|
TSS-G |
| MODEL(Ф D-T) |
| Tube(Metric) |
| TSS04-G01 |
| TSS04-G02 |
| TSS06-G01 |
| TSS06-G02 |
| TSS08-G01 |
| TSS08-G02 |
| TSS10-G02 |
| TSS10-G03 |
| TSS12-G02 |
| TSS12-G03 |
|
 |
 |
