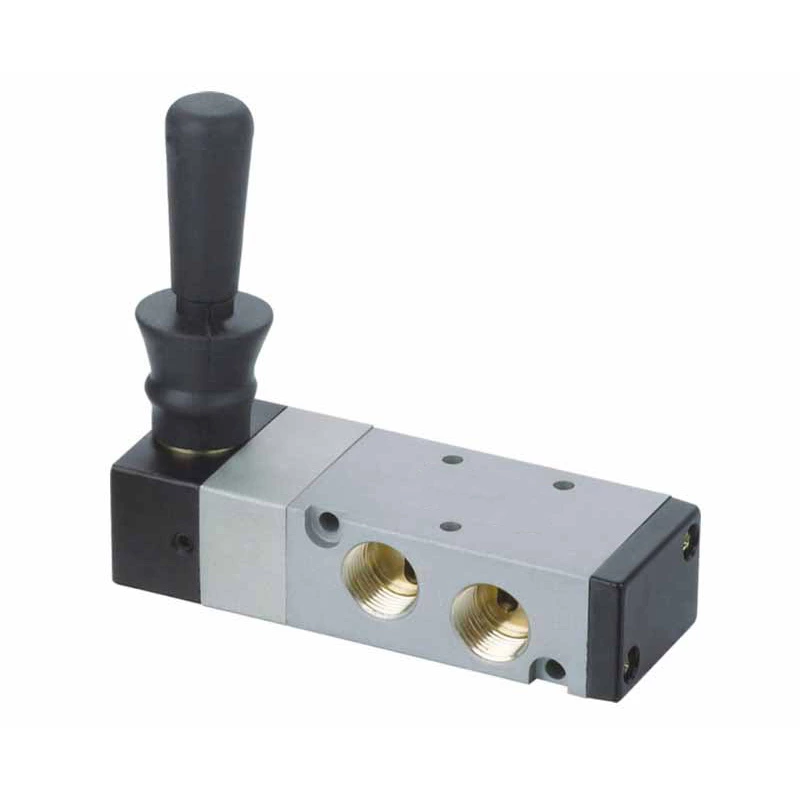

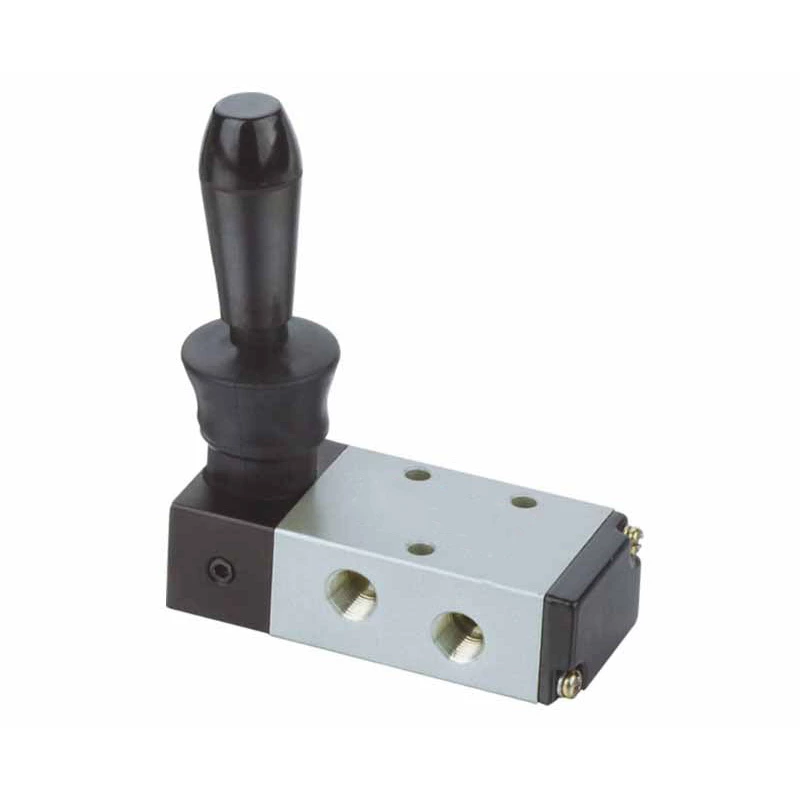

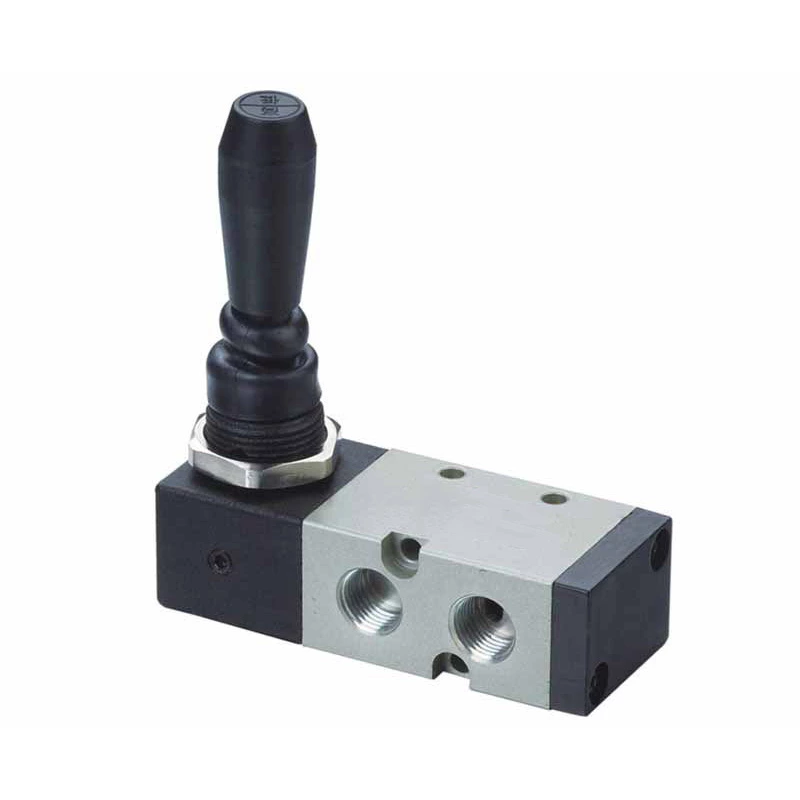

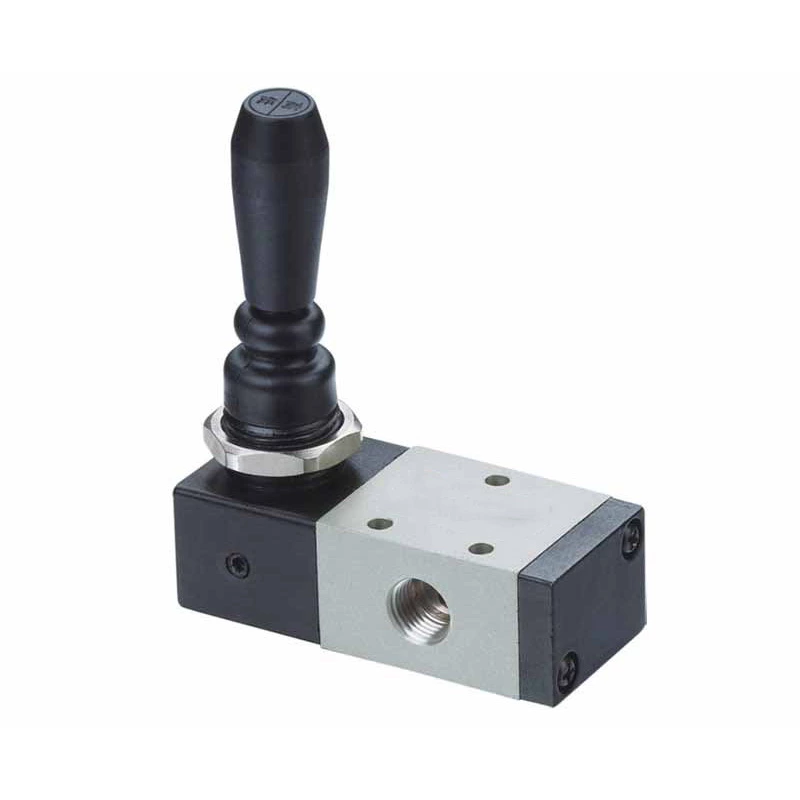

TSV/4H Series hand-pull Valve
| ●Working Medium | 40 Micron Filtered Air |
| ●Motion Pattern | Direct Drive Type |
| ●Effective Sectional Area | 18mm²(CV=1.00) |
| ●Port Size | G1/4 |
| ●Working-pressure Range | 0-1.0MPa |
| ●Operating Temperature Range | 0-60°C |

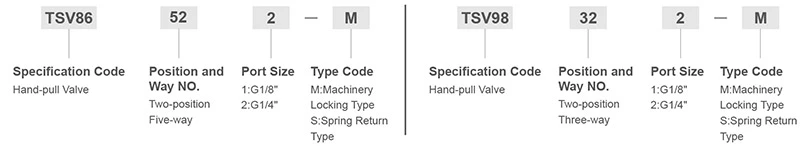

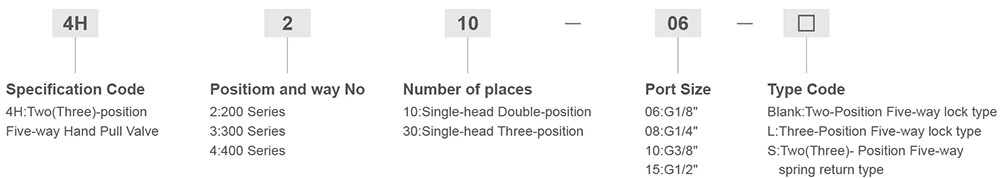

Ordering Code
Specification
| Model | TSV86522M/S | TSV98322M/S |
| Working Medium | 40 Micron Filtered Air | |
| Motion Pattern | Direct Drive Type | |
| Effective Sectional Area | 18mm²(CV=1.00) | |
| Port Size | G1/4 | |
| Working-pressure Range | 0-1.0MPa | |
| Operating Temperature Range | 0-60°C | |
| Model | 4H210-06 | 4H210-08 | 4H230-08 | 4H310-08 | 4H310-10 | 4H330-10 | 4H410-15 | 4H430-15 |
| Working Medium | 40 Micron Filtered Air | |||||||
| Motion Pattern | Direct Drive Type | |||||||
| Effective Sectional Area | 14mm²(CV=0.78) | 16mm²(CV=0.89) | 12mm²(CV=0.67) | 25mm²(CV=1.4) | 30mm²(CV=1.68) | 30mm²(CV=1.68) | 50mm²(CV=2.79) | 50mm²(CV=2.79) |
| Port Size | Air Inlet=Air Outlet=Exhaust=G1/8" | Air Inlet=Air Outlet=Exhaust=G1/4" | Air Inlet=Air Outlet=Exhaust=G1/4" | Air Inlet=Air Outlet=G3/8" Exhaust=G1/4" | Air Inlet=Air Outlet=Exhaust=G1/2" | |||
| Working-pressure Range | 0-1.0MPa | |||||||
| Operating Temperature Range | 0-60°C | |||||||

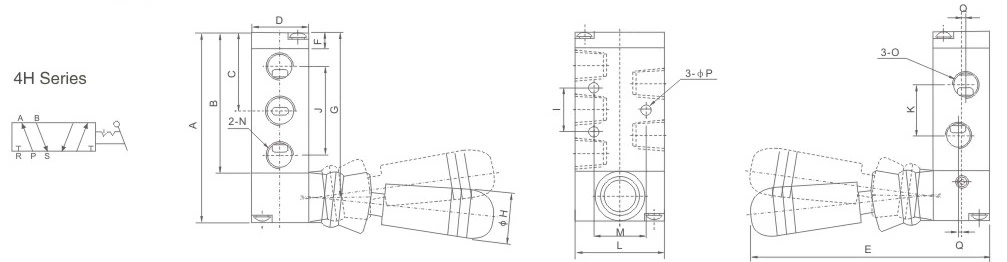

Overall Dimensions
| Symbol/Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q |
| 4H210-06 | 76 | 56.5 | 31.5 | 22 | 95 | 6.5 | 66.5 | 18 | 20 | 36 | 21 | 35 | 21 | G1/8" | G1/8" | 4.3 | - |
| 4H230-06 | 76 | 56.5 | 31.5 | 22 | 95 | 6.5 | 66.5 | 18 | 20 | 36 | 21 | 35 | 21 | G1/8" | G1/8" | 4.3 | - |
| 4H230-06(Automatic Reset) | 95 | 75.5 | 31.5 | 22 | 95 | 6.5 | 85.5 | 18 | 20 | 36 | 21 | 35 | 21 | G1/8" | G1/8" | 4.3 | - |
| 4H210-08 | 76 | 56.5 | 31.5 | 22 | 95 | 6.5 | 66.5 | 18 | 20 | 36 | 21 | 35 | 21 | G1/8" | G1/4" | 4.3 | 1.5 |
| 4H230-08L | 76 | 56.5 | 31.5 | 22 | 95 | 6.5 | 66.5 | 18 | 20 | 36 | 21 | 35 | 21 | G1/8" | G1/4" | 4.3 | 1.5 |
| 4H230-08(Automatic Reset) | 95 | 72.5 | 31.5 | 22 | 95 | 6.5 | 85.5 | 18 | 20 | 36 | 21 | 35 | 21 | G1/8" | G1/4" | 4.3 | 1.5 |
| 4H310-08 | 92 | 72.5 | 40 | 27 | 100 | 7.5 | 82.5 | 18 | 24 | 45 | 24 | 40 | 27 | G1/4" | G1/4" | 4.3 | - |
| 4H310-10 | 92 | 72.5 | 40 | 27 | 100 | 7.5 | 52.5 | 18 | 24 | 45 | 24 | 40 | 27 | G1/4" | G3/8" | 4.3 | 2 |
| 4H410-15 | 126 | 102 | 55.5 | 34 | 100 | 7.5 | 114 | 18 | 28 | 63 | 36 | 50 | 35 | G1/2" | G1/2" | 5.5 | - |
