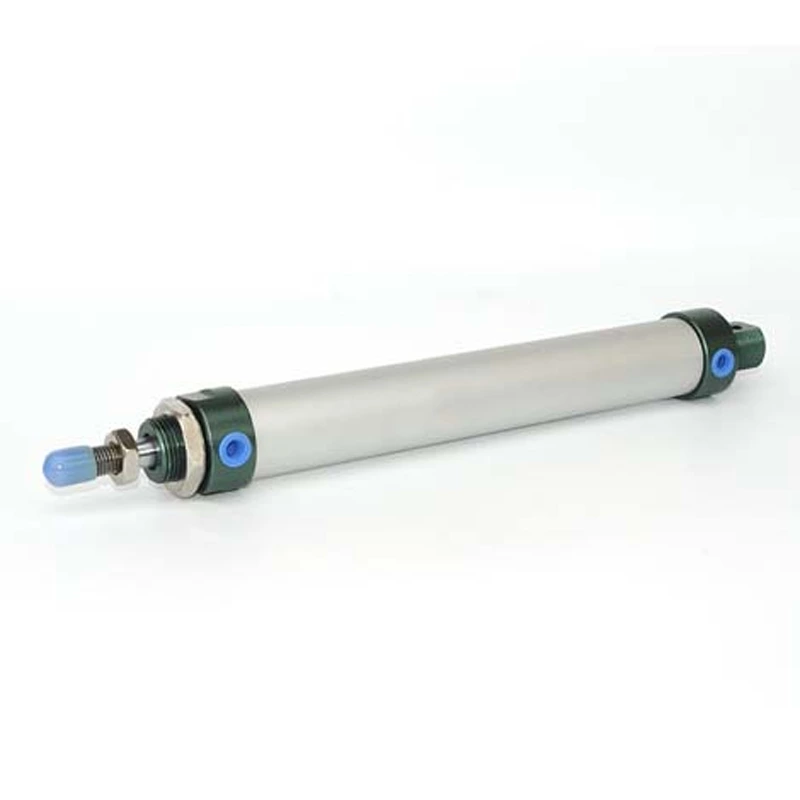

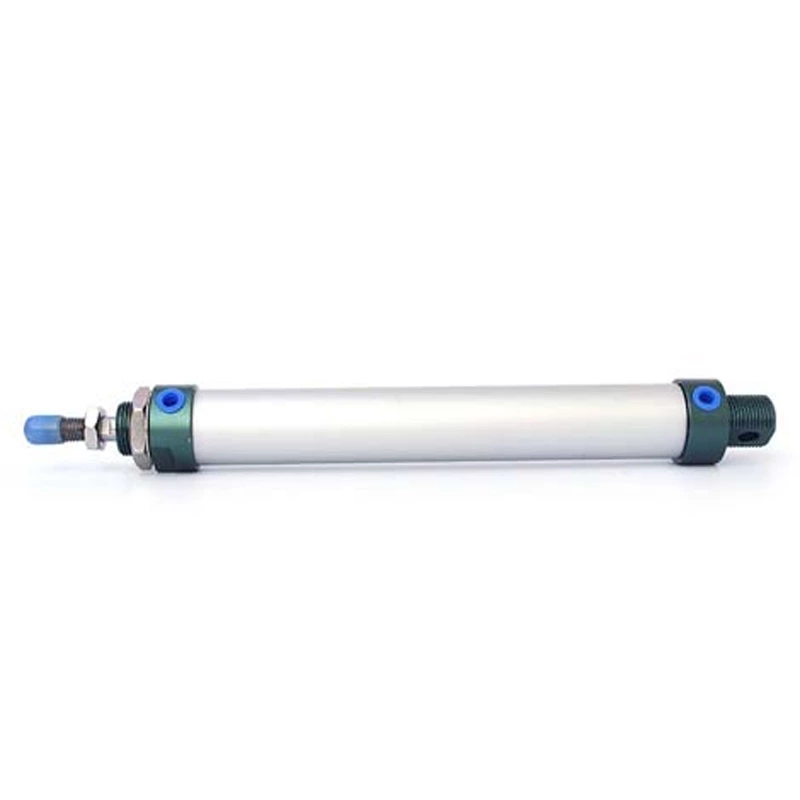

Mal Mini Cylinder

Enquiry

Features & Benefits

Product Features

* Execute AirTac corporate standards and use aluminum round tube cylinder body
* The front and rear covers are connected to the cylinder tube by threads;
* The piston seal adopts a special-shaped two-way seal structure with compact size and oil storage function;
* The front cover adopts a self-lubricating bearing guide with good lubrication and guiding performance;
* A variety of rear cover forms make cylinder installation more convenient;
* Cylinders and cylinder installation accessories of various specifications are available for customers to choose;

Specification

Inner diameter mm		20	25	32	40
Action	MSAL、MTAL	Single action
	other	Double action
Use fluid		Air
Operating pressure range	Double action	0.1~1.0MPa(15~145Psi)
	Single action	0.2~1.0MPa(28~145Psi)
Guaranteed pressure resistance		1.5MPa(215Psi)
Operating temperature range		-20~70℃
Operating speed range		Single action: 50~800mm/s Double action: 30~800mm/s
Stroke tolerance range		0~150（0-1.0）﹥150（0-1.4）
Buffer form		Crash pad
Pipe diameter		PT1/8			PT1/4

journey

Inner diameter mm		Standard stroke mm	Maximum stroke	Permitted travel time
JUST	20	25 50 75 80 100 125 150 160 175 200 250 300	500	800
	25	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500	800	1200
	32		800	1200
	40		1200	1500
MSAL	20	25 50 75 100 125 150	150	-
	25		150	-
	32		150	-
	40		150	-
MTAL	20	25 50 75 100	100	-
	25		100	-
	32		100	-
	40		100	-
GROUND ENAMEL	20	25 50 75 80 100 125 150 160 175 200	200	300
	25	25 50 75 80 100 125 150 160 175 200 250	250	300
	32		250	300
	40		250	300

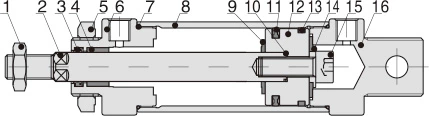

Internal structure and main parts materials

Serial number	name	Material
1	Nuts	Carbon Steel
2	Piston rod	S45C Hard Chrome Plated Grinding Rod
3	Front cover O order	NBR
4	bushing	Wear-resistant materials
5	Front cover nut	Carbon Steel
6	Front cover	Aluminum Alloy
7	O-Ring	NBR
8	Aluminum tube	NBR
9	piston	Aluminum Alloy
10	Piston O order	NBR
11	Anti-collision pads	NBR
12	O-Ring	NBR
13	Wear pads (rings)	Wear-resistant materials
14	Rear Washer	Free cutting steel
15	Hexagonal nut	Carbon Steel
16	Back cover	Aluminum Alloy

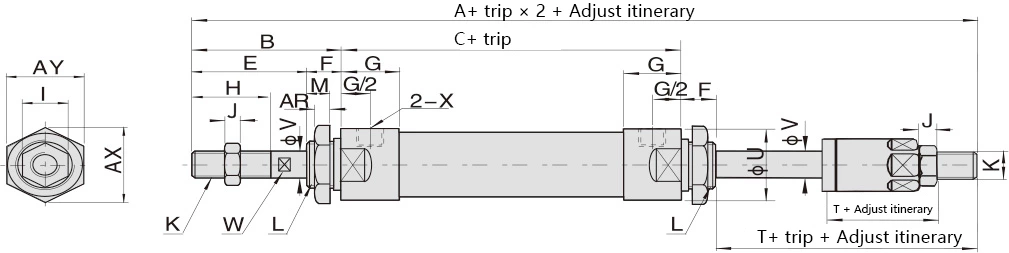

External specifications

JUST

Cylinder diameter	A	A1	A2	B	C	D	D1	AND	F	G	H	I	J	K
20	131	122	110	40	70	21	12	28	12	16	20	12	6	M8x1.25
25	135	128	114	44	70	21	14	30	14	16	22	17	6	M10x1.25
32	141	128	114	44	70	27	14	30	14	16	22	17	6	M10x1.25
40	165	152	138	46	92	27	14	32	14	22	24	17	7	M12x1.25

Cylinder diameter	L	M	P	Q	R	R1	S	IN	In	IN	X	WITH	AX	IS
20	M22x1.5	10	8	16	19	12	12	29	8	PT1/8	PT1/8	7	33	29
25	M22x1.5	12	8	16	19	12	12	34	10	PT1/8	PT1/8	7	33	29
32	M24x2.0	12	10	16	25	15	15	39.5	12	PT1/8	PT1/8	8	37	32
40	M30x2.0	12	12	20	25	15	15	49.5	16	PT1/8	PT1/4	9	47	41

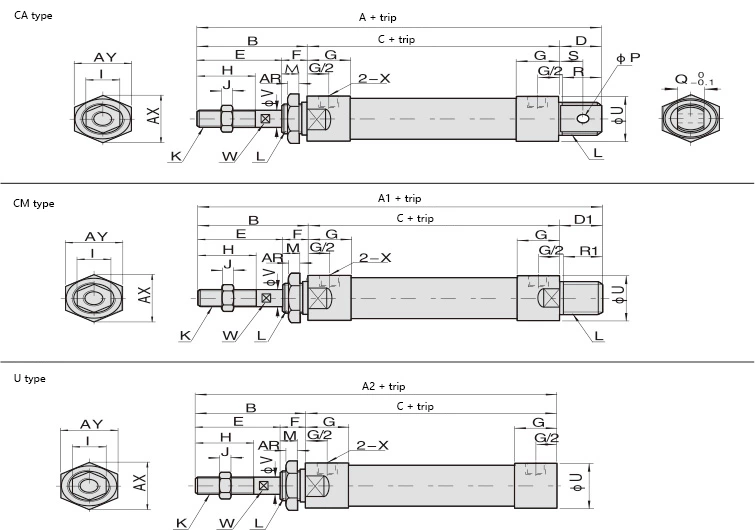

MSAL (φ16~φ40)

symbol	A			A1			A2			B	C			D	D1	AND	F
Inner diameter	≤50	51-100	≥101	≤50	51-100	≥101	≤50	51-100	≥101	B	≤50	51-100	≥101	D	D1	AND	F
20	156	181	206	147	172	197	135	160	185	40	95	120	145	21	12	28	12
25	160	185	210	153	178	203	139	164	189	44	95	120	145	21	14	30	14
32	166	191	216	153	178	203	139	164	189	44	95	120	145	27	14	30	14
40	190	215	240	177	202	227	163	188	213	46	117	142	167	27	14	32	14

Cylinder diameter	G	H	I	J	K	L	M	P	Q	R	R1	S	IN	In	IN	X	WITH	AX	IS
20	16	20	12	6	M8x1.25	M22x1.5	10	8	16	19	10	12	29	8	6	PT1/8	7	33	29
25	16	22	17	6	M10x1.25	M22x1.5	12	8	16	19	12	12	34	10	8	PT1/8	7	33	29
32	16	22	17	6	M10x1.25	M24x2.0	12	10	16	25	12	15	39.5	12	10	PT1/8	8	37	32
40	22	24	17	7	M12x1.25	M30x2.0	12	12	20	25	12	15	49.5	16	14	PT1/4	9	47	41

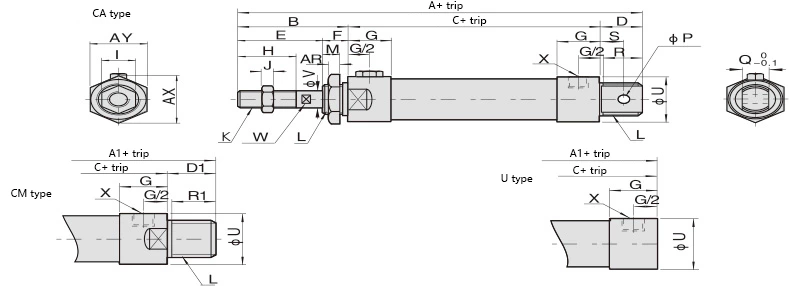

MTAL (φ16~φ40)；MAC (φ20~φ40)

symbol	A				A1				A2				C
Inner diameter	≤25	≤50	≤75	≤100	≤25	≤50	≤75	≤100	≤25	≤50	≤75	≤100	≤25	≤50	≤75	≤100
20	146	156	171	181	137	147	162	172	125	135	150	160	85	95	110	120
25	150	160	175	185	143	153	168	178	129	139	154	164	85	95	110	120
32	156	166	186	196	143	153	173	183	129	139	159	169	85	95	115	125
40	180	190	210	220	167	177	197	207	153	163	183	193	107	117	137	147

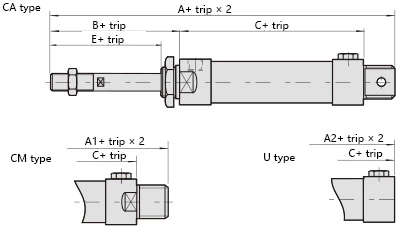

GROUND

Cylinder diameter	A	B	C	AND	F	G	H	I	J	K	L	M	IN	In	IN	X	WITH	AX	IS
20	150	40	70	28	12	16	20	12	6	M8x1.25	M22x1.5	10	29	8	6	PT1/8	7	33	29
25	158	44	70	30	14	16	22	17	6	M10x1.25	M22x1.5	12	34	10	8	PT1/8	7	33	29
32	158	44	70	30	14	16	22	17	6	M10x1.25	M24x2.0	12	39.5	12	10	PT1/8	8	37	32
40	184	46	92	32	14	22	24	17	7	M12x1.25	M30x2.0	12	49.5	16	14	PT1/4	9	47	41

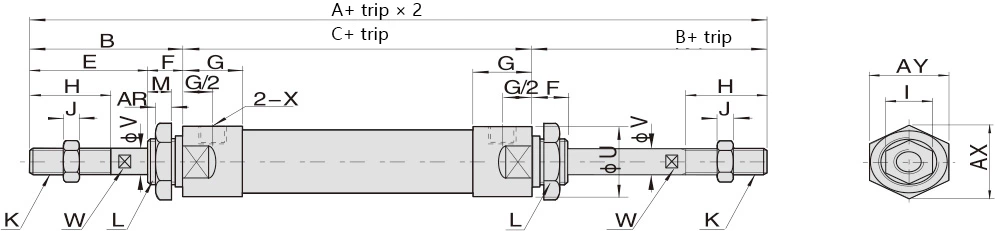

MALE

Cylinder diameter	A	B	C	AND	F	G	H	I	J	K	L	M	IN	In	IN	X	WITH	AX	IS
20	147	40	70	28	12	16	20	12	6	M8x1.25	M22x1.5	10	29	8	6	PT1/8	7	33	29
25	155	44	70	30	14	16	22	17	6	M10x1.25	M22x1.5	12	34	10	8	PT1/8	7	33	29
32	155	44	70	30	14	16	22	17	6	M10x1.25	M24x2.0	12	39.5	12	10	PT1/8	8	37	32
40	180	46	92	32	14	22	24	17	7	M12x1.25	M30x2.0	12	49.5	16	14	PT1/4	9	47	41
