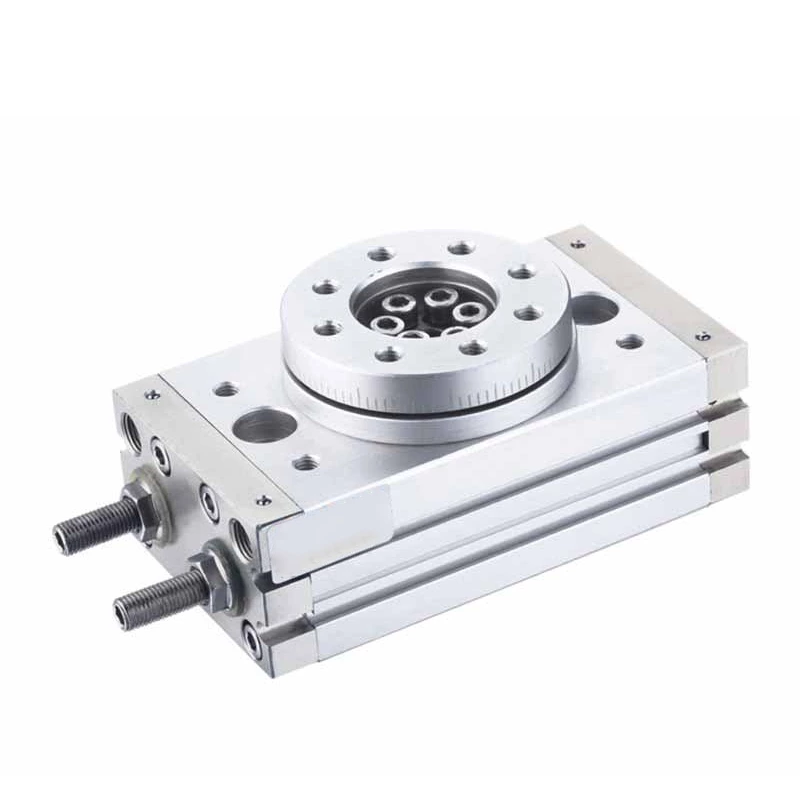

MSQ Series Rotary Cylinder

FEATURES

● Fluid	Air(non-lube)
● Max.pressure	0.6 MPa (6.1kgf/cm2)/Note
● Ambient and fluid temperature	0~60℃(No freezing)
● Angle adjustment range	0~190°
●Maximum rotation	190°

Enquiry

MSQ Series Rotary Cylinder

MSQ Series Rotary Cylinder

MSQ Series Rotary Cylinder

MSQ Series Rotary Cylinder

Features & Benefits

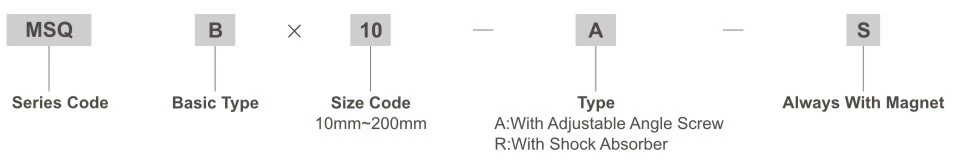

Ordering Code

MSQ Series Rotary Cylinder

Specification

Bore(mm)		10	20		30	50	70		100	200
Fluid		Air(non-lube)
Max.pressure	With adjustment bole	1Mpa(10.2kgf/cm2)
	R:With Shock Absorber	0.6 MPa (6.1kgf/cm2)/Note
Min.pressure	Basic type	0.1 Mpa(1.0kgf/cm2)
	High precision type	0.2 Mpa		0.1 Mpa				-
Ambient and fluid temperature		0~60℃(No freezing)
Cushion	With adjustment bole	Rubber bumper
	R:With Shock Absorber	Shock absorber
Angle adjustment range		0~190°
Maximum rotation		190°
Piston bore		φ15	φ18		φ21	φ25	φ28		φ32	φ40
Port size	End ports	M5×0.8			RC1/8"
	Side ports	M5×0.8

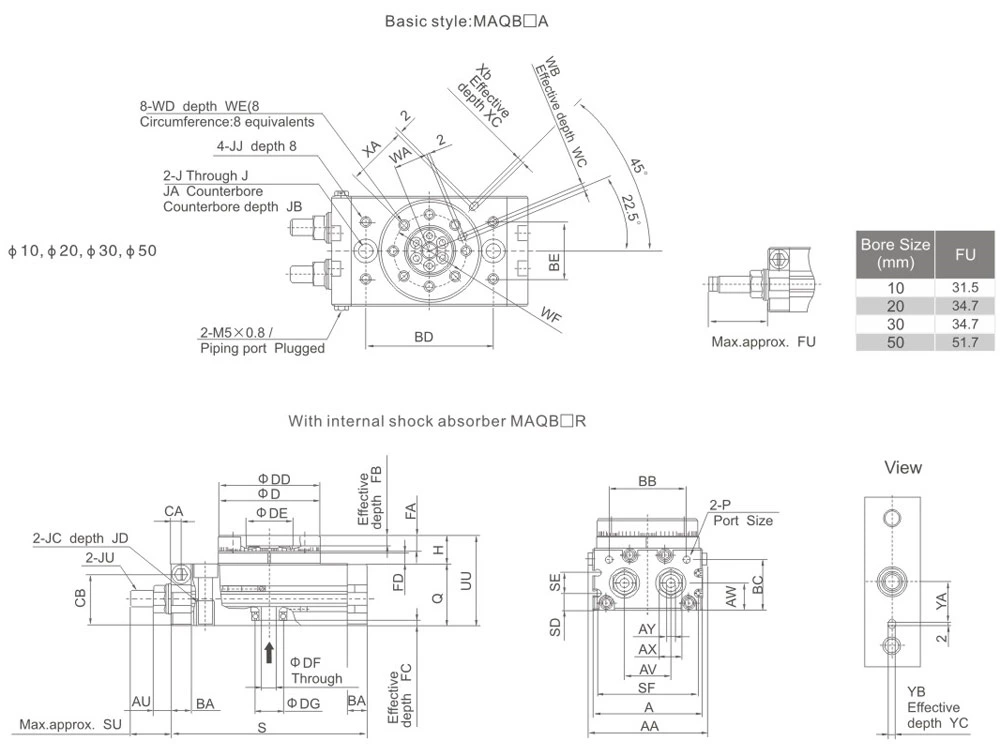

Overall Dimensions

MSQ Series Rotary Cylinder

Bore size	AA	A	AU	AV	AW	AX	AY	BA	BB	BC	BD	BE	CA	CB	D	DD	DE	DF
10	55.4	50	8.6	20	15.5	12	4	9.5	34.5	27.8	60	27	4.5	28.5	46h9	46h9	20h9	5
20	70.8	65	10.6	27.5	16	14	5	12	46	30	67	34	6	30.5	60h9	61h9	28h9	9
30	75.4	70	10.6	29	18.5	14	5	12	50	32	84	37	6.5	33.5	65h9	67h9	32h9	9
50	85.4	80	14	38	22	19	6	15.5	63	37.5	100	50	10	37.5	75h9	77h9	35h9	10

Bore size	DG	FA	FB	FC	FD	H	J	JA	JB	JC	JD	JJ	JU	P
10	15h9	8	4	3	4.5	13	6.8	11	6.6	M8×1.25	12	M5×0.8	M8×1	M5×0.8
20	17h9	10	6	2.5	6.5	17	8.6	14	8.5	M10×1.5	15	M6×1	M10×1	M5×0.8
30	22h9	10	4.5	3	6.5	17	8.6	14	8.5	M10×1.5	15	M6×1	M10×1	RC 1/8
50	29h9	12	5	3	7.5	20	10.5	18	10.5	M12×1.75	18	M8×1.25	M14×1.5	RC 1/8

Bore size	Q	S	SD	SE	SF	SU	UU	WA	WB	WC	WD	WE	WF	XA	XB	XC	YA	YB	YC
10	34	92	9	13	45	17.7	47	15	3H9	3.5	M5×0.8	8	32	27	3H9	3.5	19	3H9	3.5
20	37	117	10	12	60	25	54	20.5	4H9	4.5	M6×1	10	43	36	4H9	4.5	24	4H9	4.5
30	40	127	11.5	14	65	25	57	23	4H9	4.5	M6×1	10	48	39	4H9	4.5	28	4H9	4.5
50	46	152	14.5	15	75	31.4	66	26.5	5H9	5.5	M8×1.25	12	55	45	5H9	5.5	33	5H9	5.5

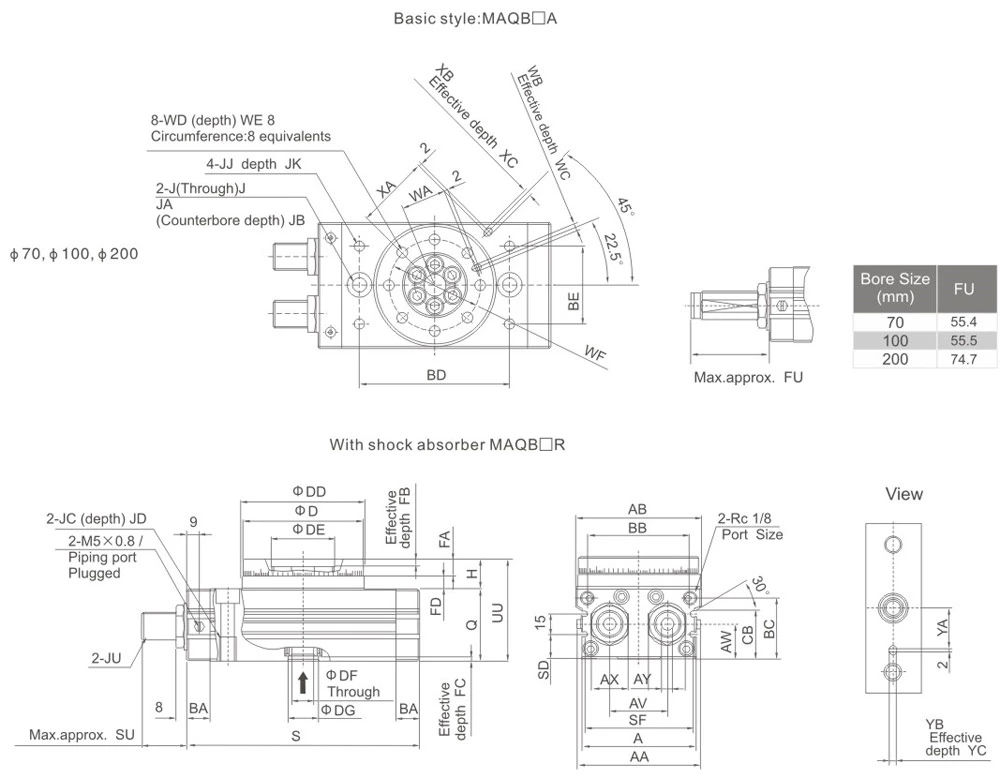

MSQ Series Rotary Cylinder

Bore size	AA	AB	A	AV	AW	AX	AY	BA	BB	BC	BD	BE	CB	D	DD	DE
70	90	92	84	42	25.5	27	8	17	75	44.5	110	57	36	88h9	90h9	46h9
100	101	102	95	50	29.5	27	8	17	85	50.5	130	66	42	98h9	100h9	56h9
200	119	120	113	60	36.5	36	10	24	103	65.5	150	80	57	116h9	118h9	64h9

Bore size	DF	DG	FA	FB	FC	FD	H	J	JA	JB	JC	JD	JJ	JK	JU
70	16	22h9	12.5	5	3.5	6	22	10.4	17.5	10.5	M12×1.75	18	M8×1.25	10	M20×1.5
100	19	242h9	14.5	6	3.5	12	27	10.4	17.5	10.5	M12×1.75	18	M8×1.25	10	M20×1.5
200	24	32h9	16.5	9	5.5	15	32	14.2	20	12.5	M16×2	25	M12×1.75	13	M27×1.5

Bore size	Q	S	SD	SF	SU	UU	WA	WB	WC	WD	WE	WF	XA	XB	XC	YA	YB	YC
70	53	170	18	79	34.2	75	32.5	5H9	5.5	M8×1.25	12.5	67	54	5H9	3.5	39	5H9	3.5
100	59	189	22	90	34.3	86	37.5	6H9	6.5	M10×1.55	14.5	77	59	6H9	4.5	49	6H9	4.5
200	74	240	29	108	40.2	106	44	8H9	8.5	M12×1.75	16.5	90	69	8H9	4.5	54	8H9	6.5

Other info

Size	Allowable kinectic energy(mj)		Rotation time adjiustment range for stable operation (s/90°)
Size	With adjiustment bolt	With internal shock absorber	With adjiustment bolt	With internal shock absorber (Note)
10mm	7	39	0.2 to 1.0	0.2 to 0.7
20mm	25	116
30mm	48	116
50mm	81	294
70mm	240	1100	0.2 to 1.5	0.2 to 1.0
100mm	320	1600	0.2 to 2.0
200mm	560	2900	0.2 to 2.5
