Standard Specifications
| Cylinder diameter (mm) | 16,20 | 25,32 | 40 | 50,63 |
| Use fluid | Air | |||
| Action | Double acting | |||
| Operating pressure range[MPa] | 0.15~0.8 | |||
| Pressure test pressure[MPa] | 1.2 | |||
| Operating temperature℃ | 5~60℃ | |||
| buffer | Cushion cushioning (MY3A)/air cushioning (MY3B) | |||
| Oil | No oil | |||
| Stroke length tolerance | Below 1000 | +1.8 | 1001~ | +2.8 |
| 0 | 0 | |||
| Pipe connection diameter (Rc, NPT, G) | M5×0.8 | 1/8 | 1/4 | 3/8 |
Note) For MY3A, this tolerance is the value when no pressure is applied. When using a cushion for MY3A, the stroke changes according to the operating pressure. For the stroke tolerance at each operating pressure, add twice the added stroke on one side found according to the operating pressure.
Model indication method
Journey
| Cylinder diameter | Standard itinerary | Maximum stroke that can be produced |
| 16 | 100,200,300,400,500,600,700,800,900,1000,1200,1400,1600,1800,2000 | 3000 |
| 20 | ||
| 25 | ||
| 32 | ||
| 40 | ||
| 50 | ||
| 63 |
Symbol
 |
 |
| Cushioning | Air cushion |
Optional
| mark | Stroke adjustment unit | Installation location |
| L1 | L Stroke | Left |
| L2 | Right | |
| H1 | H Stroke | Left |
| H2 | Right |
Components
| MY3B-A25L1(Without partition) | MY3B-A25L1-6(With short partition) | MY3B-A25L1-7(With long partition) | MY3B-A25L 1-6N(Short bulkhead only) |
 |
|||
 |
 |
 |
MY3B-A25L 1-7N(Long partition only) |
 |
Dimensions (mm)
MY3A bore-stroke

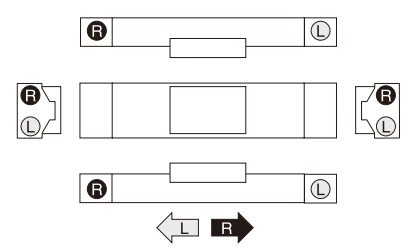

| Port expansion |
The pipe connection of the headless cylinder head allows you to freely select the most suitable pipe according to the on-site conditions.  Slide movement direction |
| model | A | B | C | E | G | H | HG | JJ | KK | L | LD | LL | LW | M | MM | N |
| MY3A16 | 55 | 6 | 18 | 2 | 9.5 | 27 | 5 | M4×0.7 | 5 | 65 | 3.5 | 22.5 | 41 | 6 | M4×0.7 | 13.5 |
| MY3A20 | 64 | 7.5 | 22 | 2 | 9.5 | 32 | 6.5 | M4×0.7 | 8.5 | 80 | 4.5 | 24 | 51 | 6 | M4×0.7 | 15.5 |
| MY3A25 | 75 | 9.5 | 25 | 2 | 14 | 37 | 7.4 | M5×0.8 | 7.5 | 95 | 5.5 | 27.5 | 61 | 8 | M5×0.8 | 20 |
| MY3A32 | 96.5 | 11 | 32.5 | 2 | 14 | 45 | 9 | M5×0.8 | 7.5 | 128 | 6.6 | 32.5 | 76 | 8 | M5×0.8 | 22.5 |
| MY3A40 | 120 | 14 | 38 | 2 | 18 | 54 | 12 | M6×1 | 12 | 160 | 8.6 | 40 | 90 | 12 | M6×1 | 27 |
| MY3A50 | 137 | 14 | 49 | 3 | 16 | 67 | 14 | M6×1 | 15.5 | 190 | 9 | 42 | 112 | 12 | M6×1 | 27 |
| MY3A63 | 160 | 17 | 60 | 3 | 20.5 | 84 | 16.5 | M8×1.25 | 22 | 220 | 11 | 50 | 134 | 16 | M8×1.25 | 31 |
| model | NE | NG | NH | NW | P | PA | PB | PC | PD | PG | Q | QW | T | TT | UU | YW | Z |
| MY3A16 | 22.5 | 8 | 17.2 | 43 | M5×0.8 | 44 | 26 | 32.5 | 4 | 4 | 102 | 19 | 8 | 6.5 | 30 | 42 | 110 |
| MY3A20 | 27.5 | 10 | 20.8 | 53 | M5×0.8 | 54 | 30 | 40 | 5 | 4.5 | 119 | 23 | 8 | 9 | 35 | 52 | 128 |
| MY3A25 | 32 | 10 | 24 | 65 | Rc,NPT,G1/8 | 64 | 40 | 47.5 | 6 | 6 | 138 | 30 | 10 | 9 | 47 | 62 | 150 |
| MY3A32 | 39 | 14 | 31 | 79 | Rc,NPT,G1/8 | 92 | 44 | 64 | 6 | 7 | 179 | 33 | 10 | 13.5 | 52 | 77 | 193 |
| MY3A40 | 46 | 15 | 37 | 94 | Rc,NPT,G1/4 | 112 | 60 | 80 | 7.5 | 8.5 | 223 | 40 | 14 | 14 | 66 | 92 | 240 |
| MY3A50 | 58 | 25 | 47.5 | 116 | Rc,NPT,G3/8 | 142 | 66 | 95 | 8.5 | 8.5 | 257 | 44 | 15 | 21 | 74 | 114 | 274 |
| MY3A63 | 70 | 29 | 58 | 139 | Rc,NPT,G3/8 | 162 | 84 | 110 | 10 | 10 | 300 | 64 | 16 | 20 | 99 | 136 | 320 |
MY3B bore-stroke

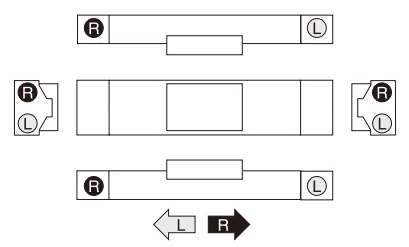

| Port expansion |
The pipe connection of the headless cylinder head allows you to freely select the most suitable pipe according to the on-site conditions.  Slide movement direction |
| model | A | B | C | E | G | H | HG | JJ | KK | L | LD | LL | LW | M | MM | N |
| MY3B16 | 61 | 6 | 18 | 2 | 9.5 | 27 | 5 | M4×0.7 | 5 | 65 | 3.5 | 28.5 | 41 | 6 | M4×0.7 | 13.5 |
| MY3B20 | 74 | 7.5 | 22 | 2 | 9.5 | 32 | 6.5 | M4×0.7 | 8.5 | 80 | 4.5 | 34 | 51 | 6 | M4×0.7 | 15.5 |
| MY3B25 | 89 | 9.5 | 25 | 2 | 14 | 37 | 7.4 | M5×0.8 | 7.5 | 95 | 5.5 | 41.5 | 61 | 8 | M5×0.8 | 20 |
| MY3B32 | 112.5 | 11 | 32.5 | 2 | 14 | 37 | 9 | M5×0.8 | 7.5 | 98 | 5.6 | 41.5 | 61 | 8 | M5×0.8 | 22.5 |
| MY3B40 | 138 | 14 | 38 | 2 | 18 | 40 | 12 | M6×1 | 12 | 160 | 8.6 | 58 | 90 | 12 | M6×1 | 27 |
| MY3B50 | 155 | 14 | 49 | 3 | 16 | 40 | 14 | M6×1 | 15.5 | 190 | 9 | 60 | 112 | 12 | M6×1 | 27 |
| MY3B63 | 178 | 17 | 60 | 3 | 20.5 | 44 | 16.5 | M8×1.25 | 22 | 220 | 11 | 68 | 134 | 16 | M8×1.25 | 31 |
| model | NE | NG | NH | NW | P | PA | PB | PC | PD | PE | PF | PG | Q | QW | T | TT | UU | YW | Z |
| MY3B16 | 22.5 | 8 | 17.2 | 43 | M5 × 0.8 | 44 | 26 | 32.5 | 4 | 9.7 | 8.5 | 4 | 114 | 19 | 7 | 6.5 | 30 | 42 | 122 |
| MY3B20 | 27.5 | 10 | 20.8 | 53 | M5 × 0.8 | 54 | 30 | 40 | 5 | 11.2 | 10 | 4.5 | 139 | 23 | 8 | 9 | 35 | 52 | 148 |
| MY3B25 | 32 | 10 | 24 | 65 | Rc,NPT,G1/8 | 64 | 40 | 47.5 | 6 | 14.5 | 12.2 | 6 | 166 | 30 | 10 | 9 | 47 | 62 | 178 |
| MY3B32 | 39 | 14 | 31 | 79 | Rc,NPT,G1/8 | 92 | 44 | 64 | 6 | 16 | 15 | 7 | 211 | 33 | 10 | 9.5 | 52 | 77 | 225 |
| MY3B40 | 46 | 15 | 37 | 94 | Rc,NPT,G1/4 | 112 | 60 | 80 | 7.5 | 19.5 | 16.5 | 8.5 | 259 | 40 | 14 | 14 | 66 | 92 | 276 |
| MY3B50 | 58 | 25 | 47.5 | 116 | Rc,NPT,G3/8 | 142 | 66 | 95 | 8.5 | 20.5 | 20 | 8.5 | 293 | 44 | 15 | 21 | 74 | 114 | 310 |
| MY3B63 | 70 | 29 | 58 | 139 | Rc,NPT,G3/8 | 162 | 84 | 110 | 10 | 23.5 | 27.5 | 10 | 336 | 64 | 16 | 20 | 99 | 136 | 356 |
Stroke adjustment unit
With low-load hydraulic buffer + adjustment screw
MY3B cylinder diameter□-stroke L
| Cylinder Type | ES | EC | EY | FC | h | S | SD | TS | TR | TU | W | Hydraulic Buffer Model Number |
| MY3B16 | 14.1 | 21.5 | 26.5 | 34.5 | 2.4 | 40.8 | 25.8 | 6 | 0.9 | 25 | 62 | RB0806 |
| MY3B20 | 14.1 | 26.5 | 31.5 | 41 | 2.4 | 40.8 | 22.3 | 6 | 4.4 | 21.5 | 72 | RB0806 |
| MY3B25 | 20.1 | 29.8 | 36.5 | 51.5 | 3.6 | 46.7 | 25.2 | 7 | 1.4 | 28.5 | 90 | RB1007 |
| MY3B32 | 20.1 | 37.5 | 44.5 | 60 | 3.6 | 46.7 | 20.7 | 7 | 5.9 | 24 | 105 | RB1007 |
| MY3B40 | 30.1 | 45 | 53.5 | 72.5 | 5 | 67.3 | 36.3 | 12 | 0.9 | 39 | 128 | RB1412 |
| MY3B50 | 30.1 | 56.5 | 66.5 | 88 | 5 | 67.3 | 34.3 | 12 | 2.9 | 37 | 150 | RB1412 |
| MY3B63 | 36.1 | 70.5 | 83.5 | 108 | 6 | 73.2 | 36.2 | 15 | 0.9 | 43 | 178 | RB2015 |
With high load hydraulic buffer + adjustment screw
MY3B cylinder diameter-stroke H
| Cylinder Type | ES | EC | EY | FC | h | S | SD | TS | TR | TU | W | Hydraulic Buffer Model Number |
| MY3B16 | 14.1 | 23 | 29.5 | 34.5 | 2.4 | 46.7 | 31.7 | 7 | 0.9 | 25 | 62 | RB1007 |
| MY3B20 | 14.1 | 27.5 | 34 | 41 | 2.4 | 46.7 | 28.2 | 7 | 4.4 | 21.5 | 72 | RB1007 |
| MY3B25 | 20.1 | 31.8 | 41 | 51.5 | 3.6 | 67.3 | 45.8 | 12 | 1.4 | 28.5 | 90 | RB1412 |
| MY3B32 | 20.1 | 39.5 | 49 | 60 | 3.6 | 67.3 | 41.3 | 12 | 5.9 | 24 | 105 | RB1412 |
| MY3B40 | 30.1 | 48 | 60.5 | 72.5 | 5 | 73.2 | 42.2 | 15 | 0.9 | 39 | 128 | RB2015 |
| MY3B50 | 30.1 | 58.5 | 71 | 88 | 5 | 73.2 | 40.2 | 15 | 2.9 | 37 | 150 | RB2015 |
| MY3B63 | 36.1 | 74.5 | 91 | 108 | 6 | 99 | 62 | 25 | 0.9 | 43 | 178 | RB2725 |
Lateral support
Lateral support A
MY-S□A
Lateral support B
MY-S□B
| Model | Suitable Cylinder | A | B | C | D | E | F | G | H | J |
| MY-S16AB | MY3A16 · MY3B16 | 53 | 63.6 | 15 | 26 | 4.9 | 3 | 6.5 | 3.4 | M4×0.7 |
| MY-S20AB | MY3A20 · MY3B20 | 65 | 77.6 | 25 | 38 | 6.4 | 4 | 8 | 4.5B | M5×0.8 |
| MY-S25AB | MY3A25 · MY3B25 | 77 | 91 | 35 | 50 | 8 | 5 | 9.5 | 5.5B | M6×1 |
| MY-S32AB | MY3A32 · MY3B32 | 97 | 115 | 45 | 64 | 11.7 | 6 | 11 | 6.6 | M8×1.25 |
| MY3A40 · MY3B40 | 112 | 130 | ||||||||
| MY-S50AB | MY3A50 · MY3B50 | 138 | 160 | 55 | 80 | 14.8 | 8.5 | 14 | 9 | M10×1.5 |
| MY3A63 · MY3B63 | 160 | 182 |
Use of lateral supports
When using a long stroke, the cylinder barrel will bend downward due to the cylinder's own weight and heavy load. In this case, a lateral support should be added in the middle of the cylinder to provide support. As shown in the figure on the right, the support spacing L should not be greater than the value in the chart.
Notice
① If the cylinder mounting surface is not accurate enough, the lateral support may be uneven when installed. Horizontal adjustment should be made during installation. In addition, if there is vibration, impact, etc. when using a long-stroke cylinder, it is recommended to use a lateral support even if it is within the support spacing range allowed in the figure.
② The support is not a fixed part and can only be used as a support.
MY3A side support use
MY3B side support use
