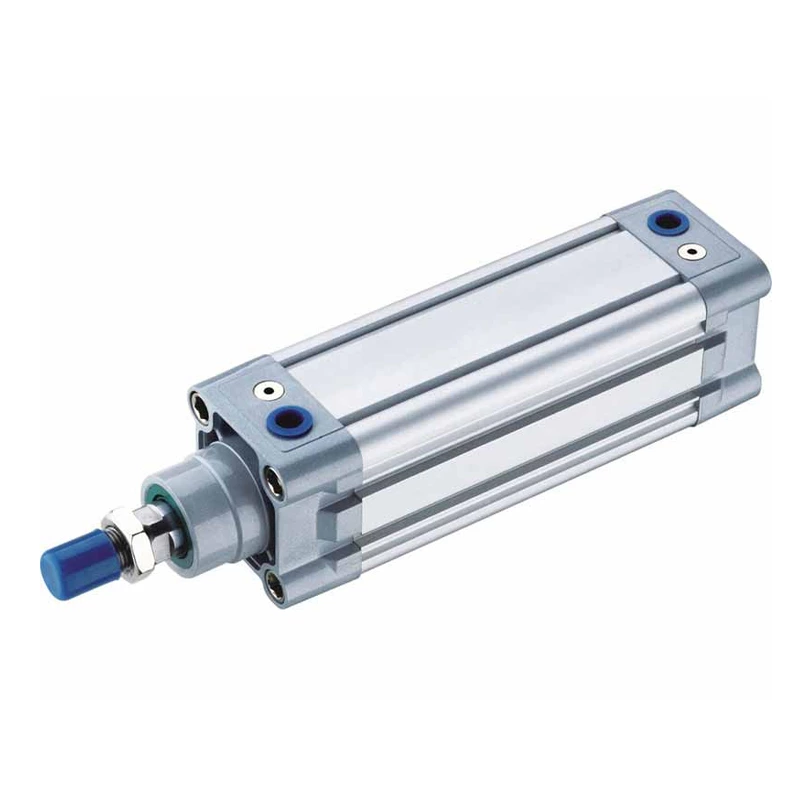

DNC Series Standard Cylinder(ISO6431)

FEATURES

● Working Medium:	Double Action
● Motion Pattern:	Fitered Air
● Compression Pressure:	1.5MPa
● Max.Operating Pressure:	1.0MPa
● Min.Operating Pressure:	0.1MPa
● Buffer:	Air Buffer(Standard)

Enquiry

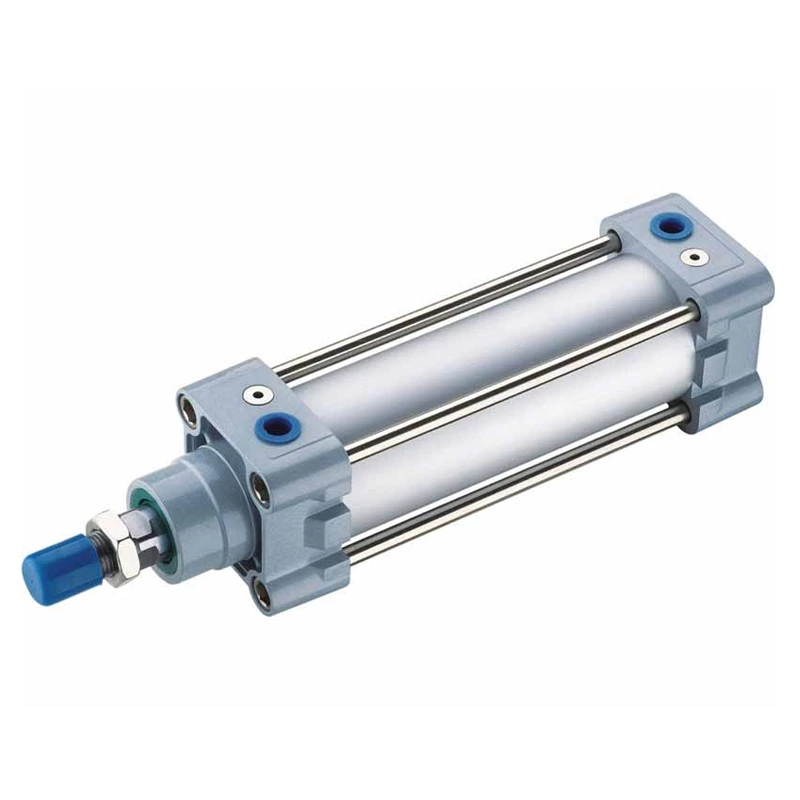

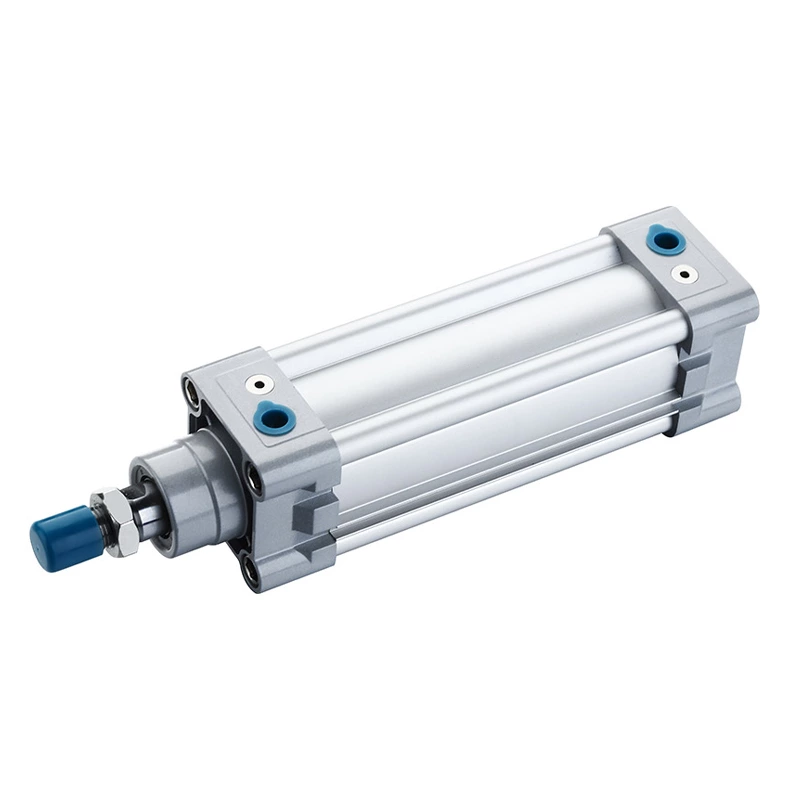

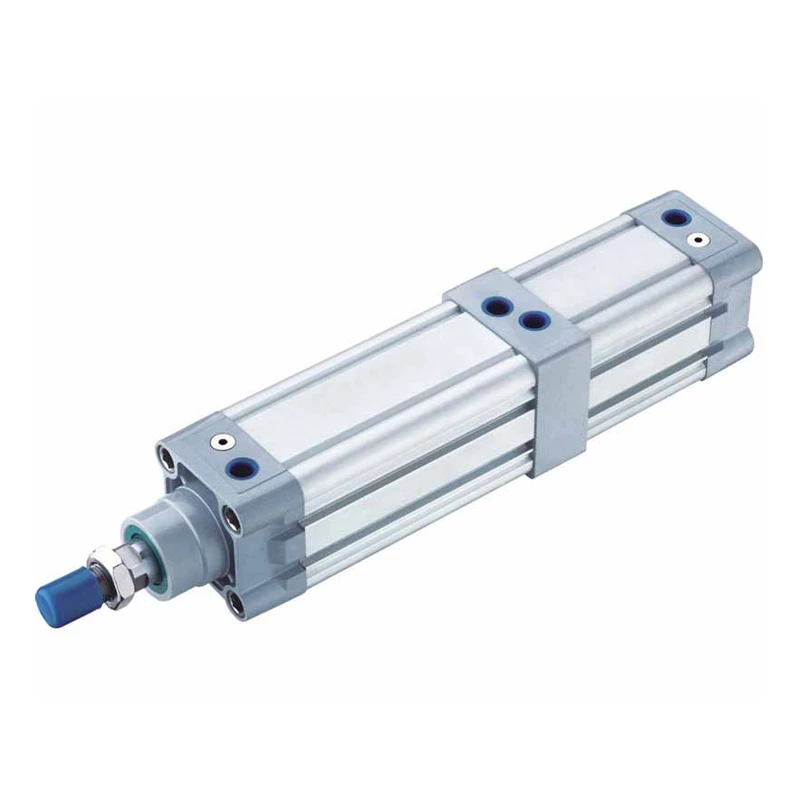

DNC Series Standard Cylinder(ISO6431)

DNC Series Standard Cylinder(ISO6431)

DNC Series Standard Cylinder(ISO6431)

DNC Series Standard Cylinder(ISO6431)

DNC Series Standard Cylinder(ISO6431)

DNC Series Standard Cylinder(ISO6431)

DNC Series Standard Cylinder(ISO6431)

DNC Series Standard Cylinder(ISO6431)

Features & Benefits

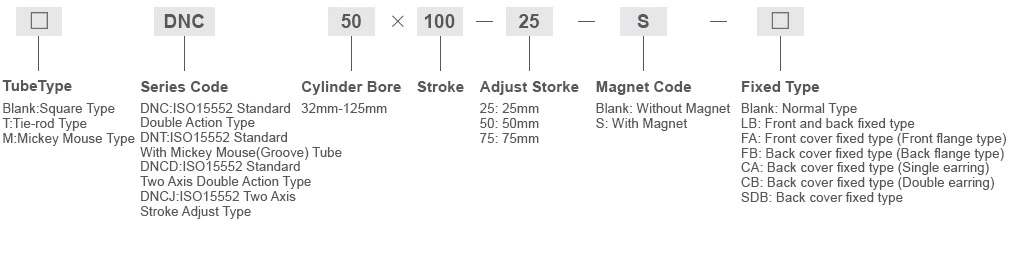

Ordering Code

DNC Series Standard Cylinder(ISO6431)

Specification

Bore(mm)	32	40	50	63	80	100	125
Working Medium	Double Action
Motion Pattern	Fitered Air
Compression Pressure	1.5MPa
Max.Operating Pressure	1.0MPa
Min.Operating Pressure	0.1MPa
Buffer	Air Buffer(Standard)
ConditionTemperature	-5~70℃
Operating Speed	50~800mm/s
Port Size	G1/8"	G1/4"		G3/8"		G1/2"

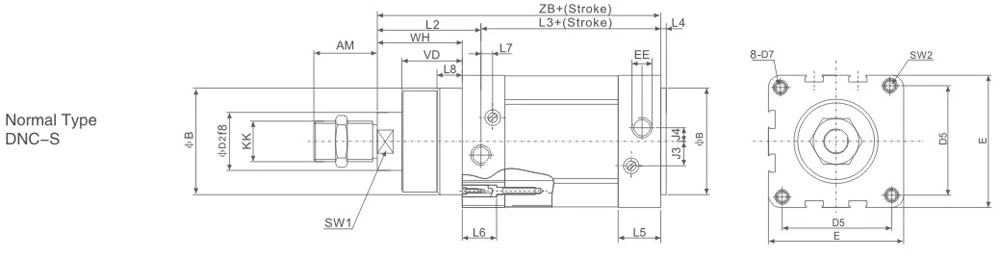

Overall Dimensions

Bore	AM	B	D2	D5	D7	E	EE(G)	J3	J4	KK	L2	L3	L4	L5	L6	L7	L8	SW1	SW2	VD	WH	ZB
32	22	30	12	32.5	M6	45	45299	6	5.2	M10×1.25	40	80	4	26	16	3.3	8	10	6	16	26	120
40	24	35	16	38	M6	54	45295	8	6	M12×1.25	46	89	4	29.6	16	3.6	10	13	6	20	30	135
50	32	40	20	46.5	M8	64	45295	10	8.5	M16×1.5	54	90	4	30	17	5.1	10	17	8	27	37	144
63	32	45	20	56.5	M8	75	45359	12.4	10	M16×1.5	57	101	4	35.5	17	6.6	10	17	8	27	37	158
80	40	45	25	72	M10	93	45359	12.5	8	M20×1.5	65	109	4	36	17	10.5	10	22	10	34.5	46	174
100	40	55	25	89	M10	110	45293	11.8	10	M20×1.5	71	118	4	39	17	8	12.5	22	10	38	51	189
125	54	60	32	110	M12	134	45293	13	8	M27×2	95	128	6	44.7	22	14	10	28	12	46	65	223

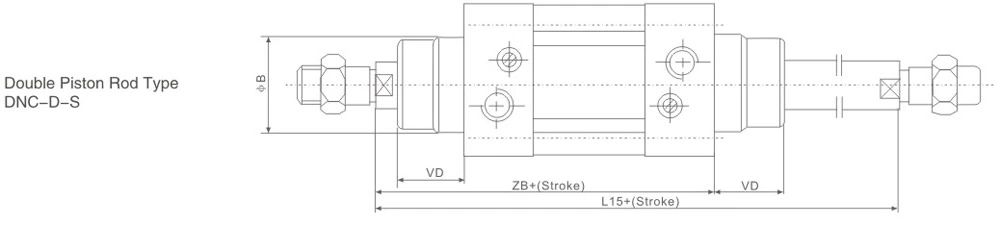

DNC Series Standard Cylinder(ISO6431)

Bore	32	40	50	63	80	100	125
B	30	35	40	45	45	55	60
L15	146	165	182	194	220	240	298
VD	16	20	27	27	34.7	38.2	46
ZB	120	135	144	158	174	189	223

Other info

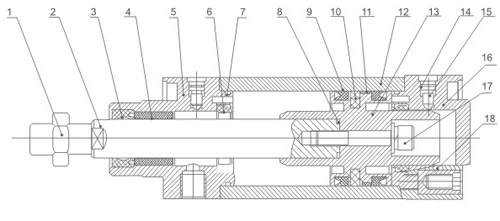

DNC Series Standard Cylinder(ISO6431)

NO.	Designation
1	Piston Rod Nut
3	Front Cover Seal Ring
5	Front Cover
7	O-Ring
9	Piston O-Ring
11	Wear Ring
13	Piston
15	Cushion Needle
17	Hex Socket Screw

NO.	Designation
2	Piston Rod
4	Bearing
6	Buffering O-Ring
8	Pistion rod O-Ring
10	Magnet(Optional)
12	Barrel
14	Cushion Seal
16	Back Over
18	Profile Bolt

Bore	Standard Stroke	Buffer Stroke	Stroke Range
32	25 40 50 80 100 125 160 200 250 320 400 500	20	10~2000
40		20
50		22
63		22
80		32
100		32
125		35
