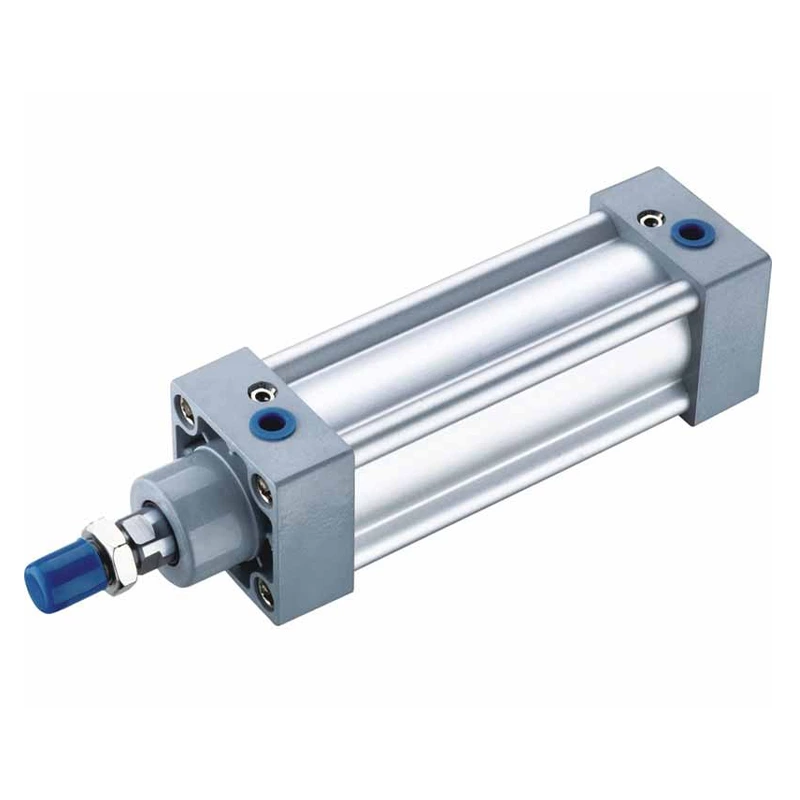

SI Series Standard Cylinder(ISO6431)

Name: SI Series Standard Cylinder(ISO6431)
SKU: 00091
Rating: 4.8 (3 reviews)

FEATURES

● Motion Pattern:	Double Action
● Working Medium:	Air
● Buffer Type:	Adjustable Buffer
● Working Pressure Range:	0.1~0.9MPa
● Ensured Pressure Resistance:	1.35MPa
● Operating Temperature Range:	-5~70℃

Enquiry

Features & Benefits

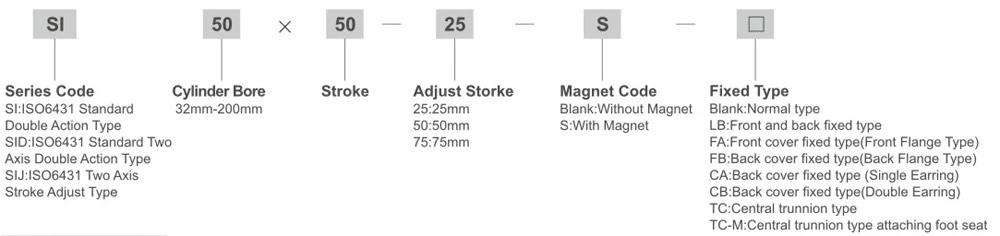

Ordering Code

SI Series Standard Cylinder(ISO6431)

Specification

Bore(mm)	32	40	50	63	80	100	125	160	200
Motion Pattern	Double Action
Working Medium	Air
Fixed Type	Normal type FA/Type FB/Type CA/Type CB/Type SDB/Type LB/Type TC/Type
Working Pressure Range	0.1~0.9MPa
Ensured Pressure Resistance	1.35MPa
Operating Temperature Range	-5~70℃
Operating Speed Range	50~800mm/s
Buffer Type	Adjustable Buffer
Buffer Stroke	24						32
Port Size	G1/8"	G1/4"		G3/8"		G1/2"		G3/4"

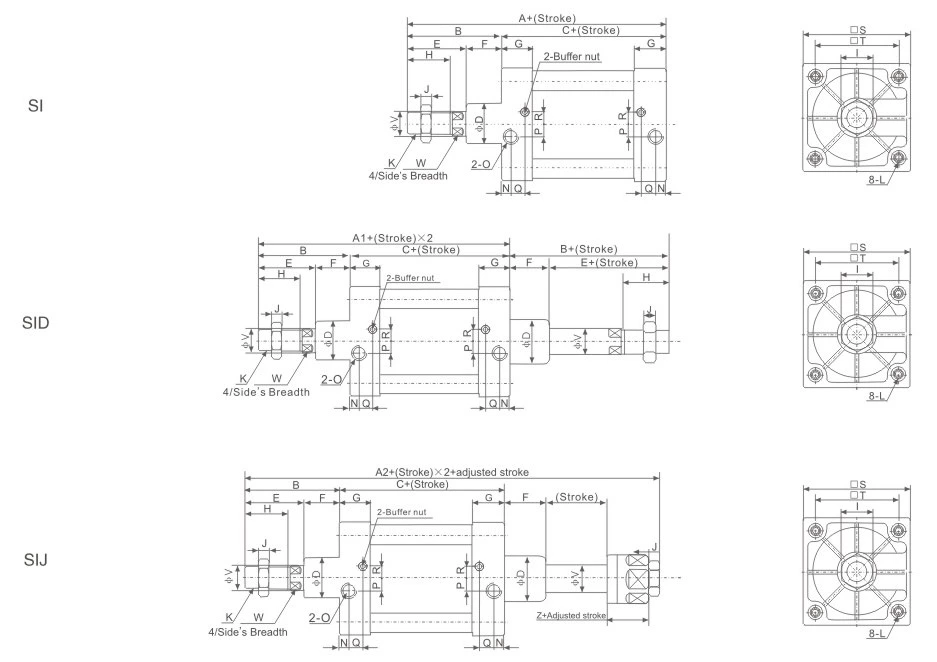

Overall Dimensions

SI Series Standard Cylinder(ISO6431)

Bore/Symbol	A	A1	A2	B	C	D	E	F	G	H	I	J	K	L
32	142	190	185	48	94	30	32	16	27.5	22	17	6	M10×1.25	M6
40	159	213	205	54	105	35	36	18	29	24	19	7	M12×1.25	M6
50	175	244	231	70	105	40	45	25	30	32	24	8	M16×1.5	M8
63	190	259	245	70	120	45	46	24	3	32	24	8	M16×1.5	M8
80	214	300	283	86	128	45	56	30	35	40	30	10	M20×1.5	M10
100	229	320	298	89	138	55	57	32	36	40	30	10	M20×1.5	M10
125	279	398	368	118	160	60	73	45	46	54	41	10	M27×2	M12
160	332	484	448	152	180	65	94	58	50	72	55	18	M36×2	M16
200	337	494	452	157	180	75	100	51	51	72	55	18	M36×2	M16

Bore/Symbol	N	O	P	Q	R	S	T	V	W	Z
32	13.5	G1/8"	4	7.5	7	47	32.5	12	10	21
40	16	G1/4"	6	8.5	9	53	38	16	13	21
50	15.5	G1/4"	8.5	7.5	7.5	65	46.5	20	17	23
63	16.5	G3/8"	7.5	8.5	9	75	56.5	20	17	23
80	16.5	G3/8"	11	8.5	13.5	95	72	25	22	29
100	18.5	G1/2"	13.5	9.5	14.5	115	89	25	22	29
125	23	G1/2"	14	12	14	140	110	32	28	35
160	25	G3/4"	15	12	20	180	140	40	36	40
200	25	G3/4	15	12	20	220	175	40	36	40

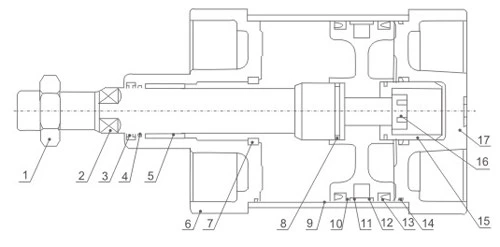

Other info

NO.	Designation
1	Piston Rod Nut
2	Piston Rod
3	Front Cover Seal ring
4	O-Ring
5	Bearing
6	Wear Ring
7	Buffering O-Ring
8	Pistion rod O-Ring
9	Barrel

NO.	Designation
10	Piston
11	Wearing
12	Magnet(Optional)
13	Piston O-Ring
14	Pipe wall O-Ring
15	Damping
16	Hex Socket Screw
17	Back Over

Cylinder inside Diameter	Extern Diameter of Piston Rod	Mation Patterm		Compression Area(cm2)	Air Pressure(kgf/cm2)
Cylinder inside Diameter	Extern Diameter of Piston Rod	Mation Patterm		Compression Area(cm2)	1	2	3	4	5	6	7	8	9
32	12	Double Action	Press Side	8.04	8.04	16.08	24.12	32.16	40.2	48.24	56.28	64.32	72.36
32	12	Double Action	Pull Side	6.9	6.9	13.8	20.07	27.6	34.5	41.4	48.3	55.2	62.1
40	16	Double Action	Press Side	12.56	12.56	25.12	37.68	50.24	62.8	75.36	87.92	100.24	113.04
40	16	Double Action	Pull Side	10.55	10.55	21.1	31.65	42.2	52.75	63.3	73.85	84.4	94.95
50	20	Double Action	Press Side	19.63	19.63	39.26	58.89	78.52	98.15	117.78	137.41	157.04	176.67
50	20	Double Action	Pull Side	16.49	16.49	32.98	49.47	65.96	82.45	98.94	115.43	139.92	148.41
63	20	Double Action	Press Side	31.17	31.17	62.34	93.51	124.68	155.85	187.02	218.19	249.36	280.53
63	20	Double Action	Pull Side	28.03	28.03	56.06	84.09	112.12	140.15	168.18	196.21	224.24	252.27
80	25	Double Action	Press Side	50.26	50.26	100.52	150.78	201.04	251.3	301.56	351.82	402.08	452.34
80	25	Double Action	Pull Side	45.36	45.36	90.72	136.08	181.44	226.8	272.16	317.52	326.88	408.24
100	25	Double Action	Press Side	78.53	78.53	157.06	235.59	314.12	392.65	471.18	428.82	628.24	706.77
100	25	Double Action	Pull Side	71.47	71.47	142.94	214.41	285.88	357.35	428.82	500.29	517.76	643.43
125	32	Double Action	Press Side	122.72	122.72	245.44	368.16	490.88	613.6	736.32	859.04	981.76	1104.48
125	32	Double Action	Pull Side	114.68	114.68	229.36	344.04	458.72	573.4	688.08	802.76	917.44	1032.12
160	40	Double Action	Press Side	201.06	201.06	402.12	603.18	804.24	1005.3	1206.36	1407.42	1608.48	1809.54
160	40	Double Action	Pull Side	188.49	188.49	376.98	565.47	753.96	942.45	1130.94	1319.43	1507.92	1696.41
200	40	Double Action	Press Side	314.16	314.16	628.32	942.48	1256.64	1570.8	1884.96	2199.12	2513.28	2827.44
200	40	Double Action	Pull Side	301.57	301.57	603.14	904.71	1206.28	1507.8	1809.42	2100.99	2412.56	2714.13

Bore(mm)	Standard Stroke	Max.Stroke	Permissible Stroke
32	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500	1000	2000
40	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800	1200	2000
50	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1200	2000
63	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
80	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
100	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
125	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
160	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
200	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
