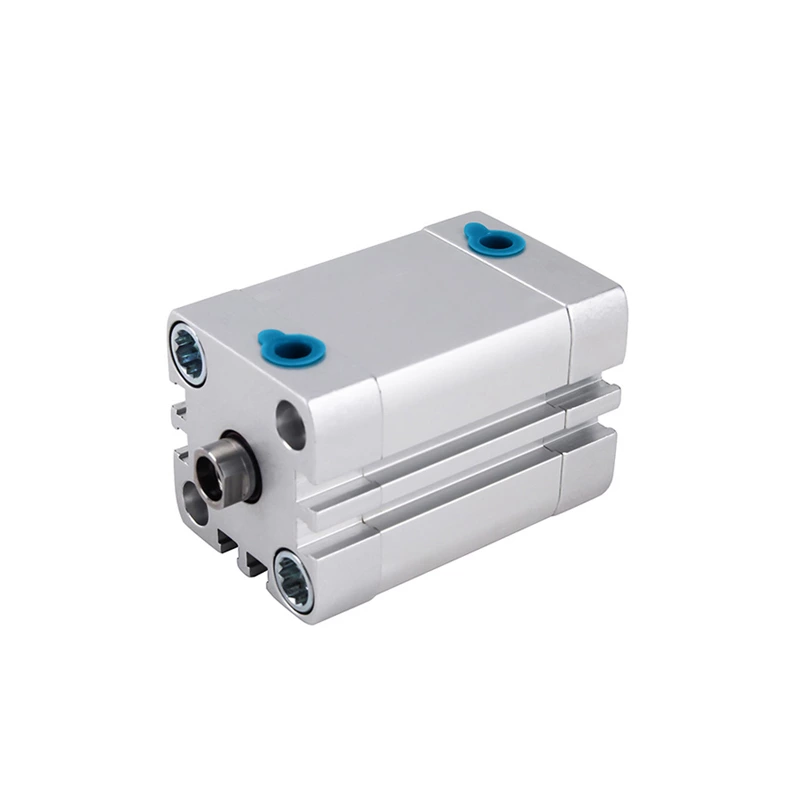

ADN Series Compact Cylinder（ISO21287）
FEATURES
| ● Operation: | Double Acting |
| ● Workinh Medium: | Air |
| ● Operating Pressure Range: | 0.1~1.0MPa |
| ●Proof Pressure: | 1.5MPa |

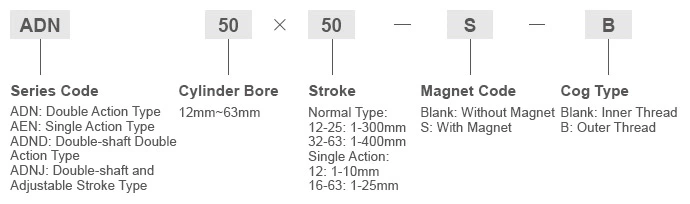

Ordering Code
Specification
| Bore(mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 |
| Operation | Double Acting | |||||||
| Workinh Medium | Air | |||||||
| Operating Pressure Range | 0.1~1.0MPa | |||||||
| Proof Pressure | 1.5MPa | |||||||
| Operating Temperature Range | -20~70C | |||||||
| Operating Speed Range | 30~500mm/s | |||||||
| Port Size | M5×0.8 | G1/8" | ||||||

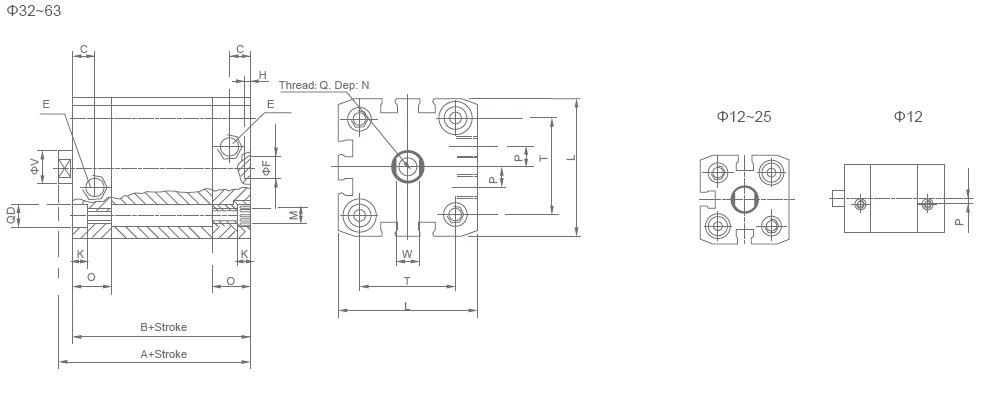

Overall Dimensions
| Bore(MM) | A | B | V | O | C | E | M | D | K | H | F | N | Q | L | T | W | P |
| 12 | 39.2 | 35 | 6 | 10.5 | 6 | M5 | M4 | 6 | 3.5 | 2.1 | 9 | 10 | M4 | 27.5 | 16 | 5 | 2 |
| 16 | 39.7 | 35 | 8 | 11 | 6 | M5 | M4 | 6 | 3.5 | 2.1 | 9 | 10 | M4 | 29 | 18 | 7 | 2.6 |
| 20 | 42.5 | 37 | 10 | 12 | 6 | M5 | M5 | 9 | 5 | 2.1 | 9 | 10 | M6 | 35.5 | 22 | 9 | 2.6 |
| 25 | 44.4 | 39 | 10 | 12 | 6 | M5 | M5 | 9 | 5 | 2.1 | 9 | 12 | M6 | 39.5 | 26 | 9 | 2.6 |
| 32 | 50 | 44 | 12 | 15 | 8.2 | G1/8 | M6 | 9 | 5 | 2.1 | 9 | 15 | M8 | 47 | 32.5 | 10 | 6 |
| 40 | 51.1 | 45 | 12 | 15 | 8.2 | G1/8 | M6 | 9 | 5 | 2.1 | 9 | 15 | M8 | 54.5 | 38 | 10 | 8 |
| 50 | 52.7 | 45 | 16 | 15 | 8.2 | G1/8 | M8 | 12 | 5 | 2.6 | 12 | 20 | M10 | 65.5 | 46.5 | 13 | 8 |
| 63 | 56.5 | 49 | 16 | 15 | 8.2 | G1/8 | M8 | 12 | 5 | 2.6 | 12 | 20 | M10 | 75.5 | 56.5 | 13 | 11.5 |
