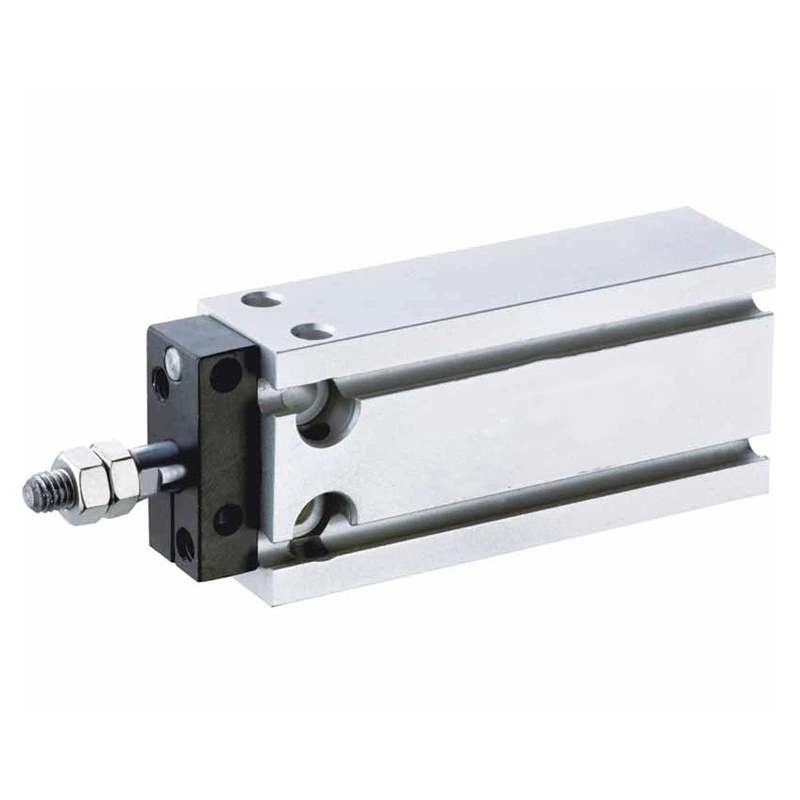

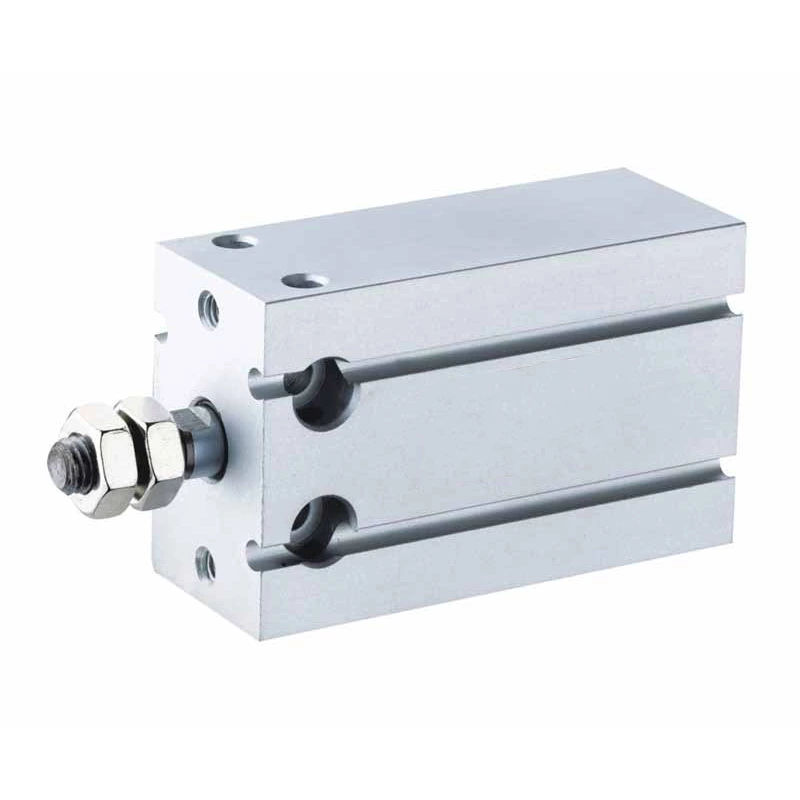

CU Series Free Installation Cylinder
FEATURES
● Working Medium |
Air |
● Ensured Pressure Resistance |
1.0Mpa(10.5kgf/cm2) |
● Max. Working-pressure |
0.7Mpa(7.1kgf/cm2) |
● Lubrication |
Non-lube |
● Piston Speed |
50-500 mm/s |
●Cushion |
Rubber bumper |

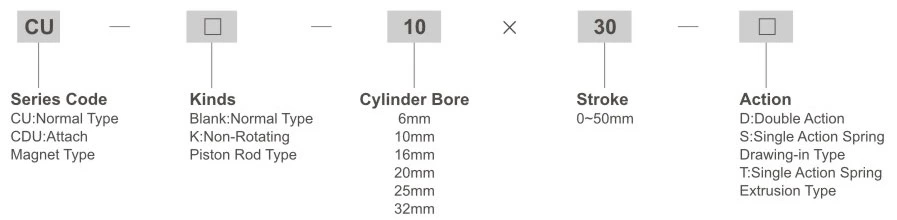

Ordering Code
Specification
Bore(mm) | 6 mm | 10 mm | 16 mm | 20 mm | 25 mm | 32 mm | |
Working Medium | Air | ||||||
Motion Pattern | Double action/Single Action Extrusion type/Single Action Drawing-in Type | ||||||
Ensured Pressure Resistance | 1.0Mpa(10.5kgf/cm2) | ||||||
Min. Opetating-pressure | Single | 0.2MPa | 0.15MPa | 0.13MPa | |||
Double | 0.12MPa | 0.06MPa | 0.05MPa | ||||
Max. Working-pressure | 0.7Mpa(7.1kgf/cm2) | ||||||
Ambient and Medium Temperature | Without auto switch:110-70℃ (No freezing) | ||||||
With auto switch:110-60℃ (No freezing) | |||||||
Lubrication | Non-lube | ||||||
Piston Speed | 50-500 mm/s | ||||||
Cushion | Rubber bumper | ||||||
Rod end thread | Male thread | ||||||
Thread tolerance | Class 2 | ||||||
Cushion | Both ends buffer | ||||||
Margin of Stroke Error(mm) | 1 | ||||||
0mm | |||||||
Precision of Piston rod with Non-rotating | ±0.8° | ±0.5° | |||||
Port Size | M5×0.8 | G1/8" |

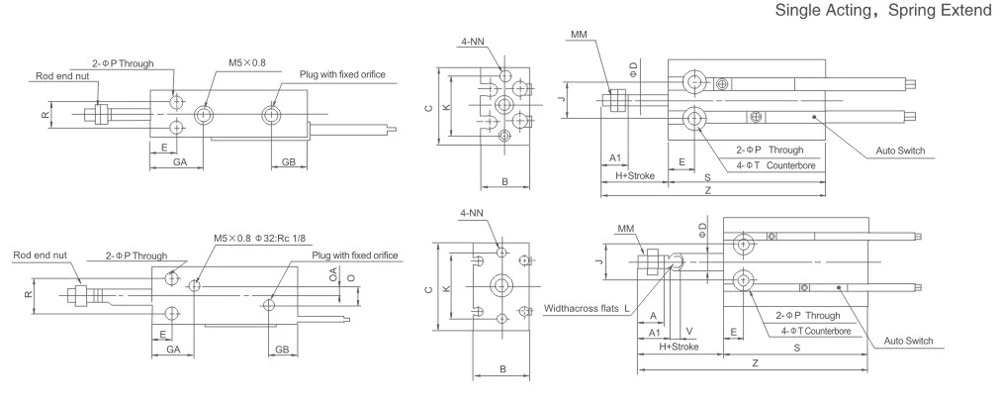

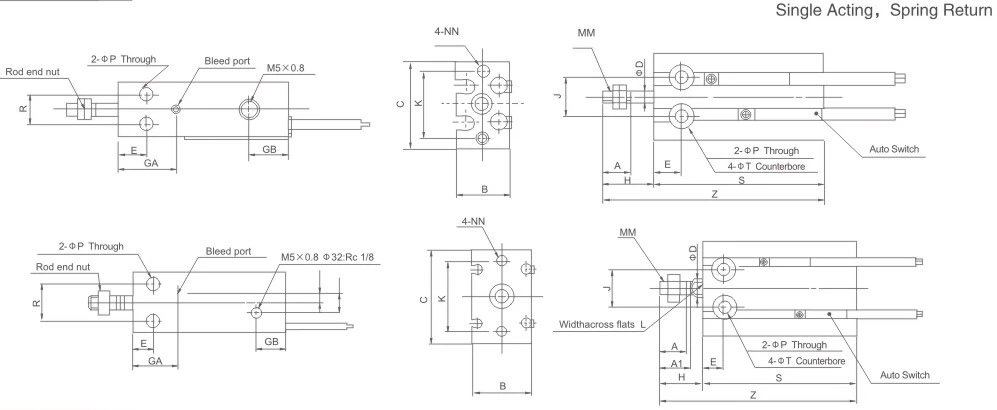

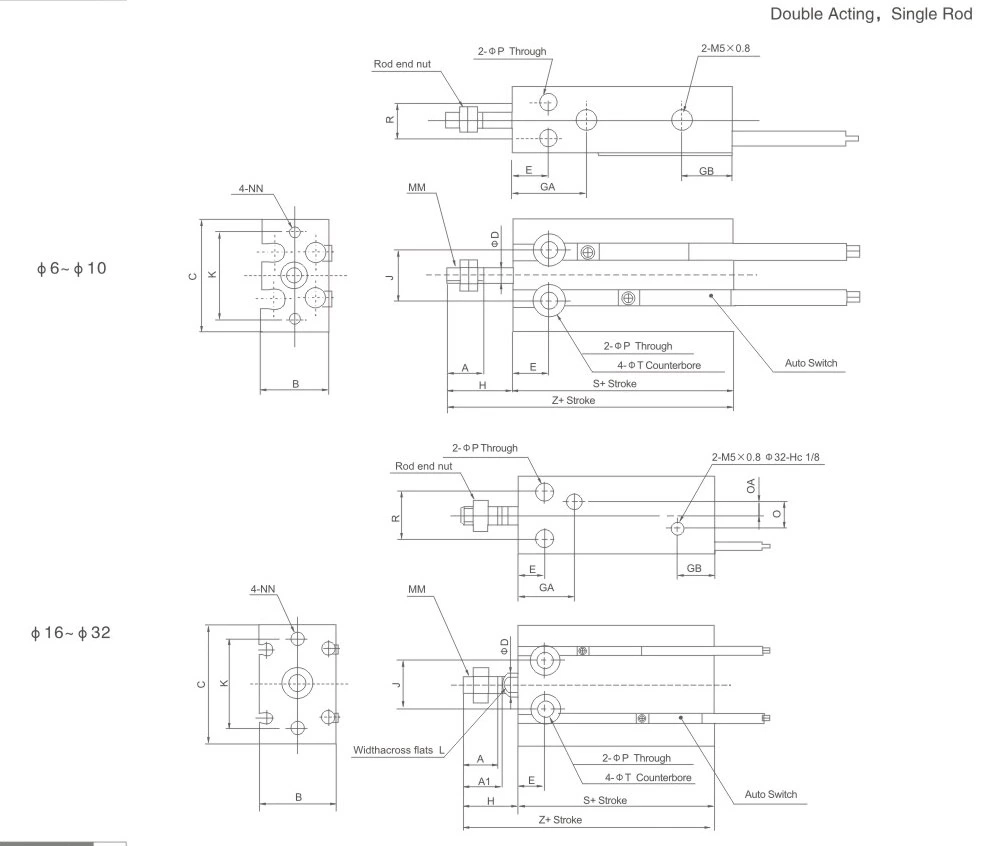

Overall Dimensions
Bore size (mm) | A | A1 | B | C | D | E | GA | GB | H | K | J | L | MM |
6 | 7 | - | 13 | 22 | 3 | 7 | 15 | 10 | 13 | 17 | 10 | - | M3×0.5 |
10 | 10 | - | 15 | 24 | 4 | 7 | 16.5 | 10 | 16 | 18 | 11 | - | M4×0.7 |
16 | 11 | 12.5 | 20 | 32 | 6 | 7 | 16.5Note) | 11.5 | 16 | 25 | 14 | 5 | M5×0.8 |
20 | 12 | 14 | 26 | 40 | 8 | 9 | 19 | 12.5 | 19 | 30 | 16 | 6 | M6×1.0 |
25 | 15.5 | 18 | 32 | 50 | 10 | 10 | 21.5 | 13 | 23 | 38 | 20 | 8 | M8×1.25 |
32 | 19.5 | 22 | 40 | 62 | 12 | 11 | 23 | 12.5 | 27 | 48 | 24 | 10 | M10×1.25 |
Bore size (mm) |
NN | P | Q | QA | R | T | Without Auto Switch | With Auto Switch | ||
S | Z | S | Z | |||||||
6 | M3×0.5(depth) 5 | 3.2 | - | - | 7 | 6 (depth) 4.8 | 33 | 46 | 33 | 46 |
10 | M3×0.5(depth) 5 | 3.2 | - | - | 9 | 6 (depth) 5 | 36 | 52 | 36 | 52 |
16 | M4×0.7 深(depth) 6 | 4.5 | 4 | 2 | 12 | 7.6 (depth) 6.5 | 30 | 46 | 40 | 56 |
20 | M5×0.8(depth) 8 | 5.5 | 9 | 4.5 | 16 | 9.3 (depth) 8 | 36 | 55 | 46 | 65 |
25 | M5×0.8(depth) 8 | 5.5 | 9 | 4.5 | 20 | 9.3 (depth) 9 | 40 | 63 | 50 | 73 |
32 | M6×1.0(depth) 9 | 6.6 | 13.5 | 4.5 | 24 | 11 (depth) 11.5 | 42 | 69 | 52 | 79 |
Bore size(mm) | A | A1 | B | C | D | E | GA | GB | H | K | J | L | MM | NN | P |
6 | 7 | - | 13 | 22 | 3 | 7 | 15 | 10 | 13 | 17 | 10 | - | M3×0.5 | M3×0.5(depth) 5 | 3.2 |
10 | 10 | - | 15 | 24 | 4 | 7 | 16.5 | 10 | 16 | 18 | 11 | - | M4×0.7 | M3×0.5(depth) 5 | 3.2 |
16 | 11 | 12.5 | 20 | 32 | 6 | 7 | 16.5 | 11.5 | 16 | 25 | 14 | 5 | M5×0.8 | M4×0.7(depth) 6 | 4.5 |
20 | 12 | 14 | 26 | 40 | 8 | 9 | 19 | 12.5 | 19 | 30 | 16 | 6 | M6×1.0 | M5×0.8(depth) 8 | 5.5 |
25 | 15.5 | 18 | 32 | 50 | 10 | 10 | 21.5 | 13 | 23 | 38 | 20 | 8 | M8×1.25 | M5×0.8(depth) 8 | 5.5 |
32 | 19.5 | 22 | 40 | 62 | 12 | 11 | 23 | 12.5 | 27 | 48 | 24 | 10 | M10×1.25 | M6×1.0(depth) 9 | 6.6 |
Bore size (mm) |
Q | QA | R | T | V(Note) | Without Auto Switch | With Auto Switch | ||||||||||
S | Z | S | Z | ||||||||||||||
5st | 10st | 15st | 5st | 10st | 15st | 5st | 10st | 15st | 5st | 10st | 15st | ||||||
6 | - | - | 7 | 6(depth) 4.8 | - | 38 | 43 | 48 | 56 | 66 | 76 | 38 | 43 | 48 | 56 | 66 | 76 |
10 | - | - | 9 | 6(depth) 5 | - | 41 | 46 | 56 | 62 | 72 | 87 | 41 | 46 | 56 | 62 | 72 | 87 |
16 | 4 | 2 | 12 | 7.6(depth) 6.5 | 3.5 | 45 | 50 | 60 | 66 | 76 | 91 | 45 | 50 | 60 | 66 | 76 | 91 |
20 | 9 | 4.5 | 16 | 9.3(depth) 8 | 5 | 41 | 46 | 56 | 65 | 75 | 90 | 51 | 56 | 66 | 75 | 85 | 100 |
25 | 9 | 4.5 | 20 | 9.3(depth) 9 | 5 | 45 | 50 | 60 | 73 | 83 | 98 | 55 | 60 | 70 | 83 | 93 | 108 |
32 | 13.5 | 4.5 | 24 | 11(depth) 11.5 | 5 | 47 | 52 | 62 | 79 | 89 | 104 | 57 | 62 | 72 | 89 | 99 | 114 |
