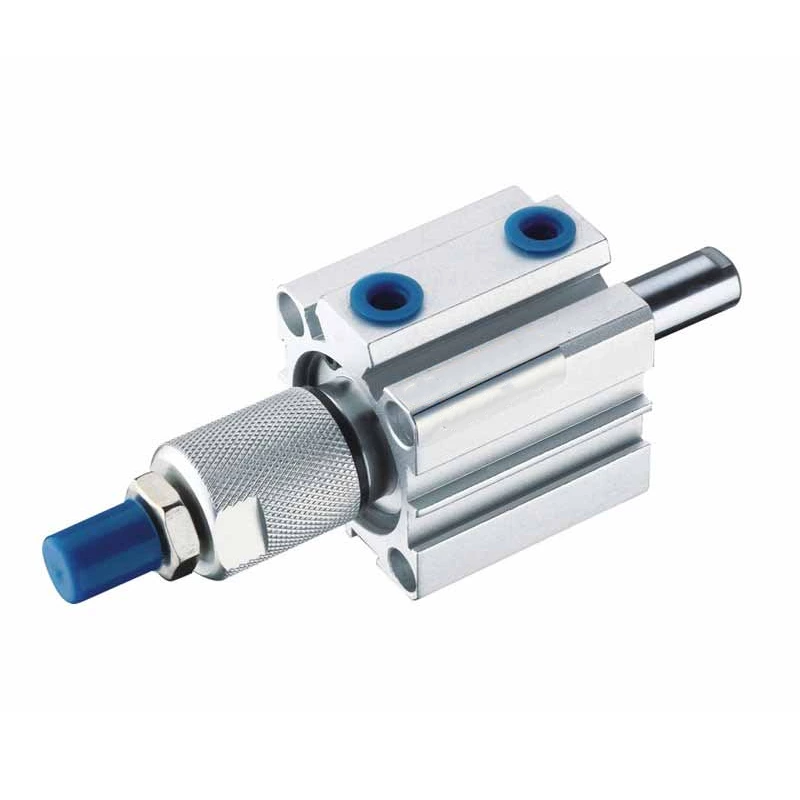

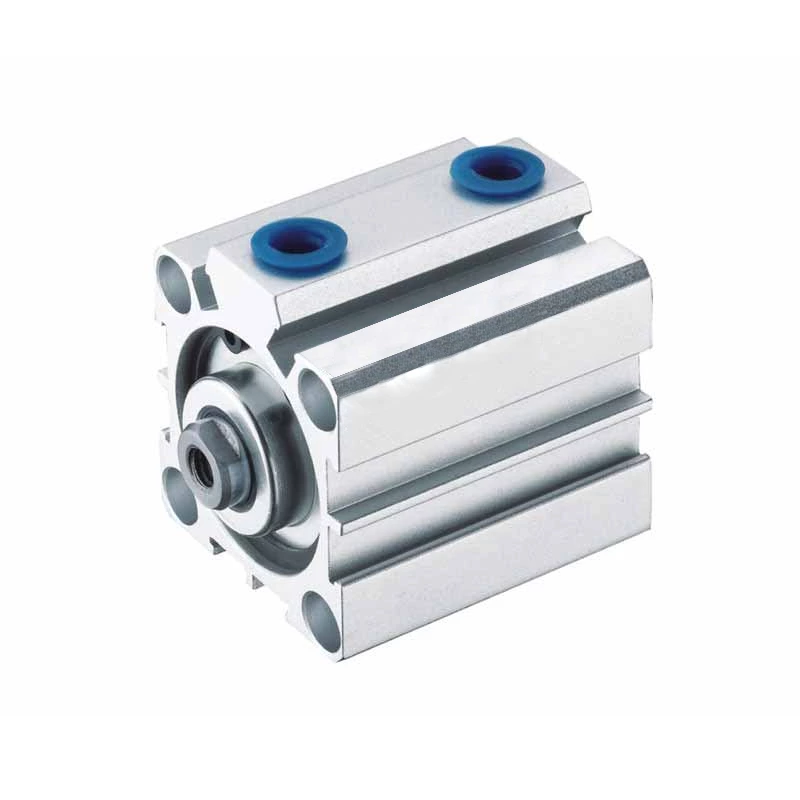

SDA Series Compact Cylinder

FEATURES

● Motion Pattern

Double Acting

● Working Medium

Air

● Operating Pressure Range

0.1~0.9MPa

● Ensured Pressure Resistance

1.35MPa

● Operating Temperature Range

-5~70℃

● Buffer Type

Fixed Type Buffer
Enquiry
SDA Series Compact Cylinder
SDA Series Compact Cylinder
SDA Series Compact Cylinder
SDA Series Compact Cylinder

Ordering Code

SDA Series Compact Cylinder

Specification

Bore(mm) 12 16 20 25 32 40 50 63 80 100
Motion Pattern Double Acting
Single Action Extrusion type Single Action Drawing-in Type -
Working Medium Air
Operating Pressure Range Double Action 0.1~0.9MPa
Single Action 0.2~0.9MPa -
Ensured Pressure Resistance 1.35MPa
Operating Temperature Range -5~70℃
Operating Speed Range Double Action 30~500mm/s 30~350mm/s 30~250mm/s
Single Action 100~500mm/s -
Buffer Type Fixed Type Buffer
Port Size M5×0.8 G1/8" G1/4" G3/8"

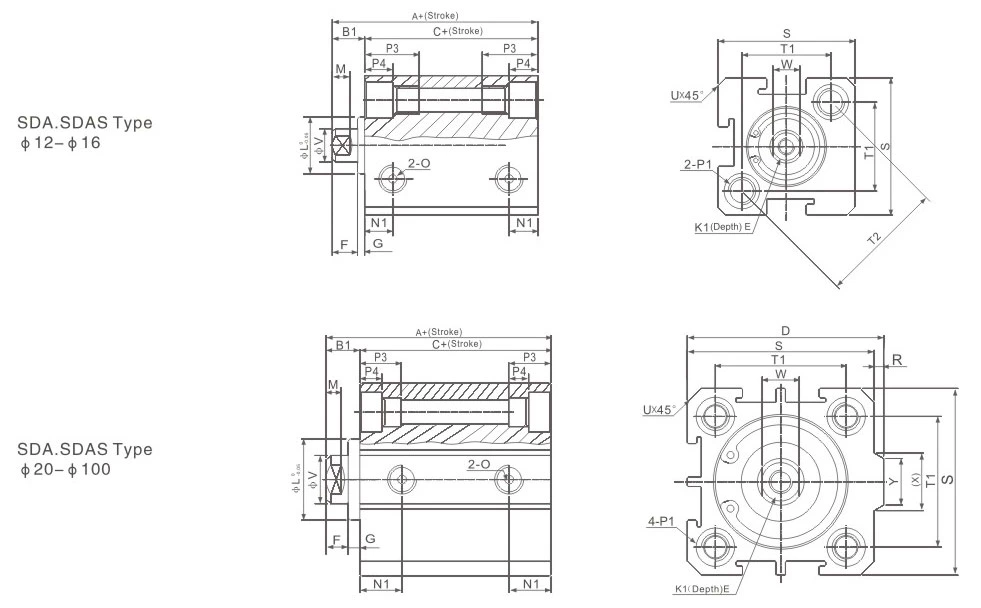

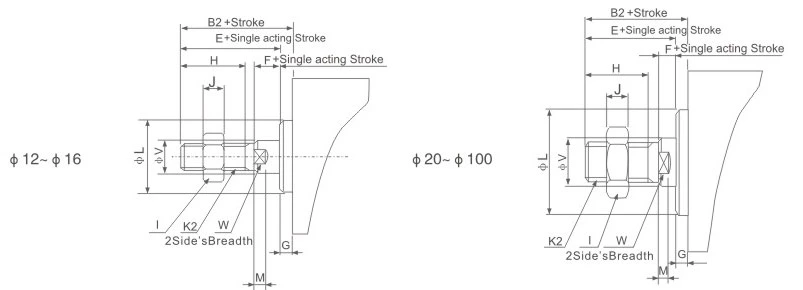

Overall Dimensions

SDA Series Compact Cylinder

Bore/Symbol B2 E F G H I J K2 L M V W
12 17 16 4 1 10 8 4 M5×0.8 10.2 2.8 6 5
16 17.5 16 4 1.5 10 8 4 M5×0.8 11 2.8 6 5
20 20.5 19 4 1.5 13 10 5 M6×1.0 16 2.8 8 6
25 23 21 4 2 15 12 6 M10×1.25 17 2.8 10 8
32 25 22 4 3 15 17 6 M10×1.25 22 2.8 12 10
40 35 32 4 3 25 19 8 M14×1.5 28 2.8 16 14
50 37 33 5 4 25 27 11 M18×1.5 38 2.8 20 17
63 37 33 5 4 25 27 11 M18×1.5 40 2.8 20 17
80 44 39 6 5 30 32 13 M22×1.5 45 4 25 22
100 50 45 7 5 35 36 13 M26×1.5 55 4 32 27

SDA Series Compact Cylinder

Type Standard type Attach Magnet D E F G K1 L M N1
Bore Size/Symbol A B1 C A B1 C Stroke≤10 Stroke＞10
12 22 5 17 32 5 27 - 6 4 1 M3×0.5 10.2 2.8 6.3
16 24 5.5 18.5 34 5.5 28.5 - 6 4 1.5 M3×0.5 11 2.8 7.3
20 25 5.5 19.5 35 5.5 29.5 36 8 4 1.5 M4×0.7 15 2.8 7.5
25 27 6 21 37 6 31 42 10 4 2 M5×0.8 17 2.8 8
32 31.5 7 24.5 41.5 7 34.5 50 12 4 3 M6×1 22 2.8 9
40 33 7 28 43 7 36 58.5 12 4 3 M8×1.25 28 2.8 10
50 37 9 28 47 9 38 71.5 15 5 4 M10×1.5 38 2.8 10.5
63 41 9 32 51 9 42 84.5 15 5 4 M10×1.5 40 2.8 11.8
80 52 11 41 62 11 51 104 15 20 6 5 M14×1.5 45 4 14.5
100 63 12 51 73 12 61 124 18 20 7 5 M18×1.5 55 4 20.5

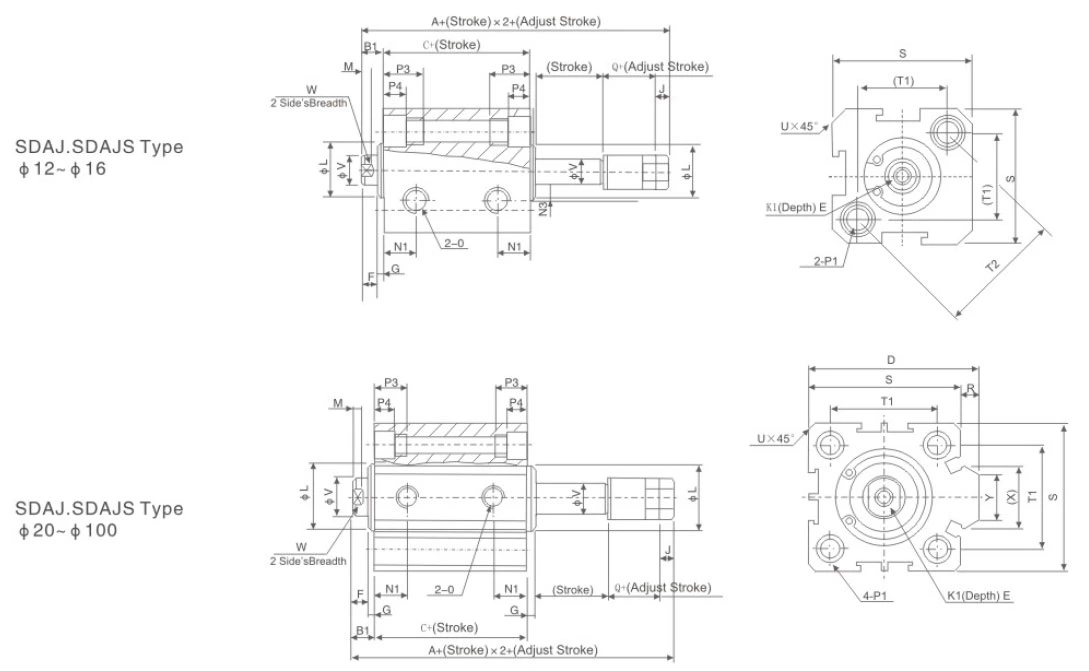

Bore Size/Symbol N3 O P1 P3 P4 R S T1 T2 U V W X Y
12 6 M5×0.8 Double Sides:Φ6.5/Thread:M5×0.8/Through ports:Φ4.2 12 4.5 - 25 16.2 23 1.6 6 5 - -
16 6.5 M5×0.8 (Double Sides):Φ6.5/(Thread):M5×0.8/(Through ports):Φ4.2 12 4.5 - 29 19.8 28 1.6 6 5 - -
20 - M5×0.8 (Double Sides):Φ6.5/(Thread):M5×0.8/(Through ports):Φ4.2 14 4.5 2 34 24 - 2.1 8 6 11.3 10
25 - M5×0.8 (Double Sides):Φ8.2/(Thread):M6×1.0/(Through ports):Φ4.6 15 5.5 2 40 28 - 3.1 10 8 12 10
32 - G1/8" (Double Sides):Φ8.2/(Thread):M6×1.0/(Through ports):Φ4.6 16 5.5 6 44 34 - 2.15 12 10 18.3 15
40 - G1/8" (Double Sides):Φ10/(Thread):M8×1.25/(Through ports):Φ6.5 20 7.5 6.5 52 40 - 2.25 16 14 21.3 16
50 - G1/4" (Double Sides):Φ11/(Thread):M8×1.25/(Through ports):Φ6.5 25 8.5 9.5 62 48 - 4.15 20 17 30 20
63 - G1/4" (Double Sides):Φ11/(Thread):M8×1.25/(Through ports):Φ6.5 25 8.5 9.5 75 60 - 3.15 20 17 28.7 20
80 - G3/8" (Double Sides):Φ14/(Thread):M12×1.75/(Through ports):Φ9.2 25 10.5 10 94 74 - 3.65 25 22 36 26
100 - G3/8" (Double Sides):Φ17.5/(Thread):M14×2/(Through ports):Φ11.3 30 13 10 114 90 - 3.65 32 27 35 26

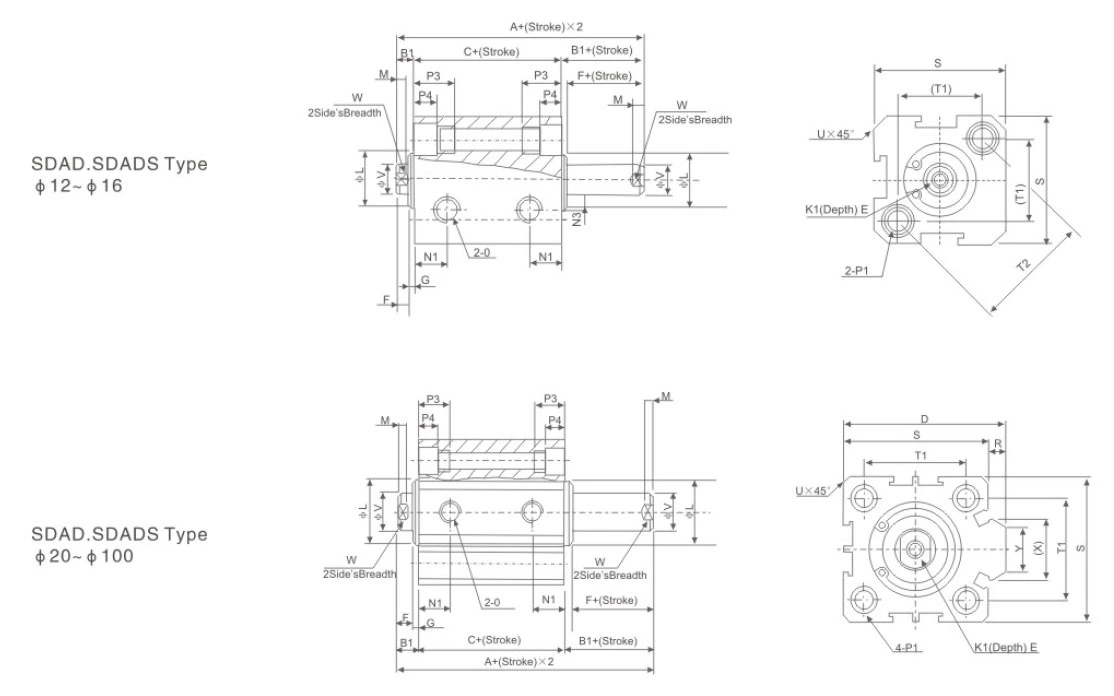

SDA Series Compact Cylinder

Type Standard Type Attach magnet D E F G K1 L M N1
Strbke A B1 C A B1 C
≤10 ＞10 ≤10 ＞10 ≤10 ＞10 ≤10 ＞10
12 32 42 5 27 37 42 52 5 37 47 - 6 4 1 M3×0.5 10.2 2.8 6.3
16 34 44 5.5 28.5 38.5 44 54 5.5 38.5 48.5 - 6 4 1.5 M3×0.5 11 2.8 7.3
20 35 45 5.5 29.5 39.5 45 55 5.5 39.5 49.5 36 8 4 1.5 M4×0.7 16 2.8 7.5
25 37 47 6 34 41 47 57 6 41 51 42 10 4 2 M5×0.8 17 2.8 8
32 41.5 51.5 7 34.5 44.5 51.5 61.5 7 44.5 54.5 50 12 4 3 M6×1 22 2.8 9
40 43 53 7 36 46 53 63 7 46 56 58.5 12 4 3 M8×1.25 28 2.8 10
Bore Size/Symbol N3 O P1 P3 P4 R S T1 T2 U V W X Y
12 6 M5×0.8 Double Sides:Φ6.5/Thread:M5×0.8/Through ports:Φ4.2 12 4.5 - 25 16.2 23 1.6 6 5 - -
16 6.5 M5×0.8 Double Sides:Φ6.5/Thread:M5×0.8/Through ports:Φ4.2 12 4.5 - 29 19.8 28 1.6 6 5 - -
20 - M5×0.8 Double Sides:Φ6.5/Thread:M5×0.8/Through ports:Φ4.2 14 4.5 2 34 24 - 2.1 8 6 11.3 10
25 - M5×0.8 Double Sides:Φ8.2/Thread:M6×1.0/Through ports:Φ4.6 15 5.5 2 40 28 - 3.1 10 8 12 10
32 - G1/8" Double Sides:Φ8.2/Thread:M6×1.0/Through ports:Φ4.6 16 5.5 6 44 34 - 2.15 12 10 18.3 15
40 - G1/8" Double Sides:Φ10/Thread:M6×1.25/Through ports:Φ6.5 20 7.5 6.5 52 40 - 2.25 16 14 21.3 16

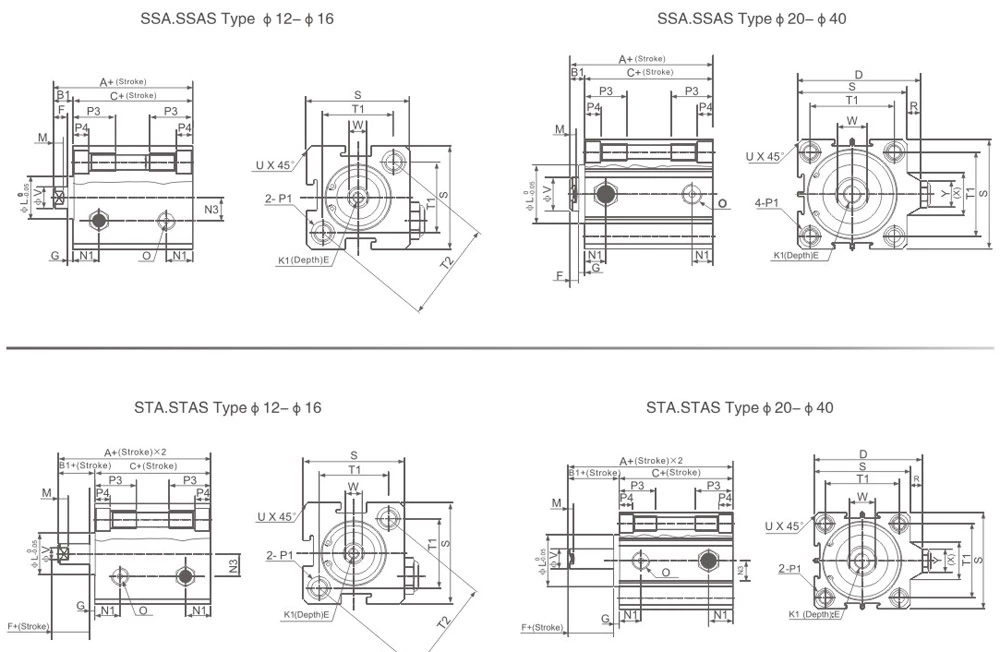

SDA Series Compact Cylinder

Type Standard type Attach Magnet D E F G K1 L M N1
Bore Size/Symbol A B1 C A B1 C Stroke≤10 Stroke> 10
12 27 5 17 37 5 27 - 6 4 1 M3×0.5 10.2 2.8 6.3
16 29.5 5.5 18.5 39.5 5.5 28.5 - 6 4 1.5 M3×0.5 11 2.8 7.3
20 30.5 5.5 19.5 40.5 5.5 29.5 36 8(Stroke=5/tis6.5) 4 1.5 M4×0.7 16 2.8 7.5
25 33 6 21 43 6 31 42 10(Stroke=5/itis7) 4 2 M5×0.8 17 2.8 8
32 38.5 7 24.5 48.5 7 34.5 50 8 12 4 3 M6×1 22 2.8 9
40 40 7 28 50 7 36 58.5 9 12 4 3 M8×1.25 28 2.8 10
50 46 9 28 56 9 38 71.5 11 15 5 4 M10×1.5 38 2.8 10.5
63 50 9 32 60 9 42 84.5 11 15 5 4 M10×1.5 40 2.8 11.8
80 63 11 41 73 11 51 104 14 20 6 5 M14×1.5 45 4 14.5
100 75 12 51 85 12 61 124 18 20 7 5 M18×1.5 55 4 20.5
Bore Size/Symbol N3 O P1 P3 P4 R S T1 T2 U V W X Y
12 6 M5×0.8 Double Sides:Φ6.5/Thread:M5×0.8/Through ports:Φ4.2 12 4.5 - 25 16.2 23 1.6 6 5 - -
16 6.5 M5×0.8 Double Sides:Φ6.5/Thread:M5×0.8/Through ports:Φ4.2 12 4.5 - 29 19.8 28 1.6 6 5 - -
20 - M5×0.8 Double Sides:Φ6.5/Thread:M5×0.8/Through ports:Φ4.2 14 4.5 2 34 24 - 2.1 8 6 11.3 10
25 - M5×0.8 Double Sides:Φ8.2/Thread:M6×1.0/Through ports:Φ4.6 15 5.5 2 40 28 - 3.1 10 8 12 10
32 - G1/8" Double Sides:Φ8.2/Thread:M6×1.0/Through ports:Φ4.6 16 5.5 6 44 34 - 2.15 12 10 18.3 15
40 - G1/8" Double Sides:Φ10/Thread:M6×1.25/Through ports:Φ6.5 20 7.5 6.5 52 40 - 2.25 16 14 21.3 16
50 - G1/4" Double Sides:Φ11/Thread:M8×1.25/Through ports:Φ6.5 25 8.5 9.5 62 48 - 4.15 20 17 30 20
63 - G1/4" Double Sides:Φ11/Thread:M8×1.25/Through ports:Φ6.5 25 8.5 9.5 75 60 - 3.15 20 17 28.7 20
80 - G3/8" Double Sides:Φ14/Thread:M12×1.75/Through ports:Φ9.2 25 10.5 10 94 74 - 3.65 25 22 36 26
100 - G3/8" Double Sides:Φ17.5/Thread:M14×2/Through ports:Φ11.3 30 13 10 114 90 - 3.65 32 27 35 26

SDA Series Compact Cylinder

Type Standard type Attach Magnet D E F G K1 L M N1
Bore Size/Symbol A B1 C A B1 C Stroke≤10 Stroke> 10
12 22 5 17 32 5 27 - 6 4 1 M3×0.5 10.2 2.88 6.3
16 24 5.5 18.5 34 5.5 28.5 - 6 4 1.5 M3×0.5 11 2.8 7.3
20 25 5.5 19.5 35 5.5 29.5 36 8 4 1.5 M4×0.7 15 2.8 7.5
25 27 6 21 37 6 34 42 10 4 2 M5×0.88 17 2.8 8
32 31.5 7 24.5 41.5 7 34.5 50 12 4 3 M6×1 22 2.8 9
40 33 7 28 43 7 36 58.5 12 4 3 M8×1.25 28 2.8 10
50 37 9 28 47 9 38 71.5 15 5 4 M10×1.5 38 2.8 10.5
63 41 9 32 51 9 42 84.5 15 5 4 M10×1.5 40 2.8 11.8
80 52 11 41 62 11 51 104 15 20 6 5 M14×1.5 45 4 14.5
100 63 12 51 73 12 61 124 18 20 7 5 M18×1.5 55 4 20.5
Bore Size/Symbol N3 O P1 P3 P4 R S T1 T2 U V W X Y
12 6 M5×0.8 Double Sides:Φ6.5/Thread:M5×0.8/Through ports:Φ4.2 12 4.5 - 25 16.2 23 1.6 6 5 - -
16 6.5 M5×0.8 Double Sides:Φ6.5/Thread:M5×0.8/Through ports:Φ4.2 12 4.5 - 29 19.8 28 1.6 6 5 - -
20 - M5×0.8 Double Sides:Φ6.5/Thread:M5×0.8/Through ports:Φ4.2 14 4.5 2 34 24 - 2.1 8 6 11.3 10
25 - M5×0.8 Double Sides:Φ6.5/Thread:M6×1.0/Through ports:Φ4.6 15 5.5 2 40 28 - 3.1 10 8 12 10
32 - G1/8" Double Sides:Φ6.5/Thread:M6×1.0/Through ports:Φ4.6 16 5.5 6 44 34 - 2.15 12 10 18.3 15
40 - G1/8" Double Sides:Φ6.5/Thread:M8×1.25/Through ports:Φ6.5 20 7.5 6.5 52 40 - 2.25 16 14 21.3 16
50 - G1/4" Double Sides:Φ6.5/Thread:M8×1.25/Through ports:Φ6.5 25 8.5 9.5 62 48 - 4.15 20 17 30 20
63 - G1/4" Double Sides:Φ6.5/Thread:M8×1.25/Through ports:Φ6.5 25 8.5 9.5 75 60 - 3.15 20 17 28.7 20
80 - G3/8" Double Sides:Φ6.5/Thread:M12×1.75/Through ports:Φ9.2 25 10.5 10 94 74 - 3.65 25 22 36 26
100 - G3/8" Double Sides:Φ6.5/Thread:M12×1.75/Through ports:Φ11.3 30 13 10 114 90 - 3.65 32 27 35 26

Other info

SDA Series Compact Cylinder

Bore(mm) 12 16 20 25 32 40 50 63 80 100
Double Action Not attach magnet 5~60 mm Every 5mm is grouped as one grade 5~85 mm Every 5mm is grouped as one grade 5~80 mm Every 5mm is grouped as one grade 100~110 mm Every 5mm is grouped as one grade 5~90 mm Every 5mm is grouped as one grade 100~130 mm Every 5mm is grouped as one grade
Attach magnet 5~50 mm Every 5mm is grouped as one grade 5~75 mm Every 5mm is grouped as one grade 5~90 mm Every 5mm is grouped as one grade 100 mm 5~90 mm Every 5mm is grouped as one grade 100~120 mm Every 5mm is grouped as one grade
Single Action Not attach magnet 5~30 mm Every 5mm is grouped as one grade 5~30 mm Every 5mm is grouped as one grade
Attach magnet 5~30 mm Every 5mm is grouped as one grade 5~30 mm Every 5mm is grouped as one grade

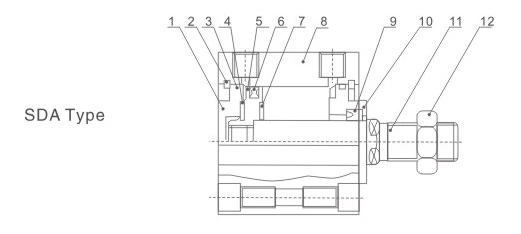

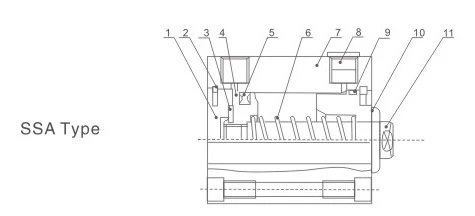

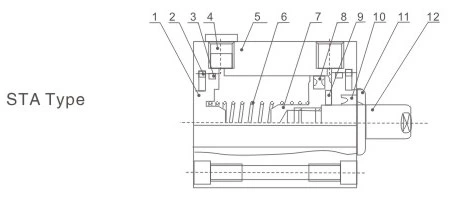

SDA Series Compact Cylinder

NO. Designation
1 Back cover
3 O-ring
5 Piston
7 Anti-crash cushion
9 Front cover seal ring
11 Piston rod
NO. Designation
2 Type C buckle ring
4 Anti-crash cushion
6 Piston O-ring
8 Barrel
10 Front cover
12 Piston Rod Nut

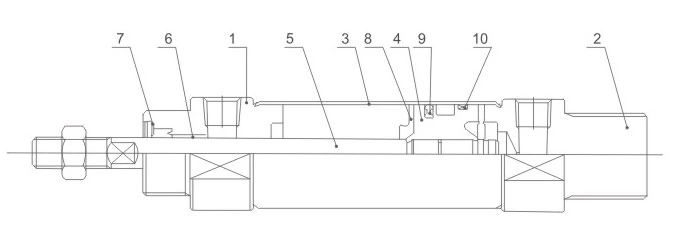

SDA Series Compact Cylinder

NO. Designation
1 Back cover
3 Anti-crash cushion
5 Piston O-ring
7 Barrel
9 Cover O-ring
11 Piston rod
NO. Designation
2 Type C buckle ring
4 Piston
6 Compressed spring
8 Silencer
10 Front cover

SDA Series Compact Cylinder

NO. Designation
1 Back cover
3 Cover O-ring
5 Barrel
7 Piston
9 Anti-crash cushion
11 Front cover
NO. Designation
2 Type C buckle ring
4 Silencer
6 Compressed spring
8 Piston O-ring
10 Frount cover seal ring
12 Piston rod
